Hatco C-12-480-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

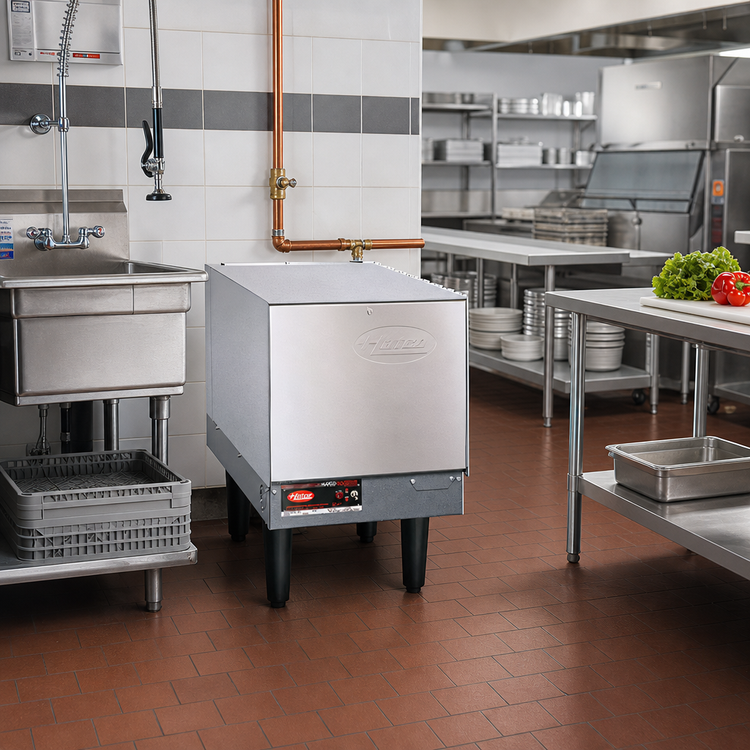

Hatco C-12 Compact Electric Booster Water Heater – Quick Ship
12 kW • 6 gal storage • 480 V / 60 Hz / 3-PhaseDeliver NSF-required 180 °F (82 °C) final-rinse water without sacrificing floor space. The Quick Ship Hatco C-12 arrives pre-plumbed and pre-wired, so you can install it next to your dishmachine and start sanitizing dishes and flatware in hours—not days.
Key advantages
- 60-second recovery: up to 69 gph at a 70 °F rise (120 gph at 40 °F).

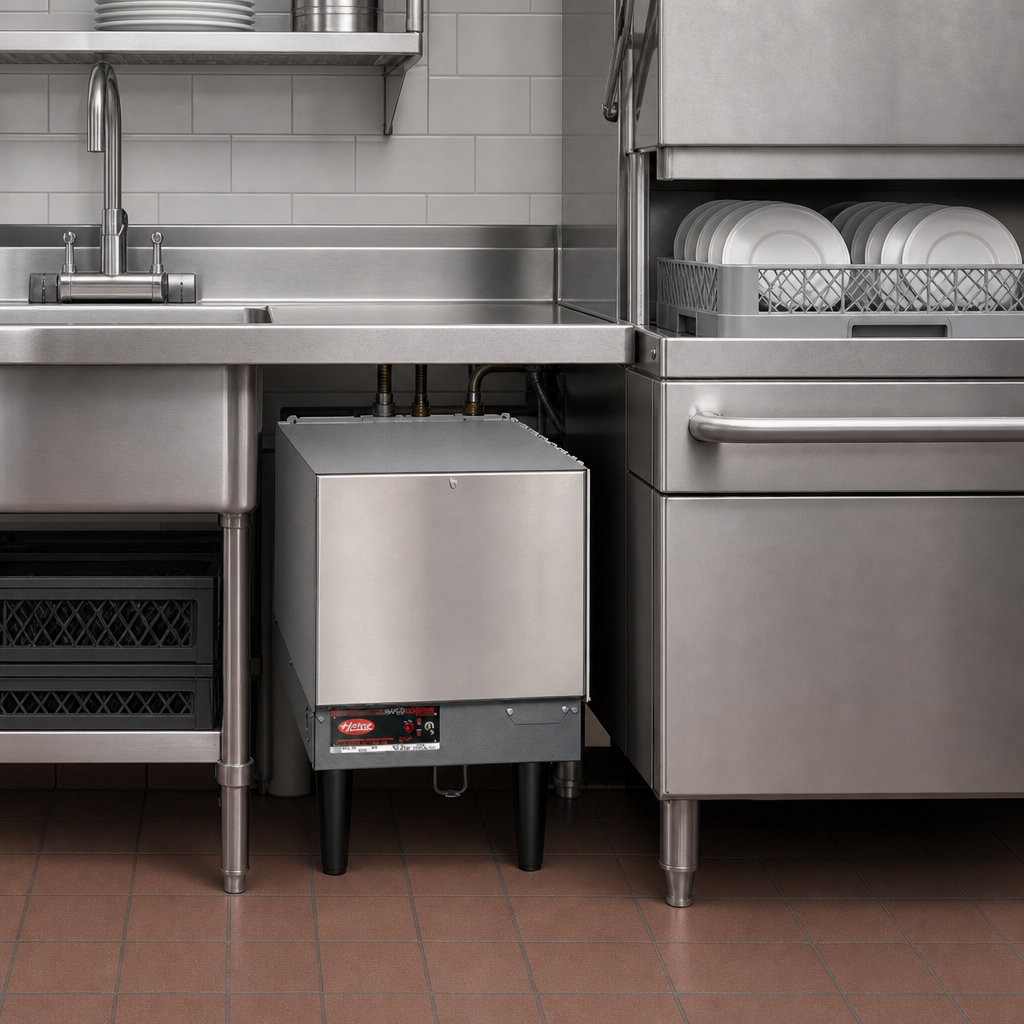

- Space saver: compact 13″ W × 21″ D footprint, only 19.8″ high with legs.
- 10-year limited warranty Castone® lined tank resists corrosion and liming.
- Stainless steel front and powder-coated silver-gray hammertone body stand up to busy kitchens.
- Factory-installed safety suite: pressure-reducing valve, temp/pressure relief, dual gauges, high-temp limit, low-water cut-off & pilot lights.
- Swing-away front panel for tool-free access to elements, probes and fuses.
- Thick fiberglass insulation cuts standby heat loss and operating cost.
- NSF & cULus listed, all-electric—no flue or venting required.
- Proudly Made in the USA.
Specifications

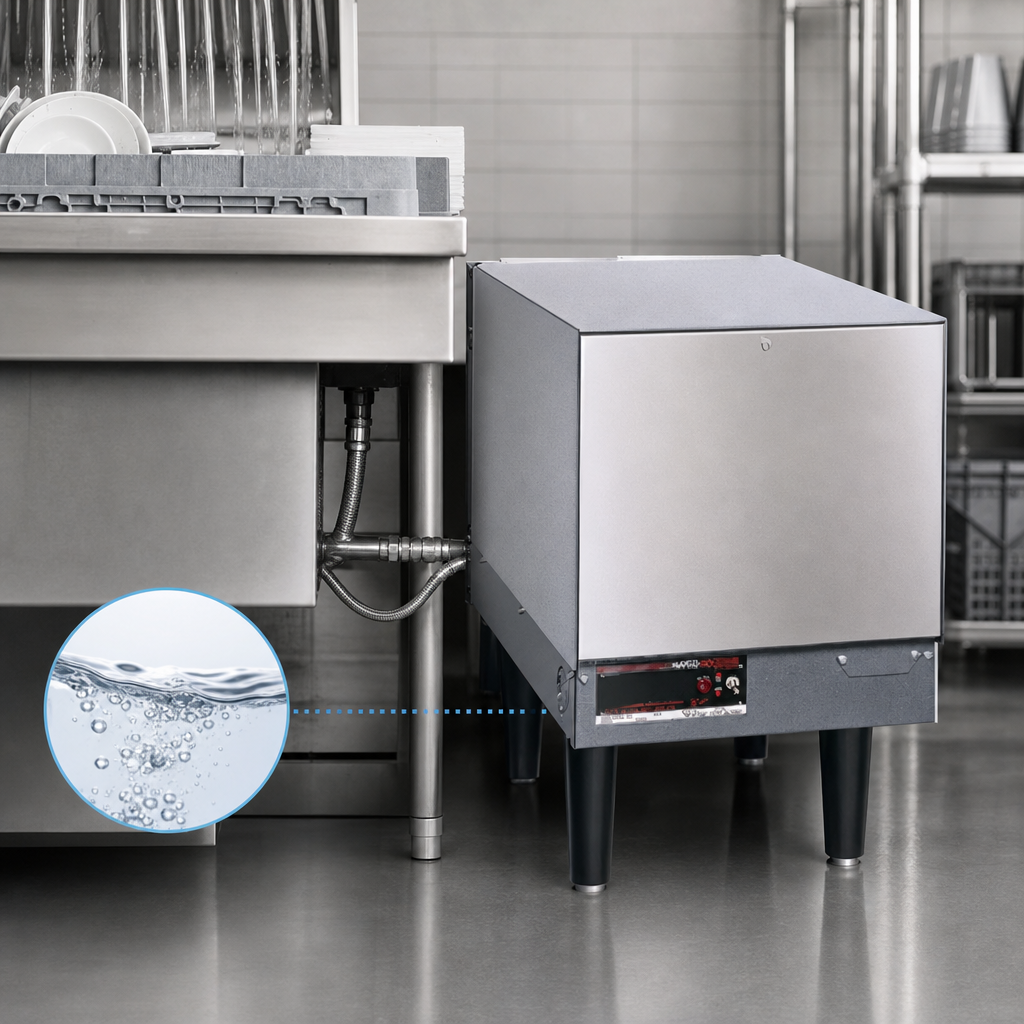

| Storage capacity | 6 gal (23 L) |
|---|---|
| Input | 12 kW |
| Electrical | 480 V / 60 Hz / 3-Phase |
| Amps (FLA) | 14.5 A |
| Recommended breaker | 20 A |
| Recovery @ 40 °F rise | 120 gph (454 lph) |
| Recovery @ 70 °F rise | 69 gph (261 lph) |
| Dimensions (W × D × H) | 13.06″ × 20.69″ (26″ inc. T/P valve) × 13.78″ body Overall height with 6″ legs: 19.78″ |
| Ship weight | Approx. 120 lb (54 kg) |
| Tank construction | Castone® cement lining |
| Exterior | Stainless front / powder-coated steel body |
| Legs | 6″ plastic, non-adjustable |
| Certifications | NSF, cULus |
Built-in controls & protection
- On/off toggle with green power indicator
- High-temperature limit with manual reset
- Calibrated immersion thermostat
- Low-water cut-off to prevent element burnout
- Dual temperature & pressure gauges for on-the-spot diagnostics
Perfect for
- Undercounter, door-type or conveyor dishwashers
- Restaurants, cafeterias & QSRs
- Hotels, schools, hospitals and more
Water harder than 3 grains per gallon (0.75 gpl) must be softened to maintain efficiency and protect warranty coverage.
Quick Ship models typically leave our warehouse within 2 business days; actual lead times may vary.
