Hatco C-12-240-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description
Hatco “Quick Ship” Compact Electric Booster Heater · 12 kW | 240 V / 3-Phase

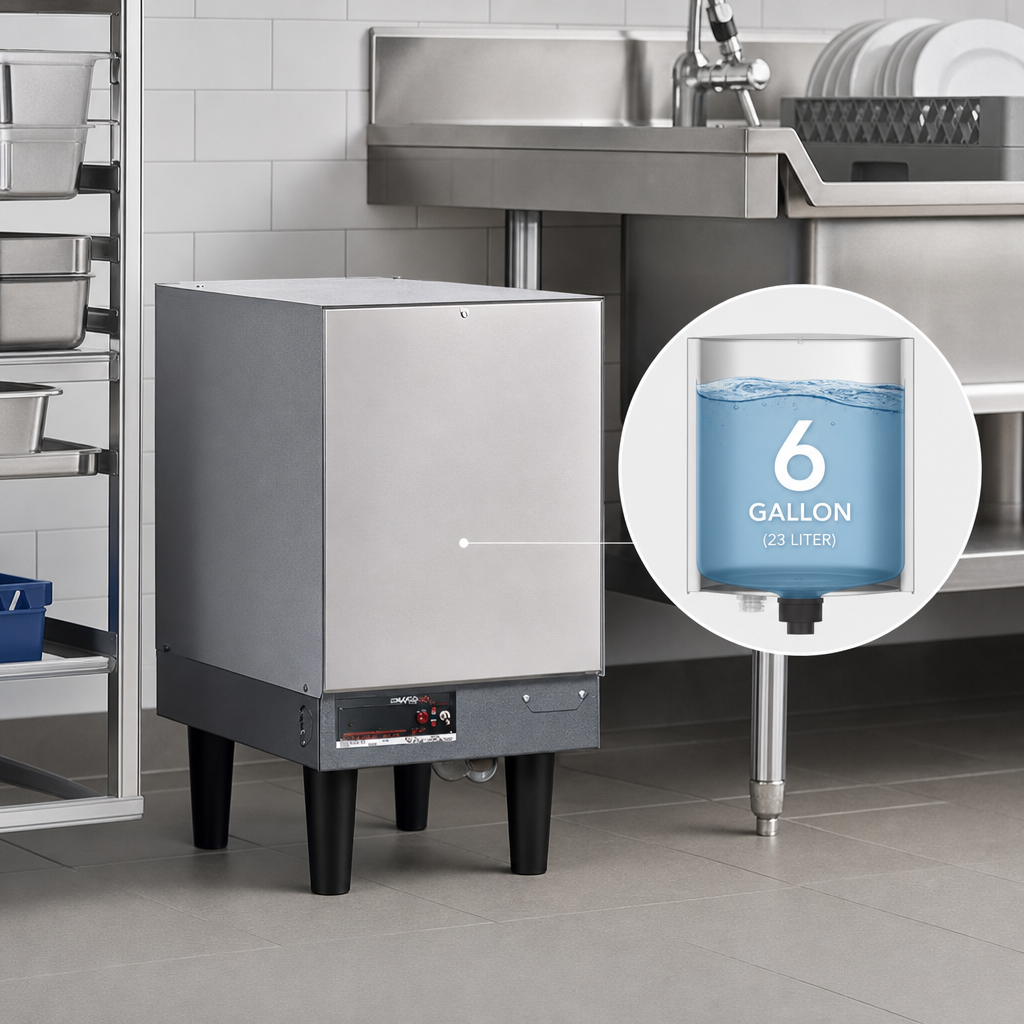

6-Gallon Castone® Tank • Delivers 180 °F Rinse Water in a Space-Saving FootprintKeep pace with high-volume dish machines—even in the tightest dish rooms. Hatco’s Quick Ship booster heater takes the proven performance of the C-Series and pairs it with a factory-set 12 kW, 240 V/3-phase configuration that usually ships out in just a few days.
Key advantages

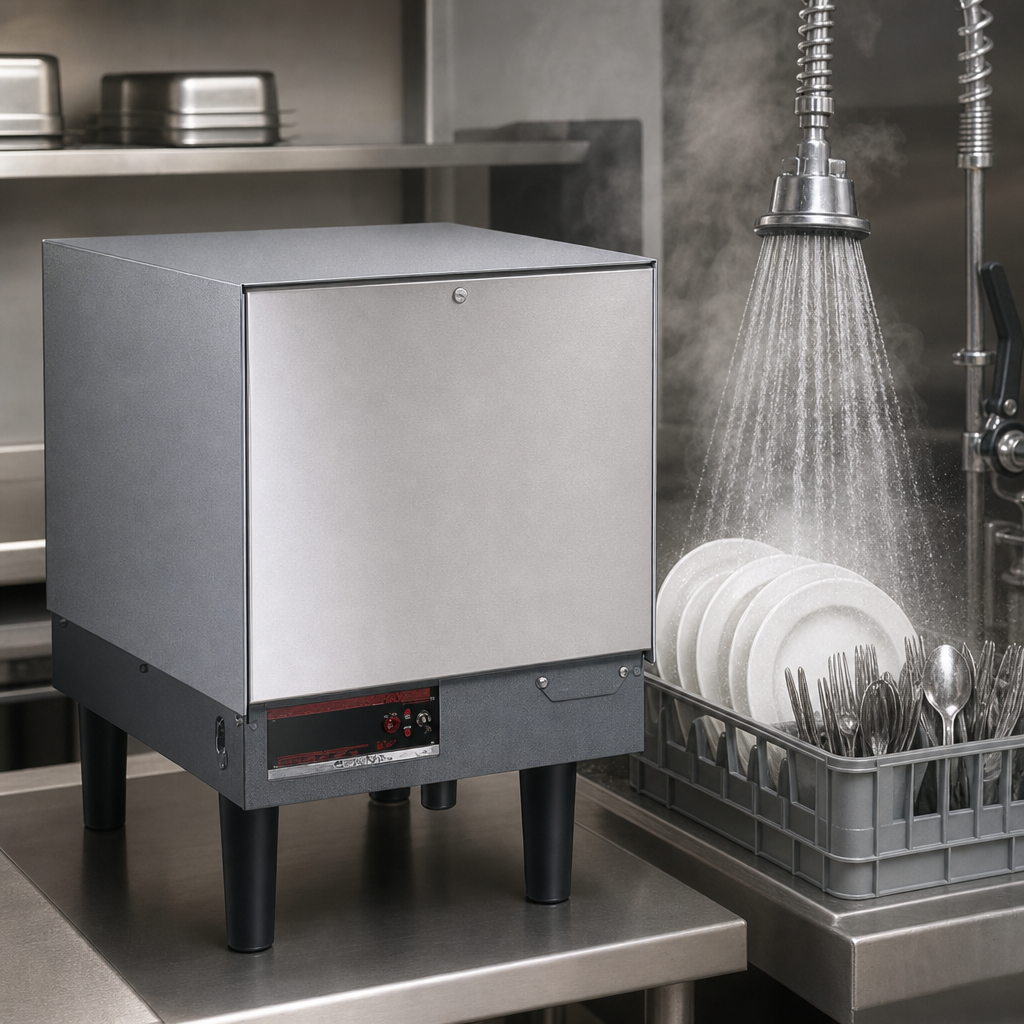

- Produces the NSF-required 180 °F (82 °C) final-rinse water for spot-free sanitizing and flash-drying.
- 6-gallon (23 L) Castone® cement-lined tank carries a 10-year limited warranty.
- Stainless steel front panel + powder-coated silver-gray hammertone body for long-lasting durability.
- Factory pre-plumbed & pre-wired with immersion thermostat, high-limit, pilot light and power switch.
- Built-in temperature/pressure relief valve, pressure-reducing valve and two gauges for safe operation.
- Low-water cut-off protects heating elements from burnout.
- Energy-saving fiberglass insulation minimizes standby heat loss.
- Swing-away front panel provides tool-free access for service.
- Mounted on 6" (152 mm) non-adjustable plastic legs—no extra stand required.
- cULus & NSF listed; proudly Made in the USA.
Performance at a glance
| Storage capacity | 6 gal | 23 L |
|---|---|
| Heating output | 12 kW (240 V, 60 Hz, 3-phase) |
| Amperage | 28.9 A |
| Recommended breaker / fuse | 40 A |
| Recovery @ 40 °F rise | 120 GPH | 454 LPH |
| Recovery @ 70 °F rise | 69 GPH | 261 LPH |
| Inlet / outlet size | 3⁄4" NPT |
| Working pressure | Up to 150 psi (1 034 kPa) |
| Overall dimensions * | 13.06" W × 20.69" D × 19.78" H |
| Shipping weight | Approx. 120 lbs (54 kg) |
| Certifications | NSF, cULus |
*Height includes 6" legs and factory-installed temperature / pressure relief valve.
Ideal for
- Door-type and under-counter commercial dishwashers
- Small cafeterias, cafés & concession stands
- Bar glass washers needing consistent 180 °F final rinse
Optional accessories (sold separately, install at time of purchase)
- Slide brackets for under-counter / dishtable mounting
- Stainless steel adjustable legs (6 – 7")
- Shock absorber to reduce water hammer
- Back-pressure relief valve
Need it fast? This Quick Ship configuration is stocked & ready to leave the factory in as little as 2–3 business days.*
*Transit times vary by carrier and destination.
