Hatco

Hatco Compact Electric Booster Heater, 6-Gallon, 12 kW, 240V, 1-Phase

SKU: C-12-240-1-QS
GTIN: 61570000969
$2,772.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

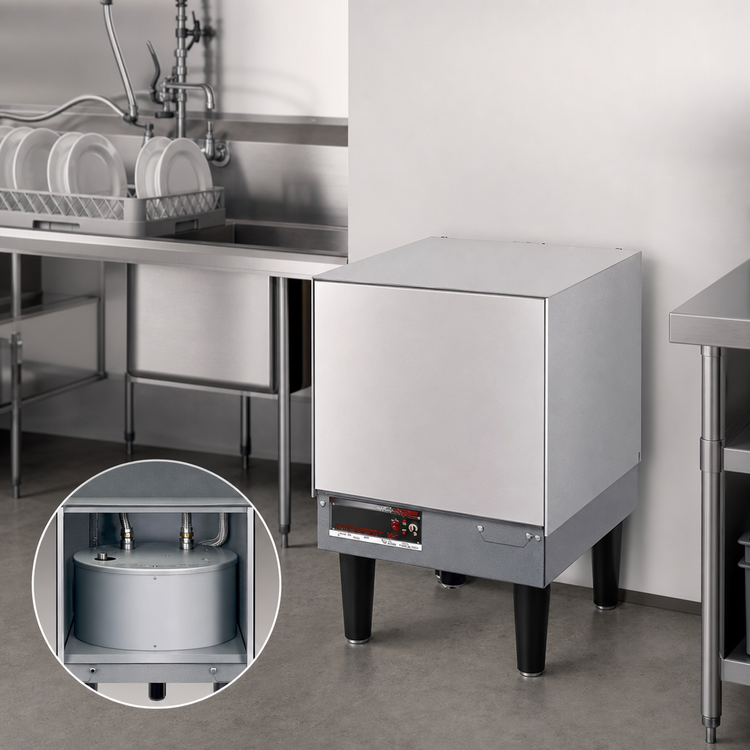

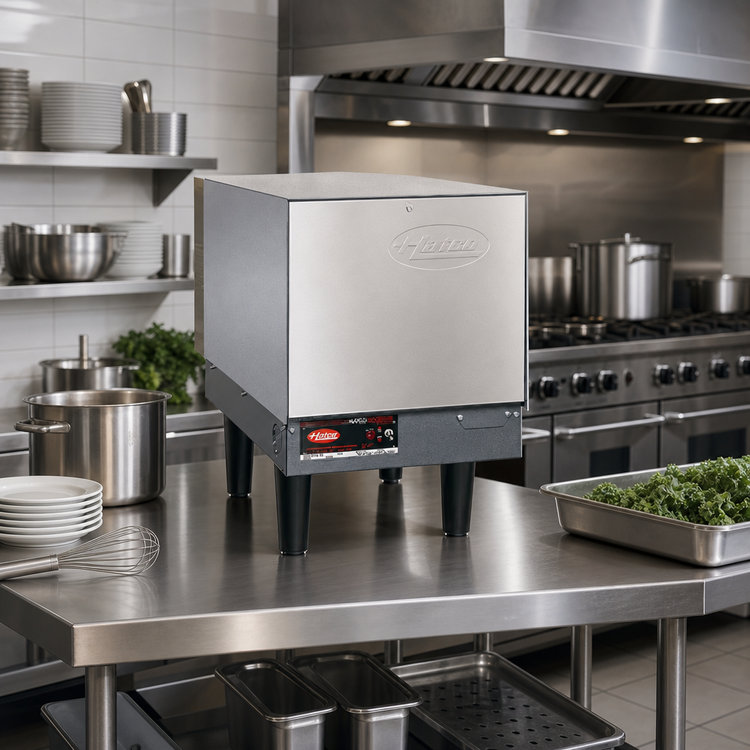

Hatco Compact Electric Booster Heater, 6-Gallon, 12 kW, 240V, 1-Phase

Stainless Steel Front Panel, Powder-Coated Body, 6-Inch Legs

Designed for busy dish rooms, this compact booster heater delivers 180°F (82°C) final-rinse water in a space-saving 6-gallon cabinet.

  • 6-gallon storage capacity keeps final-rinse water ready for high-demand dishwashing cycles.
  • 12.0 kW, 240V, 1-phase configuration matches this exact model.
  • Delivers 180°F final-rinse water with 120 gph recovery at a 40°F rise.
  • Castone-lined tank includes a 10-year limited warranty.
  • Stainless steel front panel and powder-coated silver-gray hammertone body are built for commercial kitchens.
  • Factory pre-plumbed and pre-wired construction with 6-inch legs simplifies installation.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

120.0 lb

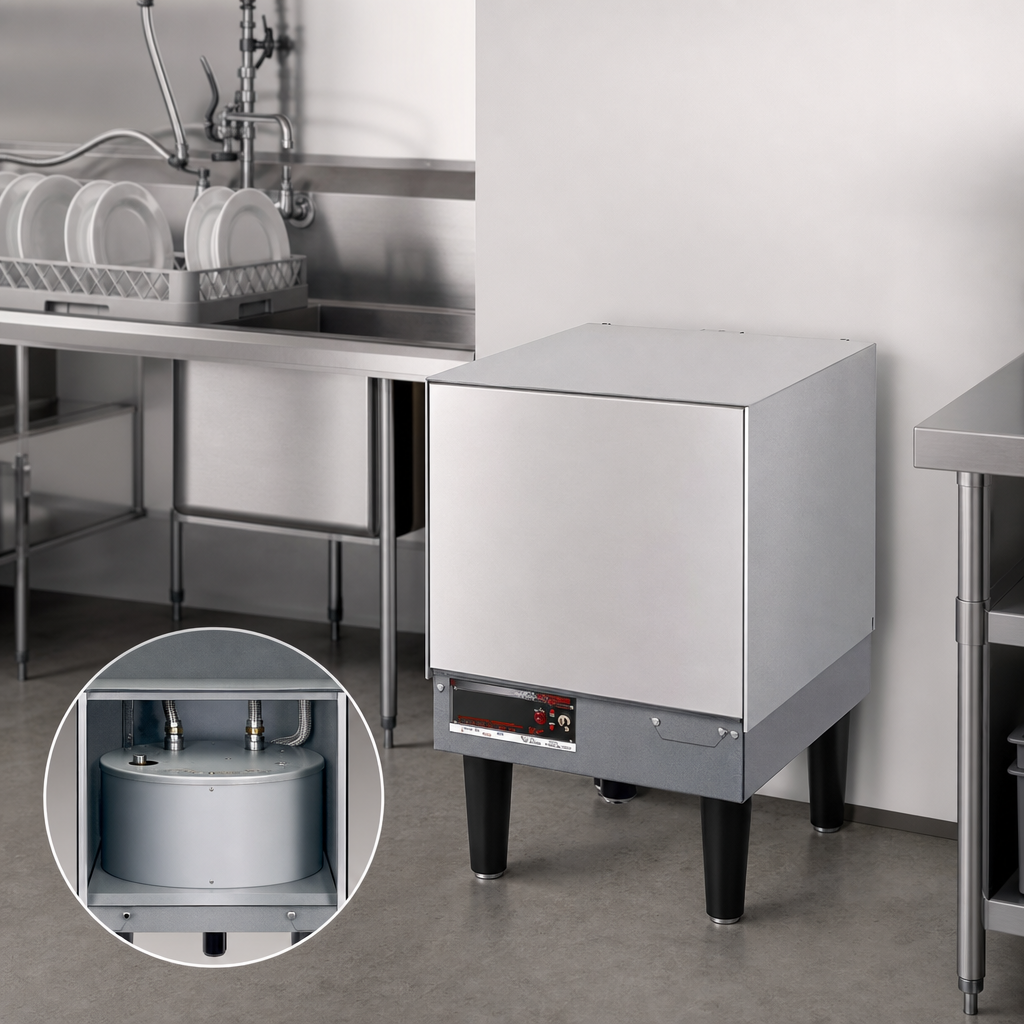

Compact 6-Gallon Storage

Space-saving cabinet provides 6 gallons of storage for dishwasher final-rinse demand.

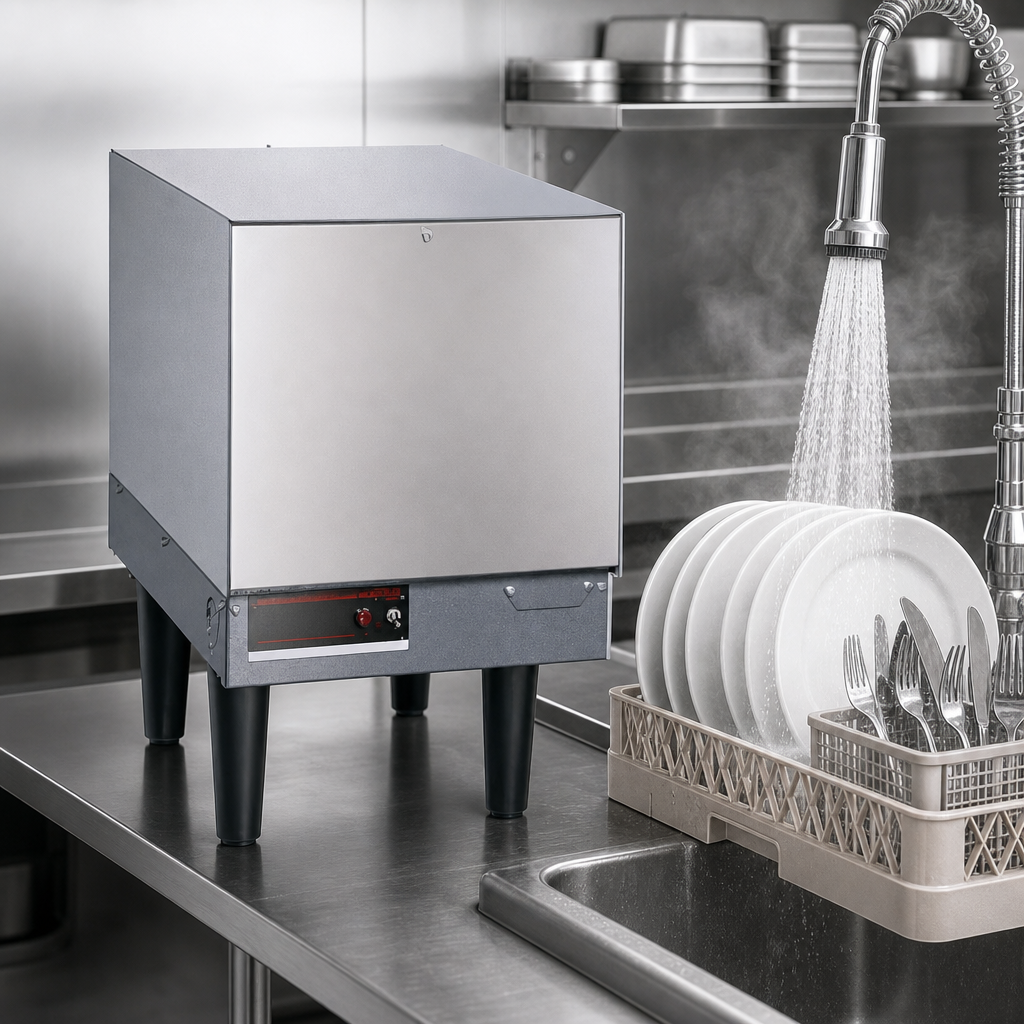

180°F Final-Rinse Output

Supplies the high-temperature rinse water needed to sanitize and flash-dry dishes and flatware.

240V, 12.0 kW Electrical Rating

Built for this specific 240-volt, single-phase configuration.

High Recovery Performance

Rated at 120 gph with a 40°F rise and 69 gph with a 70°F rise.

Castone-Lined Tank

Durable lined tank construction with a 10-year limited warranty.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Factory Pre-Plumbed and Pre-Wired

Internal plumbing and electrical components are assembled at the factory for easier installation.

Stainless Steel Front Panel

Corrosion-resistant front panel pairs with a powder-coated silver-gray hammertone body.

Easy Service Access

Swing-away front panels provide quick access to probes and elements for service.

3/4 Inch NPT Connections

Includes 3/4 Inch NPT pipe and fittings for inlet and outlet connections.

Type Booster Heater
Style Compact
Installation Type Freestanding
Capacity 6 Gallons
Controls Thermostatic
Watts 12 kW
Voltage 240 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 50 Amps
Breaker Size 70 Amps
Water Inlet Size 3/4 Inch NPT
Color Silver-Gray
Finish Powder-Coated Silver-Gray Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 120 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited tank warranty.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Quick ship PDF Download PDF Owner's manual PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

It has a 6-gallon storage capacity.
This model is rated at 12.0 kW, 240V, 1-phase, 60 Hz, with 50 amps and a 70-amp breaker size.
It is rated at 120 gph with a 40°F rise and 69 gph with a 70°F rise.
It uses 3/4 Inch NPT inlet and outlet pipe and fittings.
The unit is designed to install next to a dishwasher on 6-inch legs, and slide brackets are available for under-dishtable mounting.
The Castone-lined tank includes a 10-year limited warranty.
Yes. Incoming water over 3.0 grains of hardness per gallon must be treated and softened before use.
