Hatco Compact Electric Booster Heater, 6 Gallon, 12 kW, 208V, 3-Phase

SKU: C-12-208-3-QS
GTIN: 61570000968
$2,772.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Compact Electric Booster Heater, 6 Gallon, 12 kW, 208V, 3-Phase

Quick Ship Model with Stainless Steel Front Panel

This compact 6-gallon booster heater delivers 180°F final rinse water in a space-saving footprint for demanding dish rooms.

  • 6-gallon storage capacity in a compact footprint for tight dish room layouts.
  • Provides 180°F final rinse water to help sanitize and flash-dry dishes and flatware.
  • 12.0 kW electric operation at 208V, 3-phase.
  • Stainless steel front panel with a powder-coated silver-gray hammertone body.
  • Castone® lined tank with built-in low-water cut-off and high-temperature limit protection.
  • Factory pre-plumbed and pre-wired for easier installation and service.
  • Standard 6-inch plastic non-adjustable legs; slide brackets are available for under-dishtable mounting.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

120.0 lb

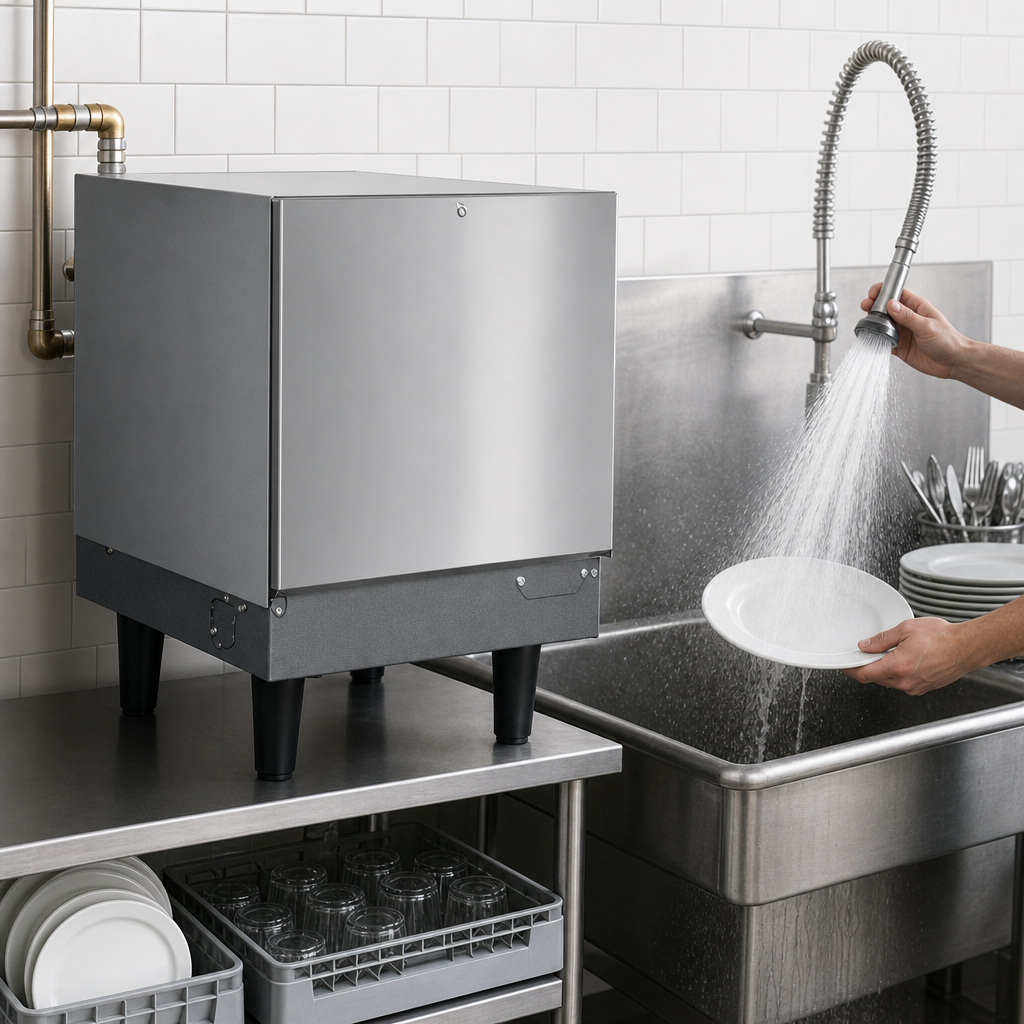

180°F Final Rinse Output

Supplies the final rinse water needed to sanitize and flash-dry dishes and flatware.

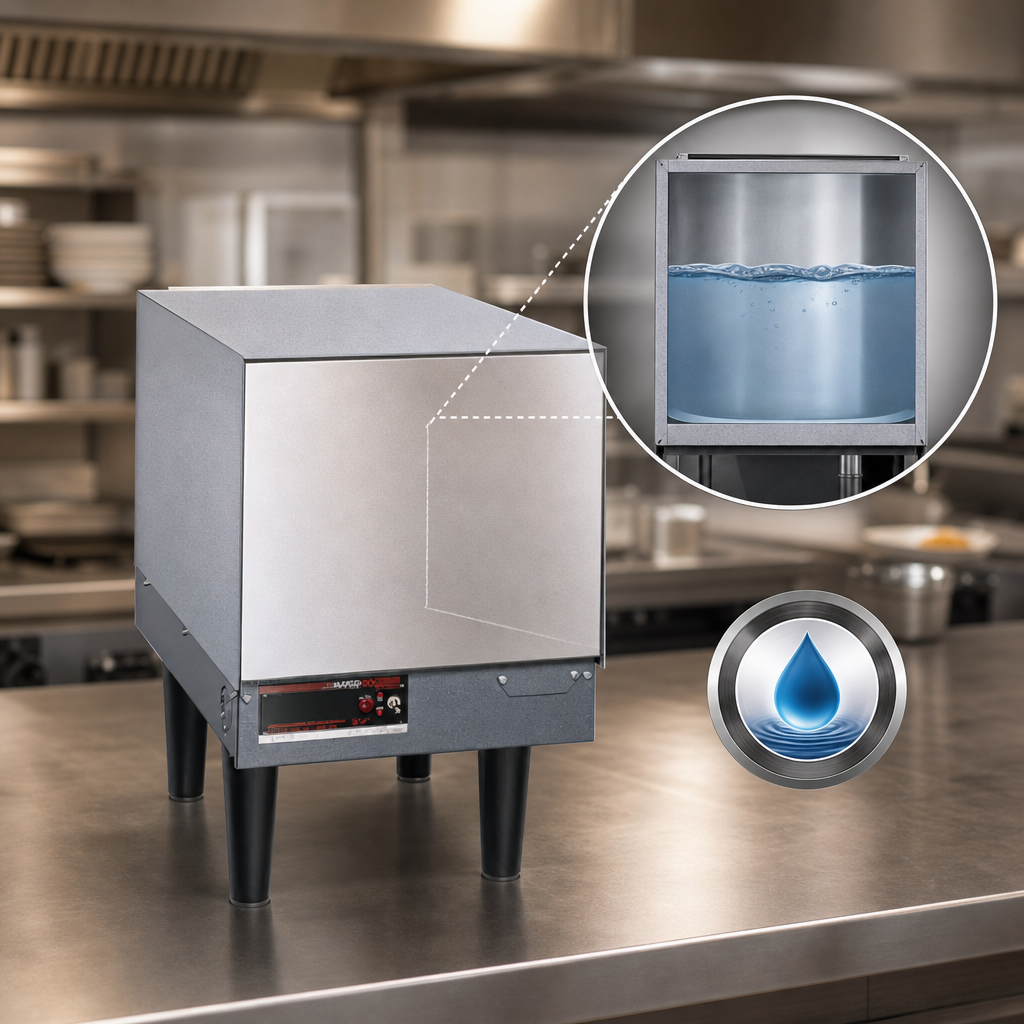

6-Gallon Storage Capacity

Compact 6-gallon tank provides hot water storage in a space-saving design.

Castone® Lined Tank

Durable lined tank construction includes a 10-year limited warranty.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Factory Pre-Plumbed and Pre-Wired

Arrives pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch.

Stainless Steel Front Panel

Stainless steel front panel paired with a powder-coated silver-gray hammertone body for a durable exterior.

Swing-Away Front Panel

Front panel swings away for quicker access to probes and elements during service.

Flexible Mounting

Standard 6-inch plastic non-adjustable legs are included, and slide brackets are available for mounting under a dishtable.

Voltage 208 Volts
Amps 33.4 Amps
Watts 12 kW
Hertz 60 Hz
Phase 3-Phase
Breaker Size 50 Amps
Capacity 6 Gallons
Water Connection Required
Water Inlet Size 3/4 Inch NPT
Type Booster Heater
Style Compact
Installation Type Freestanding
Finish Powder-Coated Silver-Gray Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 120 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited tank warranty

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Catalog brochure PDF Download PDF Quick ship PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It provides 180°F final rinse water for sanitizing and flash-drying dishes and flatware.
This model operates at 208 volts, 60 Hz, 3-phase, and 12.0 kW.
The unit has a 6-gallon storage capacity.
It includes 6-inch plastic non-adjustable legs, and slide brackets are available for under-dishtable mounting.
Incoming water above 3.0 grains of hardness per gallon should be treated and softened before supplying the booster heater.
The Castone® lined tank includes a 10-year limited warranty.
