Hatco Compact Electric Booster Water Heater, 6 Gallon, 12 kW, 208V, Single-Phase
Hatco Compact Electric Booster Water Heater, 6 Gallon, 12 kW, 208V, Single-Phase
Space-Saving Compact Design with Castone® Lined Tank
A compact booster heater that keeps dishwashers supplied with 180°F final-rinse water while taking up minimal space.
- 6-gallon storage capacity supports dishwasher final-rinse demand in a compact footprint.
- 12.0 kW electric operation at 208V and 1-phase for commercial dishroom use.
- Delivers 180°F (82°C) rinse water to help sanitize and flash-dry dishes and flatware.
- Castone® lined tank includes a 10-year limited warranty and helps protect the tank.
- Factory pre-plumbed and pre-wired with built-in safety controls for easier installation.
- Stainless steel front panel, powder-coated silver-gray hammertone body, and 6" non-adjustable legs.
- Includes low-water cut-off, high-temperature limit control, pressure reducing valve, and T/P relief valve.
Overall Dimensions:
13.0"W x 20.75"D x 19.75"HProduct Weight:

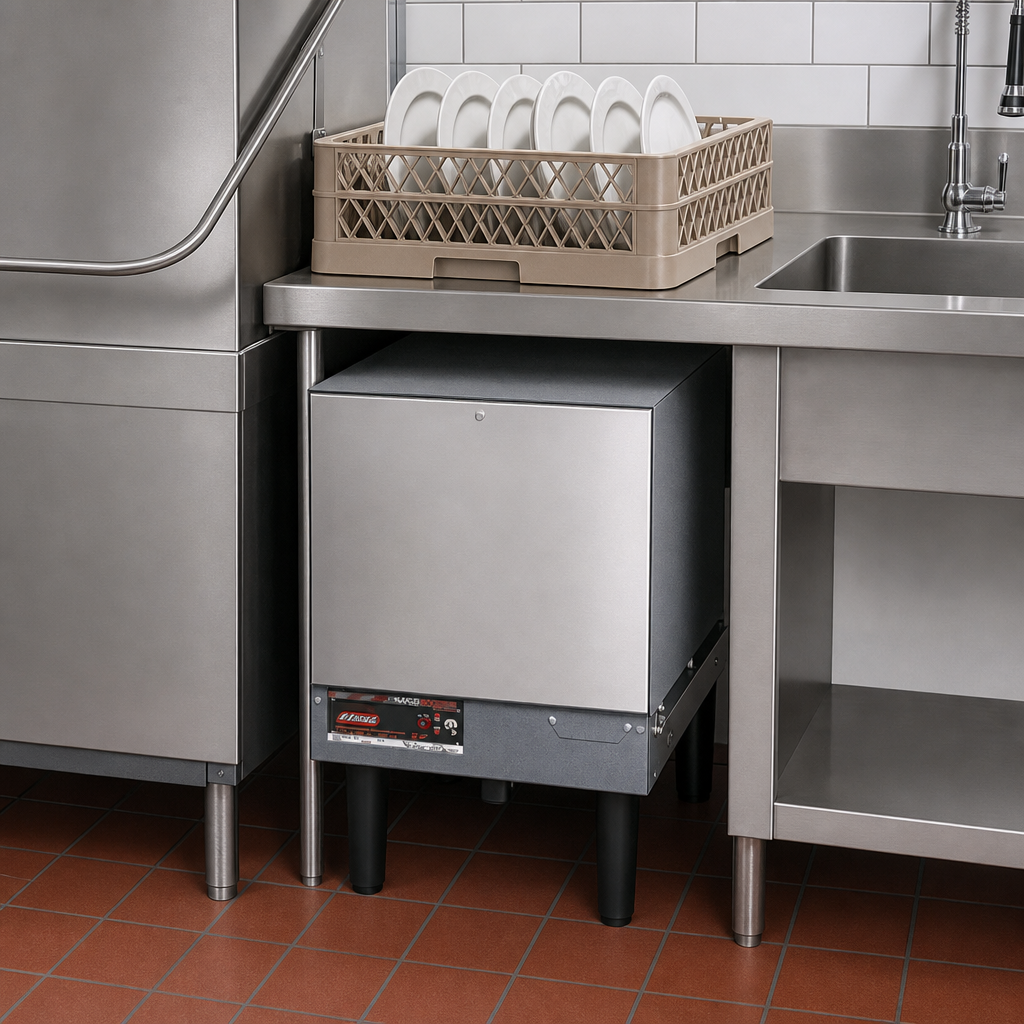

120.0 lbCompact Space-Saving Design
Designed to install next to the dishwasher; slide brackets are available for under-dishtable mounting.

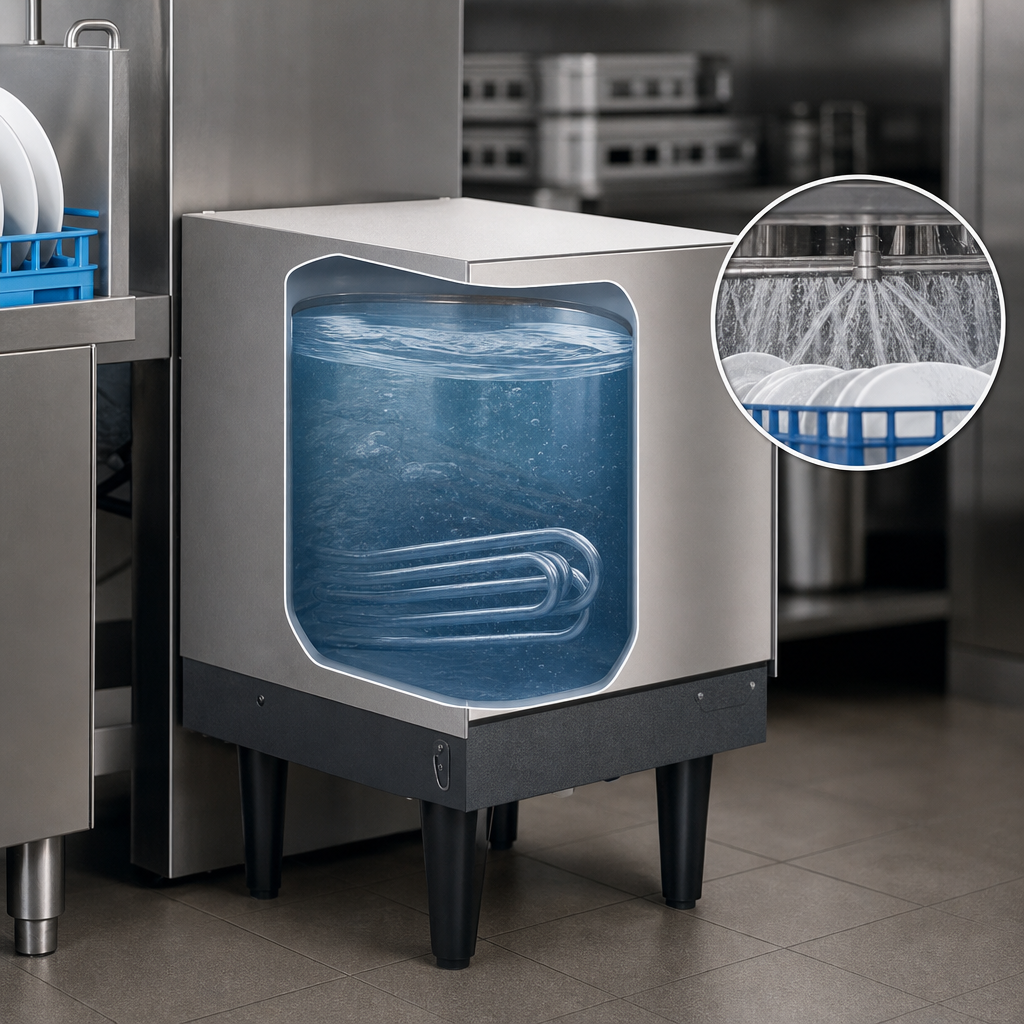

6-Gallon Storage Capacity
Provides hot-water storage for final-rinse sanitation cycles.
180°F Final-Rinse Output
Supplies the 180°F (82°C) rinse water needed to sanitize and flash-dry dishes and flatware.
Castone® Lined Tank
Tank lining helps protect the heater and is covered by a 10-year limited warranty.
Factory Pre-Plumbed and Pre-Wired
Internal plumbing and electrical prep simplify installation and startup.
Built-In Safety Package
Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.
Durable Exterior Construction
Features a stainless steel front panel, powder-coated silver-gray hammertone body, and 6" plastic non-adjustable legs.
Service-Friendly Access
Swing-away front panels provide easier access to probes, elements, control fuses, and transformer components.
Heat-Loss Reduction
Fiberglass insulation helps minimize heat loss during operation.
Plumbing Connections
Includes 3/4" NPT pipe and fittings for inlet and outlet connections.
Certifications & Compliance
Warranty & Protection
10-year limited warranty on the Castone® lined tank.
