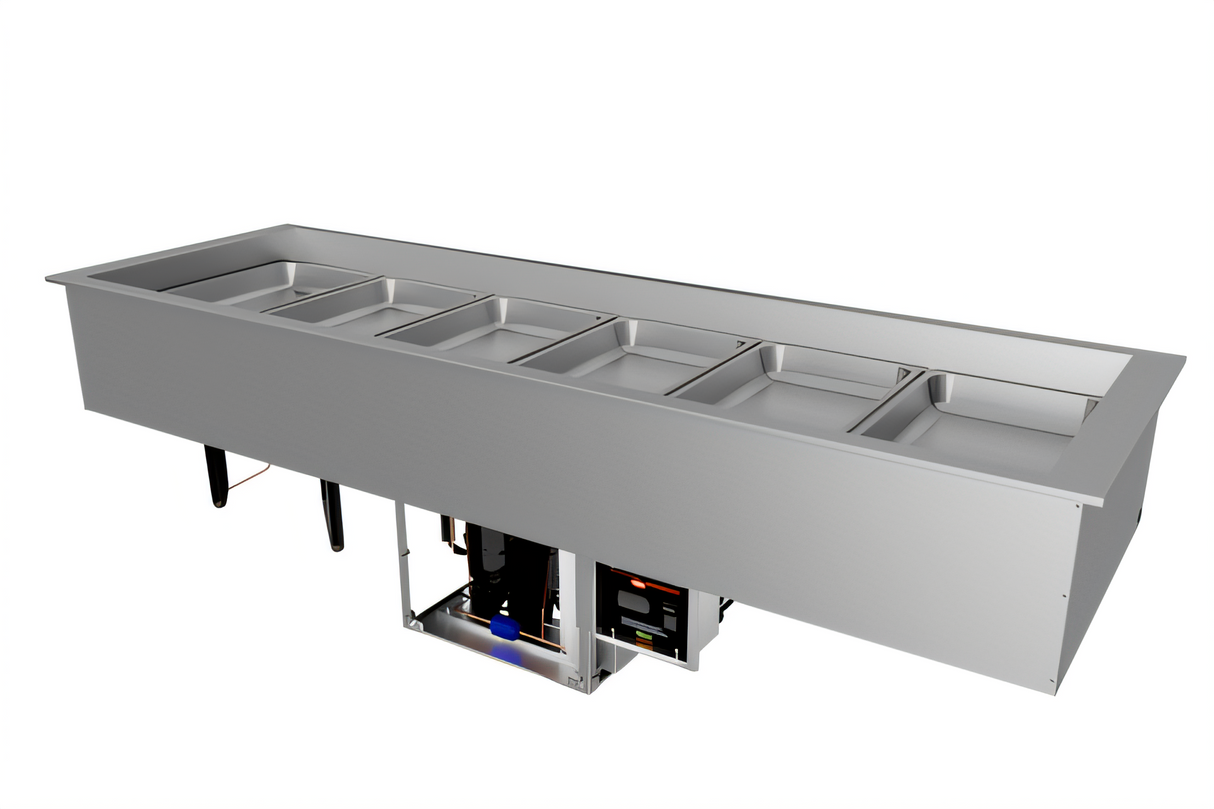

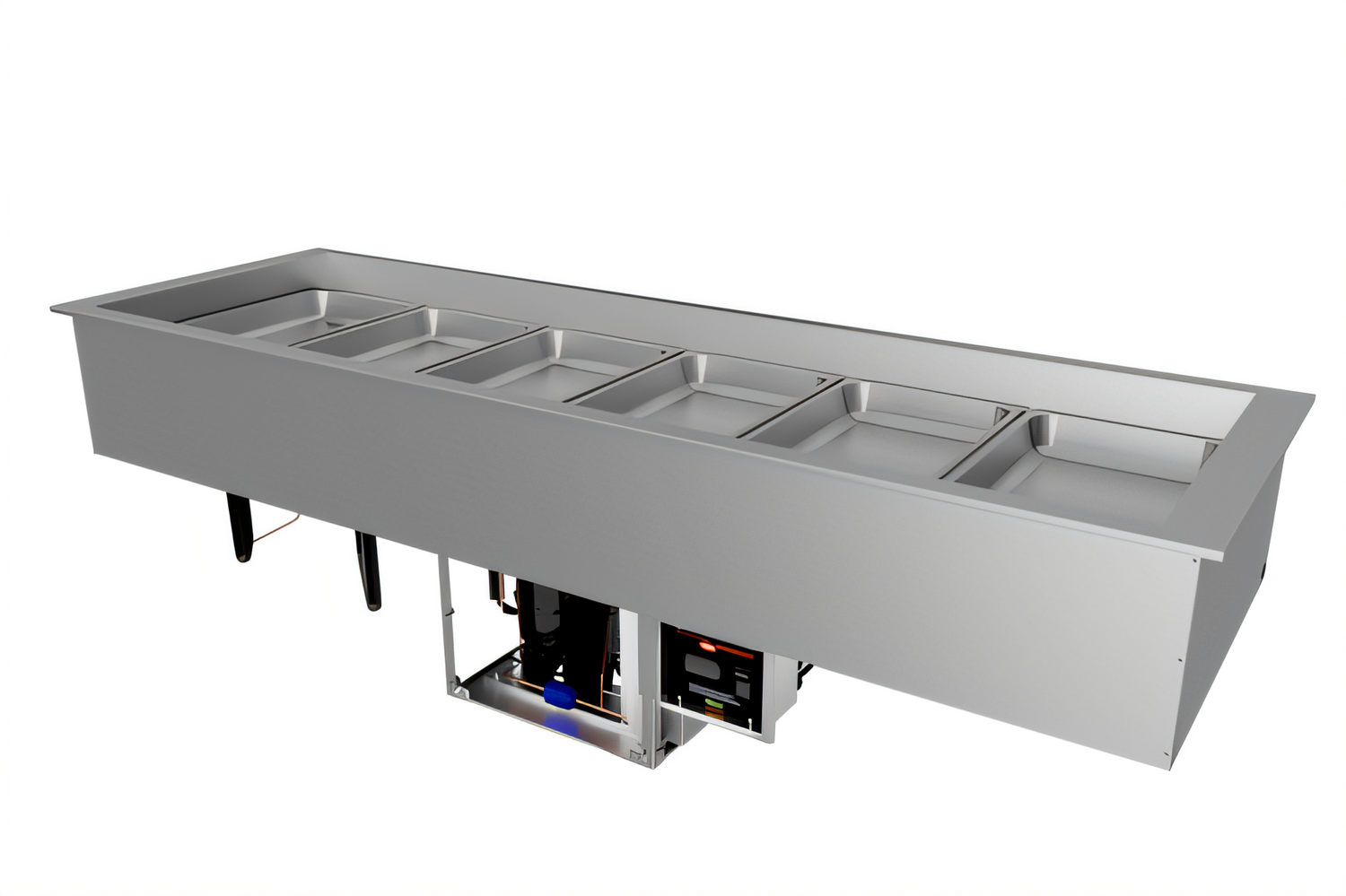

Hatco CWBP-6 Drop-In Refrigerated Cold-Well Bundle

6-Pan | R-290 Refrigerant | 120 V | Made in USA

Turn any counter into a high-capacity, self-service cold station. This bundle pairs Hatco’s top-mount CWBP-6 refrigerated well with a crystal-clear sneeze guard and provisions for twin HL5-36NW light bars—giving you everything you need to keep product safe, visible, and sales-ready.

Key Benefits
  • Six full-size (12 × 20 in) pan capacity—ideal for salad, deli, or grab-and-go lines.
  • NSF 7 component-approved cold-wall design blankets food with cold air without drying it out.
  • Eco-friendly R-290 refrigerant and 1/2 HP compressor deliver reliable chilling with a reduced carbon footprint.
  • Unique angled interior walls maximize cold-air coverage and improve product visibility.
  • Advanced electronic temperature controller (mounts up to 4 ft from the condensing unit) for pinpoint accuracy and automatic defrost.
  • Fully insulated aluminized-steel housing with stainless-steel bezel retains cold and matches Hatco heated wells for a cohesive look.
  • Maintenance-friendly design: fixed condenser, sight glass, service valves, filter/dryer, and 1 in brass drain.
  • Included tempered-glass sneeze guard protects product while keeping the display open and inviting.
  • Optional pair of HL5-36NW strip lights (warm-white) bathes food in appetizing, shadow-free illumination.
  • cULus listed and proudly built in Milwaukee, Wisconsin.
Technical Specifications
Model CWBP-6 (top-mount cold wall)
Pan Capacity 6 full-size hotel pans (12 × 20 in)
Overall Dimensions 84 in W × 27 in D × 25.5 in H
(2134 × 686 × 648 mm)
Required Cut-Out Width 82.125–83 in (2086–2108 mm)
Depth 25.19–26 in (640–660 mm)
Horsepower 1/2 HP
Electrical 120 V / 60 Hz / 1-phase, 9.3 A, NEMA 5-15P
Refrigerant / Charge R-290, 5.2 oz (147 g)
Heat Rejection 3,375 BTU/hr (at 75 °F ambient)
Certifications cULus, NSF 7 component
Country of Origin USA
What’s Included
  • Hatco CWBP-6 refrigerated drop-in well with electronic control module
  • (6) Pan support bars for full-size pans
  • Factory-installed 1 in drain assembly
  • Tempered-glass sneeze guard (style selected above)
  • Installation & Operation manual
  • (2) HL5-36NW warm-white light bars – optional add-on

• Condensing unit orientation is fixed; do not rotate during installation.
• Controller must not be mounted over the condenser coil.
• Observe local codes for drain connections and refrigeration servicing.

R-290 Refrigerant: This unit contains a flammable hydrocarbon refrigerant. Installation and service must be performed by qualified personnel following all applicable safety regulations.

Overall Dimensions:

84.0"W x 27.0"D x 25.5"H

Product Weight:

292.0 lb
Manufacturer Hatco
Certifications ["cULus", "Made in USA"]
Height 25.5in
Width 84.0in
Depth 27.0in
Shipping Weight 292.0lbs
Style self-contained refrigeration
Layout straight
Pan Size full-size (12" x 20")
Pan Qty 6-pan
Specifications BUNDLE: COLD WELL DROP-IN, SNEEZE GUARD AND LIGHT. Drop-in refrigerated well, (6) pan size, includes: sneeze guard as selected below and optional (2) HL5-36NW., (6) pan size, top mount, electronic temperature control, pan support bars for full-size pans, condenser unit (cannot be rotated), sight glass, service valves, dryer/filter, insulated with drain, aluminized steel housing, stainless steel bezel, 1/2 HP, 120v/60/1-ph, NEMA 5-15P, R-290 refrigerant, cULus, Made in USA
