Hatco

Hatco B-CWBP-4-R290 Steam Tables & Food Wells

SKU: B-CWBP-4-R290
$6,027.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hatco New Arrivals Restaurant Equipment Steam Tables & Food Wells

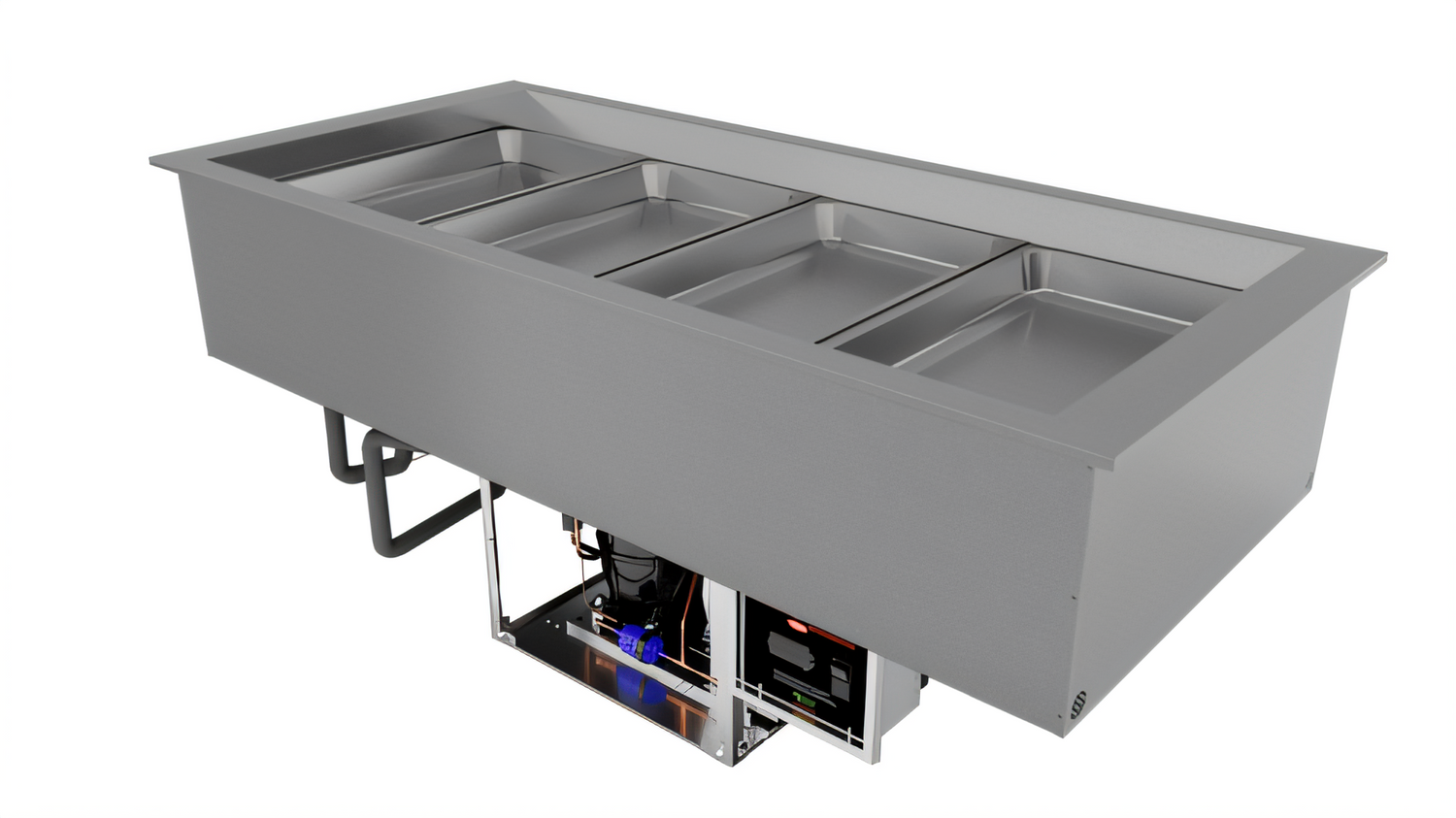

Hatco CWBP-4 Drop-In Cold Well Bundle – 4-Pan

Complete with curved sneeze guard & optional 54" HL5-54NW light bar

Turn any counter into a high-impact, self-serve chilled station. This factory-assembled bundle teams Hatco’s energy-efficient CWBP-4 refrigerated well with a matching sneeze guard and optional warm-white light, keeping salads, desserts and grab-n-go favorites safely cold while putting them in the best possible light.

Bundle At-a-Glance

  • CWBP-4 top-mount cold well – holds four 12 × 20" full-size pans (pans not included)
  • Curved tempered-glass sneeze guard for customer protection and product visibility
  • Optional Hatco HL5-54NW 54" overhead light bar for brilliant, low-heat illumination
  • Self-contained refrigeration with single 120 V plug – no remote compressor required
  • Eco-friendly R-290 refrigerant plus automatic electronic defrost
  • Made in the USA  •  cULus listed  •  NSF 7 component compliant

Key Performance Features

  • Cold-Wall Advantage: Hatco’s angled inner walls blanket product in cold air, holding foods at consistent, moisture-retaining temperatures without drying them out.
  • Precision Control: Remote-mount electronic controller (up to 4 ft/1219 mm from coil) lets you dial in exact set points and initiates auto-defrost cycles at user-defined intervals.
  • Robust Construction: Aluminized steel housing, stainless steel bezel and 1/3 HP compressor with service valves, sight glass and dryer/filter for simplified maintenance.
  • Fast Sanitation: Smooth interior surfaces, pan support bars and a 1" brass drain make clean-up quick at shift’s end.
  • Plug-and-Play Install: Ships insulated and gasketed; drops into a 56–57" × 25–26" cut-out and plugs into a standard NEMA 5-15 receptacle.

Technical Specifications

Model CWBP-4 Refrigerated Drop-In Well
Pan Capacity 4 full-size 12" × 20" pans (6" deep max.) or fractional equivalents
Overall Dimensions 58" W × 27" D × 25.5" H  (1473 × 686 × 648 mm)
Counter Cut-Out 56.125–57" W × 25.19–26" D
Well Depth 12" (305 mm)
Compressor 1/3 HP, self-contained (cannot be rotated)
Electrical 120 V / 60 Hz / 1-ph, 6.5 A, 440 W, NEMA 5-15P plug
Refrigerant R-290 (factory charge 4.6 oz / 130 g)
Total Heat Rejection 2,485 BTU/hr
Shipping Weight Approx. 211 lb (96 kg)
Included Hardware Pan support bars, remote control box, 1" brass drain assembly

Certifications & Warranty

  • cULus safety certified
  • NSF 7 component recognized for refrigerated holding
  • Ecoization™ Naturally – environmentally friendly R-290 refrigerant
  • Standard 1-year parts & labor warranty
  • Optional additional 4-year compressor parts warranty (select at purchase)

Images may show optional accessories and food pans, which are sold separately.

Important: Unit contains flammable R-290 refrigerant. Install and service per Hatco instructions and local codes.

Overall Dimensions:

58.0"W x 27.0"D x 25.5"H

Product Weight:

211.0 lb
Manufacturer Hatco
Certifications ["cULus", "Made in USA"]
Height 25.5in
Width 58.0in
Depth 27.0in
Shipping Weight 211.0lbs
Layout straight
Pan Qty 4-pan
Pan Size full-size (12" x 20")
Style self-contained refrigeration
Specifications BUNDLE: COLD WELL DROP-IN, SNEEZE GUARD AND LIGHT. Drop-in refrigerated well, (4) pan size, includes: sneeze guard as selected below and optional HL5-54NW., (4) pan size, top mount, electronic temperature control, pan support bars for full-size pans, condenser unit (cannot be rotated), sight glass, service valves, dryer/filter, insulated with drain, aluminized steel housing, stainless steel bezel, 1/3 HP, 120v/60/1-ph, NEMA 5-15P, R-290 refrigerant, cULus, Made in USA

Certifications & Compliance

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Hl5 operator manual PDF Download PDF Cwbp operator manual PDF Download PDF Gr5 spec sheet PDF Download PDF Gr5 operator manual PDF Download PDF Hl5 spec sheet PDF Download
