Hatco Cold Well Bundle – 3-Pan Refrigerated Drop-In with Sneeze Guard & LED Light
Includes CWBP-3 Cold Wall Well, curved sneeze guard & HL5-42NW light barCreate a show-stopping, food-safe presentation in one turnkey package. This Hatco bundle pairs the industry-leading CWBP-3 R-290 refrigerated well with a crystal-clear sneeze guard and energy-saving LED lighting—perfect for salad, deli, dessert or grab-and-go service lines.
Why You’ll Love It
- 3 full-size pan capacity—top-mount design accepts standard 12 × 20 in pans on included support bars.
- Cold-wall refrigeration with eco-friendly R-290 keeps product at safe 33-40 °F* without drying it out.
- Angled inner walls blanket food with chilled air for uniform temperatures and maximum visibility.
- Advanced electronic controller (remote-mount up to 4 ft) features auto-defrost for hassle-free operation.
- Curved tempered-glass sneeze guard protects guests while giving them a crystal-clear view of your offerings.
- HL5-42NW warm-white LED bar floods the well with appetizing light using a fraction of the energy of halogens.
- 1 in brass drain, sight glass, service valves & filter-dryer simplify cleaning and maintenance.
- Aluminized steel housing with stainless bezel coordinates with Hatco heated wells for a cohesive serving line.
- cULus listed, NSF-7 component recognized & proudly Made in the USA.
What’s Included

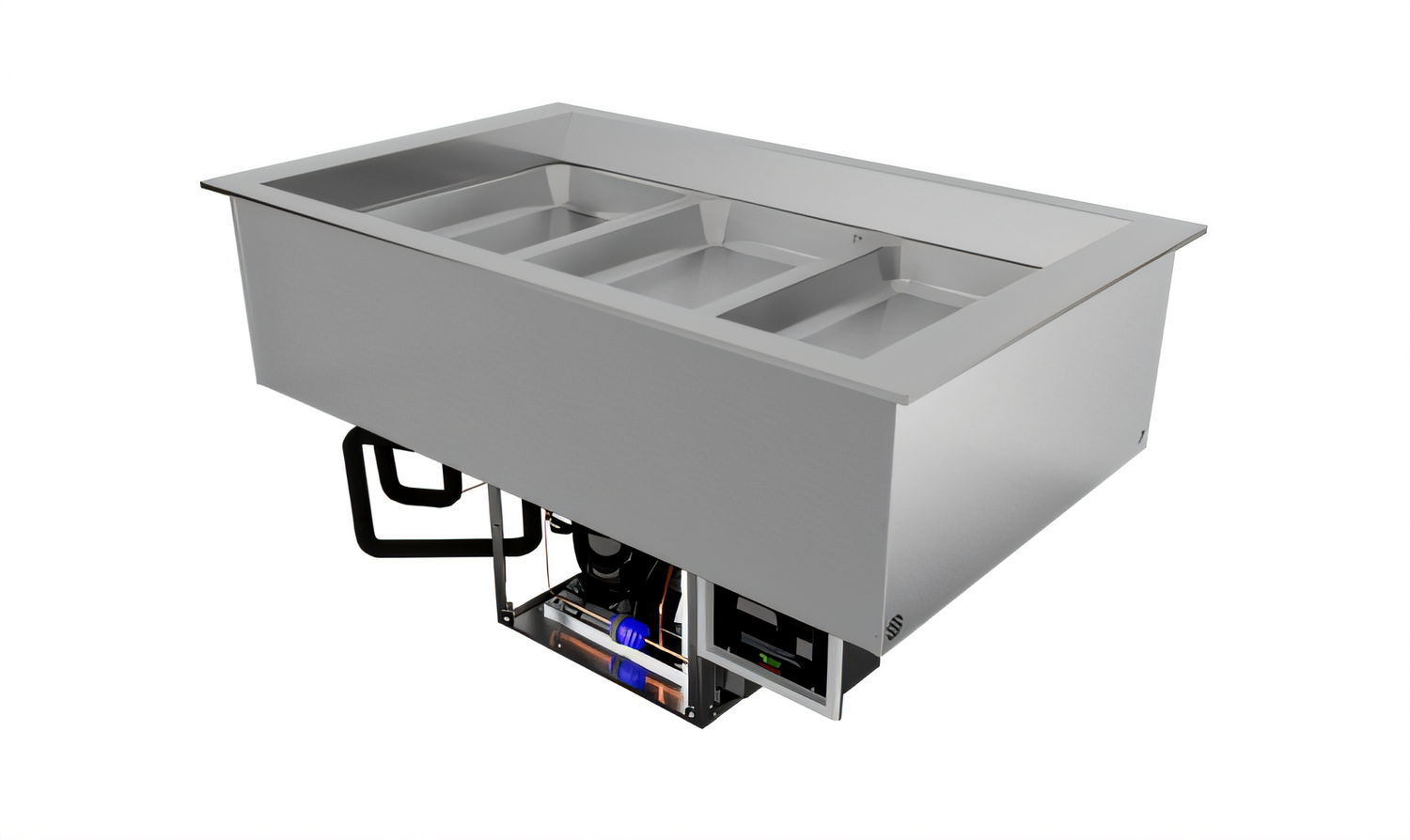

- Hatco CWBP-3 refrigerated drop-in well
- Factory-matched curved sneeze guard
- Hatco HL5-42NW LED light bar with remote control enclosure
- Pan support bars for three full-size pans
Technical Specifications
| Pan Capacity | 3 × Full-size (12 × 20 in) hotel pans |
|---|---|
| Overall Dimensions | 45 in W × 27 in D × 25.5 in H (well depth 12 in) |
| Counter Cut-Out | 43.125–44 in W × 25.19–26 in D |
| Compressor | 1/5 HP, self-contained (condensing unit cannot be rotated) |
| Electrical | 120 V / 60 Hz / 1-ph, 345 W, 5.2 A, NEMA 5-15P cord & plug |
| Refrigerant | R-290 (factory charge 4.8 oz) |
| Total Heat Rejection | 1,921 BTU /hr |
| Shipping Weight | Approx. 173 lb (78 kg) |
| Certifications | cULus, NSF-7 component |
*Holding temperature will vary with ambient conditions and food load. Condensing unit requires adequate ventilation; install drain plumbing per local codes.
Important: Unit ships with a NEMA 5-15P plug and must be connected to a dedicated 120 V/15 A circuit.
$5,539.20
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Hatco B-CWBP-3-R290 refrigerated drop-in cold well bundle with sneeze guard and optional HL5-42NW light — 3-pan top-mount unit with electronic temperature control, full-size pan support bars, built-in condenser (non-rotatable), sight glass, service valves, dryer/filter and insulated drain. Durable aluminized steel housing with stainless steel bezel, 1/5 HP, 120V, R-290 refrigerant, cULus certified and Made in USA — ideal for safe, efficient chilled food display in cafeterias and buffet lines.
Manufacturer
Hatco
Certifications
cULus, Made in USA
Height
25.5in
Width
45.0in
Depth
27.0in
Shipping Weight
173.0lbs
Layout
straight
Style
self-contained refrigeration
Pan Size
full-size (12" x 20")
Pan Qty
3-pan
Specifications
BUNDLE: COLD WELL DROP-IN, SNEEZE GUARD AND LIGHT. Drop-in refrigerated well, (3) pan size, includes: sneeze guard as selected below and optional HL5-42NW., (3) pan size, top mount, electronic temperature control, pan support bars for full-size pans, condenser unit (cannot be rotated), sight glass, service valves, dryer/filter, insulated with drain, aluminized steel housing, stainless steel bezel, 1/5 HP, 120v/60/1-ph, NEMA 5-15P, R-290 refrigerant, cULus, Made in USA
