Hatco 3CS2-6 Hydro-Heater Commercial Faucets & Plumbing
Description

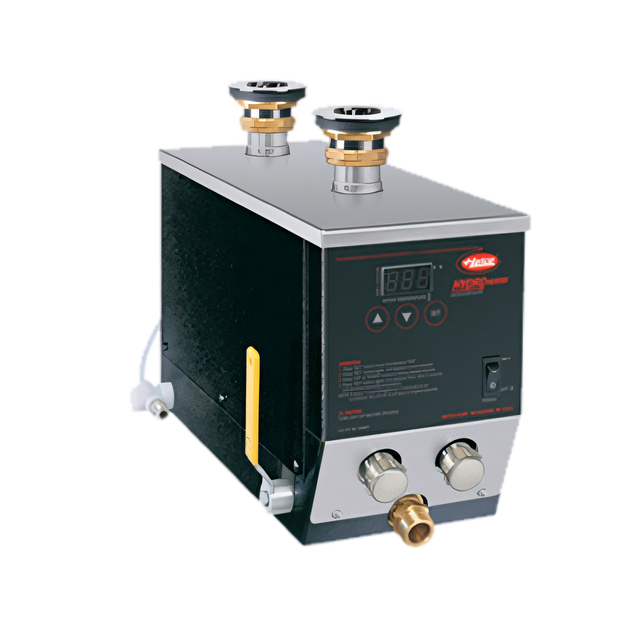

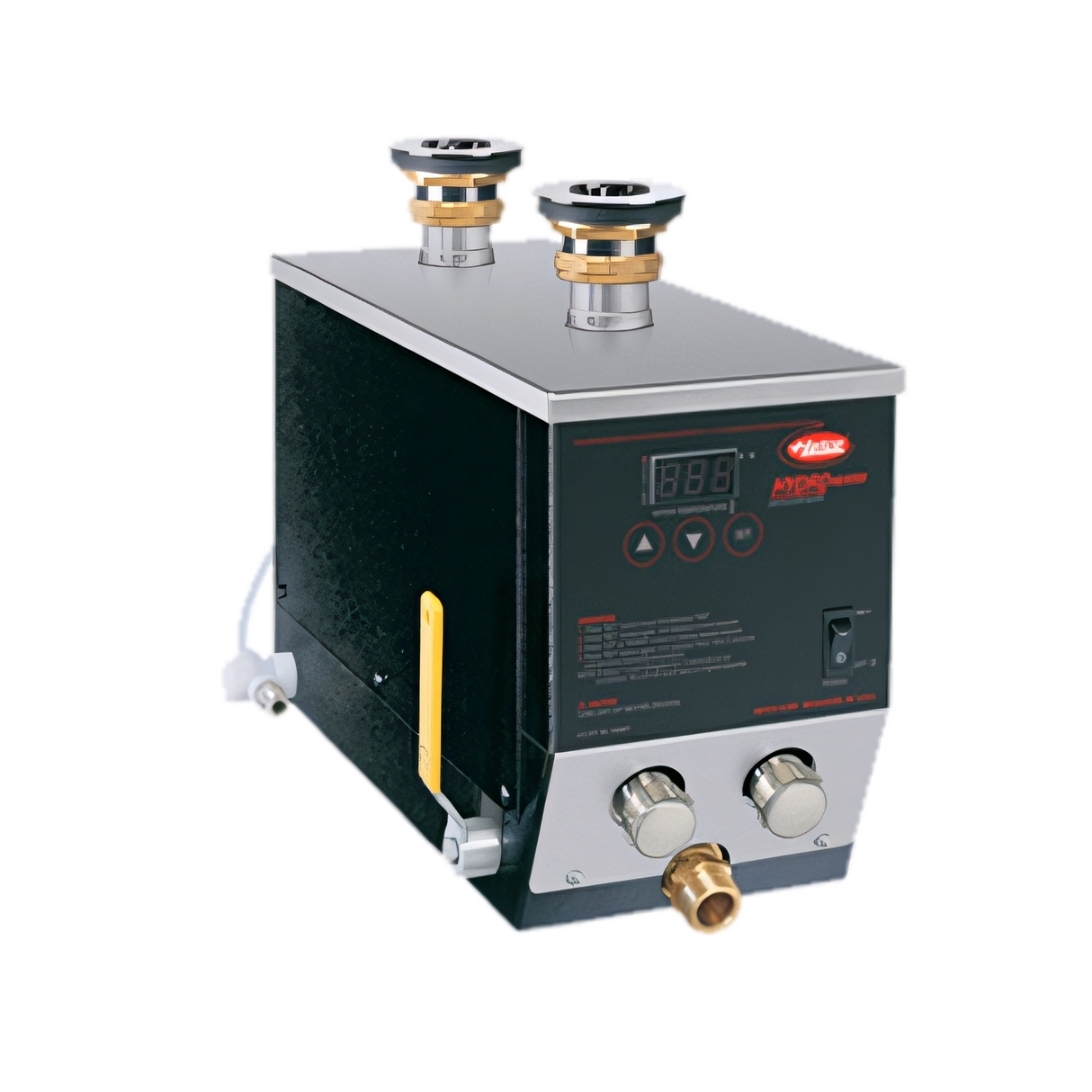

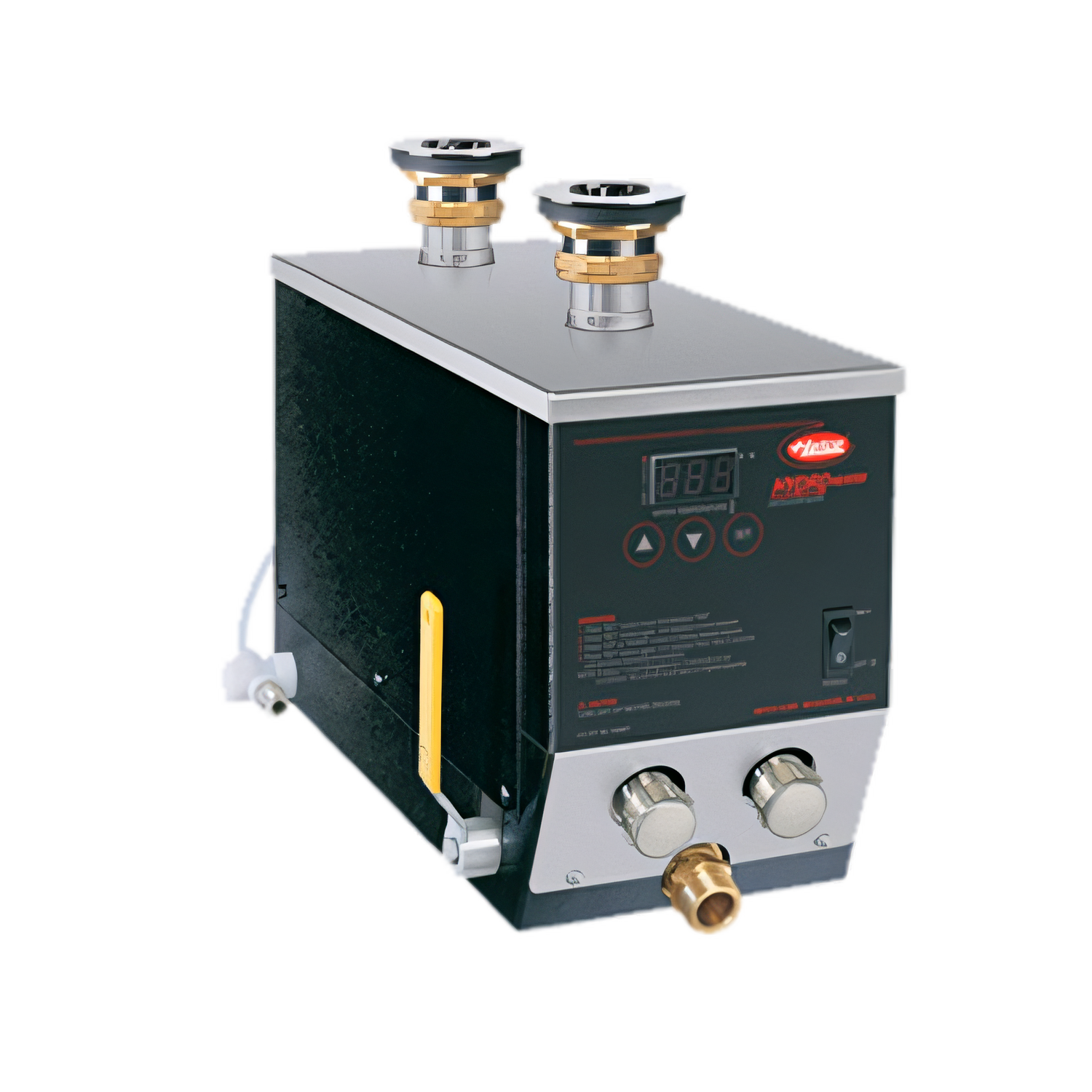

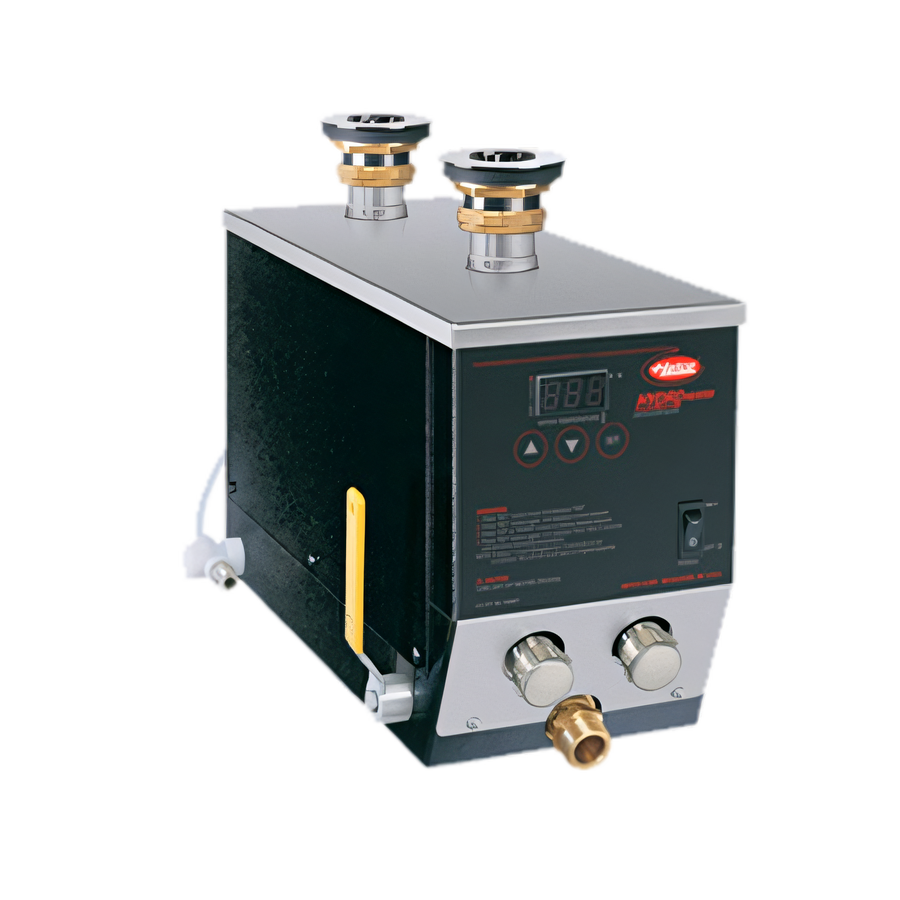

Hatco Hydro-Heater 3CS2-6 Sanitizing Sink Heater

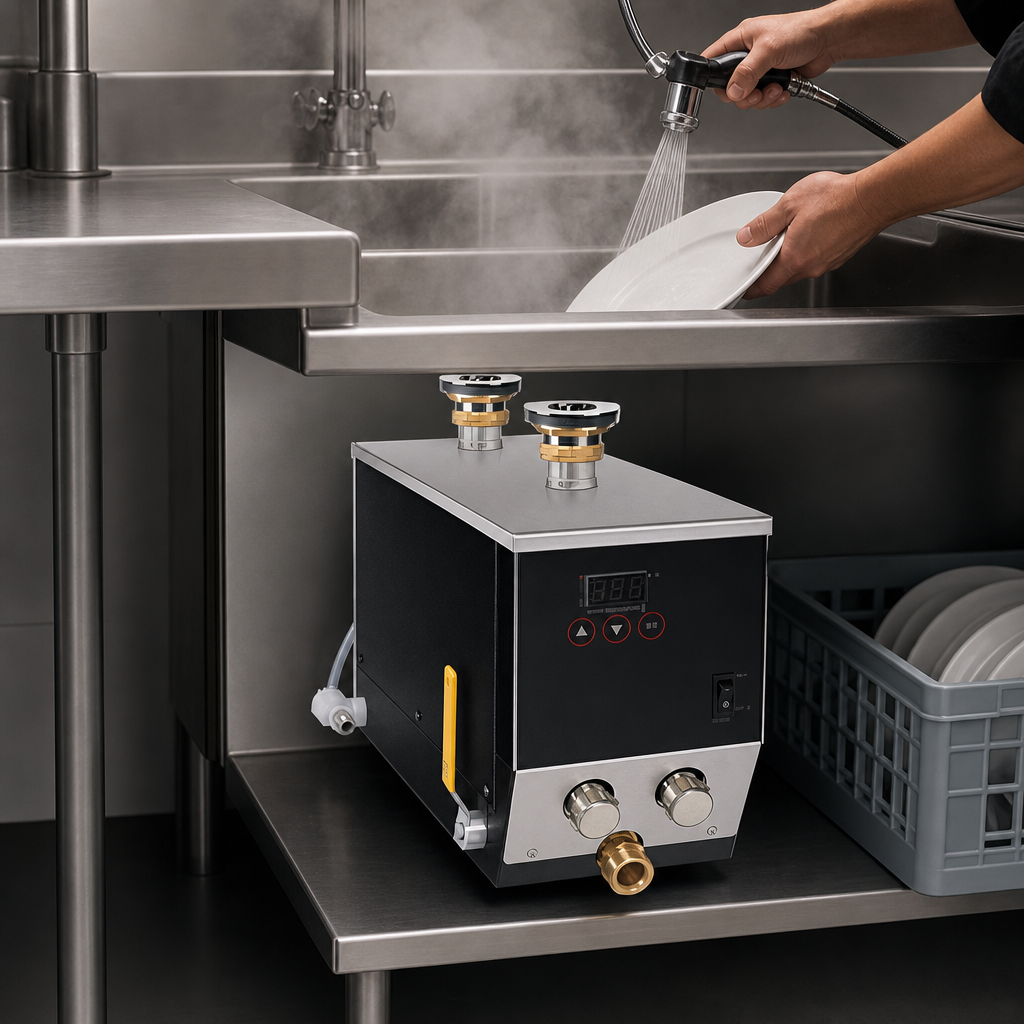

6 kW • for 19" – 21" (483 – 533 mm) square sink compartmentsDeliver a continuous 180 °F (82 °C) sanitizing rinse right inside your 3- or 4-compartment sink—no bulky booster heater required. The under-sink Hydro-Heater relies on Hatco’s patented free-flow technology and electronic controls to keep every batch NSF-approved and ready when you are.
Built for busy dishrooms & bars
- Patented free-flow convection circulates hot water naturally—no external pump to service.
- Heating elements are wrapped around the flow tube, minimizing lime scale for a longer service life.
- Digital control with electronic temperature monitor holds a rock-steady 180 °F sanitizing setpoint.
- Low-water cut-off automatically protects the elements if the sink is drained.

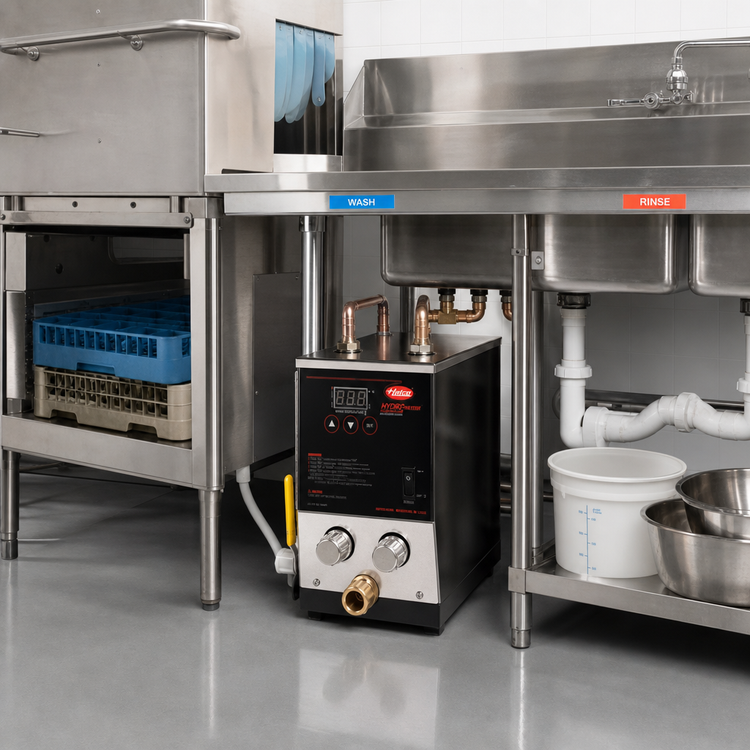

- Space-saving under-sink design keeps valuable counter space clear.
- Durable stainless-steel front with antimicrobial powder-coated body—easy to wipe clean.
- Made in the USA and fully cULus & UL EPH Classified to NSF/ANSI 4.
Technical Specifications
| Model | 3CS2-6 (Hydro-Heater) |
|---|---|
| Sink compartment size | 19" – 21" square (483 – 533 mm) |
| Heating capacity | 6.0 kW electric |
| Voltage / Phase | 208 V or 240 V, 1-phase (field wired) |
| Amperage | 28.8 A @ 208 V • 25 A @ 240 V |
| Recommended branch circuit | 8 AWG copper • 40 A breaker |
| Operating temperature | Factory-set 180 °F (82 °C) |
| Overall dimensions | 17.06" W × 8.50" D × 12.36" H (433 × 216 × 314 mm) |
| Drain connection | ¾" hose with 1" (25 mm) drain handle |
| Ship weight | ≈ 35 lb (16 kg) |
| Construction | Stainless front panel • black hammertone powder-coated body |
| Certifications | cULus • UL EPH Classified • NSF/ANSI 4 |
What’s in the box
- Hydro-Heater assembly with built-in unions for easy installation
- Digital control panel & on/off switch
- Clean-out caps and convenient drain outlet
- Full-size stainless-steel drilling template
Factory options (order-time only)
- Auto-fill solenoid
- Remote-mounted control panel
- All-stainless body & base
- Security package (Torx® screws & control cover)
Popular accessories
- Flush Kit (hose, cleaning brush, stopper & adapter)
Need a different size or wattage? Explore other Hatco Hydro-Heater models or chat with our equipment specialists.
