Hatco  |  Hydro-Heater  |  SKU: 3CS2-4B

Hatco 3CS2-4B Hydro-Heater Commercial Faucets & Plumbing

$2,401.79
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Catalog brochure Owner's manual
Related Searches
Commercial Faucets & Plumbing Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

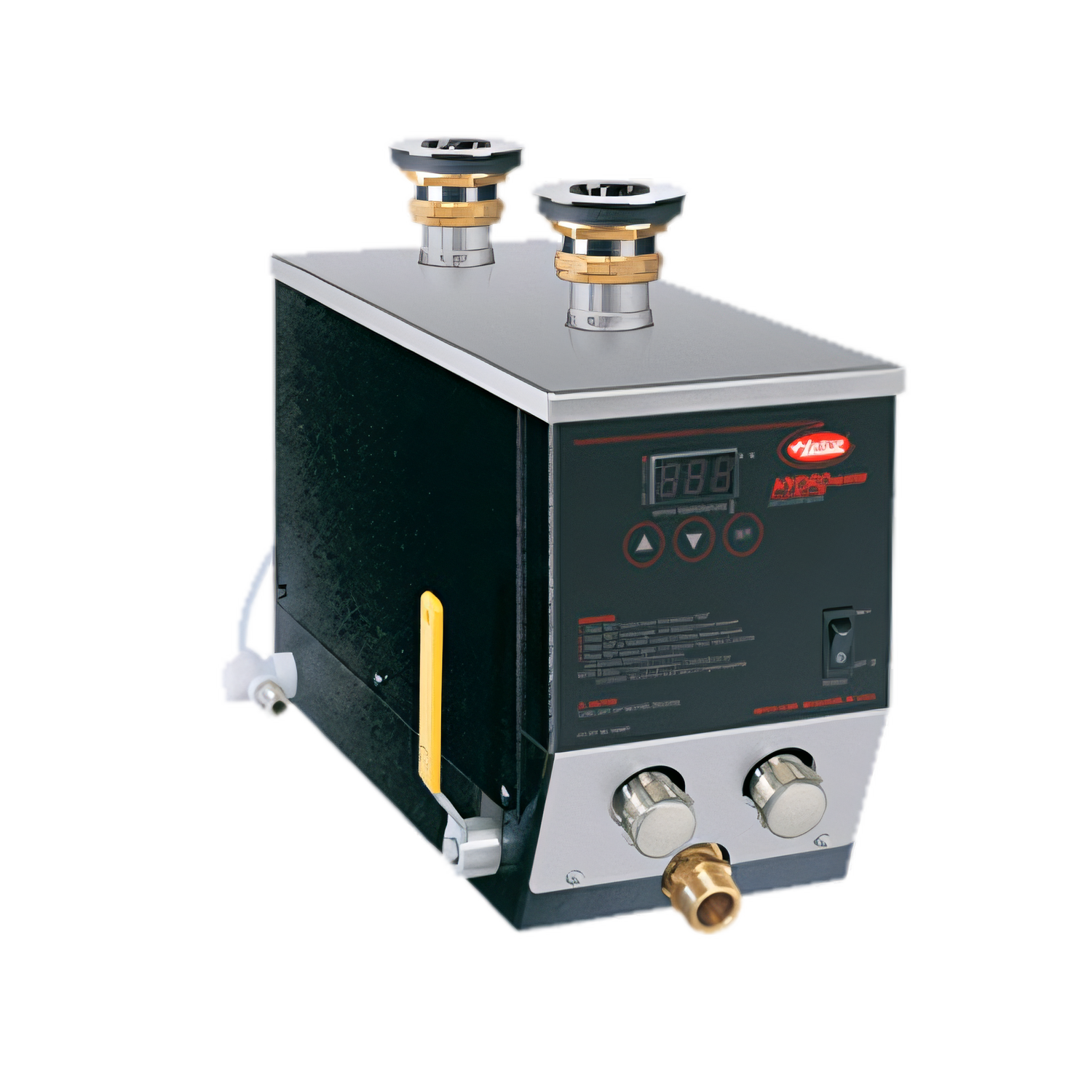

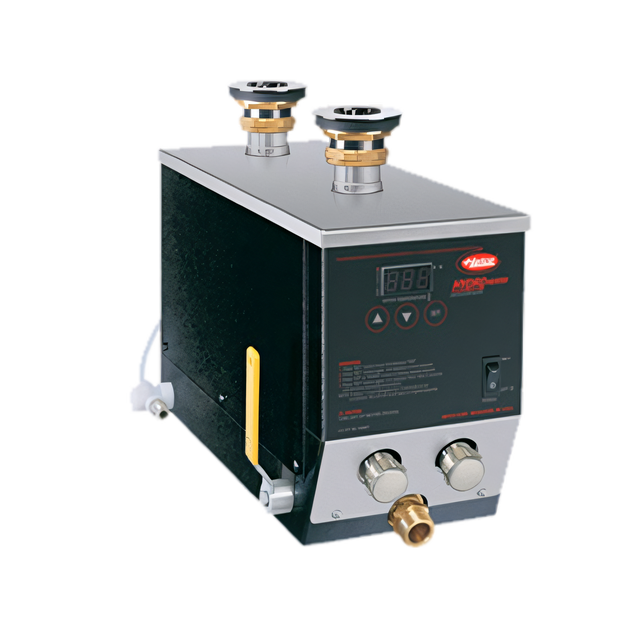

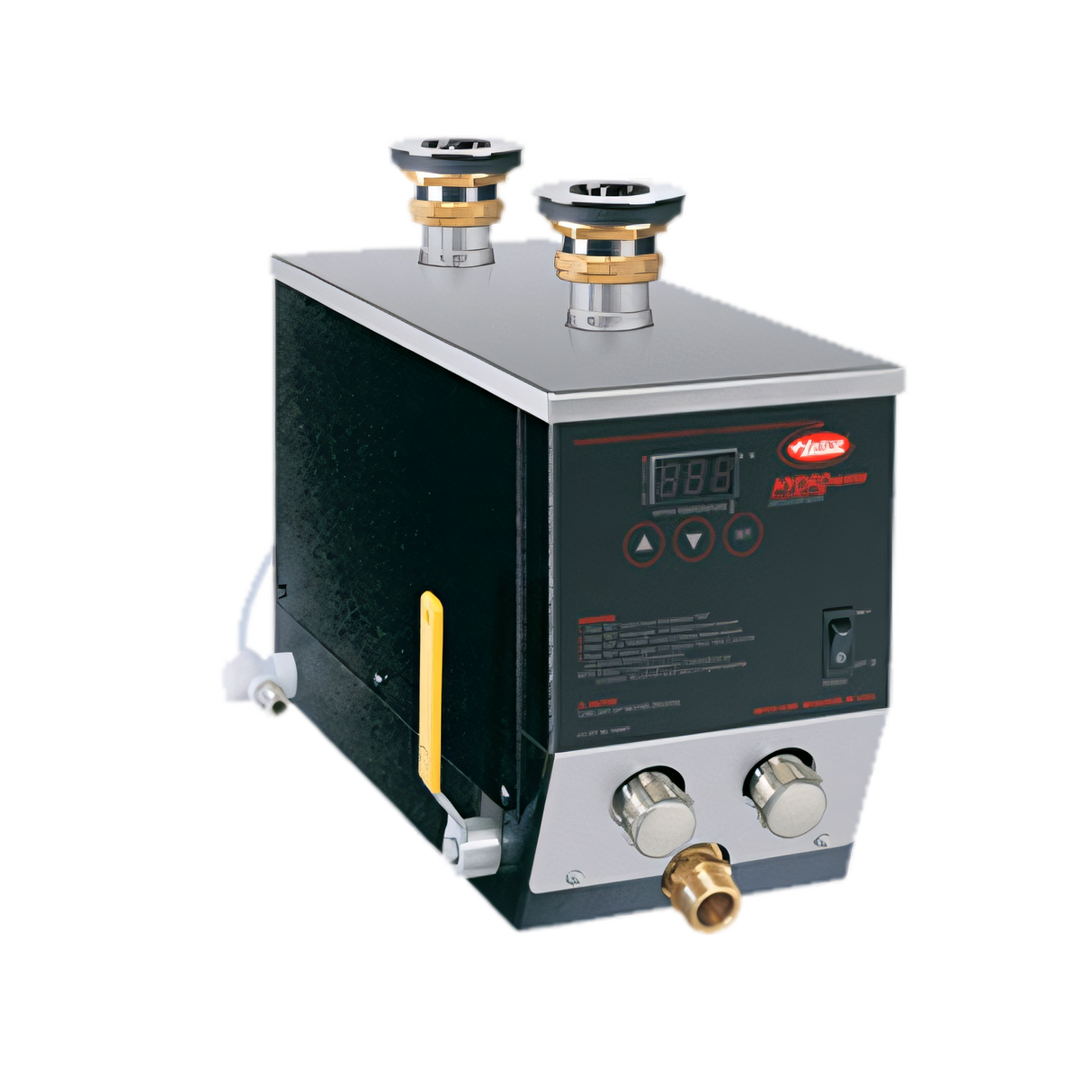

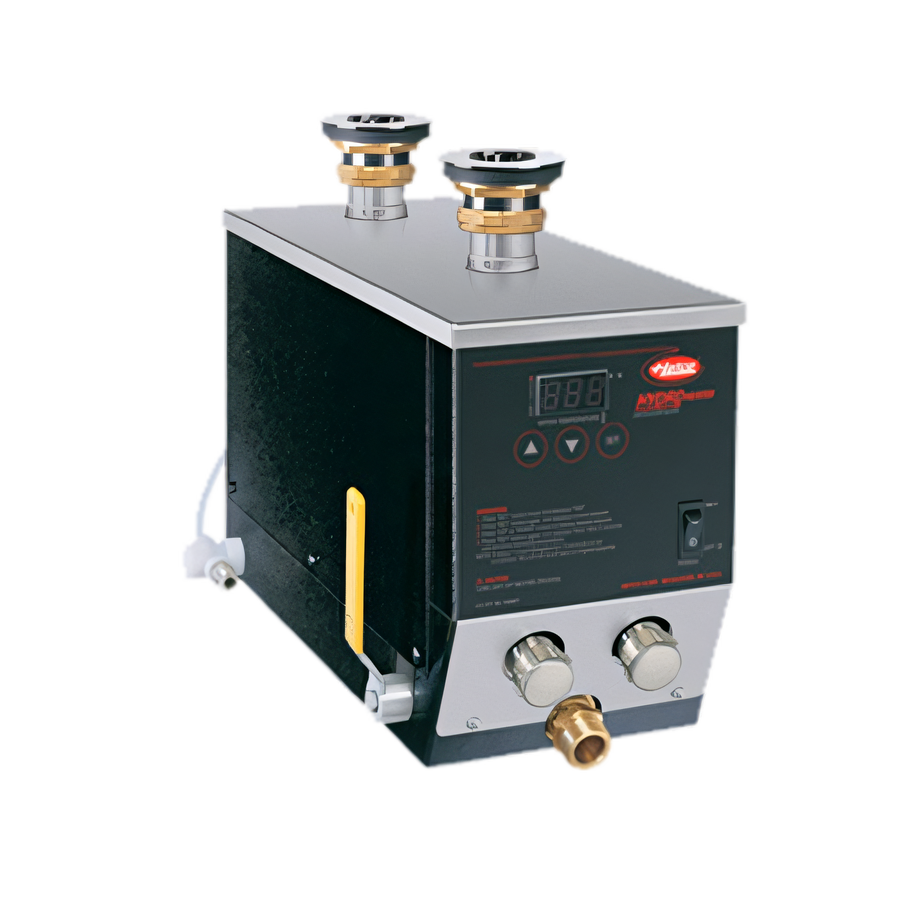

Hatco Hydro-Heater 3CS2-4B Sanitizing Sink Heater — 4 kW, Balanced 3-Phase

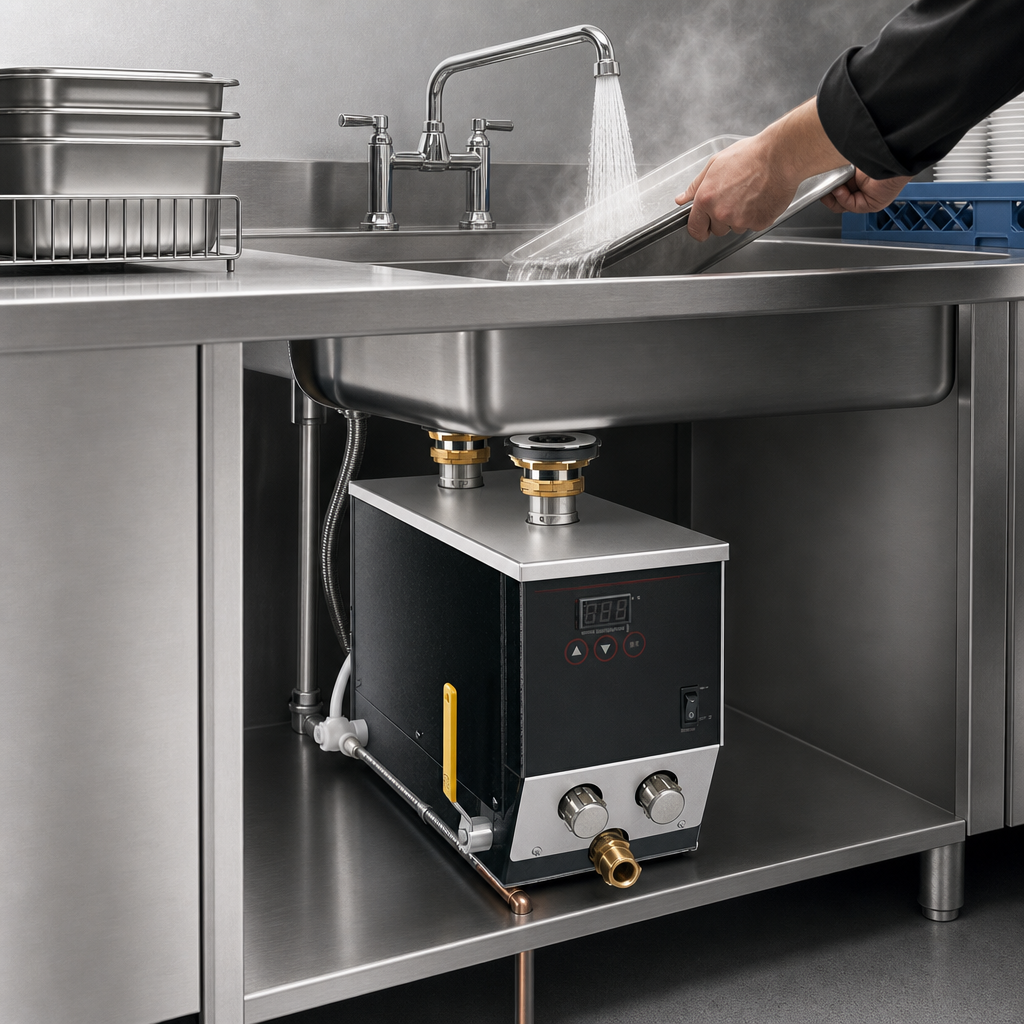

Continuous 180 °F (82 °C) rinse water for 16–18 inch compartment sinks

Turn any 3- or 4-compartment, pot or bar sink into a high-performance sanitizing station. The under-sink Hatco Hydro-Heater delivers a steady supply of 180 °F water, helping you meet NSF/ANSI 4 requirements without the cost, noise or floor space of a booster heater.

Why you’ll love it

  • Instant, on-demand 180 °F rinse water maintained by an advanced electronic controller.
  • Patented “free-flow” convection circulates water without pumps for whisper-quiet reliability.
  • Wrap-around external heating elements resist lime & sediment build-up for longer life.
  • Digital temperature monitor and low-water cut-off protect the heater and your staff.
  • Compact 7.75" W × 17.06" D footprint mounts neatly beneath 16–18" square sinks.
  • Stainless steel front with antimicrobial powder-coated body stands up to harsh kitchen environments.
  • Integrated drain outlet and clean-out caps speed up routine maintenance.
  • Balanced 3-phase 4 kW design draws less than 12 A—easy on existing electrical panels.
  • cULus listed, UL EPH Classified, proudly Made in the USA.

Technical specifications

Model 3CS2-4B (Balanced)
Compatible sink size 16 – 18 in² (406 – 457 mm²)
Heating capacity 4.0 kW
Voltage 208 V or 240 V, 3-phase
Full-load amps 11.2 A @ 208 V | 9.6 A @ 240 V
Recommended circuit 20 A (208 V) | 15 A (240 V)
Dimensions (W × D × H) 7.75 × 17.06 × 12.36 in (196 × 433 × 314 mm)
Add 1 in (25 mm) for drain handle depth.
Shipping weight 35 lb (16 kg)
Construction Stainless steel front, antimicrobial powder-coated steel body, brass fittings
Certifications cULus, UL EPH Classified (NSF/ANSI 4)
Origin Made in USA

Fast, hassle-free installation

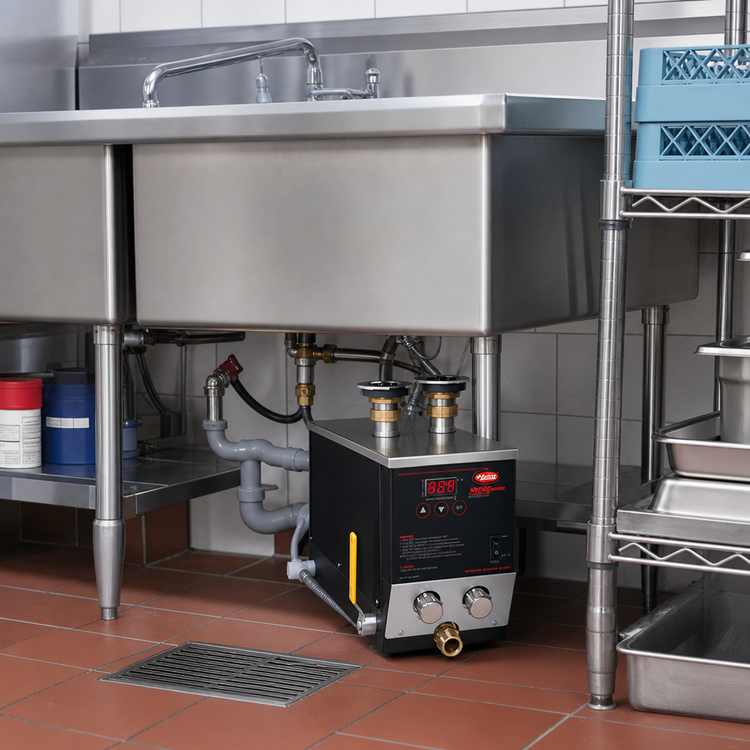

  • Mounts under the center compartment with included self-contained unions.
  • Only two 2" holes required; drilling template supplied.
  • Ships pre-plumbed and pre-wired—connect water, drain and power, set the temperature and go.
Important: Incoming water exceeding 3 grains per gallon hardness must be softened to avoid scale build-up and preserve warranty coverage.

Need single-phase power or a different sink size? Explore other Hatco Hydro-Heater models or chat with us for a custom recommendation.

Features & Specs

Manufacturer

Hatco

Brand_name

Hydro-Heater

Certifications

cULus, UL EPH Classified, Made in USA

Height

12.36in

Width

7.75in

Depth

17.06in

Shipping Weight

35.0lbs

Wattage

4.5 kilowatts

Specifications

Hydro-Heater Sanitizing Sink Heater, electric, undersink design, stainless steel front, powder coated body, low water cut-off, electronic temperature monitor, for 16"-18" square sink area, 4.0 kW (balanced), cULus, UL EPH Classified, Made in USA
