Hatco 3CS2-3 Hydro-Heater Commercial Faucets & Plumbing
Description

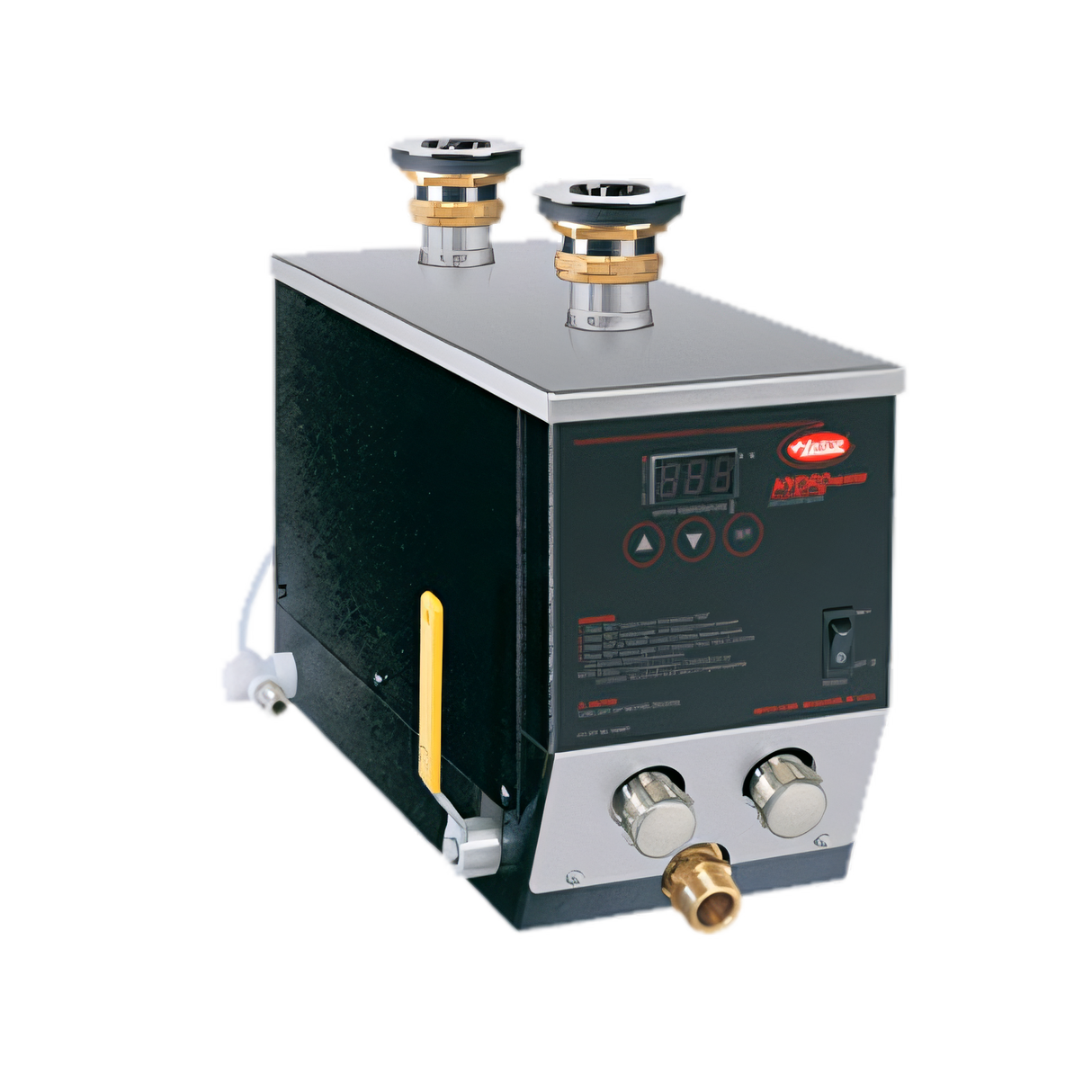

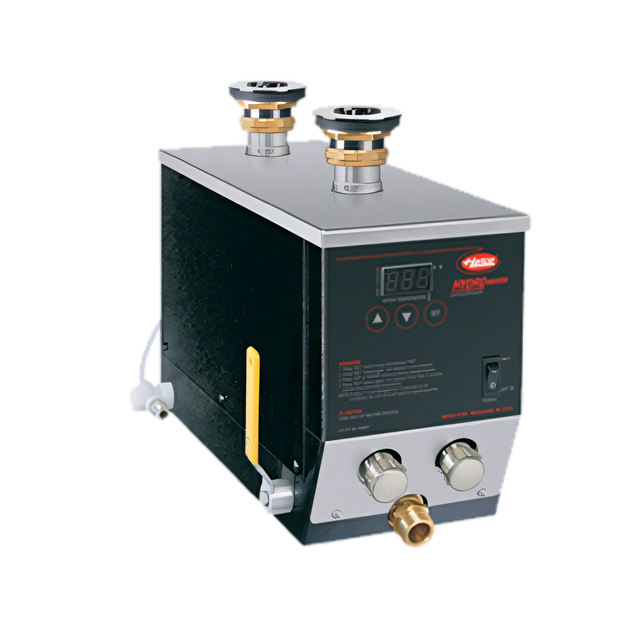

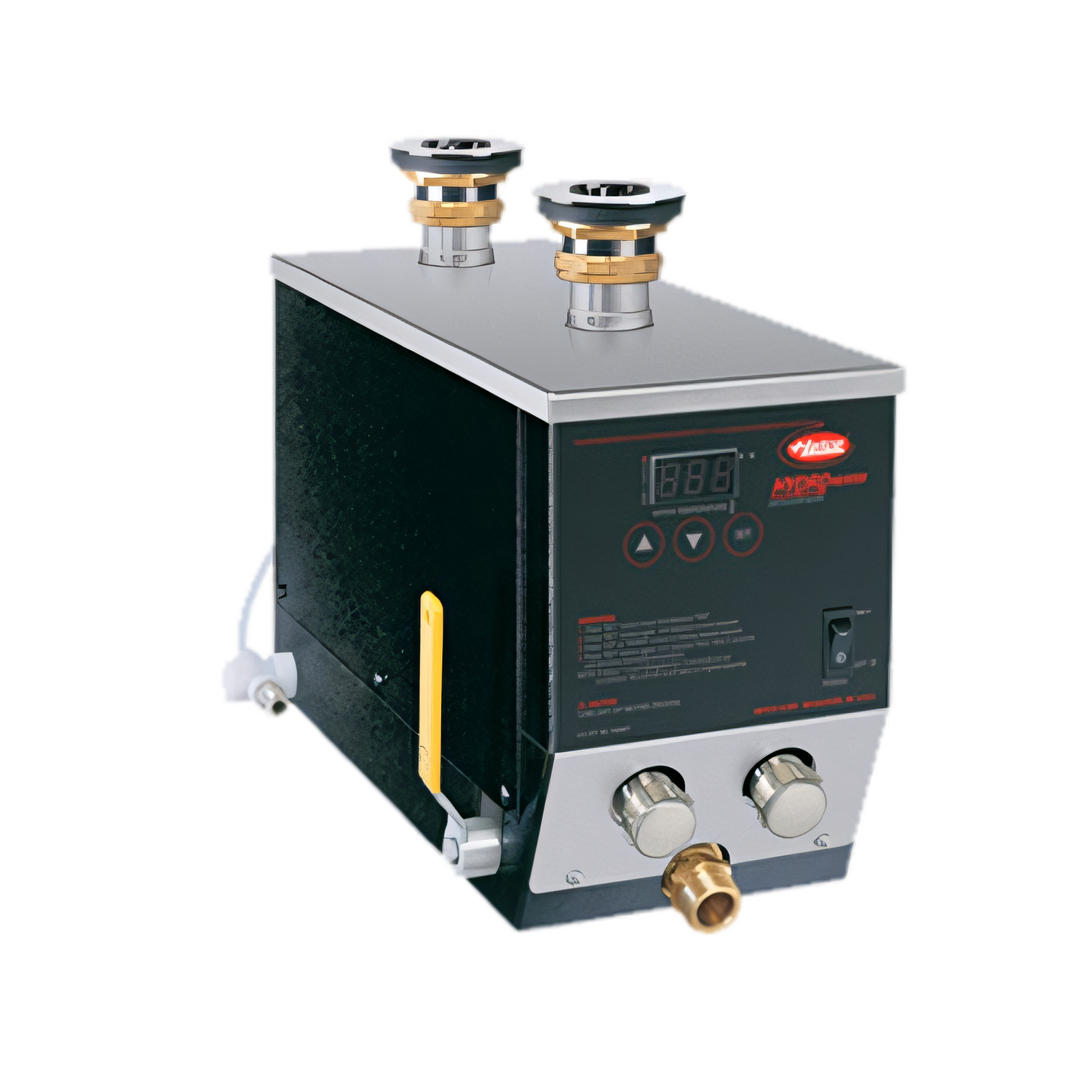

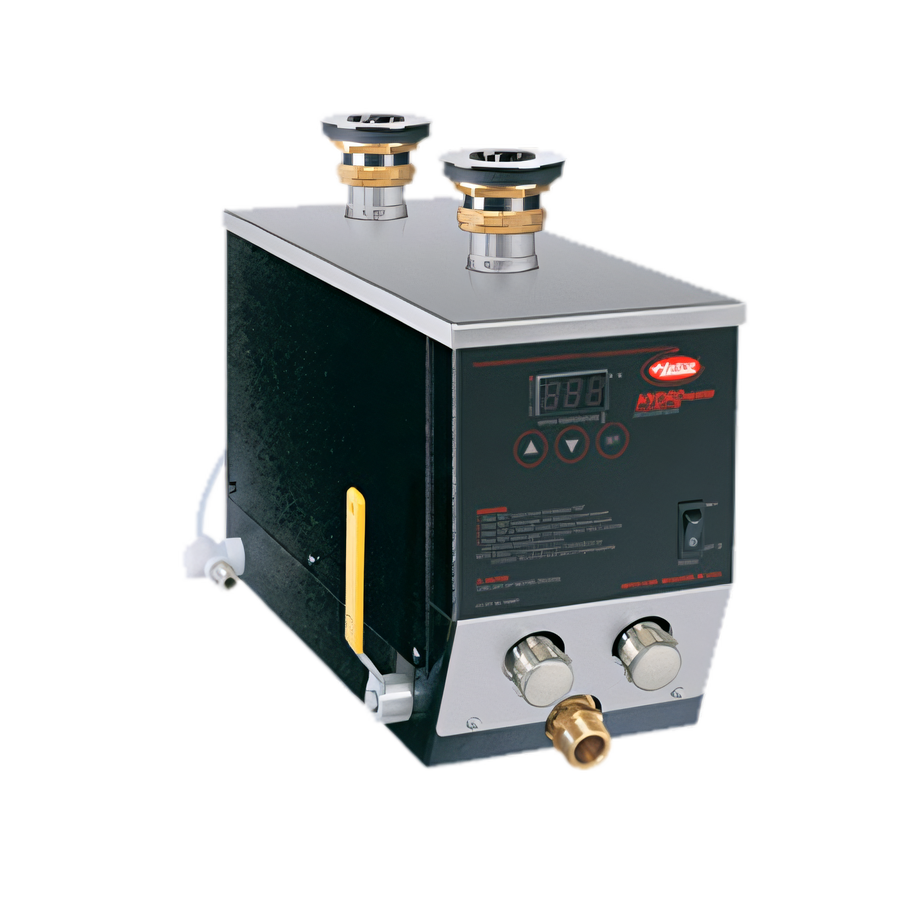

Hatco Hydro-Heater 3CS2-3 Sanitizing Sink Heater 3 kW • for sinks up to 15" sq. • Undersink design

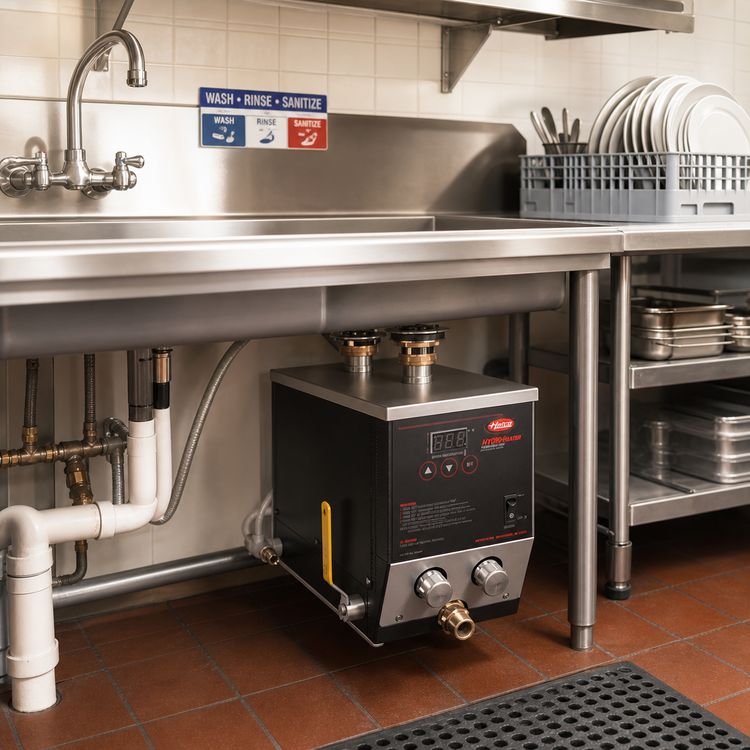

Keep your third-compartment sink at a consistent, NSF-required 180 °F (82 °C) without sacrificing precious workspace. The Hatco Hydro-Heater 3CS2-3 fits neatly beneath the center of your sink and continuously recirculates hot water using patented “free-flow” technology and advanced electronic controls. Built, tested and certified in the USA, it’s the dependable way to meet health-department sanitizing standards day in, day out.
Key Benefits

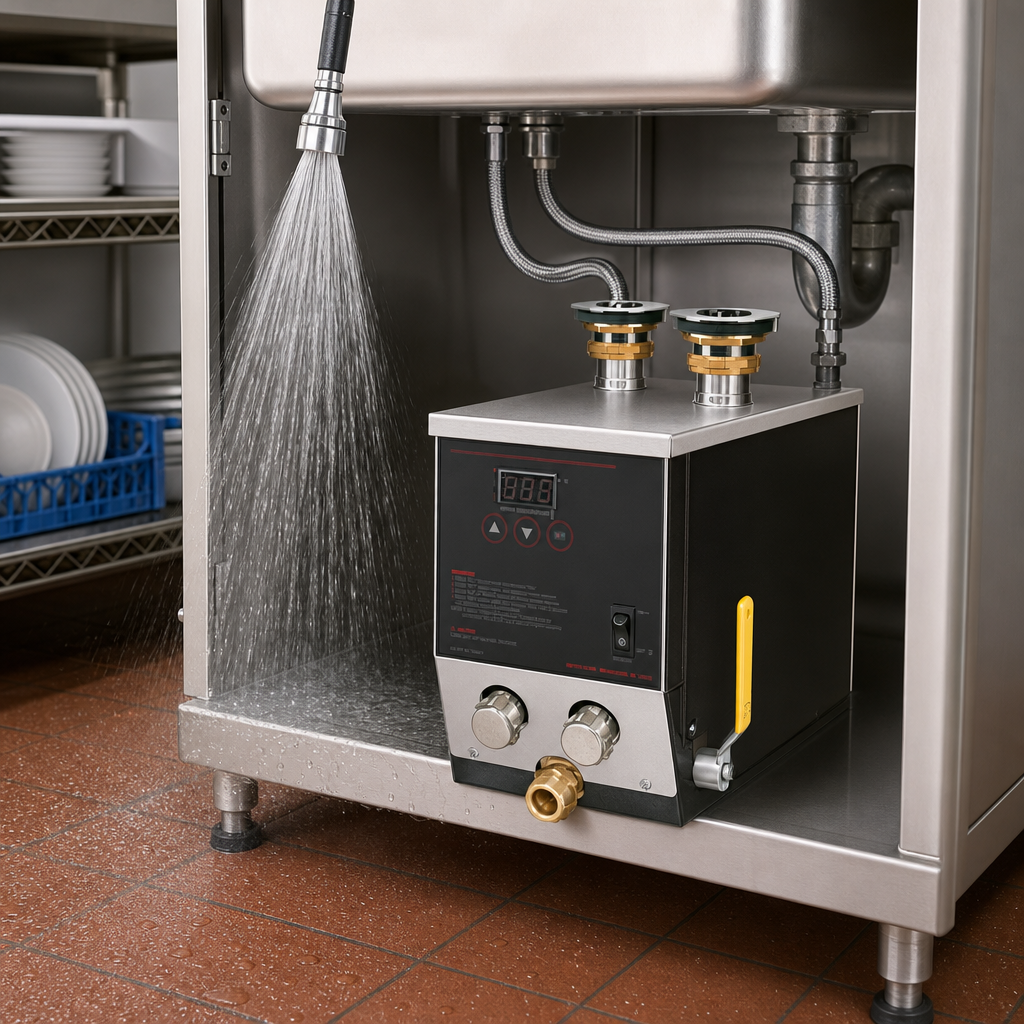

- Stable 180 °F (82 °C) rinse water—meets NSF Standard 4 for dish sanitizing.
- 3.0 kW tubular heating elements wrap outside the flow tube, eliminating element contact with water to reduce lime & sediment buildup and extend element life.
- Electronic temperature monitor with digital display maintains an accurate set-point and provides at-a-glance status.
- Built-in Low-Water Cut-Off (LWCO) automatically shuts down the heater to protect elements during low-water conditions.
- Stainless-steel front panel and rugged, antimicrobial powder-coated body for long-lasting corrosion resistance.
- Convenient drain outlet and clean-out caps simplify routine maintenance.
- Compact, undersink footprint keeps countertops clear and complies with ADA knee-space requirements.
- cULus & UL EPH Classified; Made in USA.
Technical Specifications
| Model | 3CS2-3 Hydro-Heater |
|---|---|
| Heat Output | 3.0 kW |
| Recommended Sink Size | Up to 15" (381 mm) square or less |
| Temperature | Factory set to 180 °F (82 °C) sanitizing rinse |
| Voltage / Phase | 208 V, 1-phase (240 V version available) |
| Current Draw | 14.4 A @ 208 V • 12.0 A @ 240 V |
| Branch Circuit | 20 A, 12 AWG copper wire (hard-wire connection) |
| Dimensions (W × D × H) | 7.75" × 17.06" × 12.36" (196 × 433 × 314 mm) |
| Certifications | cULus Listed, UL EPH Classified, NSF/ANSI 4 |
| Country of Origin | Made in USA |
Water hardness above 3 GPG (0.75 GPL) must be treated to maintain performance and warranty coverage.
Factory-Installed Options
- Auto-Fill Solenoid – automatically maintains water level.
- Remote-Mounted Control – relocate the display & controls for easier access.
- All-Stainless Body & Base – for harsh or high-visibility environments.
- Security Package – Torx® screws and lockable control cover.
Recommended Accessories
- Flush Kit – hose, cleaning brush, stopper and adapter for periodic descaling.
