Hatco 3CS-9B Commercial Faucets & Plumbing
Description

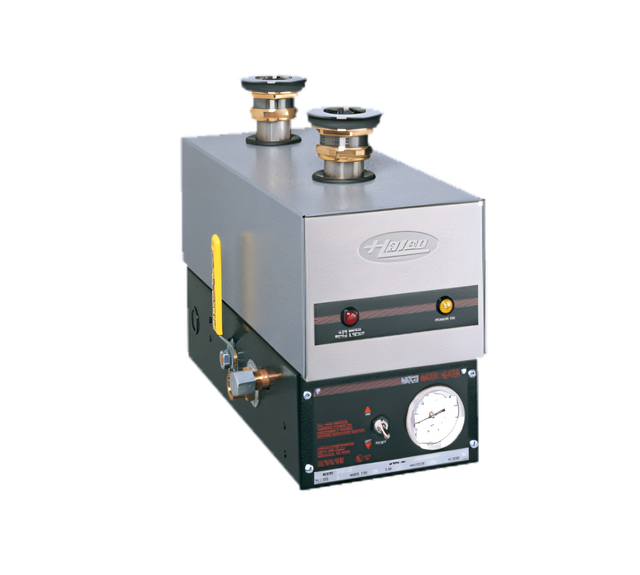

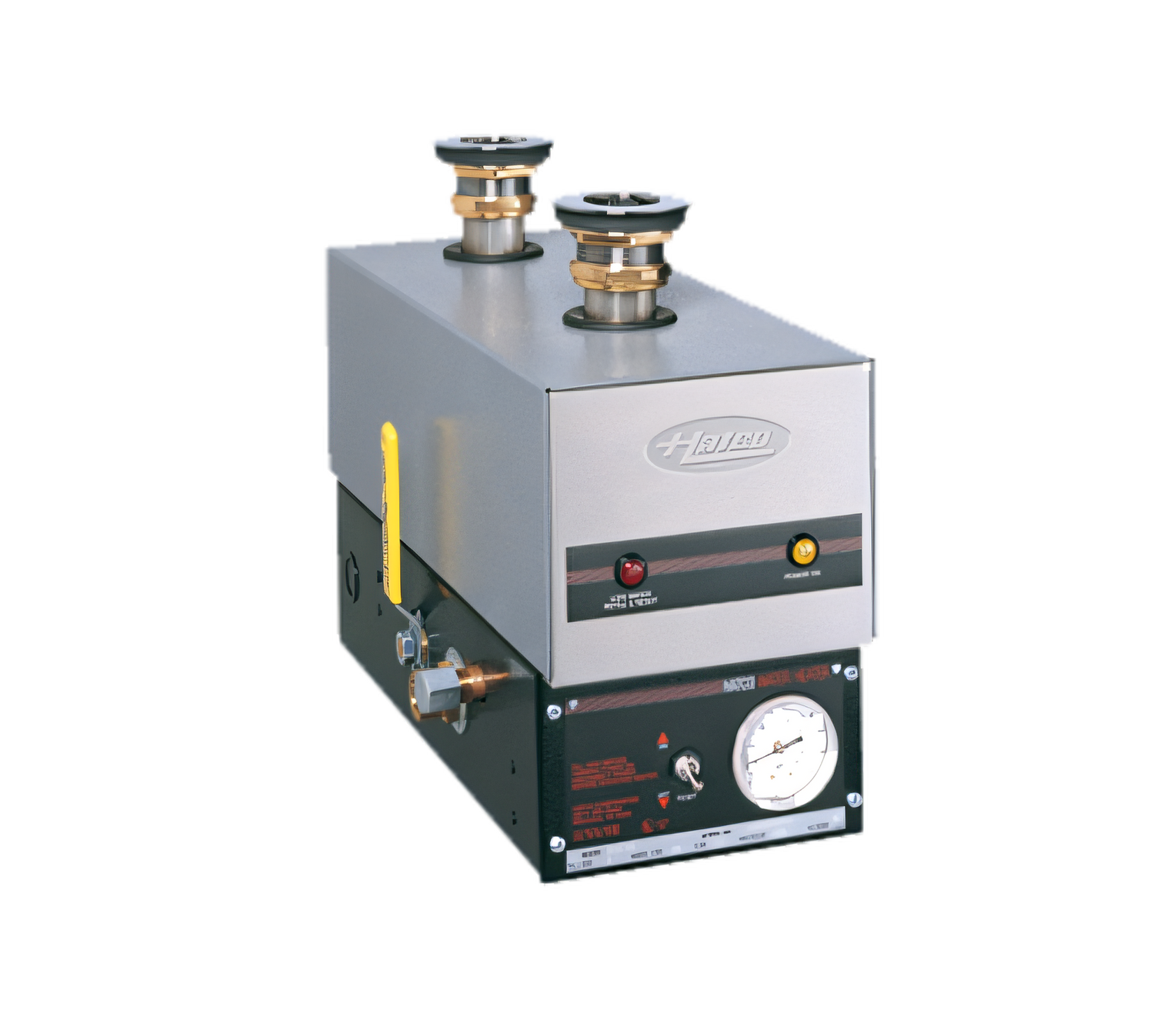

Hatco 3CS-9B Sanitizing Sink Heater | 9 kW Balanced 3-Phase
Space-saving, under-sink electric heater for 21"–25" square sink compartmentsDeliver a continuous, NSF-required 180 °F (82 °C) final rinse without eating up valuable sink space. The Hatco 3CS-9B installs beneath your 3- or 4-compartment sink, giving you faster, safer and more convenient manual warewashing in the busiest kitchens.

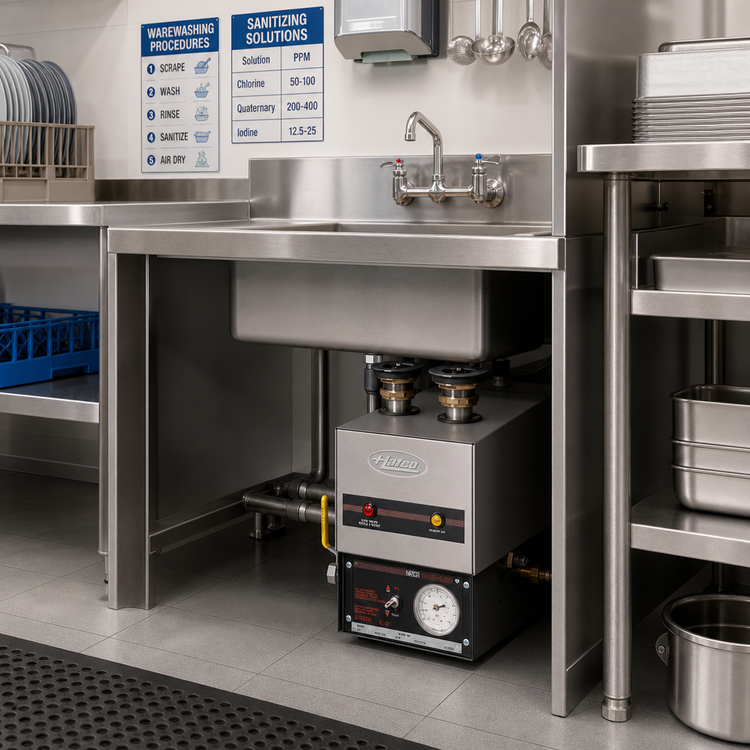

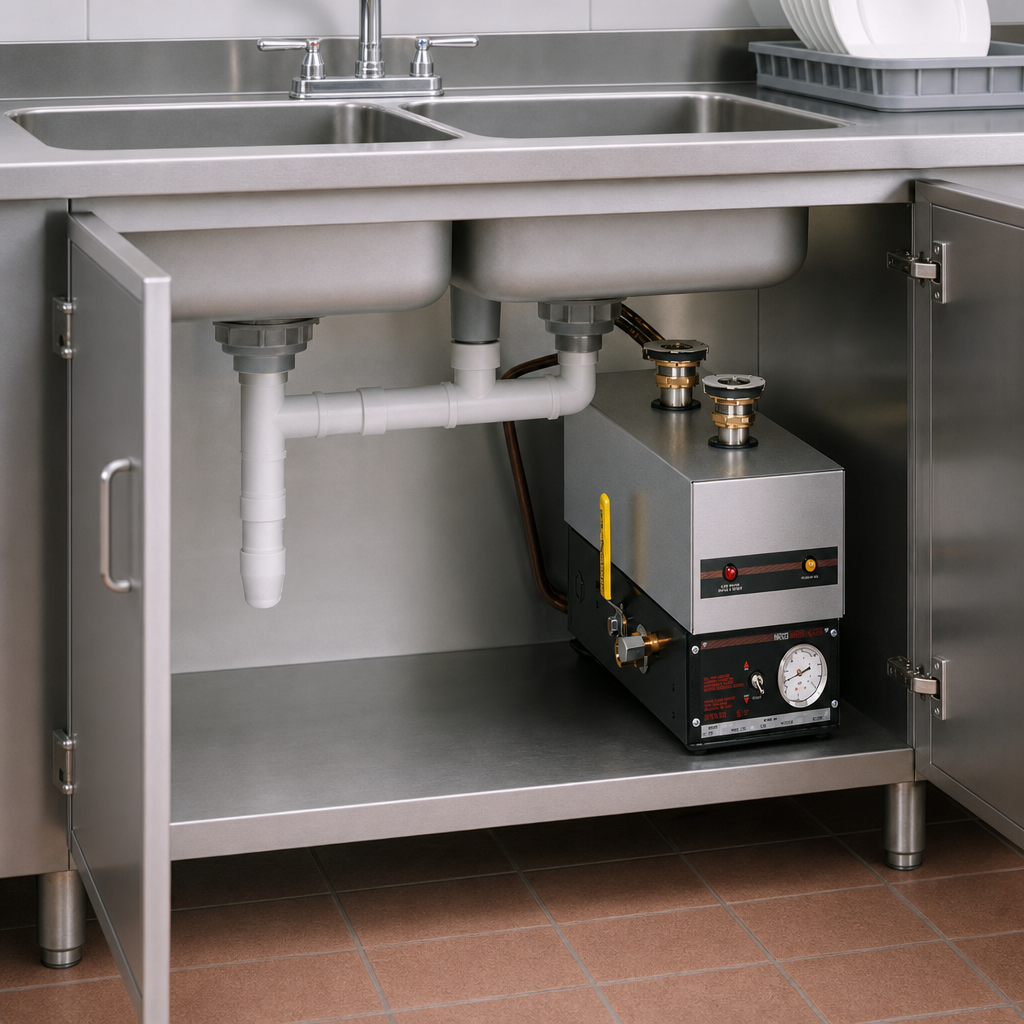

- Under-sink, space-saving design for pot & pan, bar or utility sinks.
- 9 kW balanced 3-phase heating delivers rapid recovery with lower amp draw per leg.
- Maintains 180 °F (82 °C) sanitizing water to meet NSF/ANSI Standard 3.
- Stainless steel front with durable, silver-gray hammertone body stands up to daily abuse.
- Dual-reservoir tank traps soil in a separate sump for cleaner rinse water and easy draining.
- Built-in Energy Cut-Off (ECO) plus red over-temp indicator for added protection.
- Yellow “Power On” light confirms operation at a glance.
- Ships ready to install with gaskets, unions and fittings—no guesswork on site.
- Certified NSF, CE & cULus and proudly Made in the USA.
Technical Specifications
| Model | 3CS-9B (Balanced 3-Phase) |
|---|---|
| Compatible sink size | 21" – 25" (533 – 635 mm) square compartment |
| Heating capacity | 9.0 kW |
| Voltage options (3 Φ) | 208 V, 240 V, 380-415 V, 440 V, 480 V |
| Full-load amps | 208 V – 25 A | 240 V – 21.7 A | 380-415 V – 7.5-9.0 A | 440 V – 11.8 A | 480 V – 10.8 A |
| Overall dimensions (W × H × D) | 17.13" × 9.75" × 8.5" (435 × 248 × 216 mm) |
| Shipping weight | 33 lb (15 kg) |
| Certifications | NSF • CE • cULus |
| Warranty | 5-year limited parts and labor + 24/7 service support (U.S. & Canada) |
Factory Options (order-time)
- All-stainless body & base
- Built-in temperature monitor gauge
- Indicator temperature light
- Security package (Torx® screws & control cover)
- 480 V configuration
- Shipboard-use construction
Popular Accessories
- Flush Kit (flush hose, stopper & adapter)
Need a different size or single-phase model? Explore the full Hatco 3CS series to keep every dishroom running at peak performance.
