Hatco 3CS-9 Commercial Faucets & Plumbing
Hatco 3CS-9 Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco 3CS-9 Commercial Faucets & Plumbing
Description

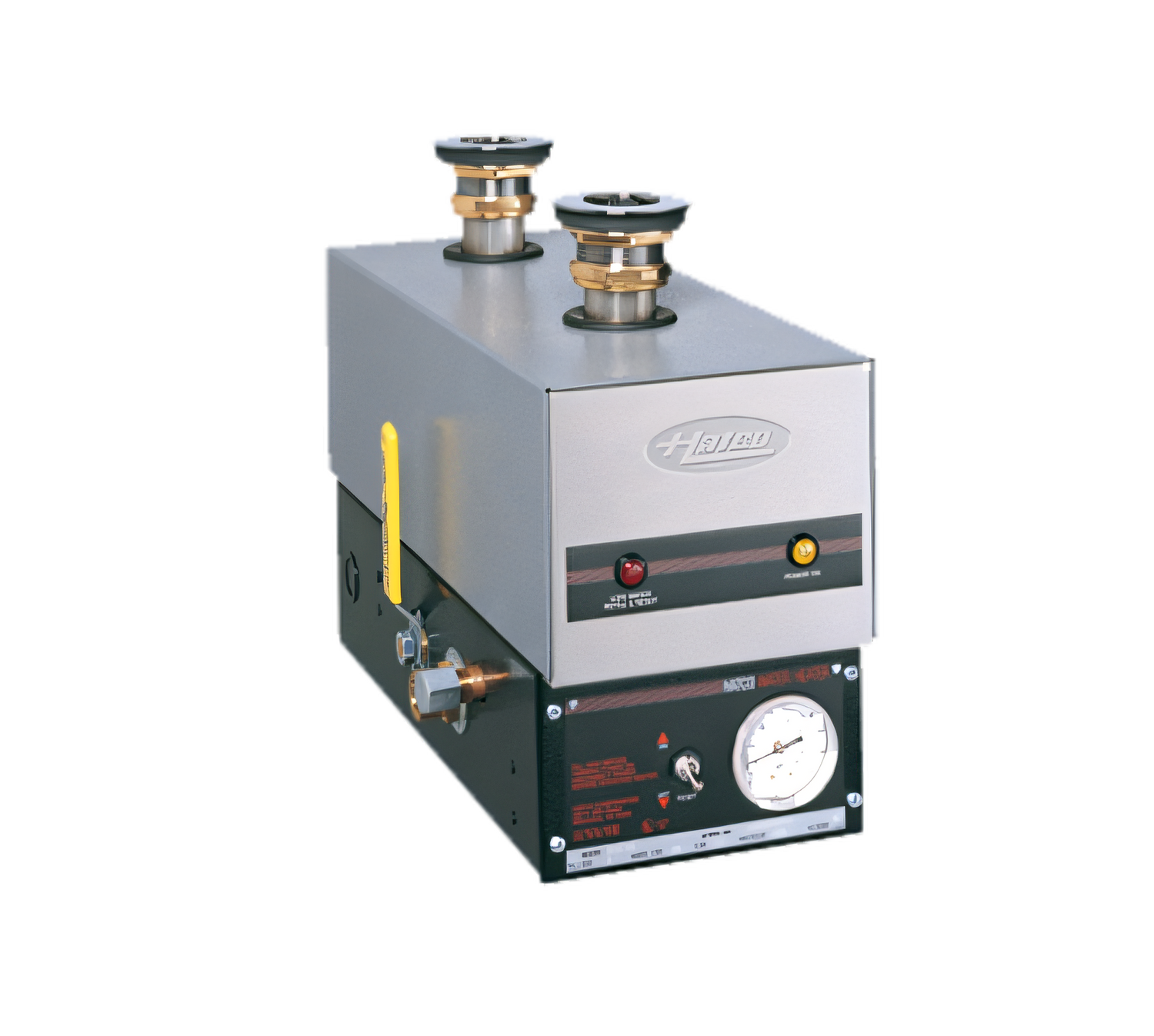

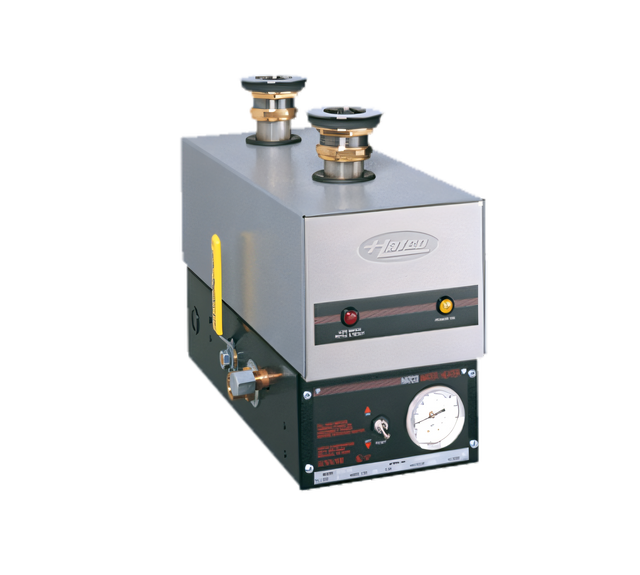

Hatco 3CS-9 Sanitizing Sink Heater – 9 kW
Under-sink electric heater for 21″–25″ (533–635 mm) square sink bowlsKeep every ware-washing cycle on pace and up to code. The Hatco 3CS-9 sits neatly beneath your 3- or 4-compartment, pot-and-pan or bar sink and delivers a continuous 180 °F (82 °C) sanitizing rinse—without stealing valuable sink space.
Why you’ll love it
- Powerful 9 kW heating capacity specifically sized for sink areas over 21″ square
- Meets NSF final-rinse standard of 180 °F (82 °C) for dependable dish sanitizing

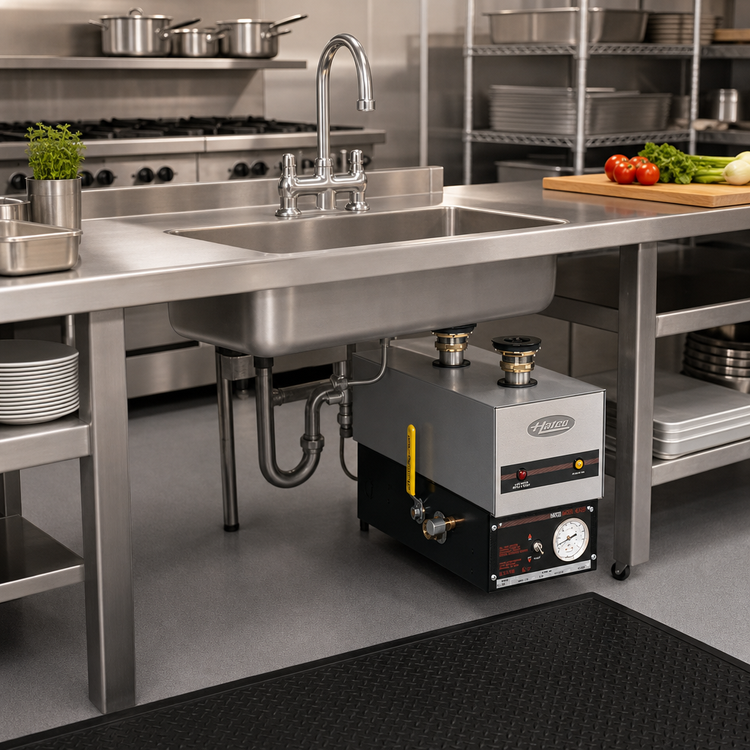

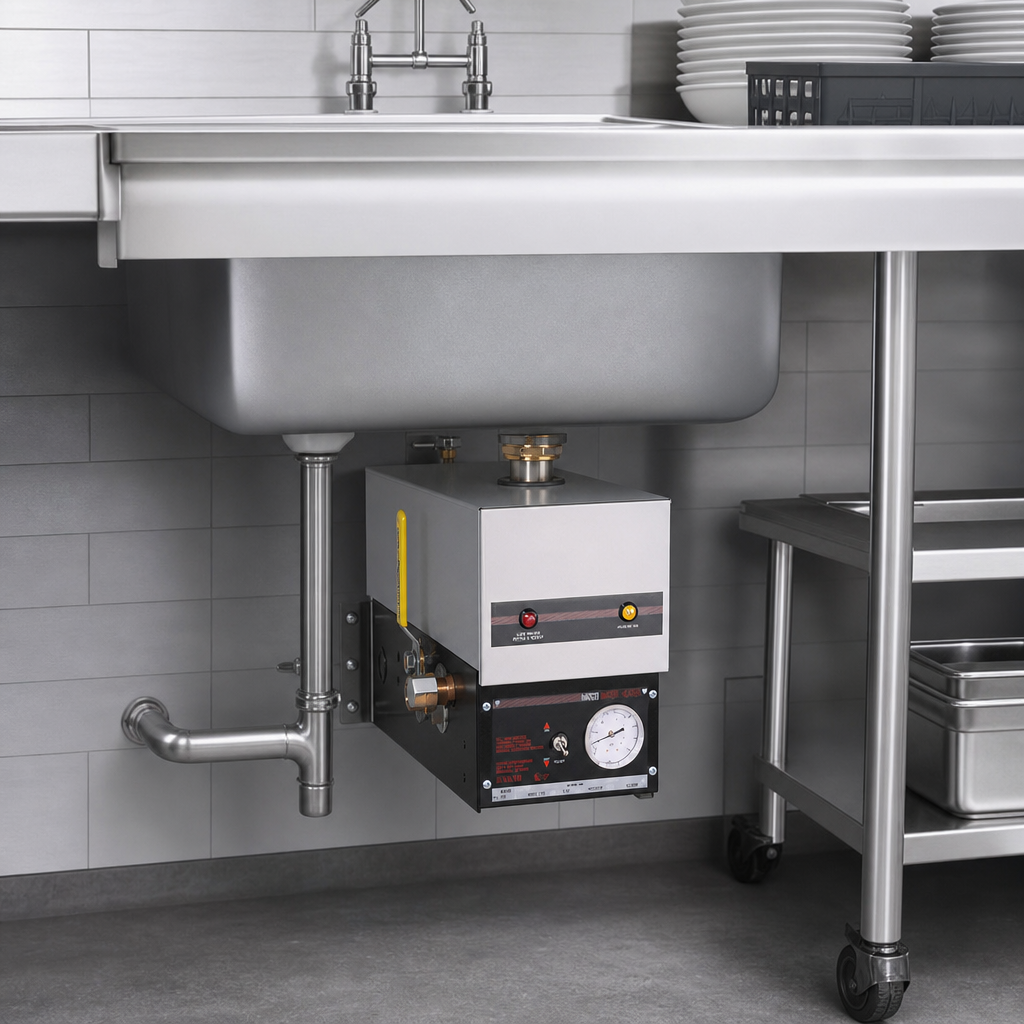

- Space-saving under-sink installation keeps the work area uncluttered
- Stainless-steel front paired with a rugged powder-coated silver-gray hammertone body
- Energy Cut-Off (ECO) prevents overheating and protects the element
- Simple toggle Power switch with yellow “On” light • Red light signals over-temperature/low-water condition
- Dual-reservoir tank design traps soil and drains quickly through the side outlet
- Ships ready to install—complete with gaskets, unions and fittings
- Backed by Hatco’s 5-year limited warranty and 24/7 service support
Certifications
- NSF Certified
- cULus Listed
- CE Marked
- Made in the USA
Technical specifications
| Model | 3CS-9 |
|---|---|
| Recommended sink size | 21″–25″ (533–635 mm) square |
| Heating capacity | 9.0 kW |
| Voltage options | 208 V, 240 V or 480 V |
| Phase | Single-phase (standard) or 3-phase |
| Full-load amps (240 V 1-ph) | 37.5 A |
| Overall dimensions | 16.88″ W × 12.63″ H × 8.5″ D (429 × 321 × 216 mm) |
| Shipping weight | Approx. 27 lb (12 kg) |
Water hardness above 3 GPG (0.75 GPT) must be softened to maintain efficiency and protect warranty coverage.
Factory options & accessories
- Built-in temperature monitor gauge
- Temperature indicator light
- All-stainless body & base
- Security package (Torx® screws & control cover)
- Flush kit (hose, stopper & adapter)
- 480 V wiring or ship-board configuration
Upgrade your dishroom with the reliability, safety and space-saving convenience of the Hatco 3CS-9 Sanitizing Sink Heater.
