Hatco 3CS-9-480-3-QS Quick Ship Commercial Faucets & Plumbing
Description

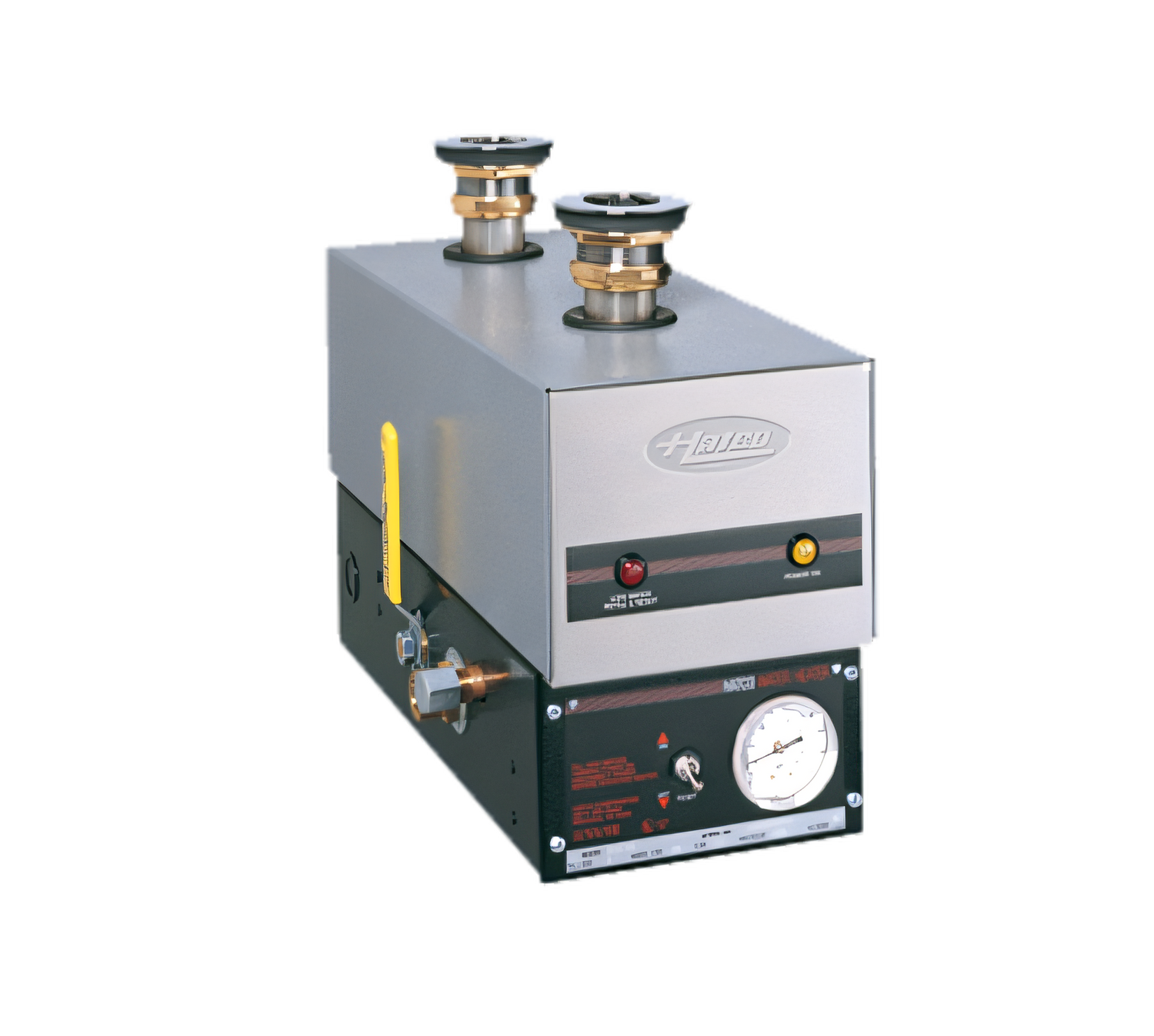

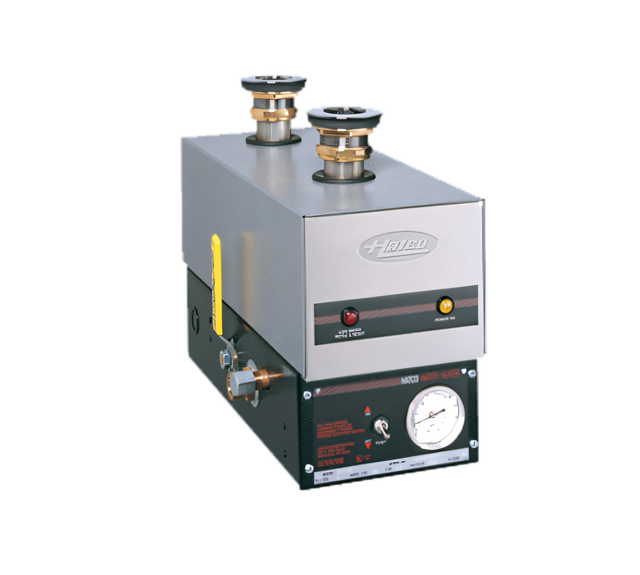

Hatco “Quick Ship” 3CS-9 Sanitizing Sink Heater – 9 kW, 480 V / 3-Ph
For 21–25 inch square sink compartments • NSF & cULus • Made in USAKeep your dishroom moving at full speed. Designed for high-volume 3- or 4-compartment sinks, the Hatco 3CS-9 Sanitizing Sink Heater delivers a continuous 180 °F (82 °C) final-rinse so you can achieve health-code compliance without giving up valuable sink space. This “Quick Ship” configuration is in stock and ready to leave the factory fast.
Why you’ll love it
- 9 kW of electric heat sized for sink bowls up to 25" (635 mm) square.
- Undersink, dual-reservoir design keeps the element submerged while trapping sediment for easy clean-out.
- Stainless-steel front panel with side drain plus rugged powder-coated hammertone body.
- Energy Cut-Off (ECO) automatically shuts down the element if water drops below safe level.
- Yellow “Power On” light and red “Over-Temp” alert for instant, at-a-glance status.
- Meets NSF Standard 5 requirement of 180 °F sanitizing rinse; cULus listed.
- Ships complete with gaskets, unions, and full-size sink-drilling template for rapid installation.
- Backed by a 5-year limited warranty and 24/7 U.S./Canada parts & service support.
Quick-view specs
| Model / Series | 3CS-9 “Quick Ship” |
|---|---|
| Recommended sink size | 21" – 25" (533 – 635 mm) square |
| Power output | 9 kW |
| Electrical | 480 V • 60 Hz • 3-Phase (open delta) |
| Amperage draw | 16.2 A |
| Dimensions (W × H × D) | 17.13" × 9.75" × 8.50" (435 × 248 × 216 mm) |
| Front-to-back clearance | 4.63" (117 mm) under sink |
| Shipping weight | 27 lb (12 kg) |
| Construction | Stainless front; silver-gray hammertone powder-coated body |
| Certifications | NSF, cULus |
| Country of origin | USA |
What’s in the box
- 3CS-9 sink heater module
- Inlet & outlet plumbing fittings with self-contained unions
- Mounting gaskets and sink drilling template
- Installation & Operating Manual
Need a different voltage, indicator package, or all-stainless body? Ask us about additional factory options before ordering.
