Description

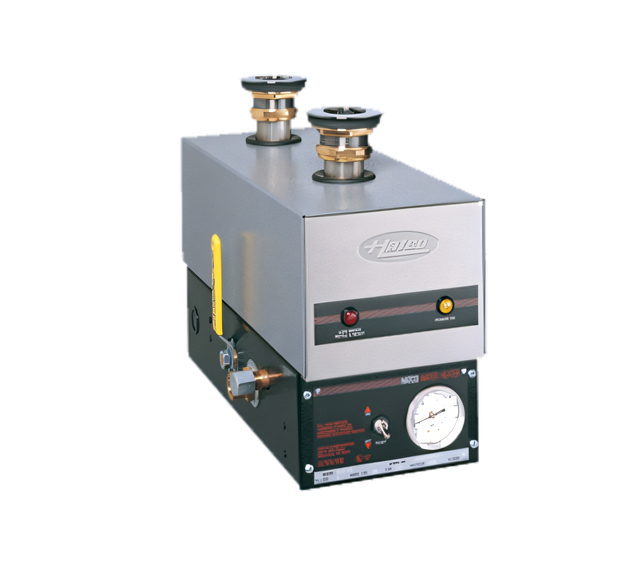

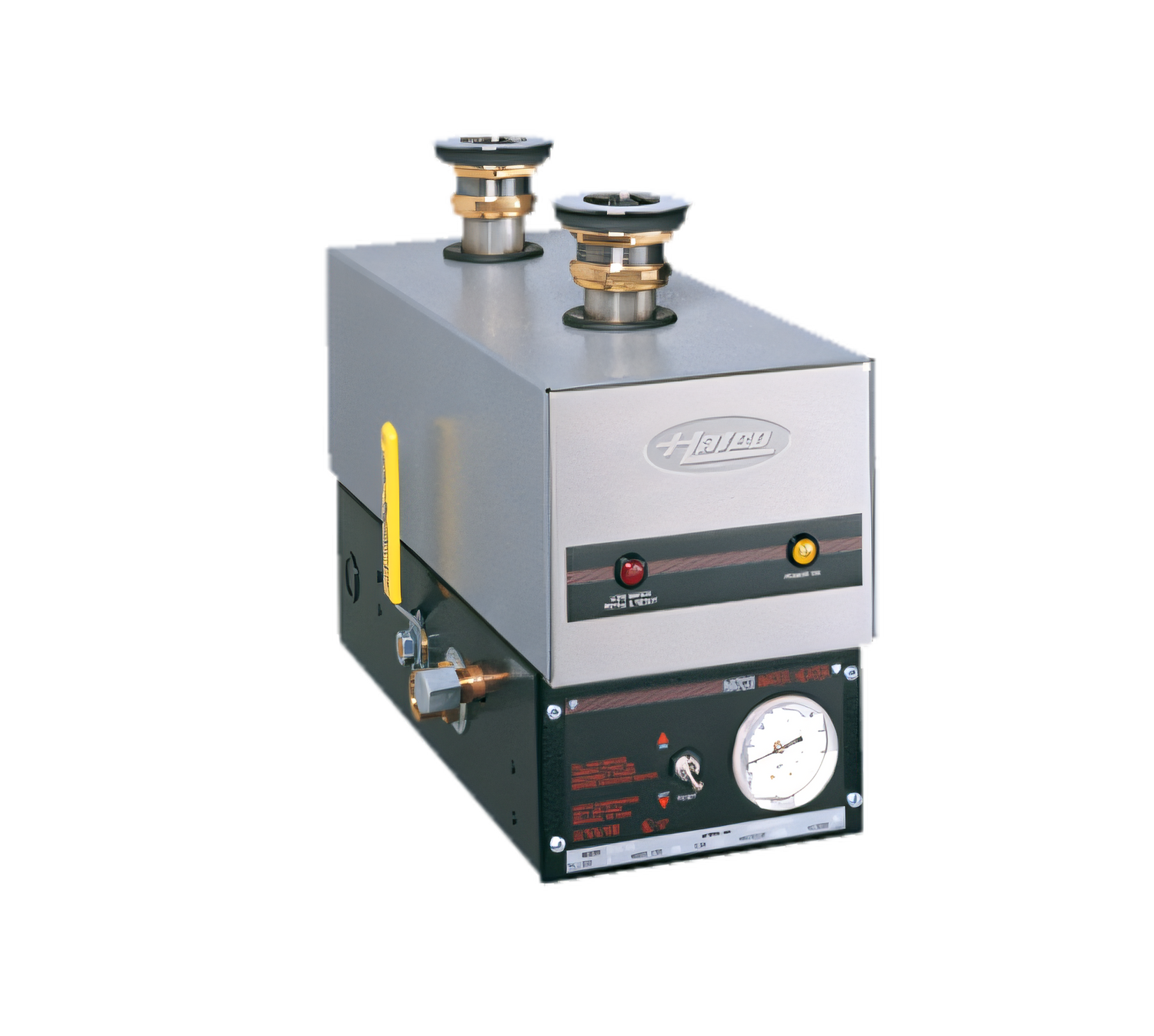

Hatco 3CS-9 “Quick Ship” Sanitizing Sink Heater — 9 kW, 240 V / 1-Phase
Undersink electric heater for 21"–25" (533–635 mm) square 3-compartment sinksKeep a continuous 180 °F (82 °C) sanitizing rinse in your third sink compartment without giving up valuable sink space. The Hatco 3CS-9 mounts cleanly under the bowl, heating and holding water to NSF-approved temperatures so staff can wash, rinse and sanitize faster. This Quick Ship model leaves our warehouse in days, not weeks—perfect for tight project timelines.
Key benefits
- 9 kW rapid recovery: Heats 140 °F supply water to 180 °F in ±30 minutes and maintains temperature during peak use.

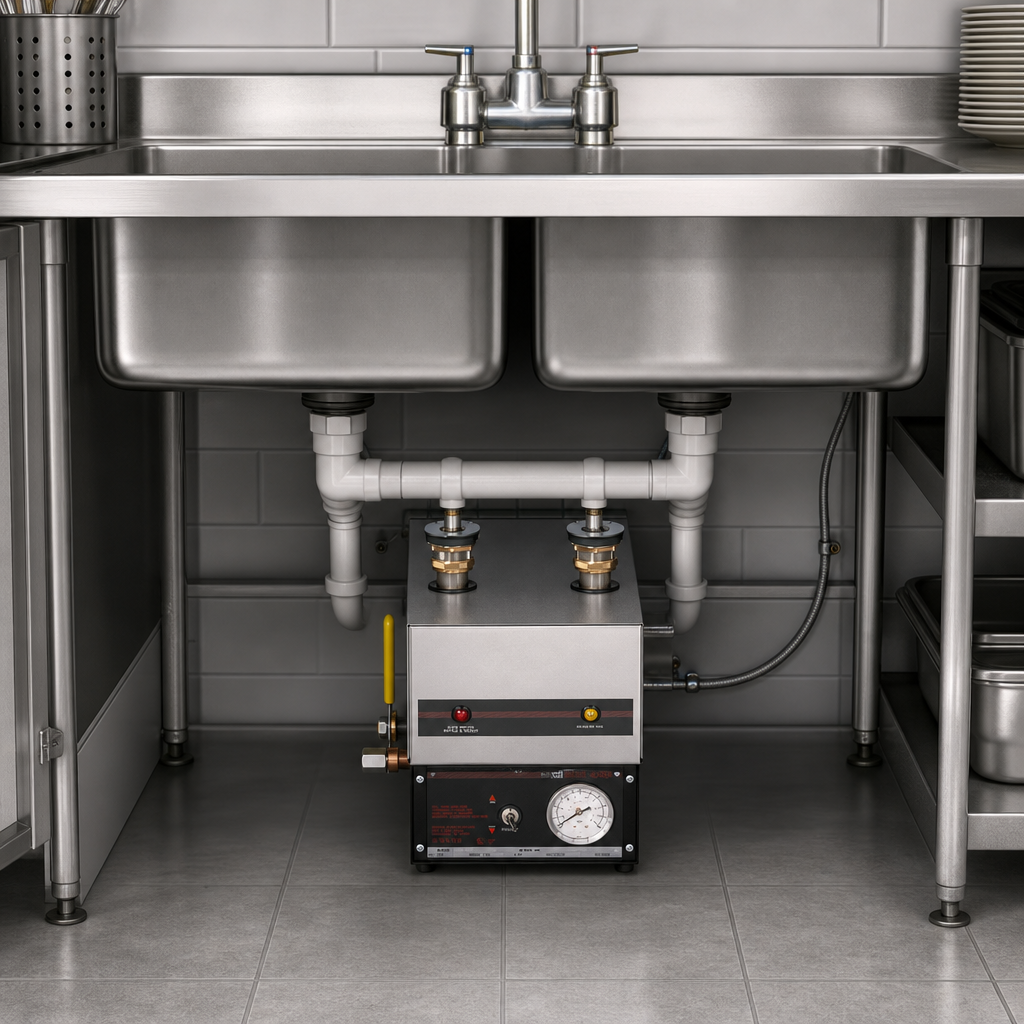

- Space-saving undersink design: Installs between the drain lines—no deck-mount heaters or extra plumbing required.
- Stainless steel front & dual-reservoir tank: One chamber houses the element, the other traps soil for easy draining.
- Simple controls: Toggle power switch with yellow Power On light plus red Over-Temp alert.
- Built-in safety: Energy Cut-Off (ECO) automatically disconnects elements if water level or temperature is unsafe—just refill & reset.
- Pre-assembled for fast install: Ships with template, gaskets, unions & drain hose—drill two 2" holes and hook up.
- Durable Hatco construction: Silver-gray hammertone powder-coat body with IFS antimicrobial finish.
- cULus, NSF listed and proudly Made in the USA.
- 5-year limited warranty with 24/7 parts & service (U.S./Canada).
At-a-glance specs
| Model | 3CS-9 (Quick Ship) |
|---|---|
| Recommended sink size | 21" – 25" (533 – 635 mm) square basin |
| Heating kW | 9 kW |
| Electrical | 240 V, 60 Hz, 1-Phase |
| Full-load amps | 37.5 A |
| Field wiring | 6 AWG copper, 50 A breaker/fuse |
| Overall dimensions* | 16.88" W × 12.63" D × 9.75" H (429 × 321 × 248 mm) |
| Shipping weight | ≈ 27 lb (12 kg) |
| Certifications | NSF, cULus |
| Country of origin | USA |
*Dimensions to top of flanges. See official Hatco spec sheet for detailed drawings.
Installation & operation

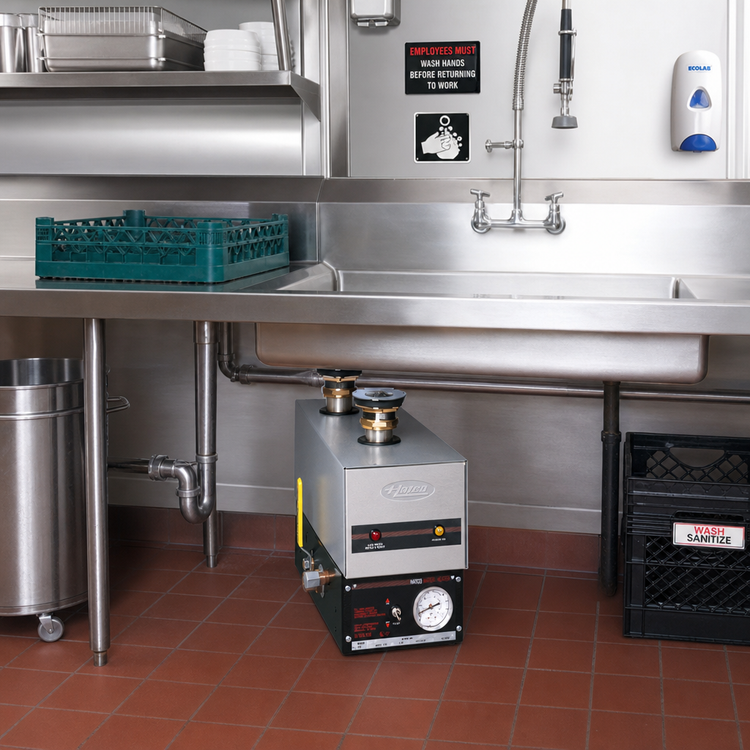

- Mounts beneath center sink; allow 4" (102 mm) clearance at rear for conduit & drain.
- Two 2" (51 mm) holes required in sink bottom (template included).
- Incoming water hardness should not exceed 3.0 GPG; use a softener if necessary.
- For complete instructions download the Hatco 3CS installation manual.
