Description

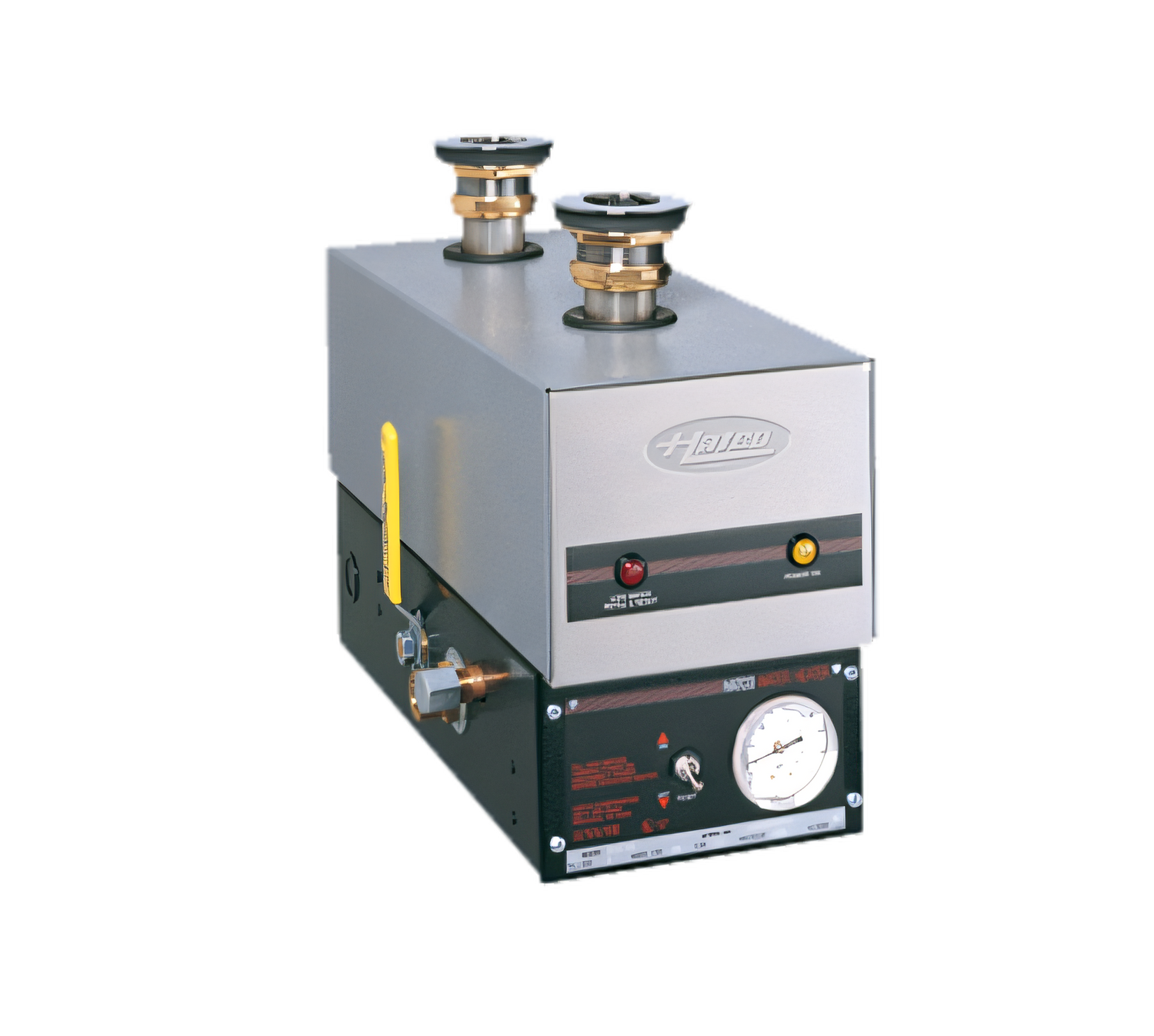

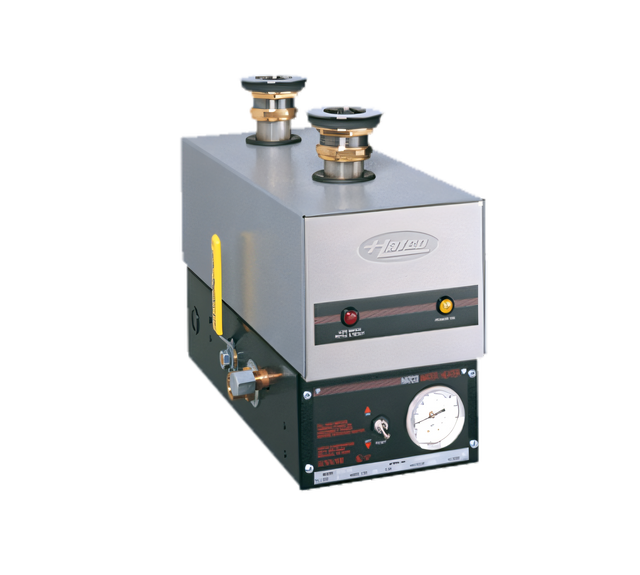

Hatco 3CS-6B Sanitizing Sink Heater – 6 kW, Balanced 3-Phase

Fits 19–21 in (483–533 mm) square sinks · Undersink stainless-front design · NSF, CE & cULus

Keep your ware-washing line moving with a continuous supply of 180 °F (82 °C) rinse water—without sacrificing valuable sink space. Built for medium-to-large, 3- or 4-compartment sinks, the Hatco 3CS-6B mounts below the center compartment, delivers 6 kW of balanced 3-phase power and is shipped ready to install with every gasket and fitting you need.

Key benefits

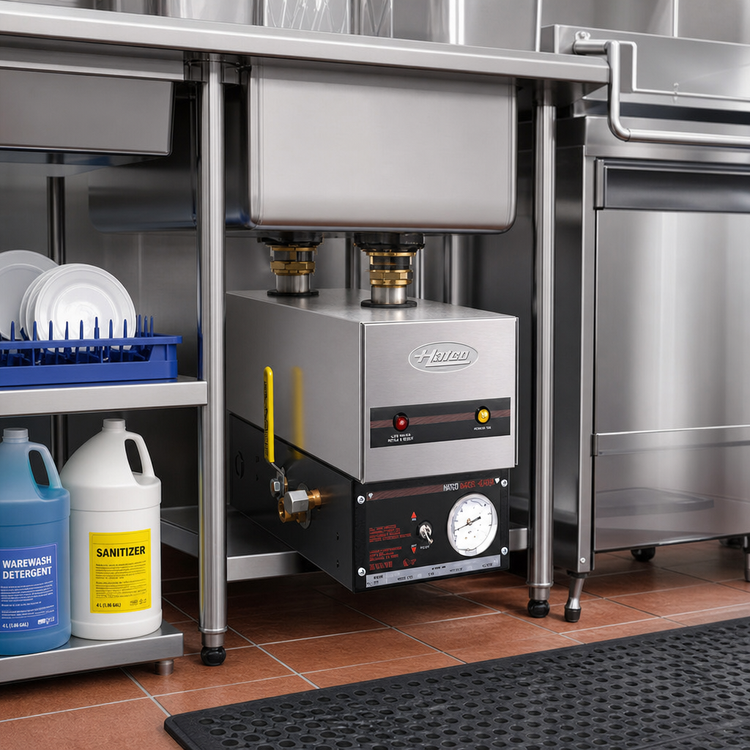

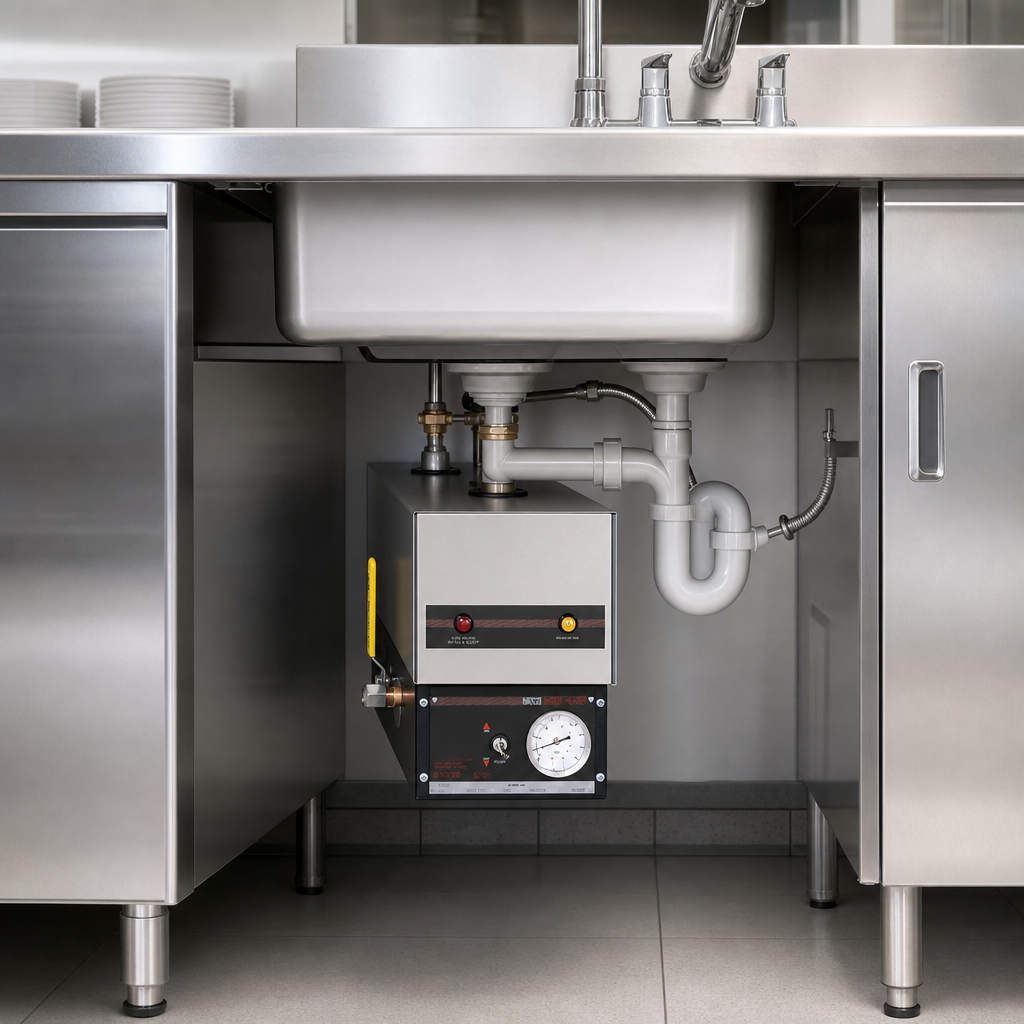

  • Space-saving undersink design—all heating components stay out of the sink basin and out of your way.
  • Stainless steel front & rugged hammertone body stand up to daily commercial abuse and cleaning chemicals.
  • Meets NSF 180 °F standard for final sanitizing rinse water.
  • Energy Cut-Off (ECO) safety automatically protects the element from higher-than-normal temperatures.
  • Easy-read indicators—yellow light shows power on, red light signals low-water/over-temperature condition.
  • Convenient side drain and dual-reservoir tank simplify cleaning and sludge removal.
  • Ships from the USA with a 5-year limited element warranty and Hatco’s 24/7 parts & service support.

At-a-glance specs

Model 3CS-6B
Sink size 19 – 21 in (483 – 533 mm) square
Heat input 6.0 kW (balanced 3-phase)
Voltage choices * 208 V · 240 V · 380-415 V · 480 V
Typical amps 14.4 A @ 240 V  |  18.8 A @ 208 V
Overall dimensions 17.13 W × 9.75 H × 12.63 D in (435 × 248 × 321 mm)
Certifications NSF, CE, cULus
Shipping weight ≈ 30 lb (14 kg)
Country of origin Made in USA

*Balanced 3-phase wiring required. Consult a licensed electrician for exact ampacity and circuit protection.

Options & accessories

  • All-stainless body & base upgrade
  • Built-in temperature monitor or indicator light
  • Security package with Torx® screws & control cover
  • Flush kit (hose, stopper & adapter) for quick tank cleaning
Water quality matters: incoming water over 3 GPG hardness must be softened to maintain efficiency and protect your warranty.

Features & Specs

Manufacturer

Hatco

Certifications

NSF, cULus, Made in USA

Height

12.63in

Width

8.0in

Depth

17.13in

Shipping Weight

30.0lbs

Wattage

6 kilowatts

Specifications

Sink Heater, Electric, undersink design, electric operation, stainless steel front, for 19-21" square sink area, 6.0 kW (balanced), NSF, CE, cULus, Made in USA
