Description

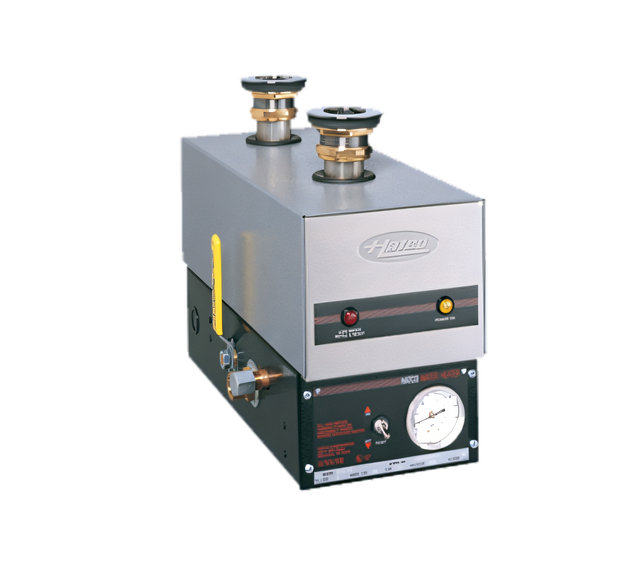

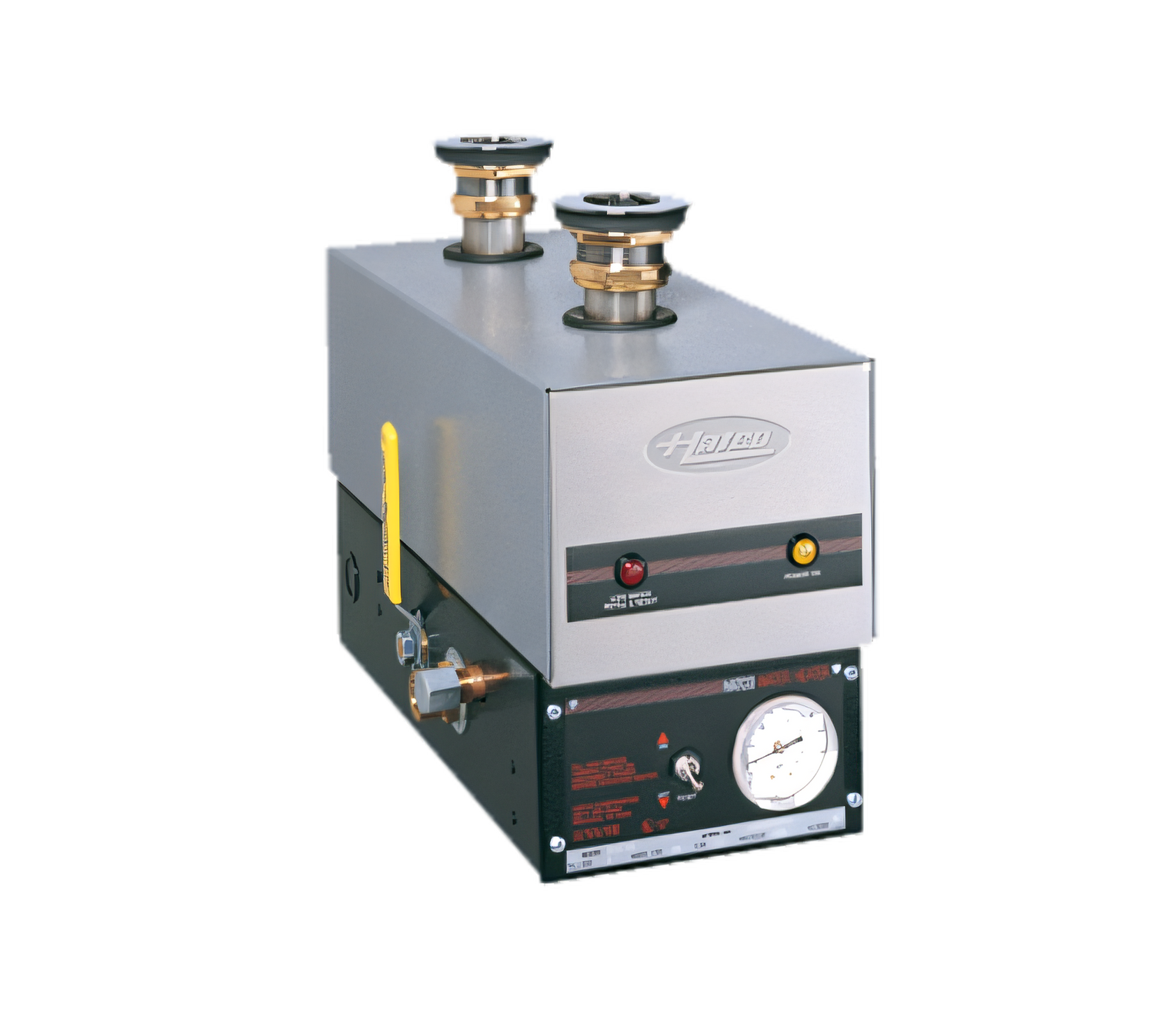

Hatco 3CS-6 “Quick Ship” Sanitizing Sink Heater

6 kW • 208 V / 60 Hz / 3-Ph (Delta) • For 19-21" square sink compartments

Turn any 3- or 4-compartment sink into a high-performance sanitizing station in minutes. The Hatco 3CS-6 keeps a continuous 180 °F (82 °C) rinse available under the sink, freeing up valuable basin space while helping you meet NSF sanitizing standards with less labor, less water and zero guesswork.

Why you’ll love it

  • Instant NSF-approved 180 °F rinse water for faster, safer warewashing.

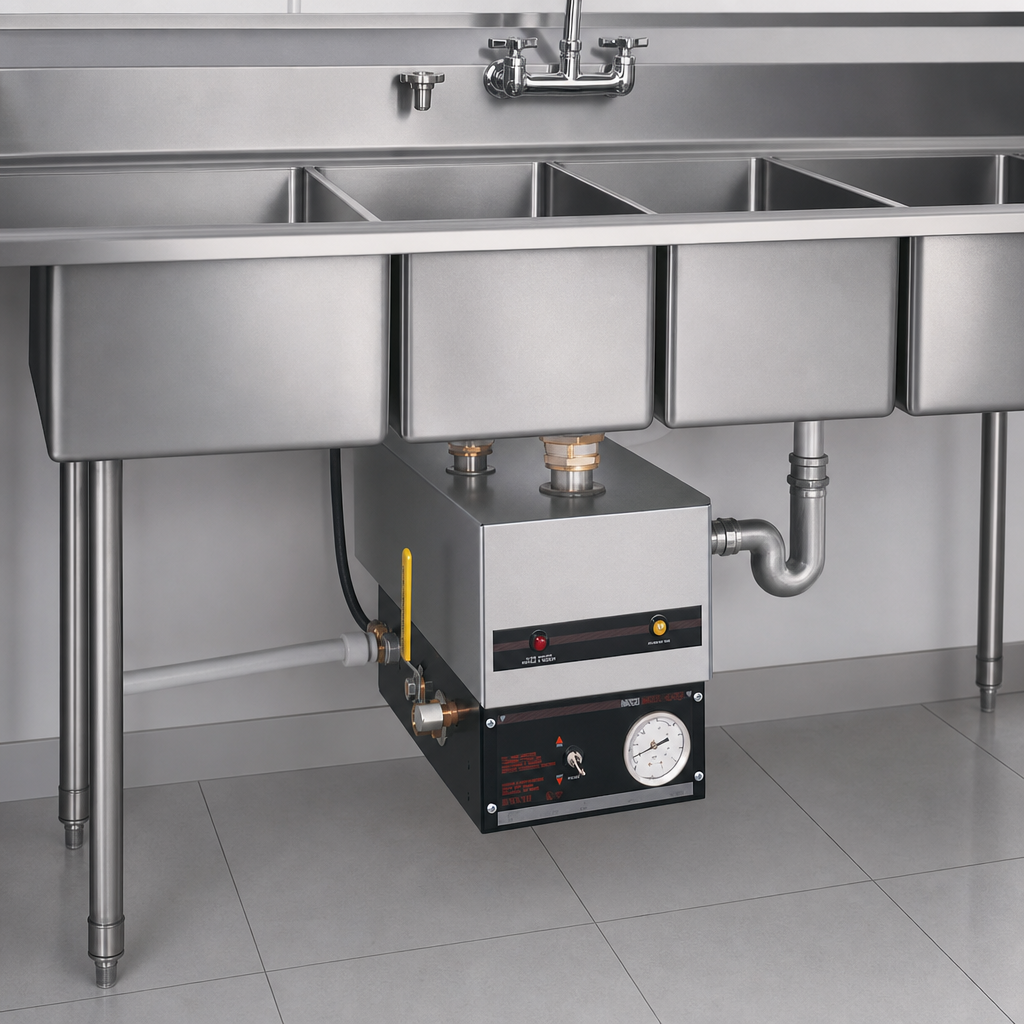

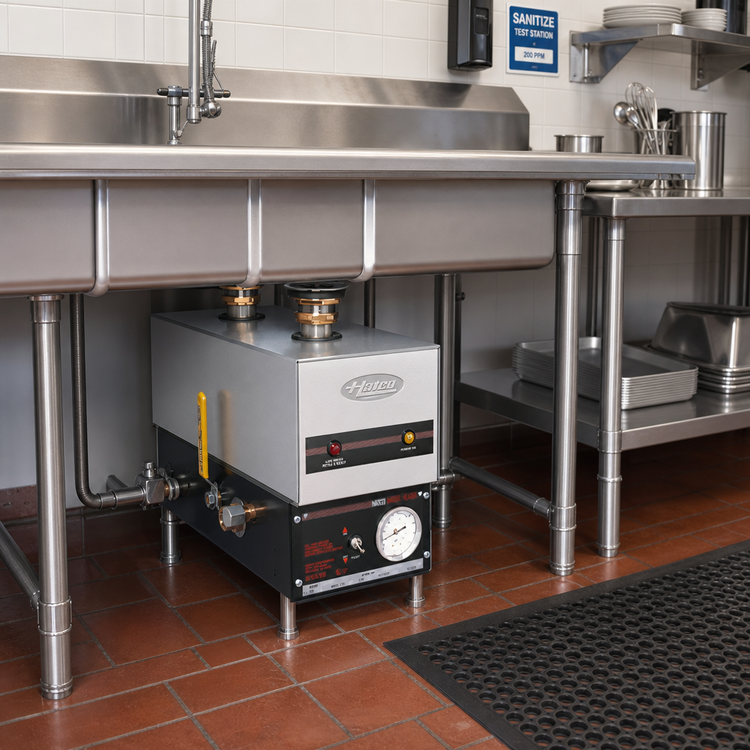

  • Undersink, self-contained design eliminates bulky immersion heaters.
  • Durable stainless-steel front with powder-coated silver-gray hammertone body resists dents, scratches and corrosion.
  • Energy Cut-Off (ECO) safety automatically protects against over-temperature.
  • Simple front controls: yellow Power indicator, red Refill/Reset indicator.
  • Ships complete with all gaskets & plumbing unions — install in under an hour.
  • Made in the USA and backed by a 5-year limited warranty.

Performance at-a-glance

Model 3CS-6 (Quick Ship configuration)
Sink size 19 – 21 in ² (483 – 533 mm)
Heating capacity 6 kW
Electrical 208 V / 60 Hz / 3-phase (delta)
Full-load amps 25 A
Recommended circuit 40 A, 8 AWG copper (THHN)
Shipping weight 26 lb (12 kg)
Certifications NSF, cULus
Country of origin Made in USA

Overall dimensions

Length (A) 16.88" (429 mm)
Height (B) 5.50" (140 mm)
Depth (C) 8.50" (216 mm)
Front clearance (D) 2.88" (73 mm)
Mounting center (E) 6.75" (171 mm)
Drain outlet drop (F) 3.38" (86 mm)

Included in the box

  • 3CS-6 sink heater assembly
  • Sink mounting template & gaskets
  • Union fittings & hardware
  • Comprehensive installation & operation manual
Electrical notice: This unit must be hard-wired by a qualified technician and connected to a dedicated 40 A 3-phase circuit. Always follow local codes.

Looking for additional voltage or options such as built-in temperature monitors? Contact us — we can quote the full Hatco 3CS family.

Features & Specs

Manufacturer

Hatco

Brand_name

Quick Ship

Certifications

NSF, cULus, Made in USA

Height

12.63in

Width

6.75in

Depth

16.88in

Shipping Weight

26.0lbs

Wattage

6 kilowatts

Specifications

(QUICK SHIP MODEL) Sink Heater, electric, undersink design, electric operation, stainless steel front, for 19-21" square sink area, 6kW, 208v/60/3 delta, NSF, cULus, Made in USA
