Description

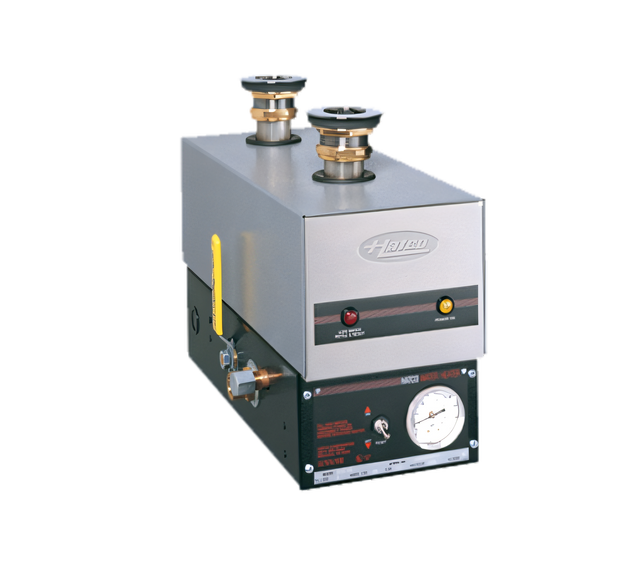

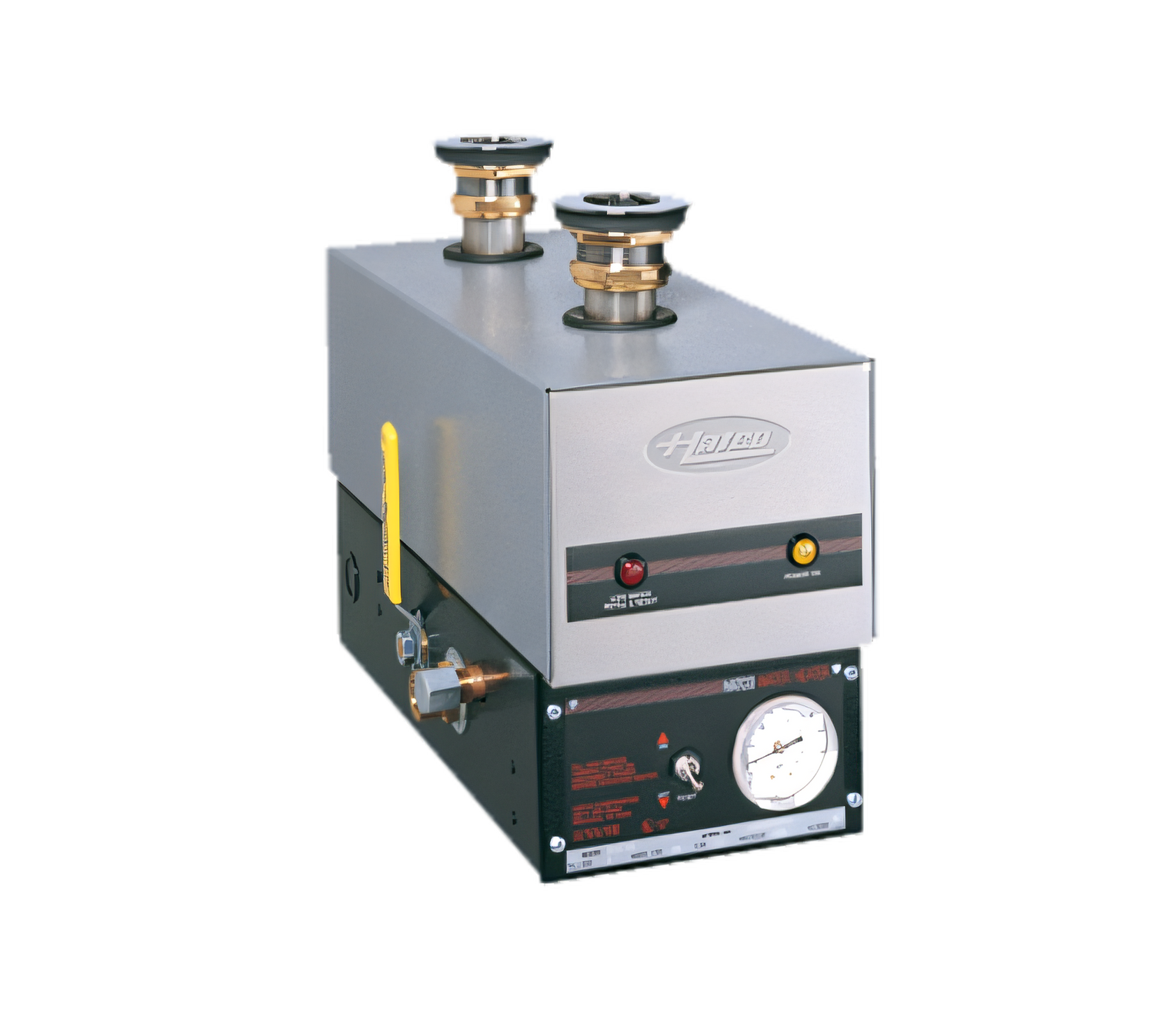

Hatco 3CS-6 Quick-Ship Sanitizing Sink Heater

6 kW • 208 V/60 Hz • 3-Phase (Delta)

Maintain a steady 180°F (82°C) sanitizing rinse in your 3-compartment sink without giving up a single inch of basin space. The Hatco 3CS-6 mounts neatly beneath 19–21 inch square compartments, delivers NSF-compliant performance, and ships out the very day you order—so your dishroom never misses a beat.

Key benefits

  • Quick-Ship stocked – orders received before 12 PM (Noon) CT leave the factory the same day.

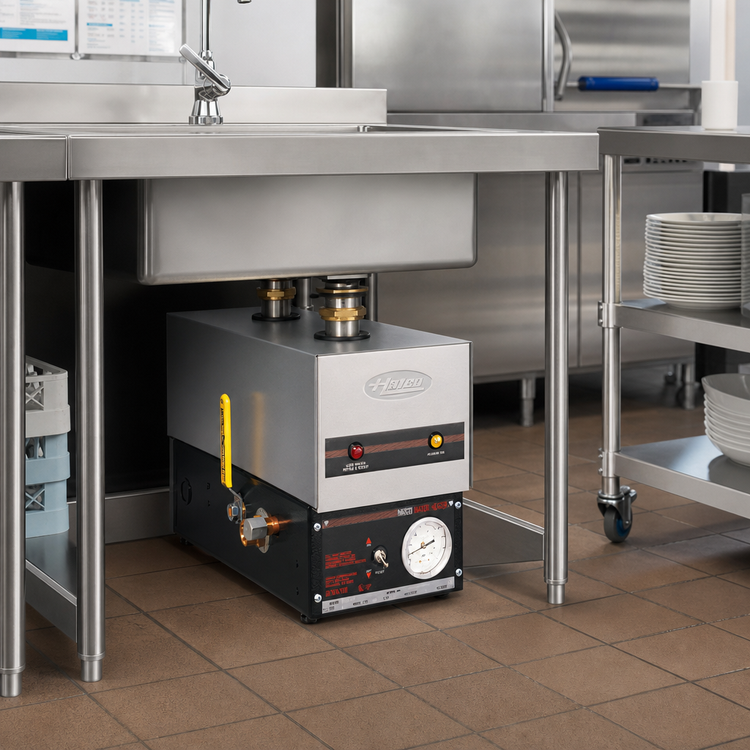

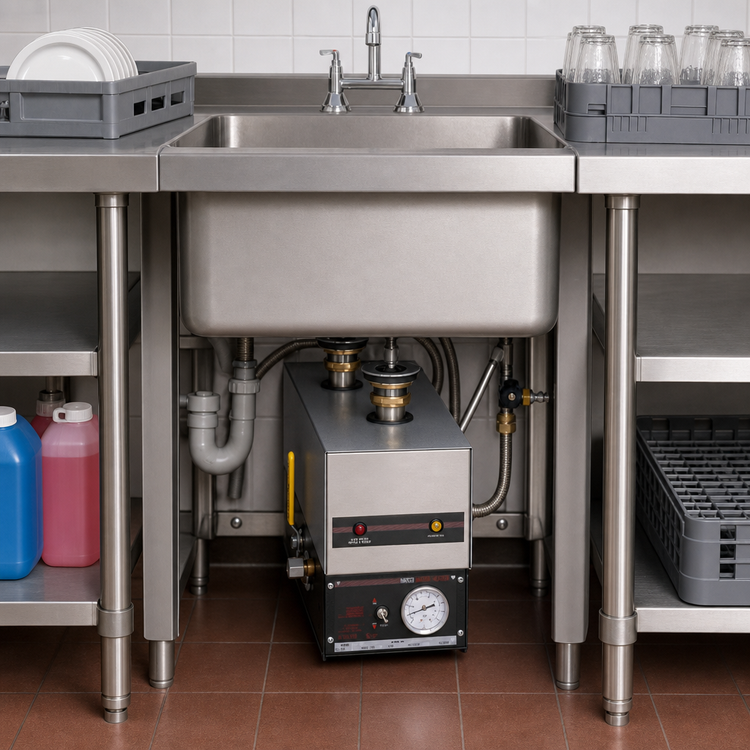

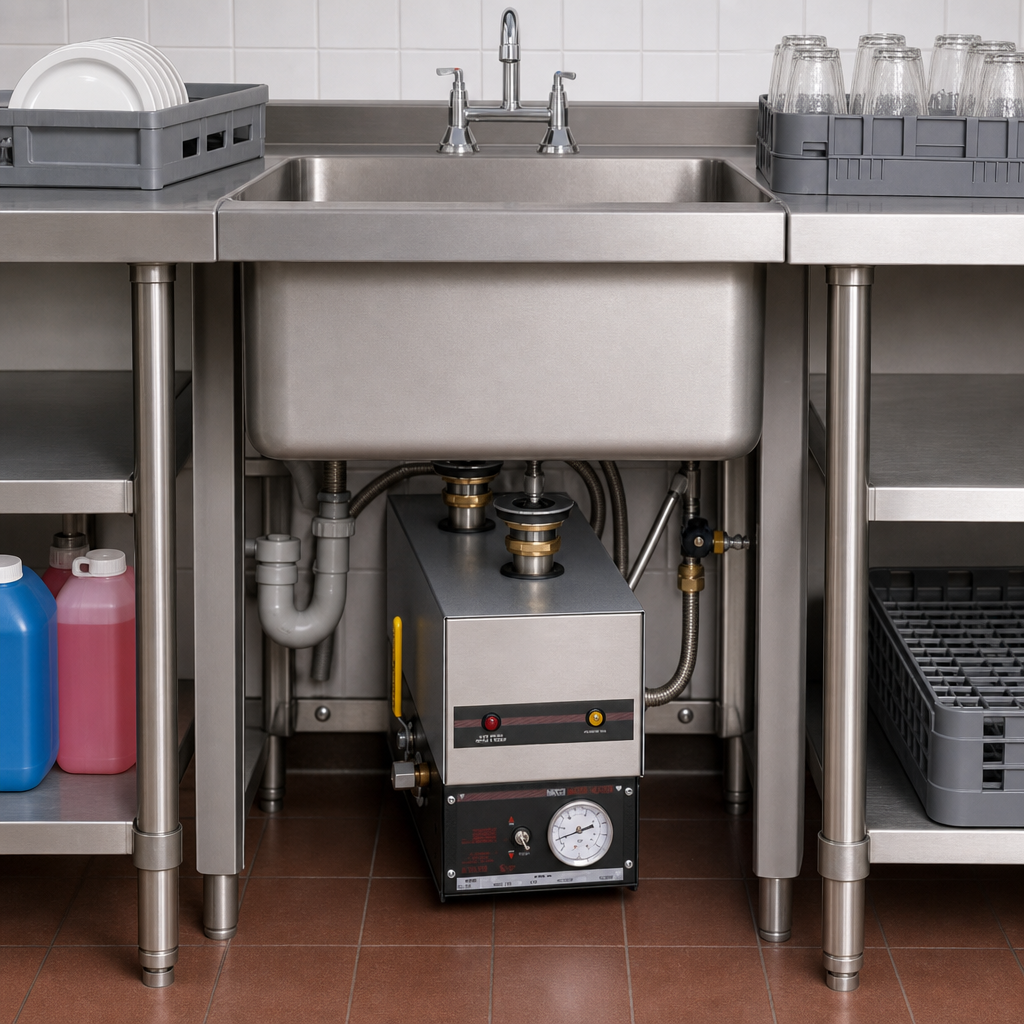

  • Space-saving undersink design keeps the work area clear for washing and rinsing.
  • Durable stainless-steel front with rugged, powder-coated body for long service life.
  • Dual-reservoir tank isolates soil in a sump chamber to protect the heating element.
  • Built-in Energy Cut-Off (ECO) automatically guards against unsafe over-temperature conditions.
  • Easy visual monitoring with yellow Power-On light and red Over-Temp alert.
  • Meets the NSF 180°F (82 °C) final-rinse standard for proper ware sanitizing.
  • Arrives ready to install with unions, gaskets and fittings—no fabricating required.
  • Backed by a 5-year limited warranty and 24/7 parts & service support (U.S./Canada).
  • cULus listed & proudly Made in the USA.

Technical specifications

Quick-Ship model 3CS-6
Recommended sink size 19″–21″ (483–533 mm) square
Heating capacity 6 kW
Electrical 208 V / 60 Hz / 3-Phase (Delta) • 25 A
Overall dimensions (W × H × D) 16.88″ × 5.5″ × 8.5″ (429 × 140 × 216 mm)
Shipping weight 26 lb (12 kg)
Certifications NSF 4 • cULus
Country of origin USA

What’s included

  • Hatco 3CS-6 Sanitizing Sink Heater
  • Water inlet & outlet unions with gaskets
  • Drain hose connection kit
  • Undersink mounting template
  • Installation & Operating Manual
Water quality notice: Incoming water hardness must not exceed 3 grains per gallon (0.75 g/L). Harder water should be softened to prevent lime build-up; related damage is not covered under warranty.

Questions? Chat with us anytime or call (414) 671-6350.

Features & Specs

Manufacturer

Hatco

Brand_name

Quick Ship

Certifications

NSF, cULus, Made in USA

Height

12.63in

Width

6.75in

Depth

16.88in

Shipping Weight

26.0lbs

Wattage

6 kilowatts

Specifications

(QUICK SHIP MODEL) Sink Heater, electric, undersink design, electric operation, stainless steel front, for 19-21" square sink area, 6kW, 208v/60/3 delta, NSF, cULus, Made in USA
