Hatco 3CS-6-208-1-QS Quick Ship Commercial Faucets & Plumbing
Description

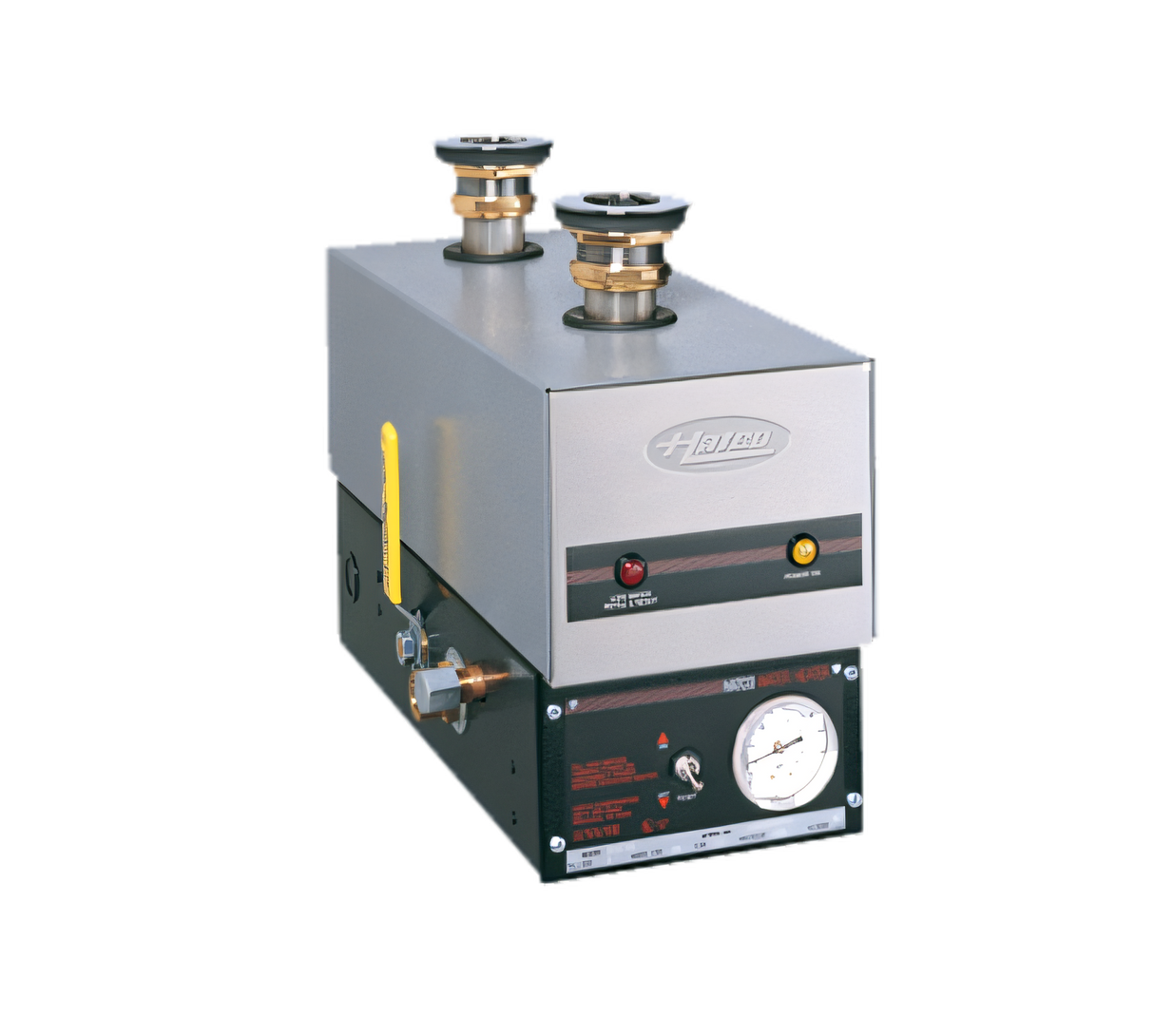

Hatco 3CS-6 “Quick Ship” Sanitizing Sink Heater – 6 kW, 208V/1-ph
For 19″–21″ square sink compartments • Continuous 180°F rinse water • Undersink designMaintain a steady NSF-approved 180°F (82°C) sanitizing rinse without sacrificing valuable sink space. Designed to mount out of sight beneath the third compartment, the Hatco 3CS-6 Quick Ship model delivers fast heat-up, reliable temperature holding and built-in safety features that keep your warewashing line moving.
Key benefits

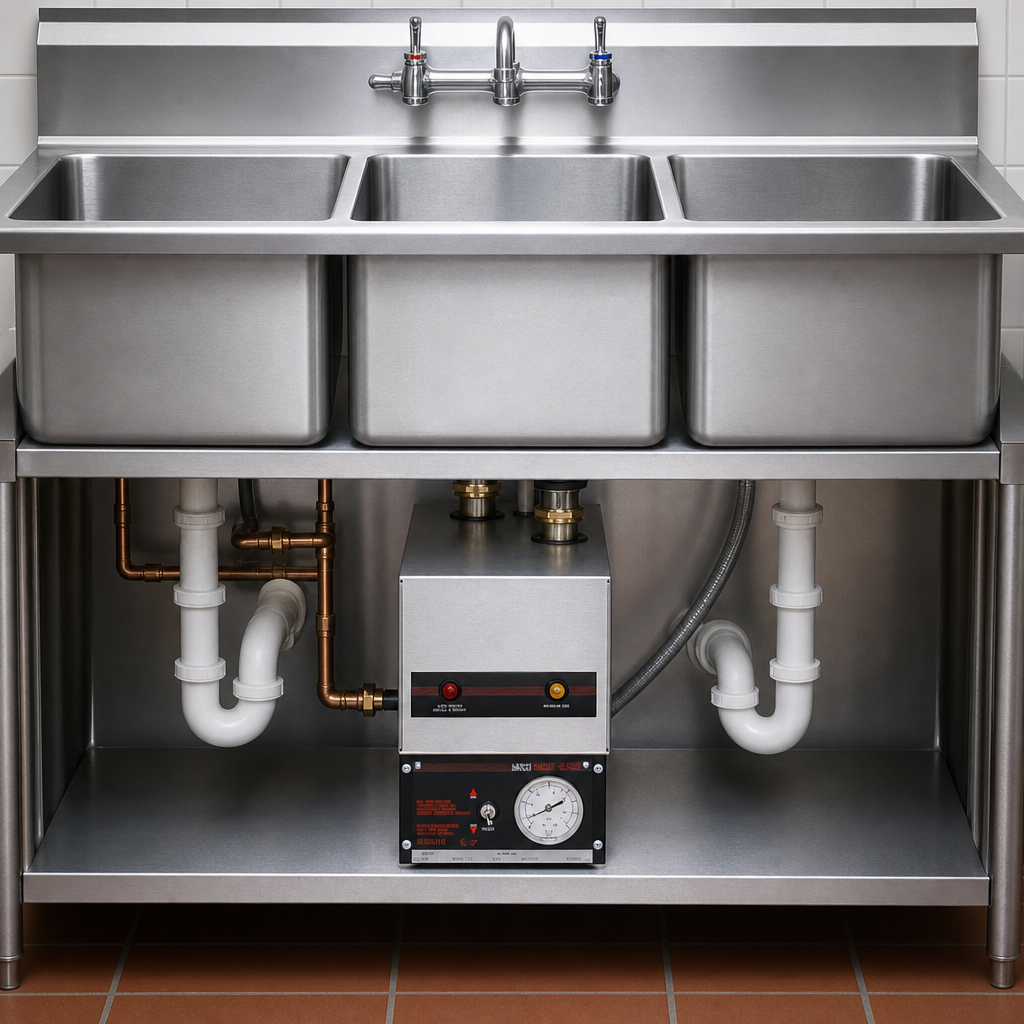

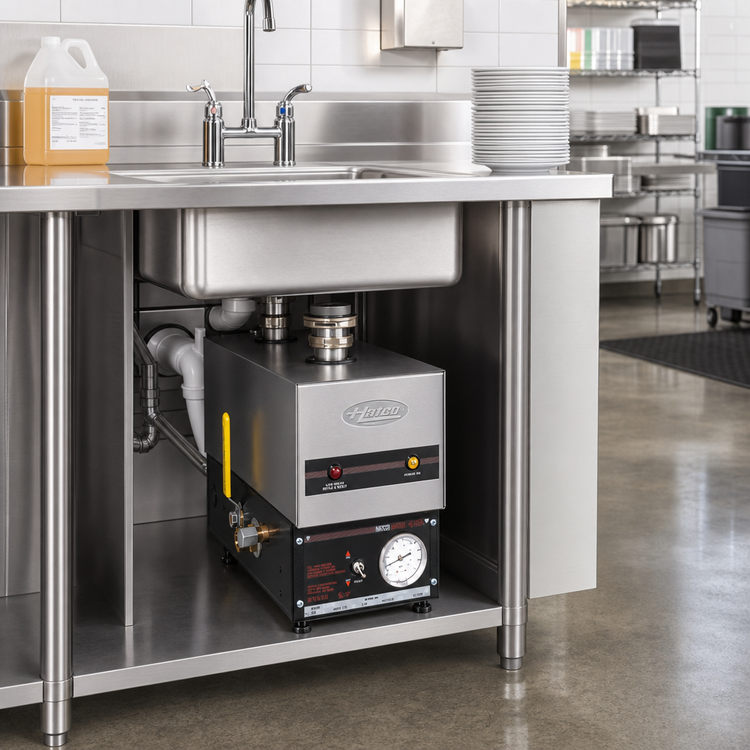

- Space-saving undersink installation keeps work surfaces clear.
- 6 kW tubular heating element reaches sanitizing temperature in about 30 minutes and recovers quickly between loads.
- Meets NSF Standard of 180°F (82°C) for final rinse sanitizing.
- Energy Cut-Off (ECO) prevents element damage from over-temperature conditions.
- Front toggle switch with yellow “Power” light plus red “Low-Water/Over-Temp” alert for instant status checks.
- Durable stainless-steel front panel, powder-coated silver-gray hammertone body and convenient side drain.
- Ships ready to install with all gaskets, unions and fittings—no extra parts needed.
- Five-year limited stainless tank warranty and 24/7 parts & service (U.S. & Canada).
- Quick Ship inventory—on the shelf and ready to leave the factory fast.
- cULus listed and proudly Made in USA.
Technical specifications
| Model | 3CS-6 (Quick Ship configuration) |
|---|---|
| Sink size compatibility | 19″ – 21″ square (483 – 533 mm) |
| Heat output | 6 kW |
| Voltage / Phase | 208 V / 60 Hz / 1-phase |
| Full-load amps | 29 A |
| Pre-heat time | ≈ 30 minutes to 180°F (82°C) |
| Overall dimensions (W × D × H) | 16.88″ × 8.50″ × 12.63″ (429 × 216 × 321 mm) |
| Water connections | (2) 2″ diameter unions (included) |
| Shipping weight | 26 lb (12 kg) |
| Certifications | NSF, cULus |
| Country of origin | USA |
Factory options
- All stainless steel body & base
- Built-in temperature monitor gauge (replaces indicator light)
- Temperature indicator light (not available with gauge)
- CSA wiring (Canada models)
- Security package with Torx® screws & control cover
Accessories
- FR-Flush kit – flush hose, stopper & adapter for fast tank cleaning and maintenance
Installation & water quality notes
- Requires two 2″ holes in sink bottom; full-size drilling template supplied.
- Install in the center (sanitizing) compartment of a 3-compartment sink for best results.
- Incoming water harder than 3 GPG must be softened to prevent scale build-up.
- Regular flushing is recommended—scale-related failures are not covered under warranty.
Need a different voltage, phase or sink size? Explore the complete Hatco 3CS series by visiting the Hatco website or contacting our sales team.
