Hatco 3CS-4 Commercial Faucets & Plumbing
Hatco 3CS-4 Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco 3CS-4 Commercial Faucets & Plumbing
Description

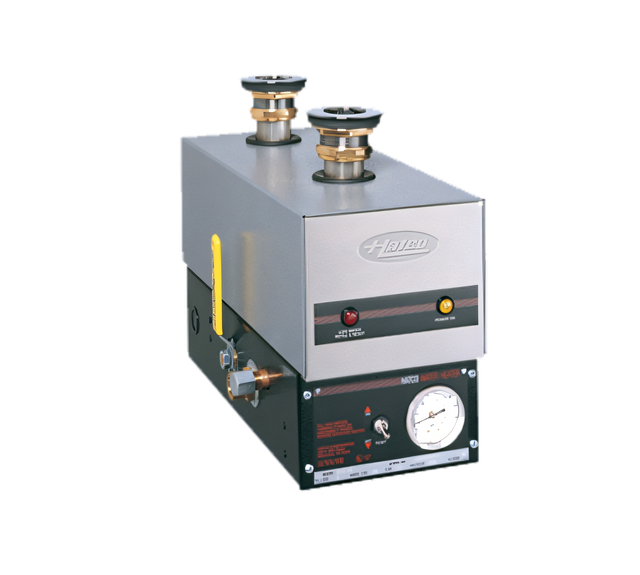

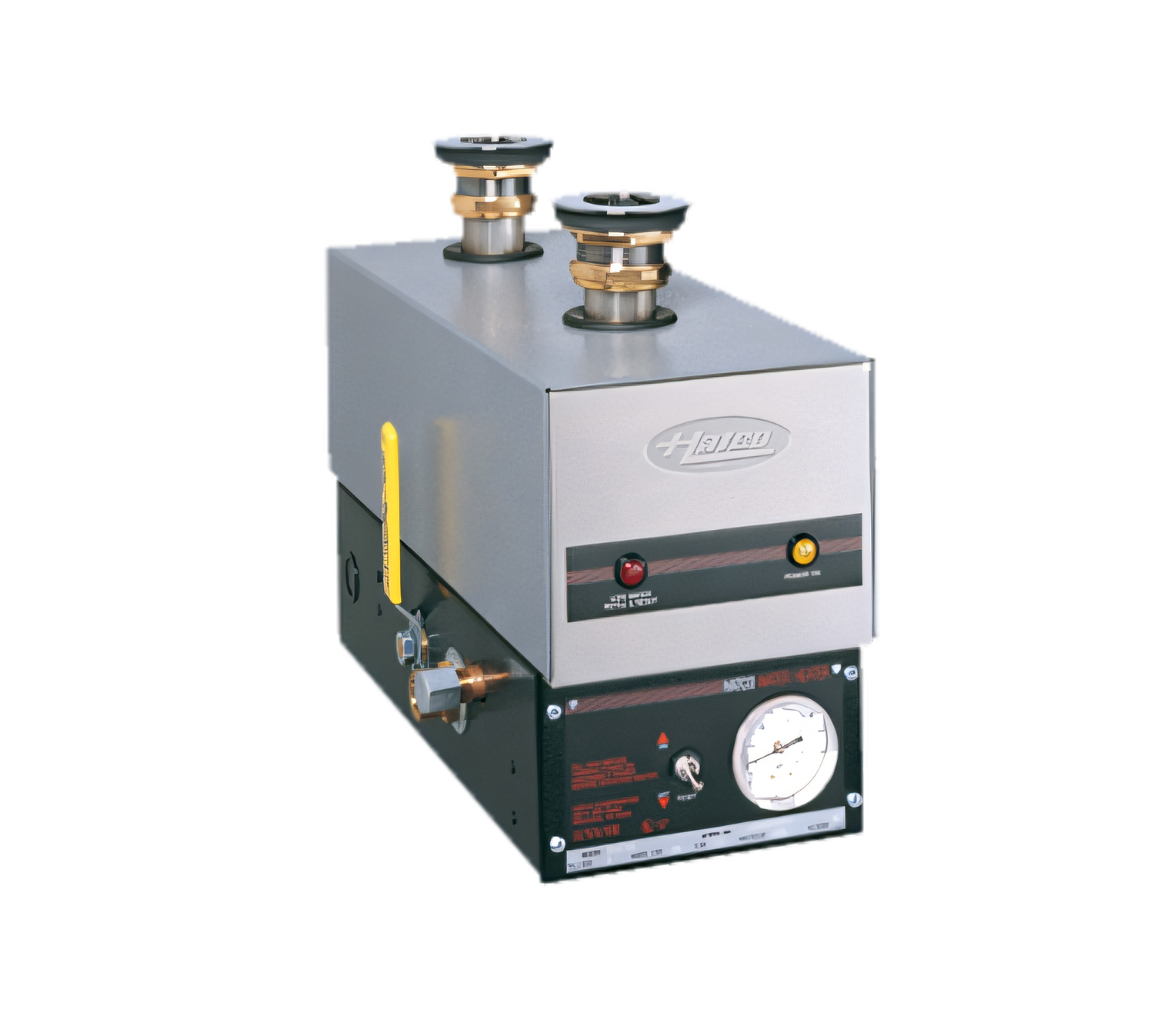

Hatco 3CS-4 Sanitizing Sink Heater
4.5 kW • Undersink electric design for 16–18" square bowlsKeep your warewashing line moving and your work surface clear. The Hatco 3CS-4 mounts beneath the sanitizing compartment of a 3- or 4-bay sink and delivers a continuous 180 °F (82 °C) rinse—meeting NSF requirements without the footprint, wait time or energy waste of a standalone booster heater.
Why you’ll love it
- Always-ready 180 °F rinse – maintains proper sanitizing temperature for dishes, pots, pans and barware.

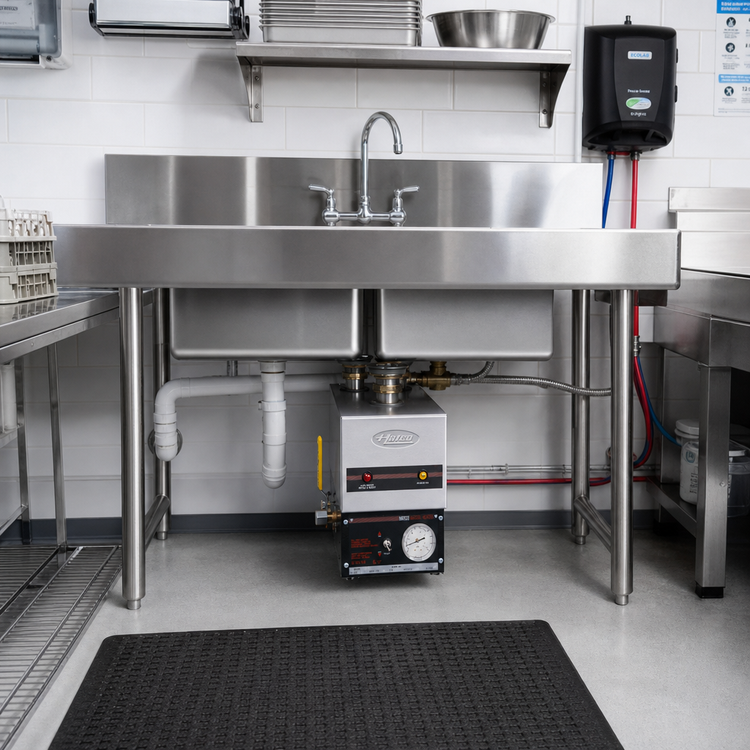

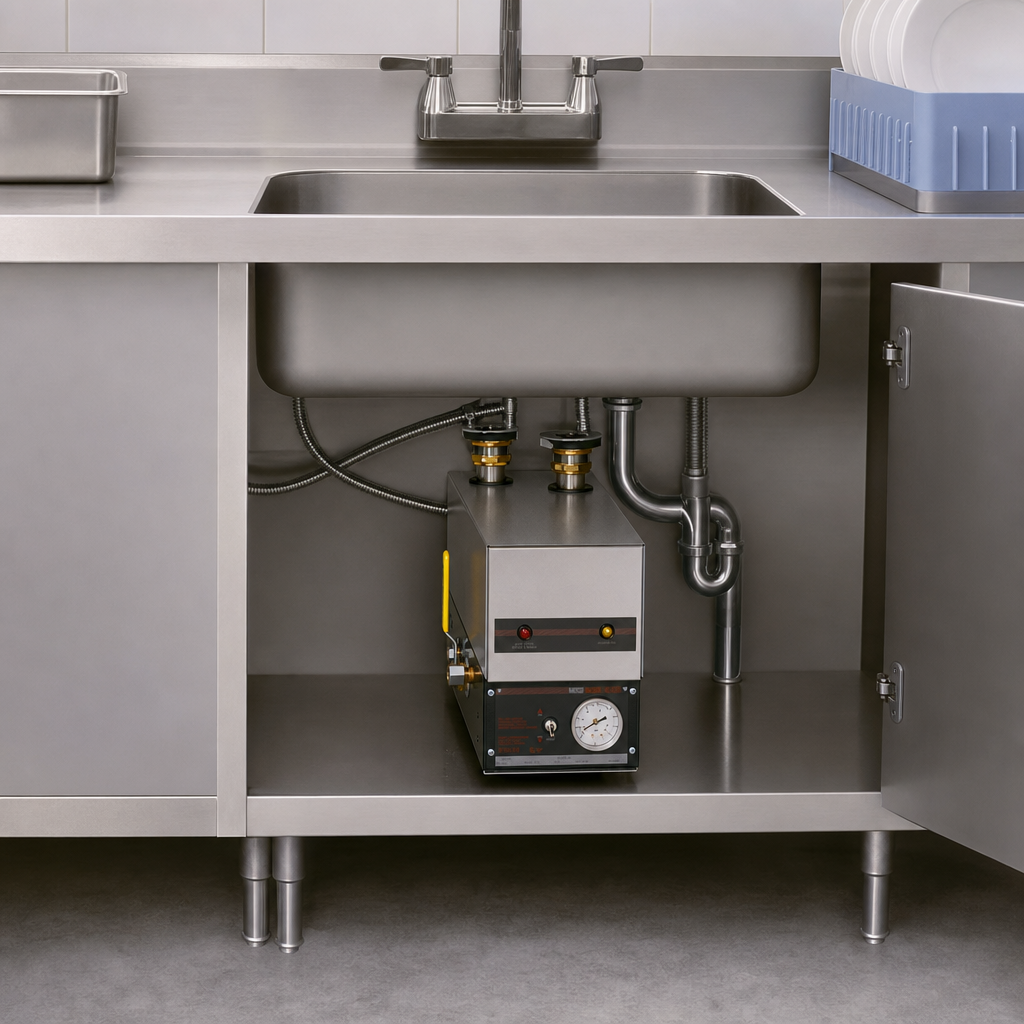

- Space-saving installation – compact body tucks beneath the center sink, leaving every inch of basin free.
- Durable construction – stainless-steel front with powder-coated hammertone body stands up to daily splashes.
- Dual-reservoir tank – one chamber houses the heating element; the second traps soils for quick draining.
- Built-in safety – Energy Cut-Off (ECO) prevents excessive temperatures; red over-temp indicator prompts refill/reset.
- Simple controls – On/Off toggle plus bright power light for at-a-glance status checks.
- Fast, gasket-ready install – ships with all fittings; only two 2" holes required in the sink.
- Made in the USA – backed by Hatco’s 5-year limited warranty and 24/7 parts & service support.
- Certifications: NSF, CE, cULus.
Electrical & mechanical specs
| Sink size | 16–18" (406–457 mm) square |
|---|---|
| Heat rating | 4.5 kW |
| Voltage / phase options |
208 V 1ø 22 A 240 V 1ø 18.8 A 208 V 3ø 22 A (Δ) 240 V 3ø 18.8 A (Δ) 480 V 3ø 9.4 A |
| Dimensions (W × D × H) | 16.88" × 9.75" × 12.63" (429 × 248 × 321 mm) |
| Shipping weight | 24 lb (11 kg) |
| Enclosure rating | IPX3 equivalent splash-proof |
| Included | Mounting template, unions, gaskets, side drain |
Factory-installed options
- All-stainless body and base
- Built-in temperature gauge or indicator light
- CSA wiring (Canada), 480 V version, shipboard package
- Security package with Torx® screws & control cover
Accessory
- Flush Kit – hose, stopper & adapter for quick tank cleaning
Need a different bowl size or power rating? Explore the complete Hatco 3CS family from 3 kW to 9 kW.
