Hatco 3CS-3B Commercial Faucets & Plumbing
Description

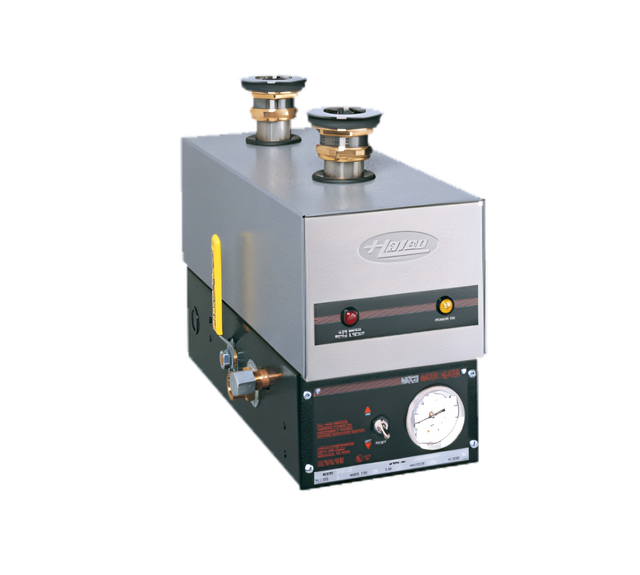

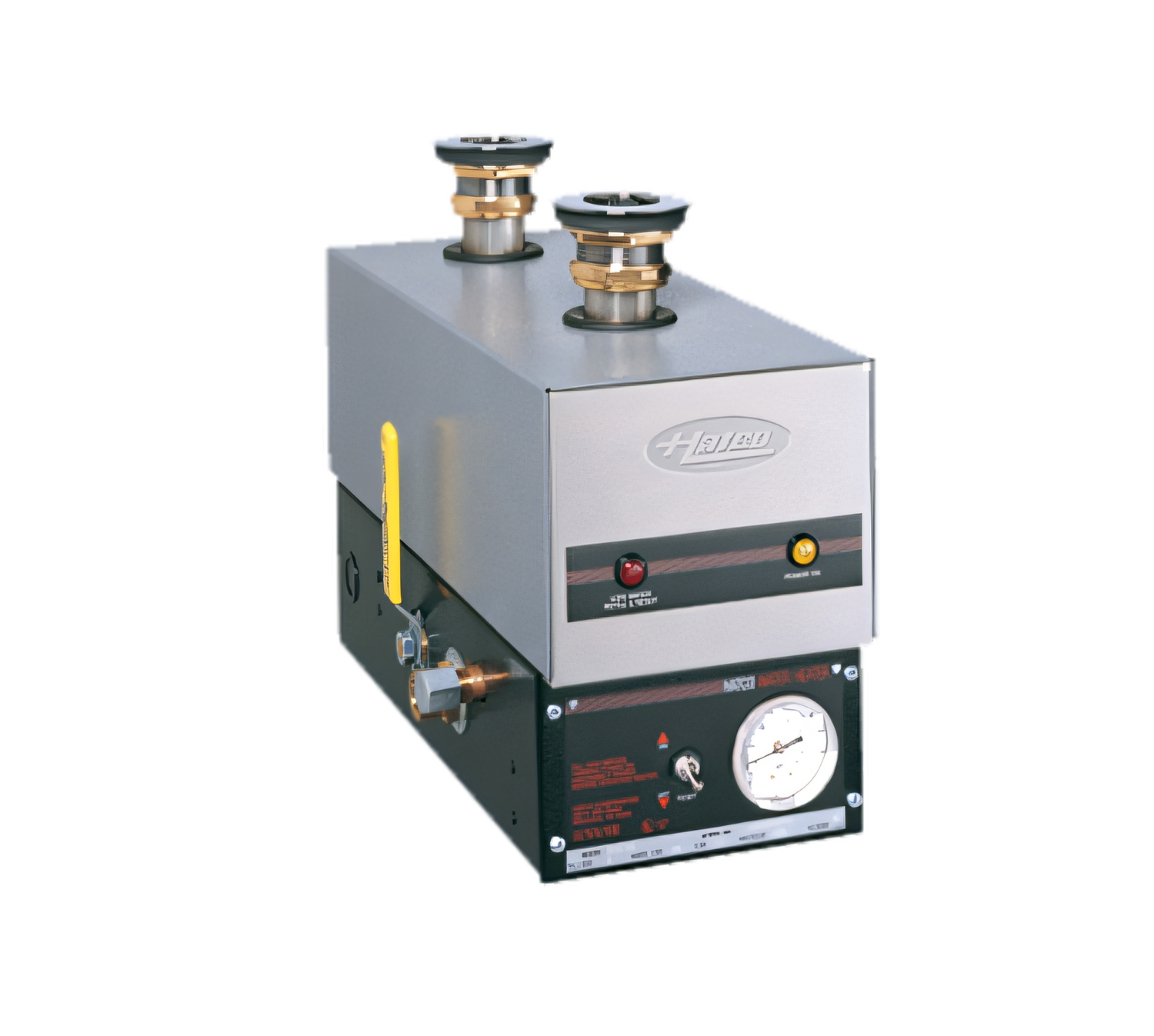

Hatco 3CS-3B Sanitizing Sink Heater
3 kW • Balanced 3-Phase • 15" (381 mm) Square Sink CapacityDesigned to live quietly beneath the center compartment, the 3CS-3B keeps a continuous supply of 180 °F (82 °C) sanitizing rinse water ready for action—without surrendering an inch of valuable sink space. With a stainless-steel front, rugged hammertone body and industry-leading safety features, Hatco delivers a compact powerhouse that helps you meet health codes, speed up warewashing and protect your investment.
Key features

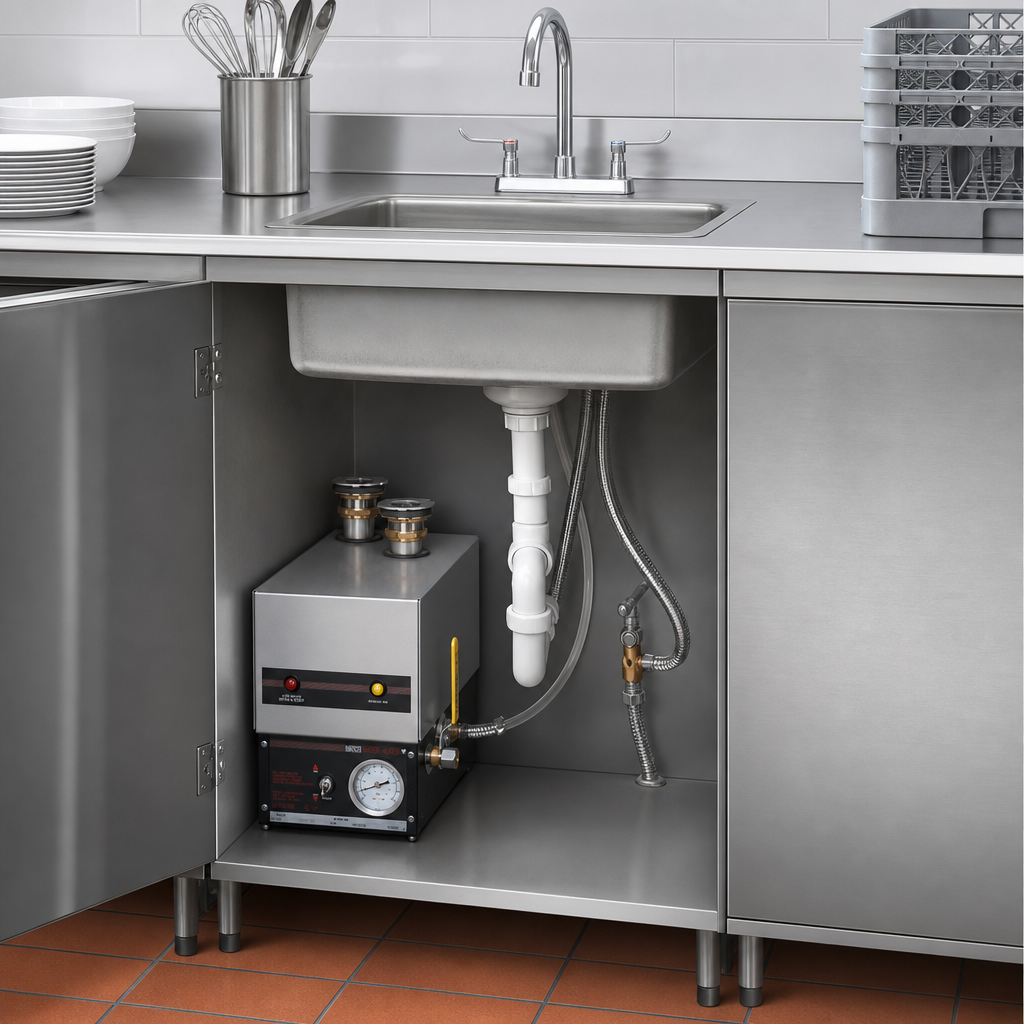

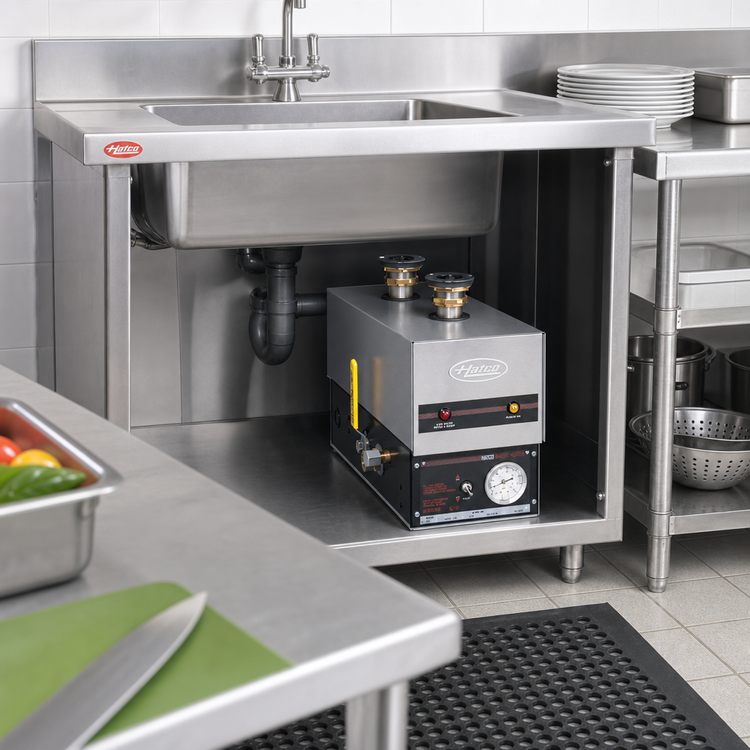

- Undersink, space-saving design—ideal for 3- or 4-compartment, bar, pot & pan sinks
- 3.0 kW balanced 3-phase heating element maintains NSF-required 180 °F rinse water
- Stainless-steel front panel with durable silver-gray hammertone powder-coated body
- Dual-reservoir tank isolates soil while keeping elements submerged for maximum life
- Energy Cut-Off (ECO) automatically protects against higher-than-normal water temps
- Easy-read indicator lights: yellow (power on) | red (over-temperature alert)
- Factory-supplied gaskets, unions & hardware for fast, no-hassle installation
- 5-year limited warranty backed by Hatco’s 24/7 parts & service network
- Certified & compliant: NSF, CE, cULus | Made in the USA
Specifications
| Model | 3CS-3B (Balanced 3-Phase) |
|---|---|
| Sink coverage | Up to 15" × 15" (381 mm × 381 mm) |
| Heating capacity | 3.0 kW |
| Voltage / amps |
208 V 8.3 A 240 V 7.2 A 380–415 V 4.3 – 4.7 A 480 V 3.6 A |
| Dimensions (L × H × D) | 17.13" × 9.75" × 8.5" (435 mm × 248 mm × 216 mm) |
| Ship weight | 30 lb (14 kg) |
| Certifications | NSF | CE | cULus |
| Country of origin | Made in USA |
Available options (factory-installed)
- Built-in temperature monitor (dial gauge) (not available with temperature light)
- Temperature indicator light (not available with gauge)
- All-stainless body & base upgrade
- CSA wiring package (Canada)
- Security package—Torx® screws & control cover
- 480 V configuration
- Shipboard wiring
Accessories
- Flush kit (hose, stopper & adapter) for quick tank cleaning
Incoming water hardness must not exceed 3.0 GPG (0.75 GPG L). Harder water should be properly softened to maintain efficiency and protect your warranty.
Need help sizing or configuring your 3CS-3B? Contact your local Hatco representative.
