GTI Designs Chocolate Equipment T20 Chocolate Tempering Machine, 53 lb Tank, Stainless Steel, Programmable Pedal Doser
SKU: T20
$61,927.20
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

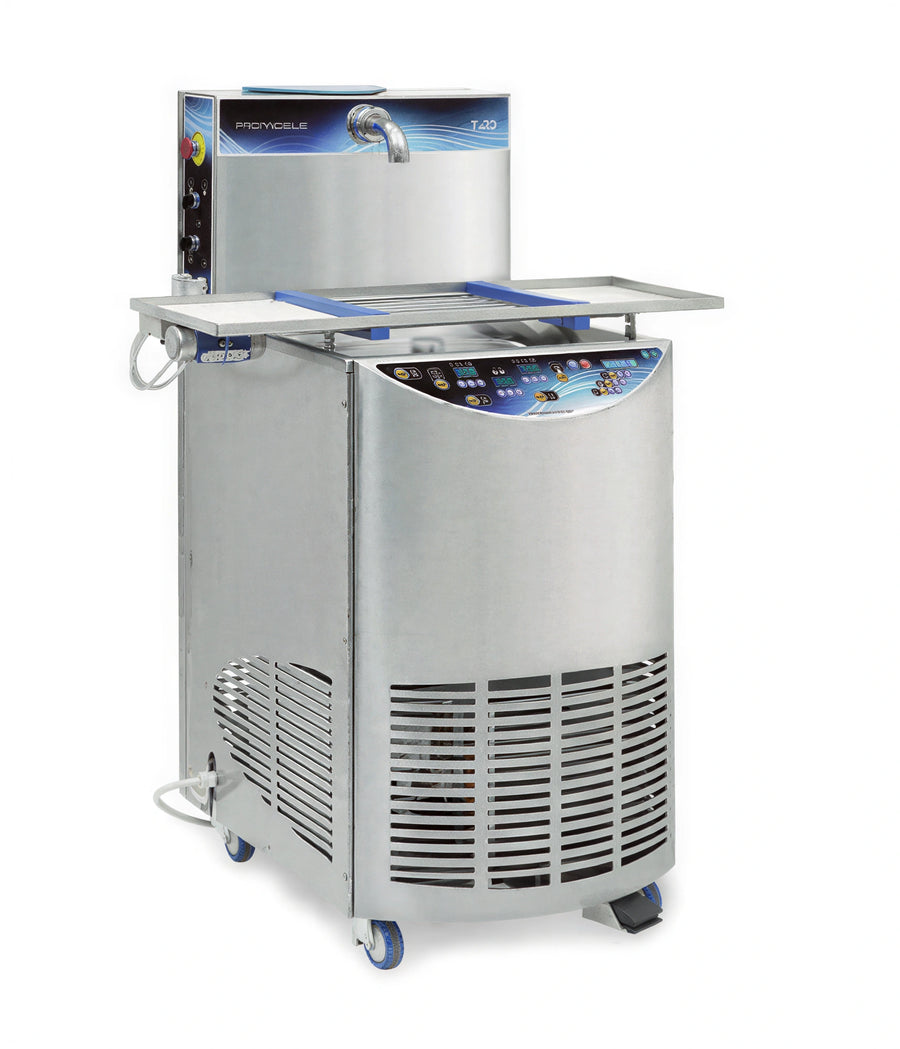

The T20 is a chocolate tempering and enrobing machine with a 53 lb tank, AISI 304 stainless steel structure, and programmable pedal doser.
- Heated chocolate tank with thermostat
- Backflow chocolate discharge
- Removable Archimedean screw for cleaning and chocolate changes
- 400 V, 50 Hz, three-phase power
Overall Dimensions:
22.25"W x 30.0"D x 52.5"HProgrammable pedal doser
Provides programmable pedal-controlled chocolate dosing.
Heated chocolate tank
The chocolate tank is heated and includes a thermostat.
Removable Archimedean screw
The screw can be removed for cleaning and chocolate changes.
Backflow discharge
Includes backflow for chocolate discharge.
Temperature control
Includes a high-precision temperature control thermostat.
Heating system
Features a double heating circuit for the tank and Archimedean screw.
Air-cooled refrigeration
Includes a refrigerating unit with an air cooling system.
Heated vibrating table
Includes a heated vibrating table.
Equipment type
Chocolate tempering and enrobing machine
Tank capacity
53 lb (24 kg)
Construction
AISI 304 stainless steel
Doser
Programmable pedal doser
Discharge
Backflow chocolate discharge
Auger
Removable Archimedean screw
Voltage
400 V
Frequency
50 Hz
Phase
Three-phase
Power
2.2 kW
Documents
Frequently Asked Questions
The T20 has a 53 lb tank capacity, also listed as 24 kg.
The product dimensions are 22.25 inches wide, 30.0 inches deep, and 52.5 inches high.
The T20 is specified for 400 V, 50 Hz, three-phase power and is rated at 2.2 kW.
Yes. Its Archimedean screw is removable for cleaning and chocolate changes.
