Groen TDHC-48C Steam Kettles
Description

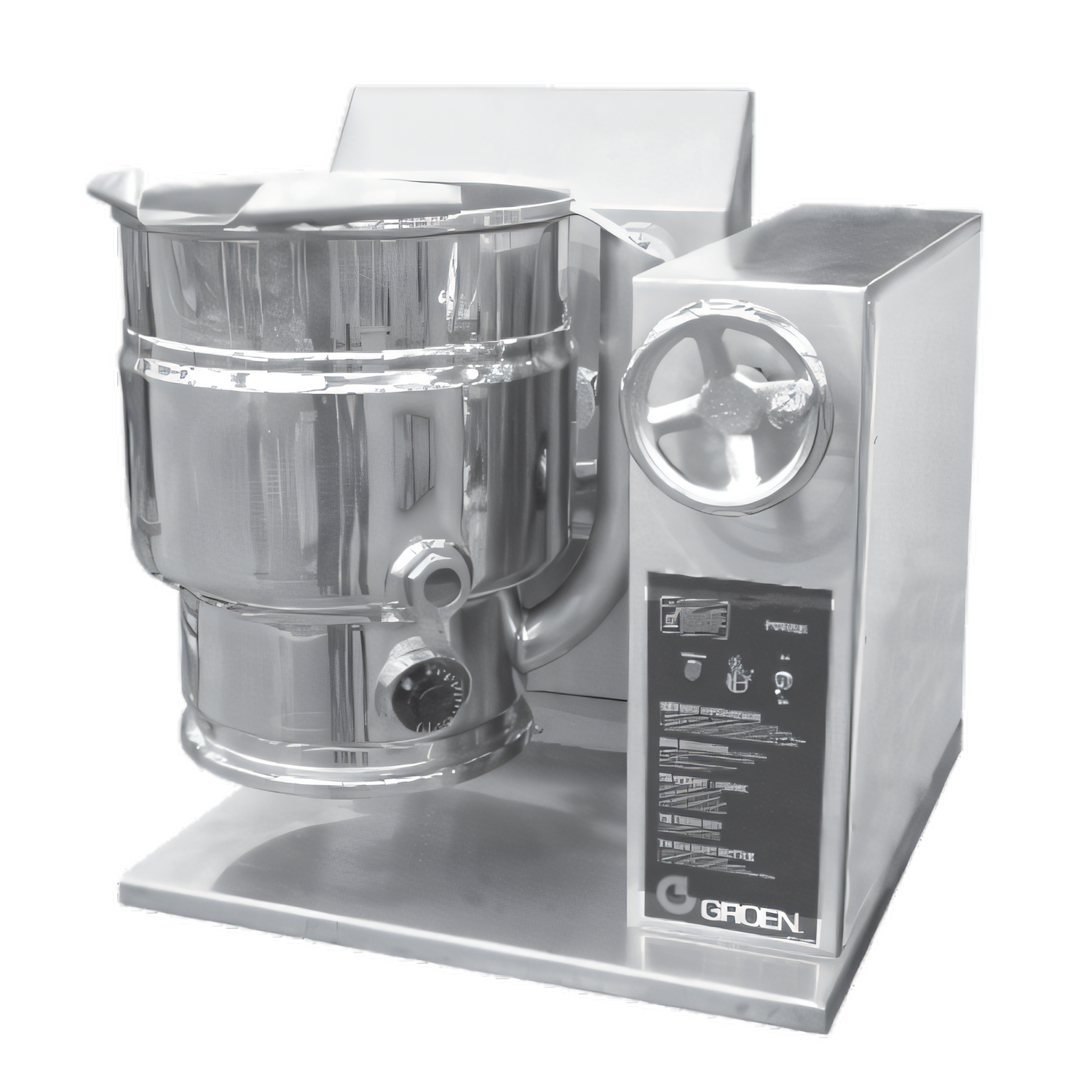

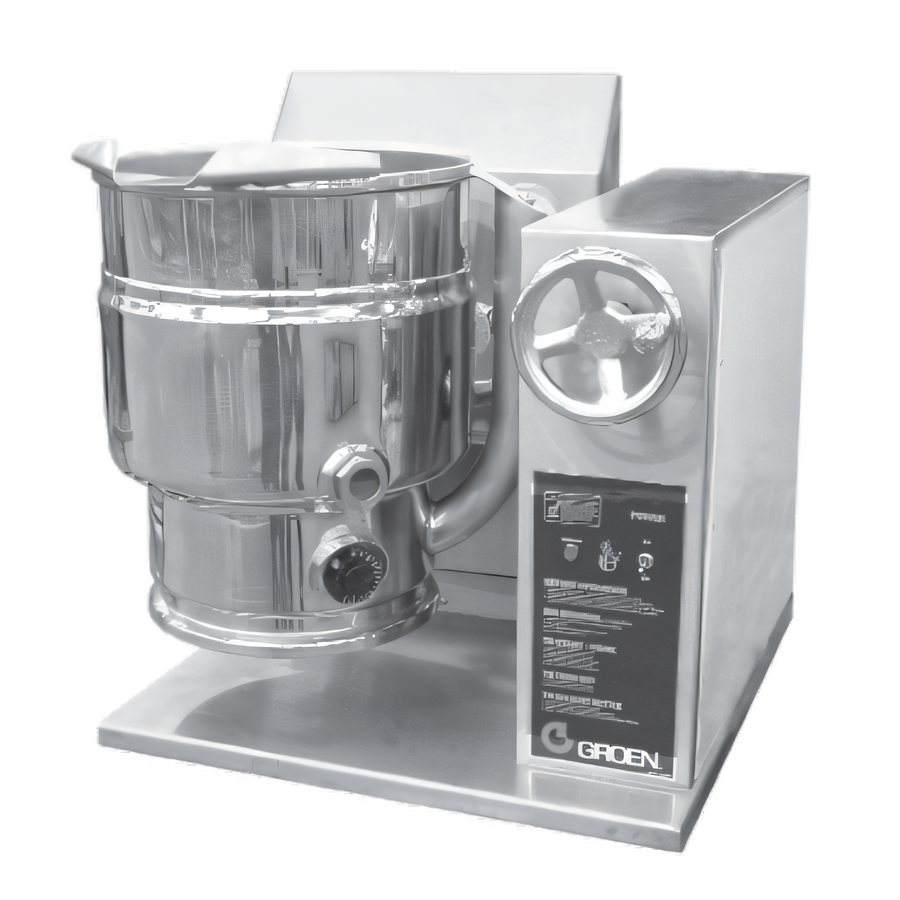

Groen TDHC-48C Gas Table-Top Tilting Kettle – 48 Qt
Classic IPX6 Electronic Control • 2/3 Steam Jacket • Crank-TiltPower through high-volume soups, sauces, pastas and more with the industry’s most efficient self-contained steam kettle. The TDHC-48C delivers 48 quarts (12 gal) of even, jacketed heat in a compact footprint that sits right on your work table and tilts effortlessly with a single-hand crank.
Key Advantages
- 48 qt / 12 gal batch capacity – finish up to 96 portions* in one cycle
- Self-contained gas steam system reaches 150 °F – 295 °F without an external boiler
- 52,000 BTU fin-tube burner with electronic spark ignition for fast recovery
- IPX6 water-resistant Classic controls: power, 1–10 heat dial, heat & low-water indicators
- 304 SS one-piece welded kettle liner with reinforced rim & butterfly pouring lip
- Precise right-side crank tilts smoothly past 90° for complete emptying
- Full 2⁄3 steam jacket rated 50 PSI for consistent, edge-to-edge cooking
- Built-in safety suite: tilt shut-off (>12°), pressure relief valve, high-limit & low-water cut-off
- cCSAus & NSF listed; proudly made in the USA
*6 oz serving size.
Performance You Can Taste
Groen’s patented fin-tube burner forces heat evenly through the sealed jacket, eliminating hot spots and scorching. Thermostatic control cycles the burner on/off automatically, so delicate custards or hearty chili simmer at the exact temperature you set—no babysitting required.
Built for the Line
- All exterior surfaces are heavy-gauge stainless steel with high-buff finish for quick wipe-downs.
- 180-grit interior polish cleans fast and resists sticking.
- Water-resistant (IPX6) trunnion enclosure protects electronics from spray-down.
- Standard rear faucet bracket simplifies plumbing a fill or rinse faucet (sold separately).
Technical Specifications
| Model | TDHC-48C |
|---|---|
| Capacity | 48 qt | 12 gal | 45 L |
| Jacket Type | 2⁄3 steam jacket, factory-charged (50 PSI) |
| Heat Source | Natural or propane gas – 52,000 BTU/hr |
| Controls | Classic electronic; 1–10 heat dial, status lights, low-water alarm |
| Water Rating | IPX6 (hose-down safe) |
| Electrical | 115 V, 60 Hz, 1 ph, 1 A (water-resistant ½" conduit) |
| Gas Connection | ½" NPT, 3–10" WC (natural) / 8–14" WC (propane) |
| Operating Altitude | 0 – 2,000 ft (610 m) without derating |
| Dimensions (W × D × H) | 25 3⁄4" × 29 1⁄2" × 23 7⁄8" (to kettle rim) |
| Crank Reach | Extends 3 ½" from right console |
| Certifications | cCSAus, ASME-code stamp, NSF |
| Origin | Made in the USA |
Safety & Compliance
- Tilt safety cut-off shuts gas when kettle exceeds 12°.
- Pressure relief & high-limit switches protect against over-temperature.
- 24 V control circuit isolates operators from line voltage.
- Gas shut-off activates automatically when kettle is tilted.
Popular Accessories (sold separately)
- TS/10-3 stainless support stand with or without drain drawer
- Lift-off stainless cover or hinged cover holder
- Single or double pantry faucets & pre-rinse sprayers
- Wire or nylon basket inserts & liners
- Drain cart & plumbing kit for mobile clean-up
Warranty
Includes Groen’s 1-year parts & labor warranty (2,000 operating hours). Extended coverage available at time of purchase. Technical support hotline: 888-994-7636
