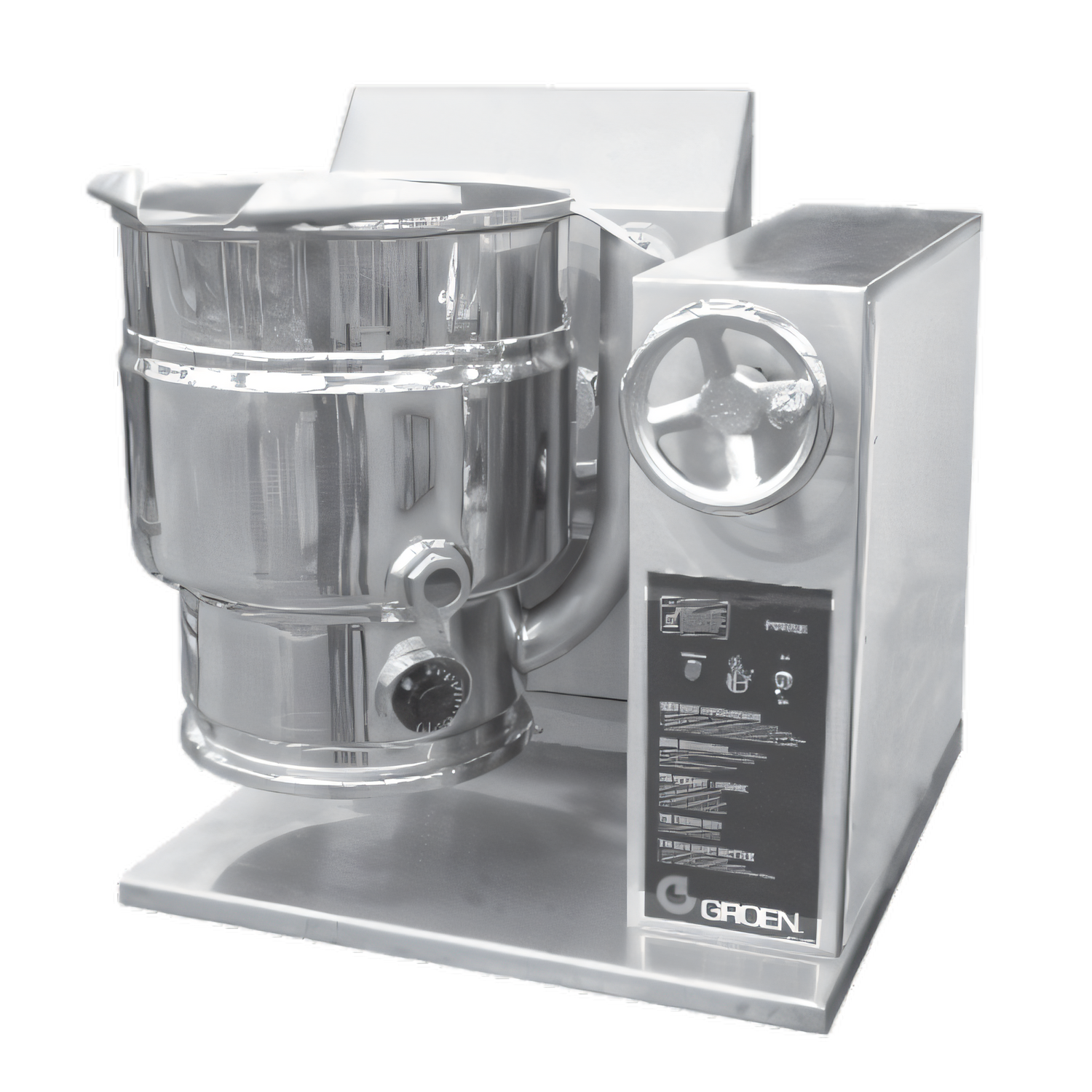

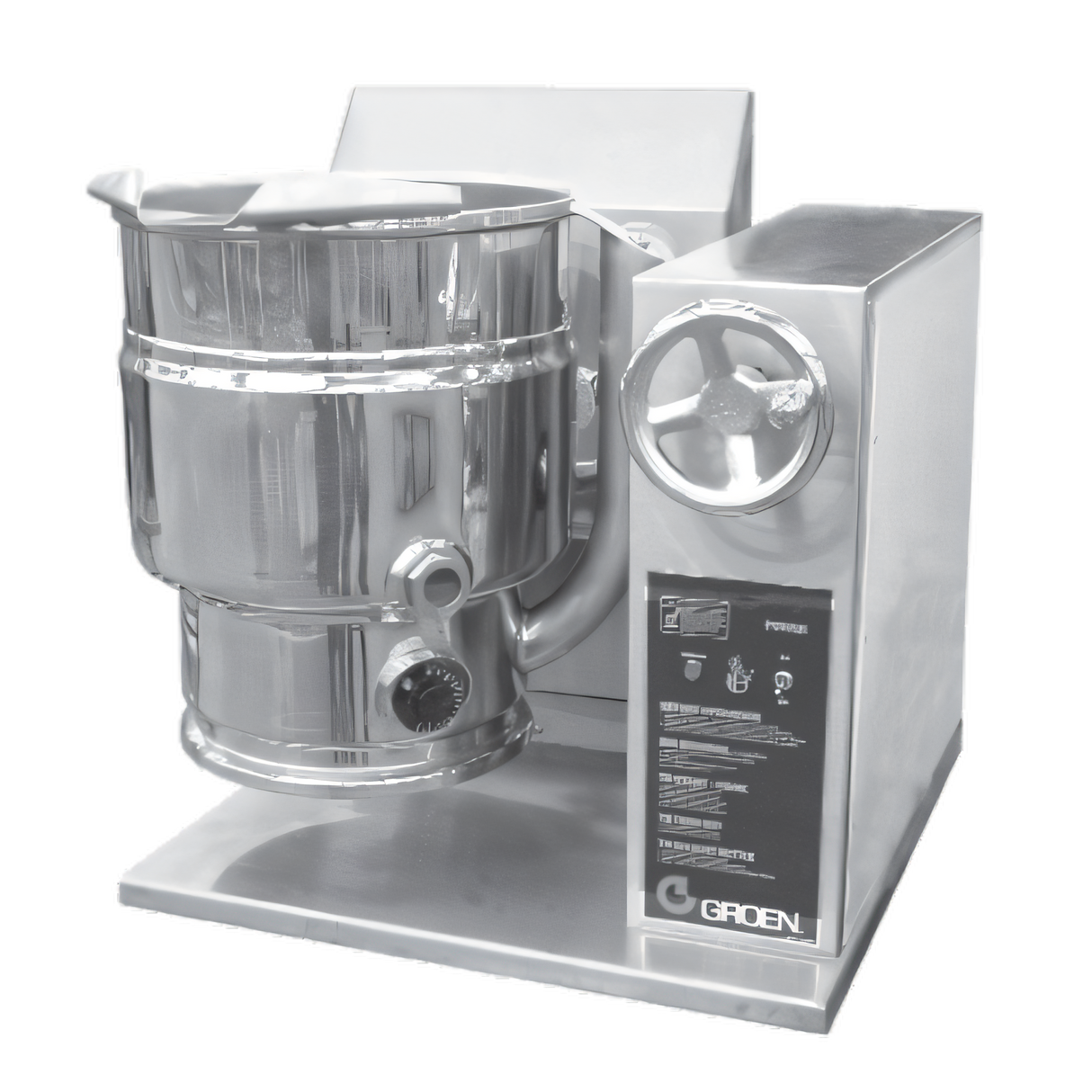

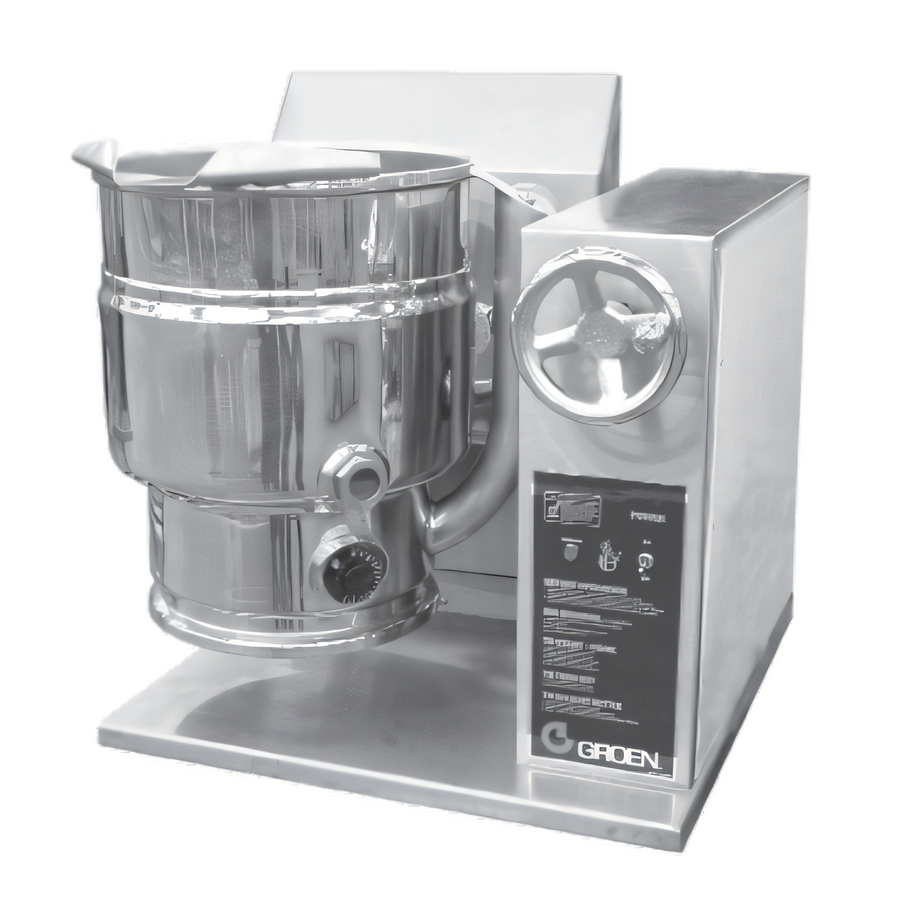

Groen TDHC-48A Advanced Control 48 Quart Table Top Gas Steam Jacketed Kettle

48 Quarts Capacity, Natural Gas or Propane, Electronic Advanced Controls, 50 PSI

Experience superior cooking performance and precise control with the Groen TDHC-48A, a durable and efficient table-top gas steam jacketed kettle designed for commercial kitchens.

  • Efficient 48-quart capacity ideal for preparing large batches of soups, sauces, and stews.
  • Advanced electronic controls with digital display and timer for precise temperature and cooking duration management.
  • Self-contained gas-heated steam source operates up to 50 PSI, ensuring consistent and even heating.
  • Durable 304 stainless steel construction and IPX6 water-rated enclosure for longevity and easy cleaning.
  • Ergonomic right-side crank tilt provides easy and precise pouring control.
  • Designed and manufactured in the USA, meeting cCSAus and NSF sanitation standards.

Overall Dimensions:

28.0"W x 31.88"D x 31.75"H

Product Weight:

245.0 lb

Advanced Electronic Controls

Features a digital display for set heat level or cook time, a temperature and time set knob, and buttons for low and high temperature presets, as well as a manual mode. IPX6 water-rated enclosure for enhanced durability and safety.

Self-Contained Gas-Heated Steam Source

Utilizes a gas-heated steam source (natural gas or propane convertible) contained within the unit, pre-charged with water and rust inhibitors, eliminating the need for a remote steam source.

Crank Tilt Mechanism

Located on the right side, the crank handle provides easy and precise one-hand tilting of the kettle body for controlled pouring, even when filled to capacity.

Durable Stainless Steel Construction

Kettle body is made of 304 stainless steel, one-piece welded construction with a polished interior and bright high buff exterior finish for maximum ease in cleaning and maintaining appearance.

Integrated Safety Systems

Equipped with a safety tilt cut-off (heat cuts off when tilted more than 12°), pressure relief valve, high limit pressure switch, low water cut-off, and a 24-volt control system.

Efficient Heating Performance

Patented fin tube burner assembly delivers efficient combustion with a 52,000 BTU/hr firing rate and electronic spark ignition. Thermostatically controlled to maintain desired product temperature.

Faucet Bracket Standard

A faucet bracket is standard and mounted on the rear of the controls/trunnion enclosure for easy water filling.

Type Steam Jacketed Kettle
Style Table Top
Installation Type Countertop
Capacity 48 Quarts
Kettle Jacket 2/3 Jacket
Controls Advanced Electronic Digital
Temperature Range 150°F to 295°F
Gas Type Natural Gas or Propane
BTU 52,000 BTU/hr
Gas Connection Size 1/2 NPT
Gas Inlet Pressure 3.5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Voltage 120 Volts
Amps 1 Amp
Hertz 60 Hz
Phase 1-Phase
Material Stainless Steel
Interior Finish 304 Stainless Steel
Maximum Working Pressure 50 PSI
Support Location Right Side Console
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 32 Inches
Shipping Weight 245 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty from installation, or 15 months from shipment, whichever occurs first.

Documents

PDF Cutsheet PDF Download PDF Roi calculator PDF Download PDF Owner's manual PDF Download PDF Ts/10 & ts/10s support stands PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The TDHC-48A kettle is gas-heated and certified for use with both natural gas and propane. Please specify your required gas type during installation.
No, the Groen TDHC-48A features a self-contained gas-heated steam source, eliminating the need for an external steam connection.
The Advanced controls include a digital LED display for temperature and cook time, a temperature/time set knob, preset buttons for low and high heat levels, a manual mode, and a timer-set button with an indicator light.
The kettle includes a safety tilt cut-off that disengages heat when tilted more than 12°, a pressure relief valve, a high limit pressure switch, a low water cut-off, and a 24-volt control system, all contributing to safe operation.
Yes, the kettle is constructed from 304 stainless steel with a polished interior and a bright high buff exterior finish, designed for maximum ease in cleaning and maintaining its appearance. The controls enclosure is also IPX6 water-rated for durability against cleaning sprays.
