Groen TDHC-40C Steam Kettles
Description

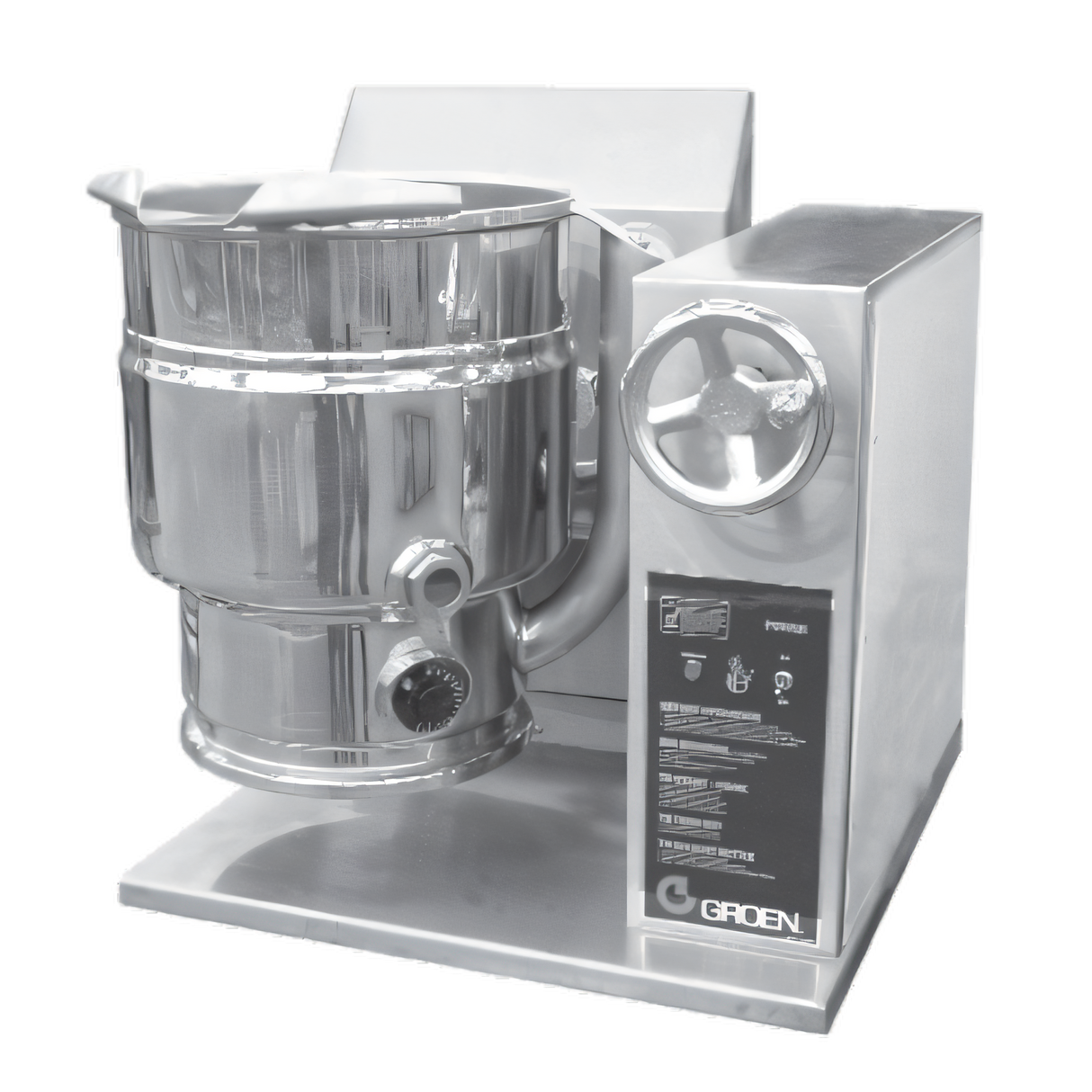

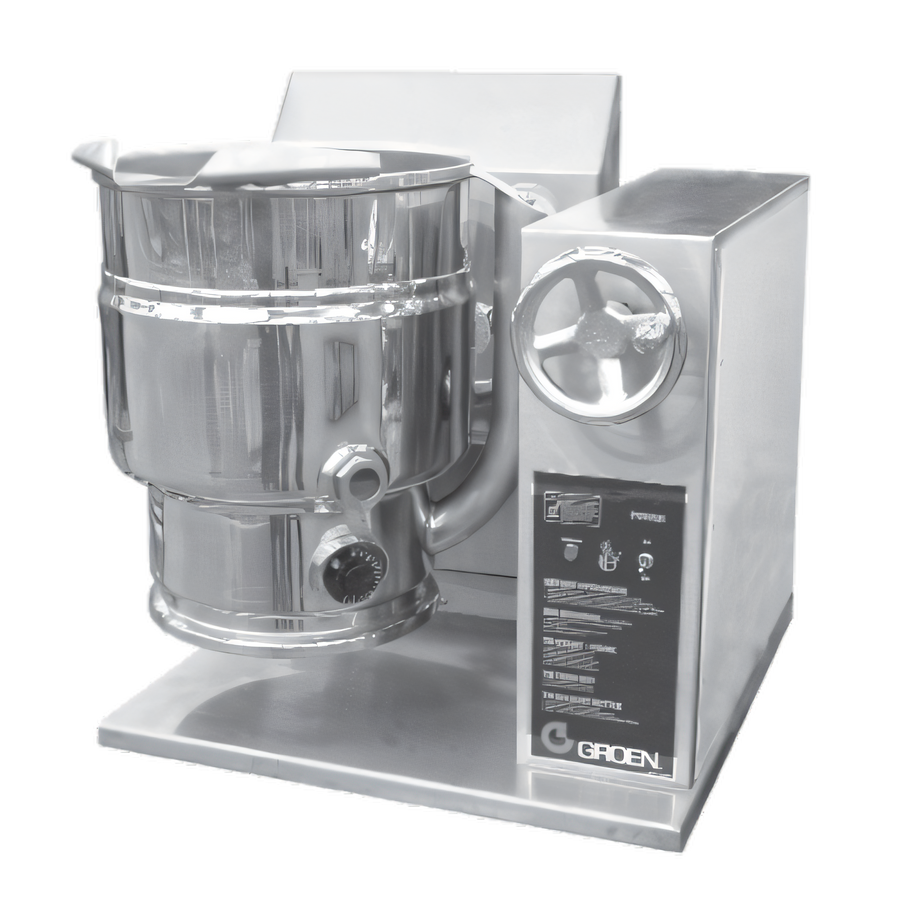

Groen TDHC-40C Table-Top Gas Tilting Kettle – 40 Qt
2/3-Jacket | Classic IPX6 Controls | 52,000 BTU | Made in USAEngineered for demanding production lines, the TDHC-40C delivers the speed, control and safety of a full-size steam kettle in a compact, table-top footprint. Its self-contained gas steam system eliminates the need for an external boiler while the precise crank-tilt mechanism makes portioning effortless – even when the kettle is filled to its generous 40 quart (10 gallon) capacity.
Why You’ll Love It
- High-volume 40 qt (10 gal) capacity in a space-saving table-top design.
- 2/3 steam jacket surrounds product for rapid, even heating up to 295 °F.
- Patented fin-tube burner delivers 52,000 BTU/hr of efficient combustion.
- Classic electronic controls in an IPX6 water-resistant enclosure: Power ON/OFF, 1–10 temperature dial, HEAT indicator & LOW WATER alert.
- Smooth crank-tilt handle (right side) lets one person pour with precision – perfect for filling 4" deep hotel pans.
- 304 stainless steel liner and fully welded exterior for long-lasting durability and easy sanitation.
- Built-in safety suite: tilt cut-off (>12°), high-limit pressure switch, low-water cut-off, pressure relief valve & 24 V control circuit.
- Electronic spark ignition for reliable starts every shift.
- ASME stamped to 50 PSI, cCSAus certified and NSF listed.
- Designed & manufactured in the USA and backed by Groen’s 1-year parts & labor warranty.
Technical Specs
| Capacity | 40 qt / 10 gal (37.9 L) |
|---|---|
| Jacket Coverage | 2/3 steam jacket, factory charged |
| Heat Source | Natural or propane gas – 52,000 BTU/hr |
| Operating Pressure | 50 PSI (ASME stamped) |
| Temperature Range | 150 °F – 295 °F (66 °C – 146 °C) |
| Controls | Classic electronic, IPX6 enclosure |
| Tilt Mechanism | Manual crank, right-hand mount |
| Construction | 304 stainless steel liner; stainless steel exterior, 180-grit interior polish / high-buff exterior |
| Gas Connection | ½" NPT |
| Electrical | 115 V , 60 Hz, 1 ph, 1 A |
| Elevation Rating | 0 – 2,000 ft (610 m) without derate |
| Certifications | cCSAus, NSF, ASME BPVC |
| Origin / Warranty | Made in USA – 1 yr parts & labor |
Popular Accessories (Sold Separately)
- TS/10-3 stainless steel support stand (with or without drain drawer)
- Lift-off or hinged cover
- Single or double pantry faucet assemblies
- Wire or nylon basket inserts & liners
- Cover holder & cover strainers
- Drain cart and plumbing kit
Specifications and design are subject to change without notice. For the most current information, please refer to unifiedbrands.net or contact your authorized Groen representative.
