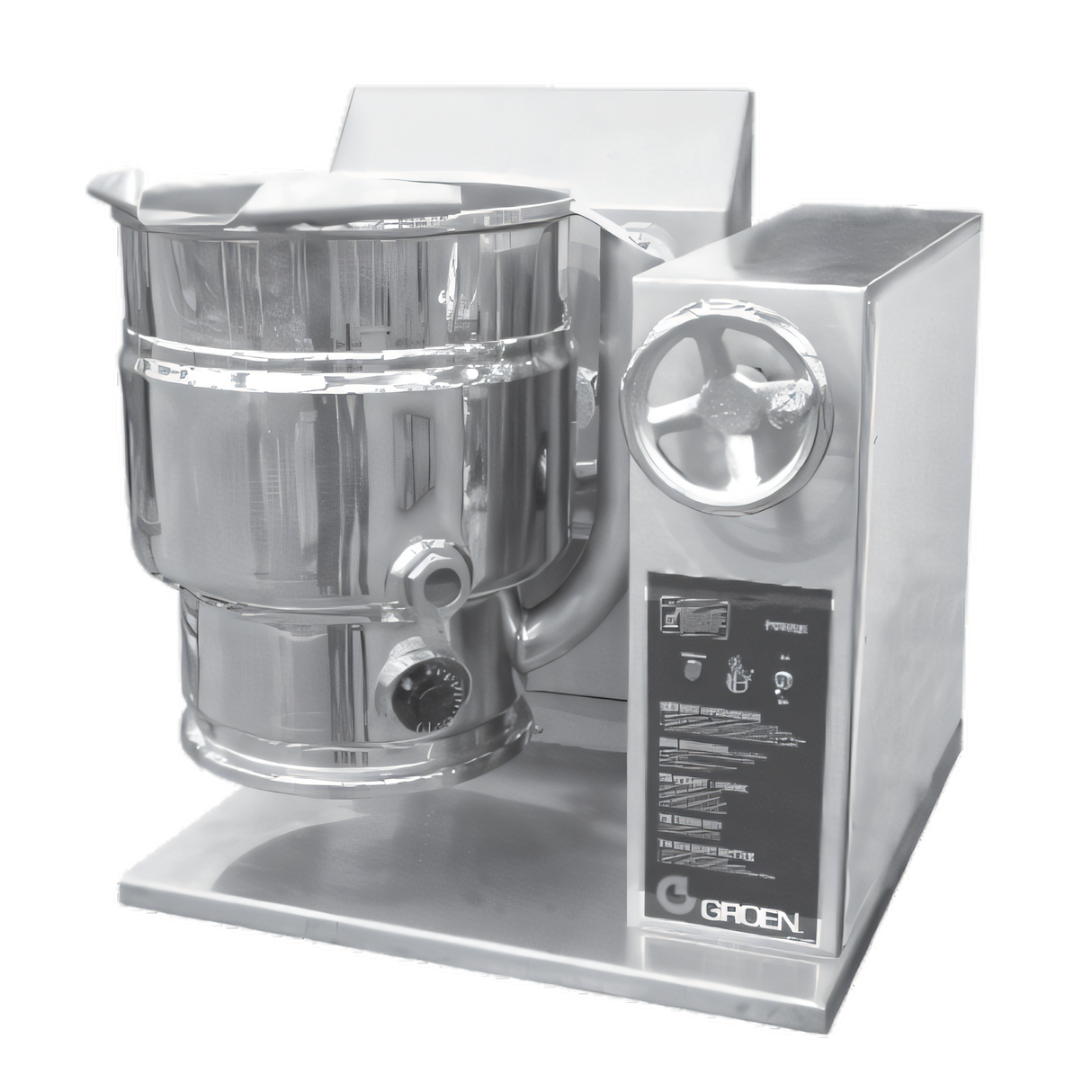

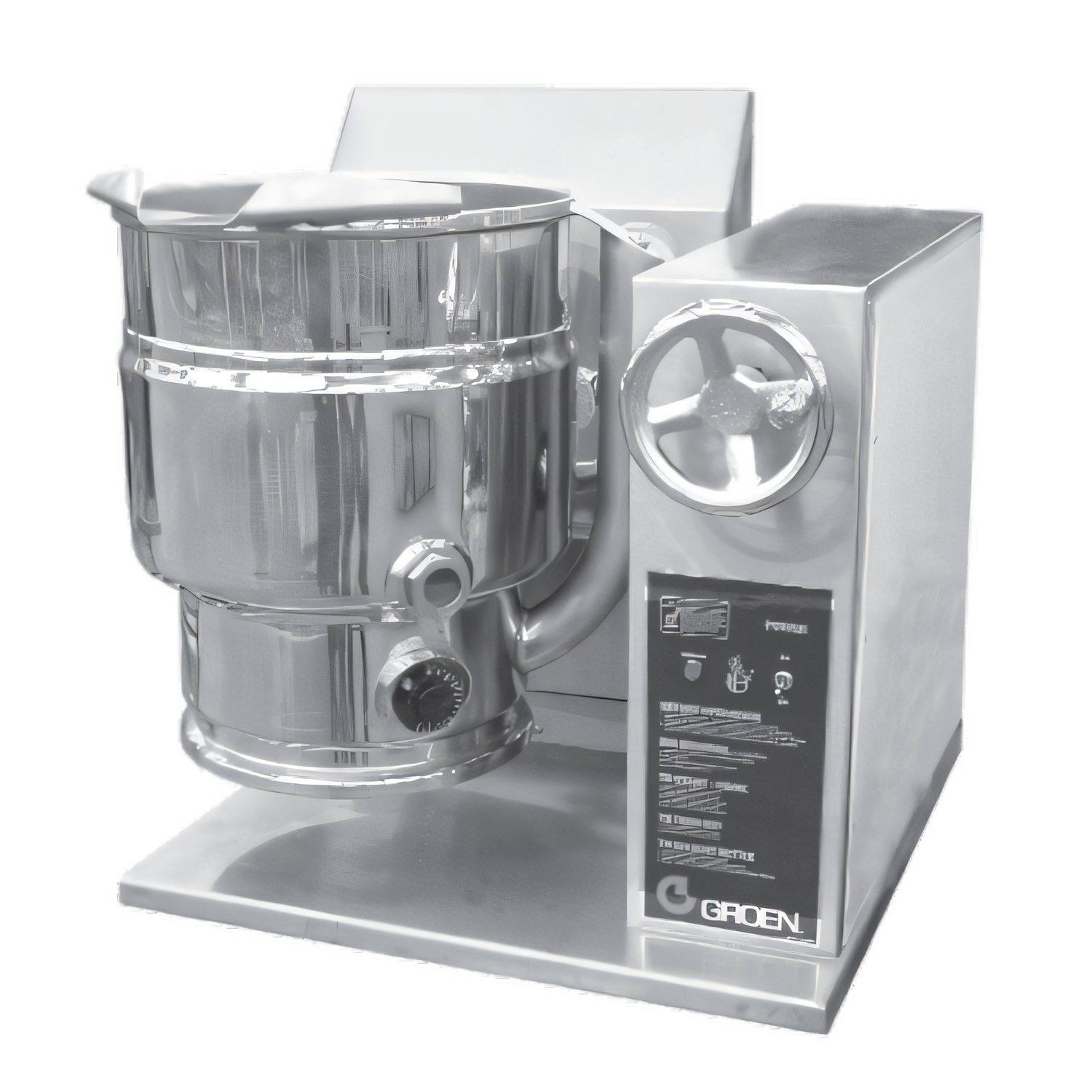

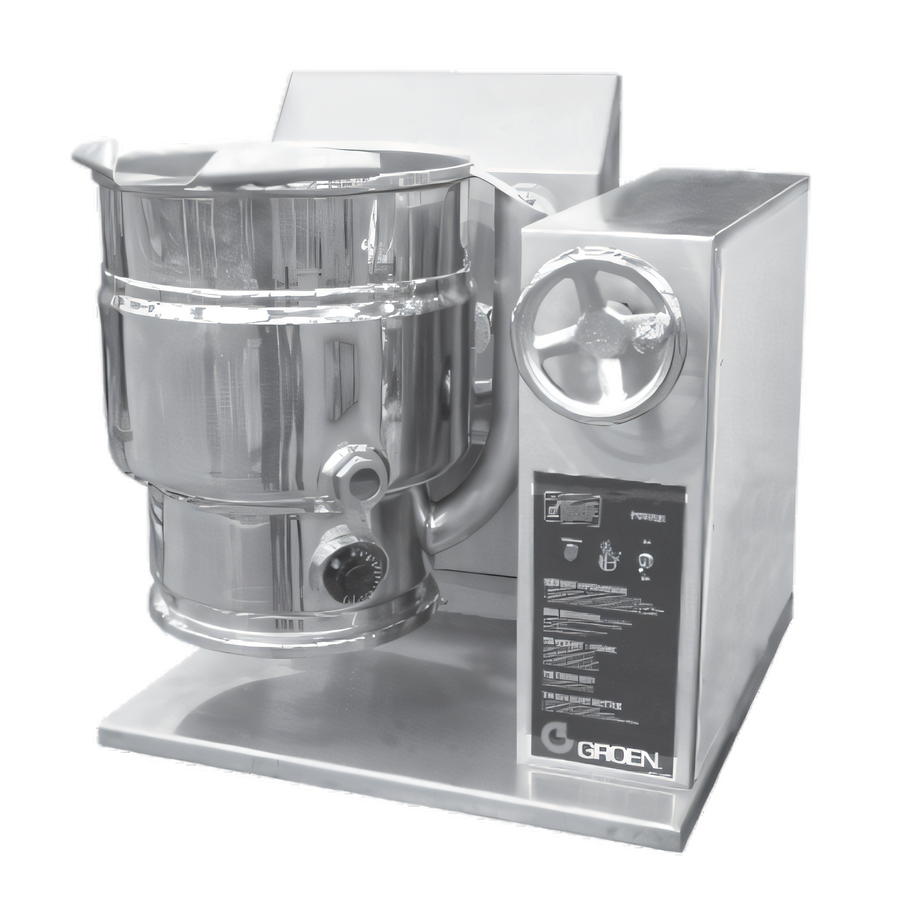

Groen TDHC-40A 40 Qt Gas Tabletop Steam-Jacketed Tilting Kettle, 2/3 Jacket, Advanced Controls
Groen TDHC-40A 40 Qt Gas Tabletop Steam-Jacketed Tilting Kettle, 2/3 Jacket, Advanced Controls
Crank Tilt, 304 Stainless Steel Liner, Right-Side Console
Built for high-volume batch cooking, this 40-quart gas kettle combines precise advanced controls, a crank tilt design, and durable stainless steel construction.
- 40-quart capacity is ideal for soups, sauces, vegetables, and other large-batch prep.
- Advanced electronic controls include a digital display, 1-minute to 10-hour timer, preset intensities, and manual capability.
- Self-contained gas-heated steam source eliminates the need for a remote steam supply.
- Crank tilt and a right-side support console make pouring and operation easier from a tabletop position.
- 304 stainless steel liner and stainless steel construction support long service life and easy cleanup.
- 120 VAC control power, 1 amp, 1/2 inch NPT gas connection, and 50 PSI maximum working pressure.
Overall Dimensions:
28.0"W x 31.88"D x 29.5"HProduct Weight:
240.0 lbAdvanced Electronic Controls
Digital display, 1-minute to 10-hour timer, low and high preset intensities, and manual cooking capability.
IPX6-Rated Control Enclosure
Water-resistant enclosure helps protect the controls in demanding kitchen environments.
Crank Tilt Operation
Right-side crank handle provides precise one-person tilting, even when the kettle is full.
304 Stainless Steel Liner
One-piece welded liner supports durability and foodservice-grade sanitation.
Self-Contained Steam Source
Gas-heated steam jacket is built into the unit, so no remote steam source is required.
High-Output Burner
52,000 BTU/hr firing rate supports efficient heating for the 40-quart size.
Safety Package
Includes safety tilt cut-off, pressure relief valve, high-limit pressure switch, and low-water cut-off.
Certifications & Compliance
Warranty & Protection
1-year limited warranty, or 2,000 operating hours, or 15 months from shipment, whichever occurs first.
