Groen TDHC-24C Steam Kettles
Description

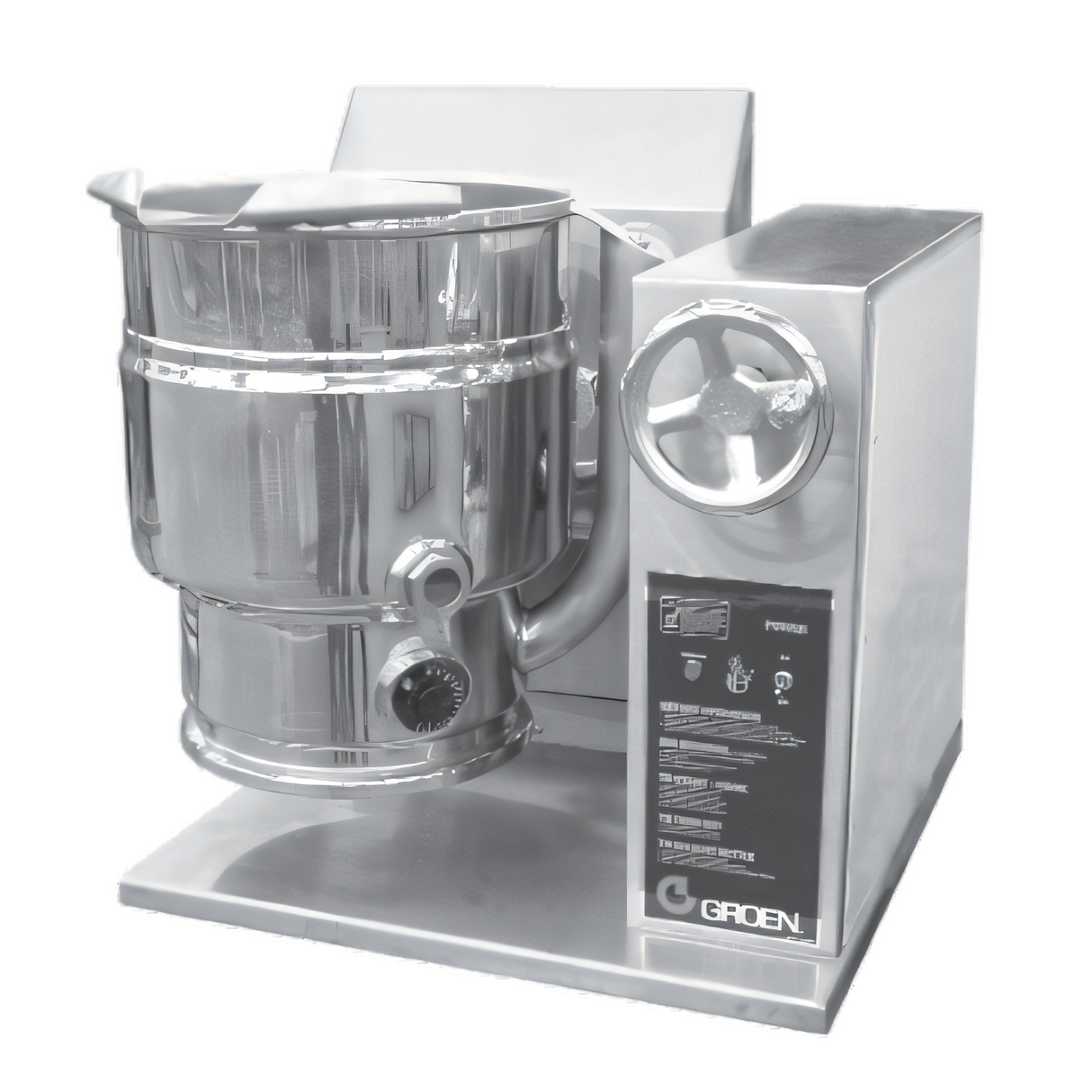

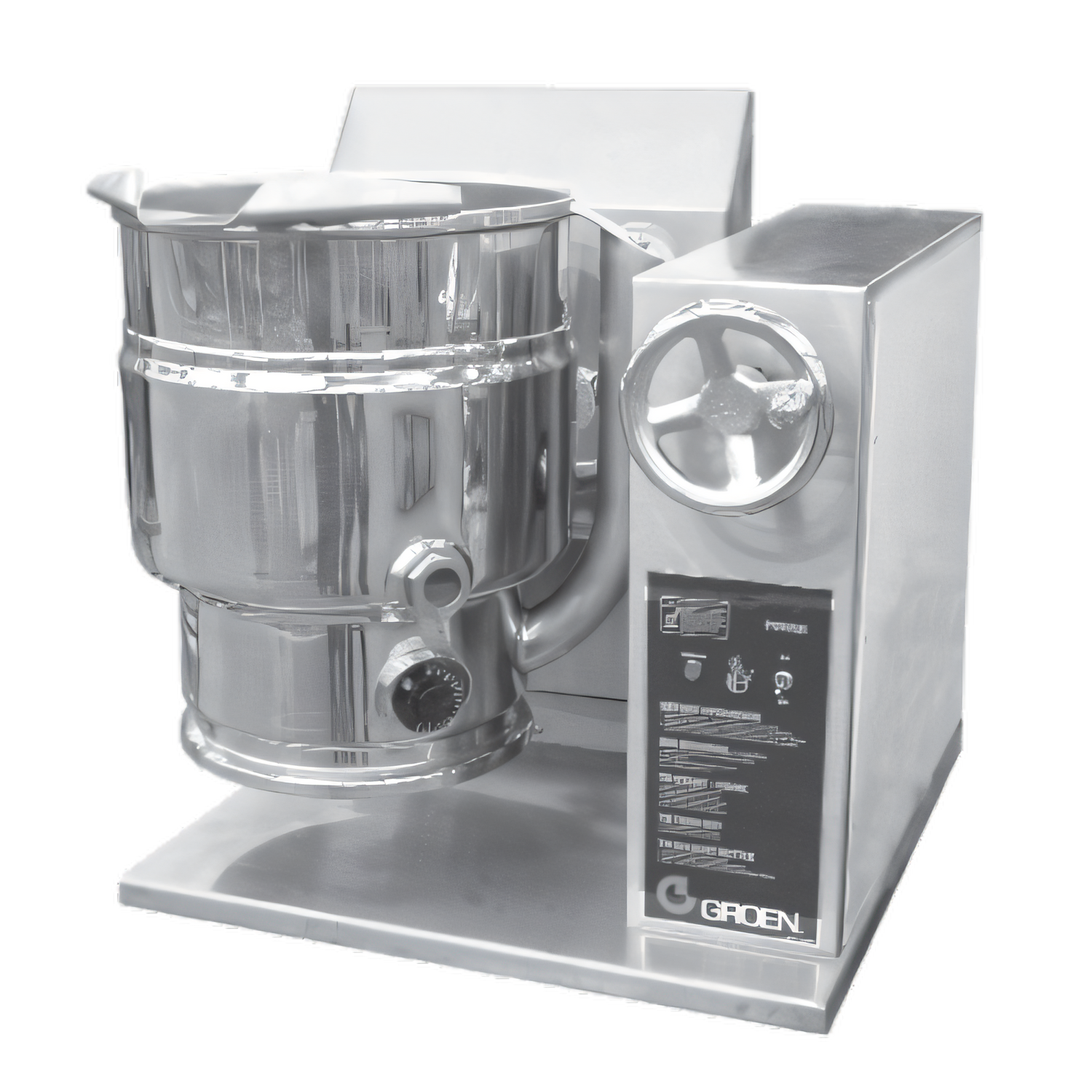

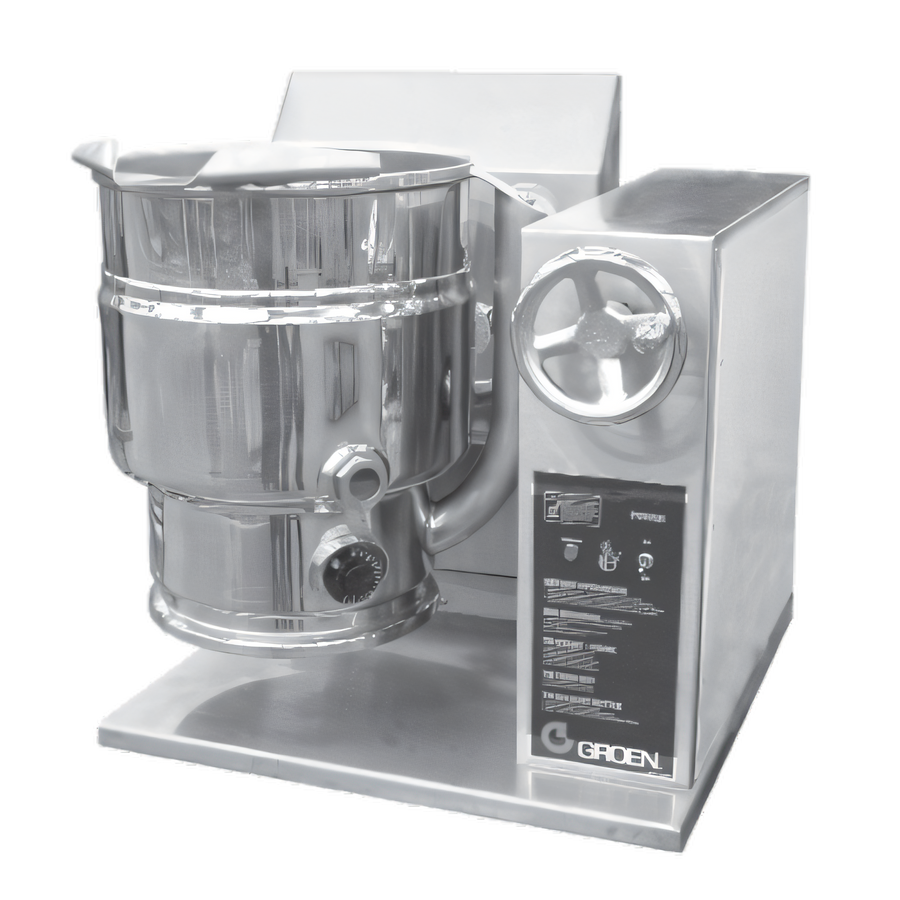

Groen TDHC-24C 24-Quart Gas Table-Top Tilting Kettle
Classic Electronic Controls • 2/3-Jacketed • Self-Contained SteamBoost production without giving up valuable floor space. The Groen TDHC-24C combines a powerful 31,000 BTU gas-fired steam jacket with water-resistant Classic controls, giving you fast, even heat and precision tilt-pour handling in a compact countertop package.
Key Advantages
- 24 qt (6 gal / 22.7 L) capacity – perfect for small-batch soups, sauces and sides
- Self-contained 2/3 steam jacket reaches 150 °F – 295 °F without an external boiler
- IPX6 water-resistant right-side control console stands up to daily wash-downs
- Manual crank tilt with butterfly pouring lip allows precise one-handed emptying
- 304 stainless steel liner & exterior polished for easy cleaning and long life
- Made in the USA and listed to NSF, cCSAus and ASME standards
Classic IPX6 Control Features
- Power ON/OFF switch with status light
- Thermostatic dial (1 – 10) for repeatable temperature selection
- Heating indicator light confirms burner operation
- Low-water warning light protects the steam jacket
- Electronic spark ignition – no standing pilot to waste energy
Performance & Safety
- 31,000 BTU/hr patented fin-tube burner delivers rapid, even heat
- Automatic gas shut-off when kettle is tilted more than 12°
- 50 PSI ASME-stamped jacket with pressure relief & high-limit protection
- Thermostat cycles burner to hold target temperature automatically
- Reinforced rim and heavy-duty mounting trunnion for durable daily use
Specifications
| Model | TDHC-24C |
|---|---|
| Capacity | 24 qt / 6 gal / 22.7 L (2/3-jacketed) |
| Heat Source | Natural or Propane Gas, 31,000 BTU/hr |
| Temperature Range | 150 °F – 295 °F (65 °C – 146 °C) |
| Gas Connection | ½″ NPT, 12″ W.C. recommended, 14″ W.C. max |
| Electrical | 115 V, 60 Hz, 1 ph, 1 A – watertight ½″ conduit |
| Operating Pressure | 50 PSI (344 kPa) |
| Tilt Mechanism | Right-hand manual crank |
| Construction | One-piece 304 SS body & liner, 180-grit interior finish |
| Certifications | ASME, cCSAus, NSF, IPX6, Made in USA |
Optional Accessories
- Capacity etch marks (gal or litre)
- 316 SS liner upgrade
- Single or double pantry faucets
- Wire or nylon basket inserts & liners
- Lift-off cover, cover strainer & cover holder
- Countertop support stand or drain cart
Gas & Electrical Notice: This kettle requires a ½″ gas line and 115 V receptacle. Connections must be made by a licensed professional in accordance with all local codes.
Standard 1-year parts & labor warranty included; extended coverage available. Contact your local Groen representative for details.
