Groen TDHC-24A Steam Kettles
Description

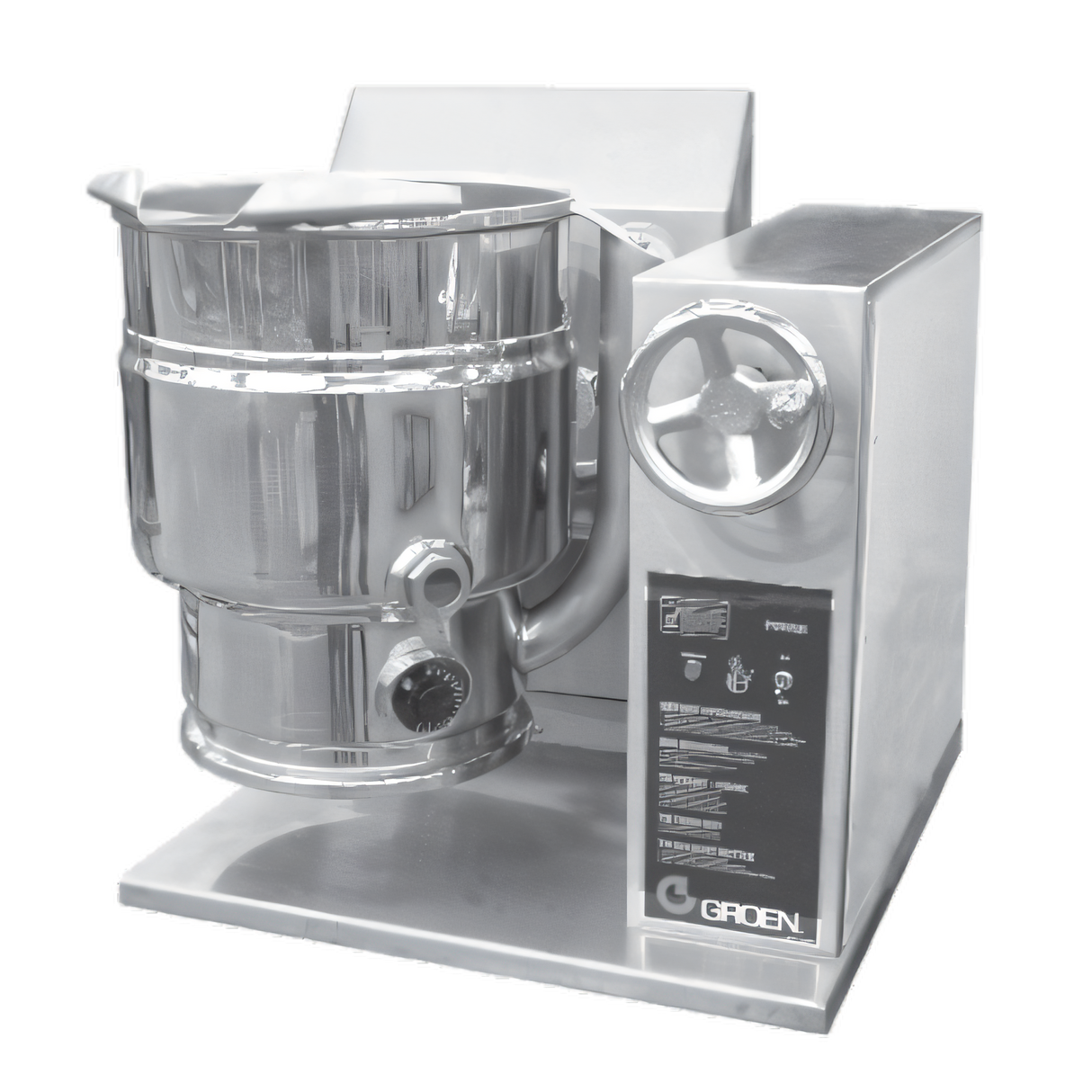

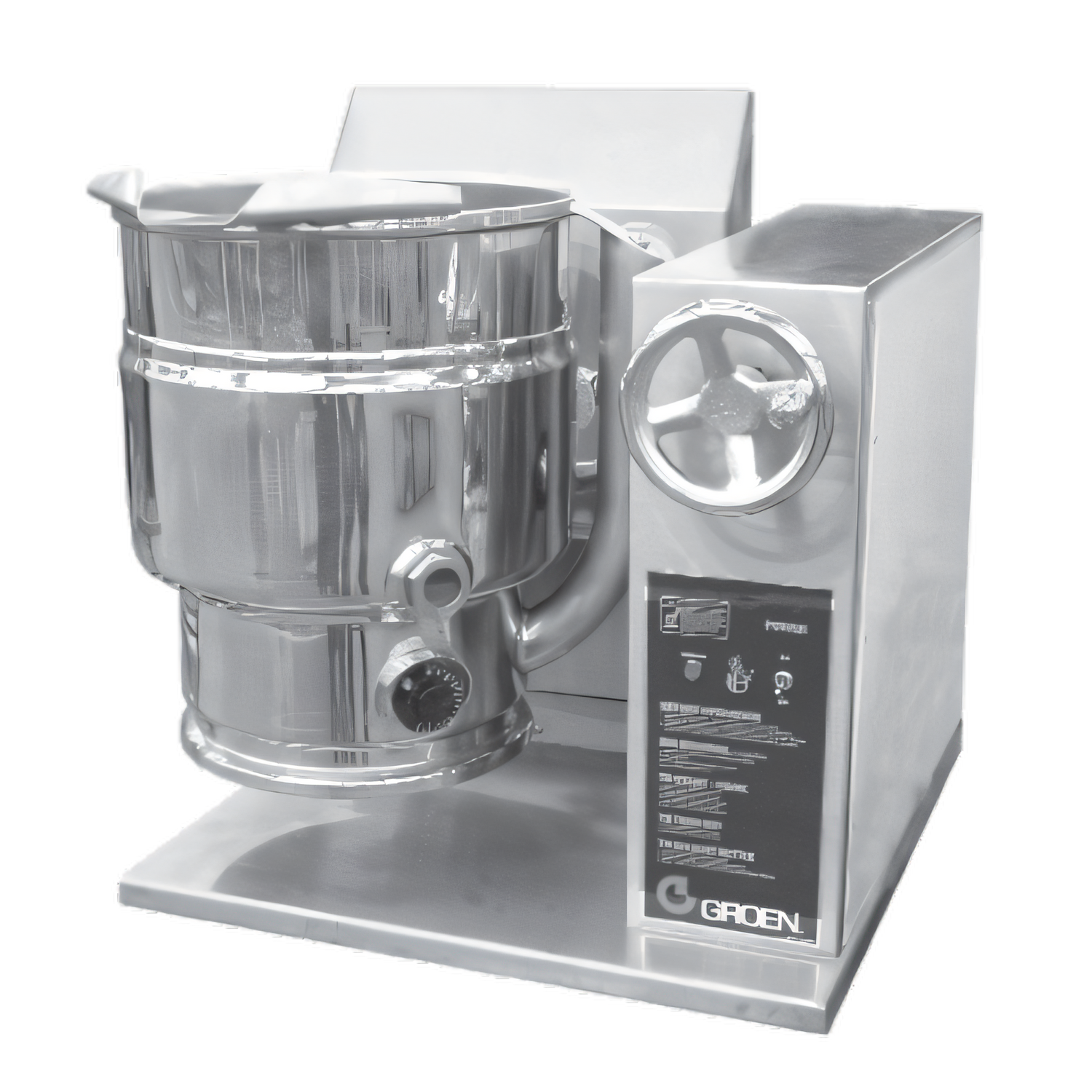

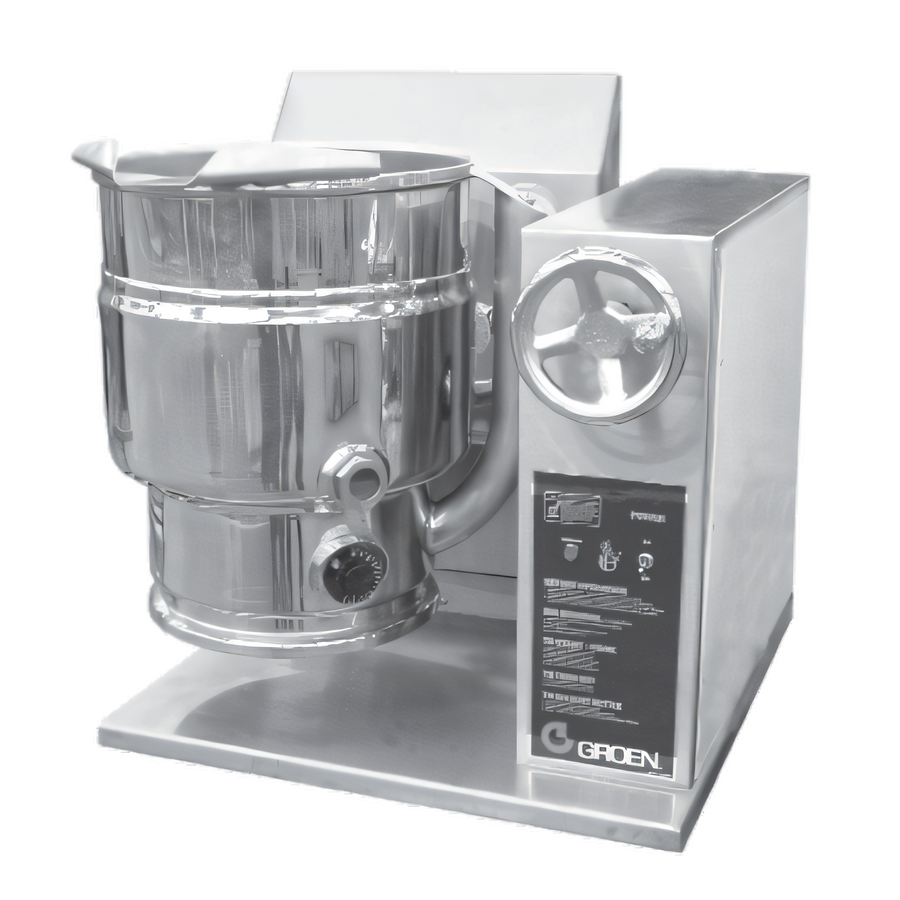

Groen TDHC-24A 24-Quart Table-Top Tilting Kettle
Gas-fired, self-contained steam jacketed kettle with IPX6 Advanced digital controlsBuilt for demanding commercial kitchens, the Groen TDHC-24A delivers the speed of steam, the precision of digital controls and the durability of all-stainless construction—in a compact table-top footprint. A powerful 31,000 BTU fin-tube burner creates its own 50 PSI steam source, letting you sauté, simmer, braise or boil up to 24 quarts of product anywhere you have a ½″ gas line and 115 V outlet—no external boiler required.
Why chefs choose the TDHC-24A- 24 qt (22.7 L) capacity with ⅔-jacket for rapid, even heating from 150 °F to 295 °F.
- Advanced electronic control panel in an IPX6 water-resistant enclosure.
- 1-minute to 10-hour programmable timer with audible alert.
- Rotary heat selector with 10 levels, plus Low (2) & High (7) quick-access presets and full manual mode.
- Right-side hand-crank tilt for smooth, one-handed pouring into 4″ hotel pans.
- 304 stainless steel liner and exterior with high-buff finish for easy cleaning.
- Safety systems: tilt cut-off, pressure relief valve, high-limit switch & low-water cut-off.
- Electronic spark ignition—no standing pilot to waste energy.
- Factory-charged with treated water and rust inhibitors for low maintenance.
- cCSAus, NSF & ASME certified; proudly made in the USA.
- Bright LED screen toggles between set temperature, heat level or remaining cook time.
- Large knob lets you dial in precise heat (1-10) or switch to MANUAL mode for infinite adjustment.
- LOW TEMP (2) & HIGH TEMP (7) buttons instantly recall your most-used settings.
- TIMER button starts a countdown from 1 minute up to 10 hours—ideal for stocks, sauces & overnight applications.
- All electronics sealed against high-pressure spray and wipe-down cleaning.
| Model | TDHC-24A |
|---|---|
| Capacity | 24 qt / 22.7 L |
| Jacket Coverage | ⅔ of kettle body |
| Steam Jacket Rating | 50 PSI, ASME stamped & National Board registered |
| Heating Source | Self-contained natural or propane gas steam generator |
| Input | 31,000 BTU/hr |
| Operating Temp. | 150 °F – 295 °F (65 °C – 146 °C) |
| Control Enclosure | IPX6 water resistant |
| Tilt Mechanism | Right-side hand crank, 12° safety cut-off |
| Gas Connection | ½″ NPT |
| Electrical | 115 V / 60 Hz / 1 A (controls only) |
| Elevation Rating | 0 – 2,000 ft (610 m) without derate |
| Construction | One-piece 304 SS kettle & console; butterfly pouring lip |
| Certifications | NSF, cCSAus, ASME |
| Origin | Made in USA |
| Warranty | 1-year parts & labor (see warranty statement) |
- Stainless support stand – TS/10-3 or TS/10S-3 (with drain drawer)
- Single or double pantry faucet assemblies
- Wire or nylon basket inserts & lift-off covers
- Cover holder, strainer & drain cart
Natural gas configuration ships by default; request propane at time of order. Specifications subject to change without notice.
