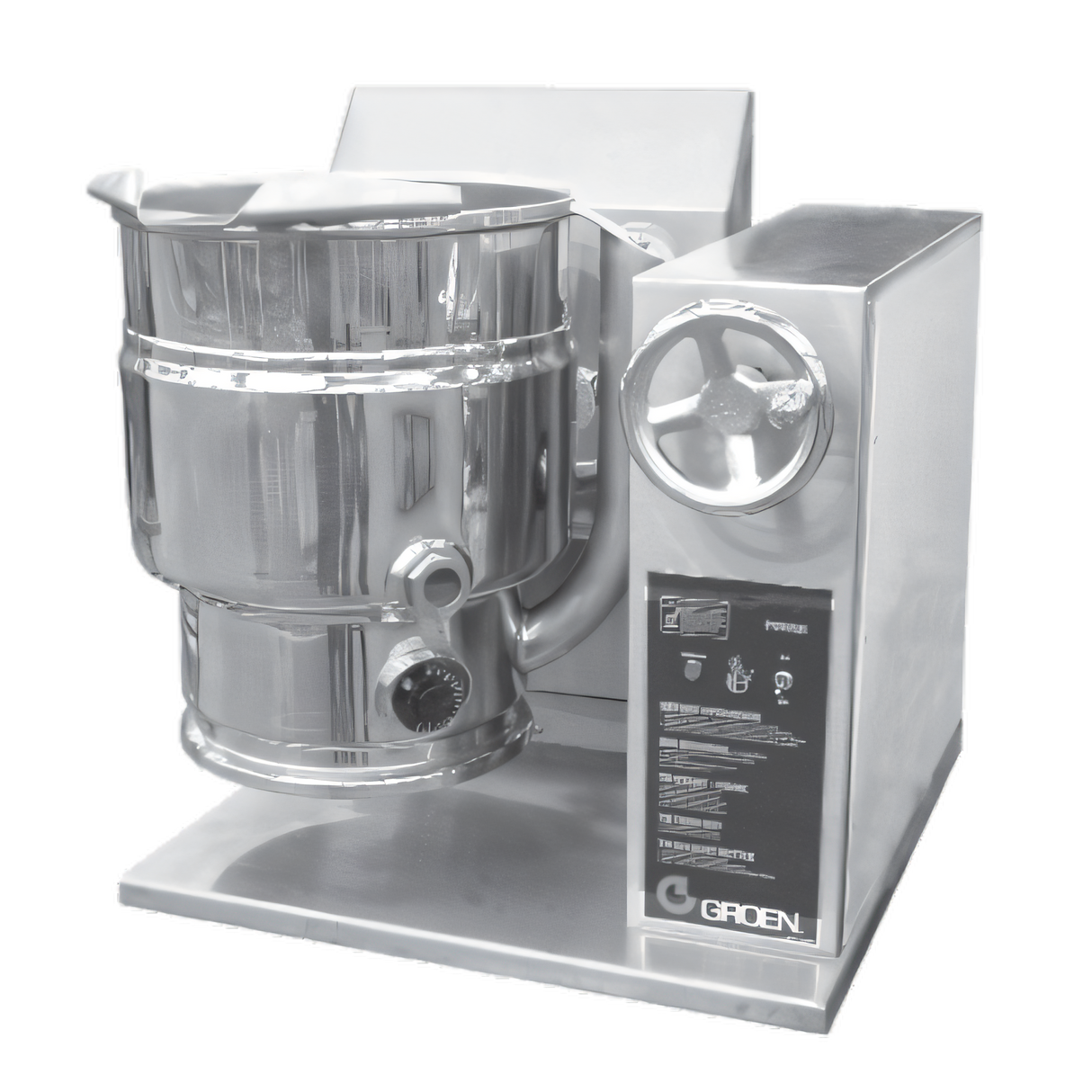

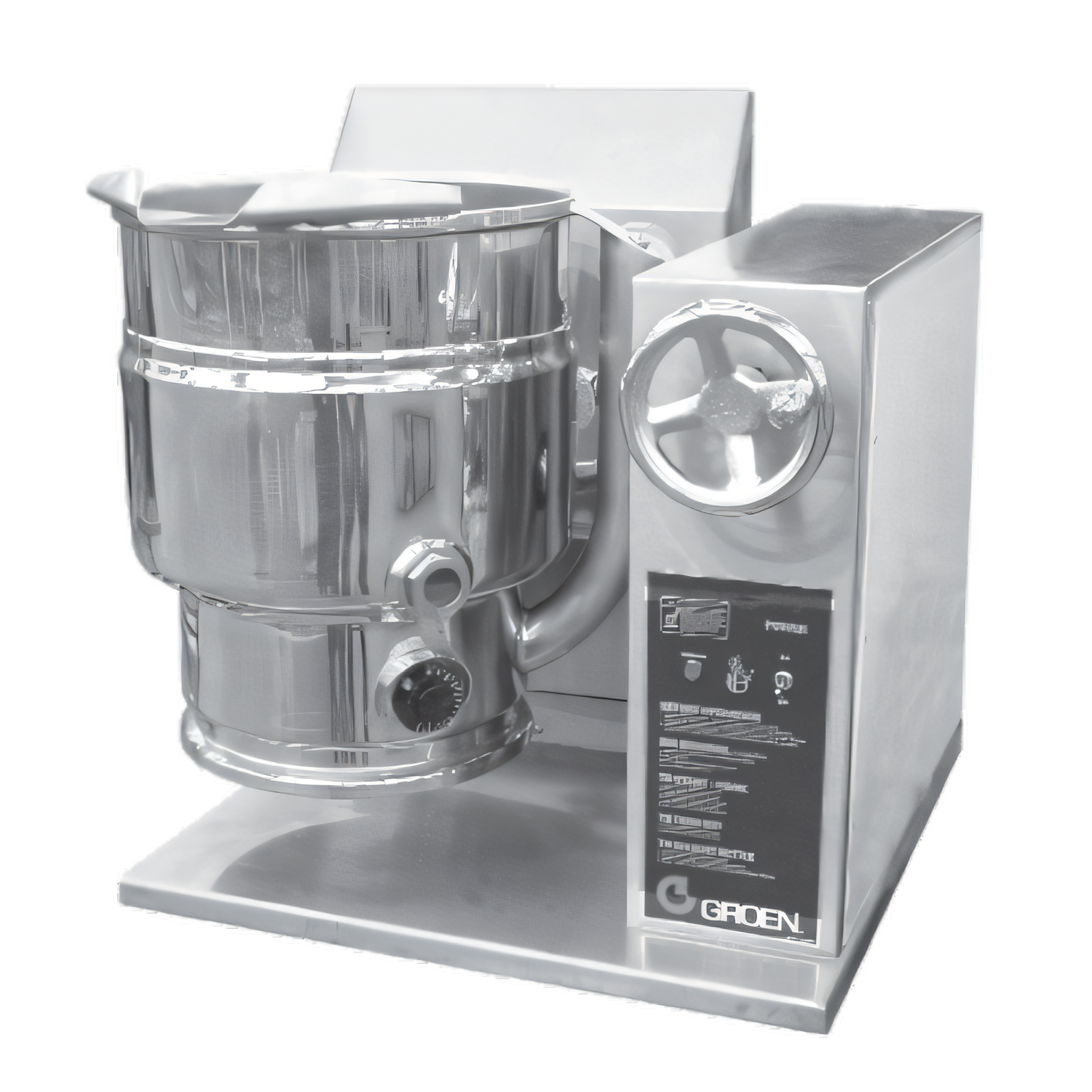

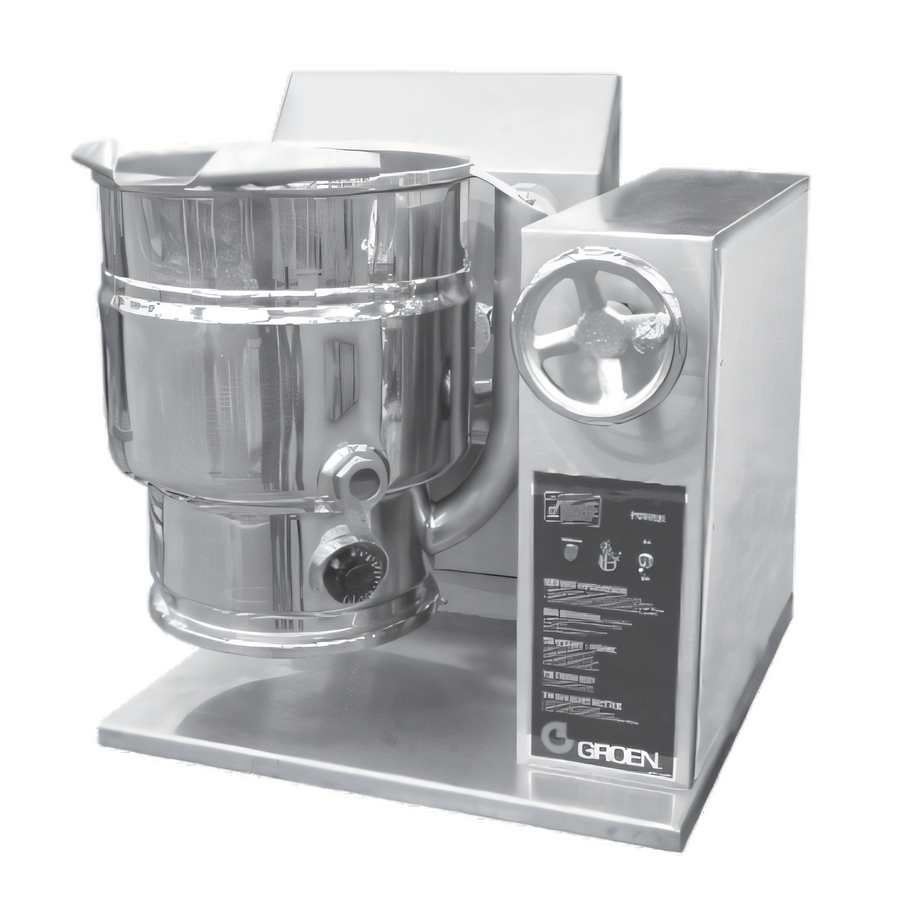

Groen TDHC-20C 20 Qt Gas Table Top Tilting Kettle with Classic Controls and Crank Tilt
Groen TDHC-20C 20 Qt Gas Table Top Tilting Kettle with Classic Controls and Crank Tilt
2/3 Jacket, 304 Stainless Steel Liner, Right-Side Support Console
A compact 20-quart gas kettle with crank tilt, water-resistant controls, and rugged stainless construction for precise batch cooking.
- 20-quart table top gas steam-jacketed kettle with Classic electronic controls.
- 2/3 jacket self-contained steam system heats without a remote steam source.
- Crank tilt handle and right-side support console provide controlled one-person pouring.
- 304 stainless steel construction with IPX6-rated controls is built for demanding kitchen use.
- 31,000 BTU/hr firing rate, 50 PSI maximum working pressure, and 120V electrical supply.
- NSF and cCSAus listed, with Made in USA construction.
Overall Dimensions:
25.63"W x 30.25"D x 25.25"HProduct Weight:
215.0 lbClassic Electronic Controls
Includes a power ON-OFF switch with indicator light, temperature control knob with 1 to 10 increments, heating indicator light, and low-water warning light.
Self-Contained Gas-Heated Steam Source
Built-in steam source requires no remote steam source and provides kettle temperatures from 150°F to approximately 295°F.
Crank Tilt With Right-Side Handle
Crank tilt design allows one person to precisely tilt the kettle, even when filled to capacity.
304 Stainless Steel Construction
One-piece welded stainless steel body with all exposed surfaces in stainless steel for durability and easier cleaning.
IPX6 Water-Resistant Control Enclosure
Controls are housed in a water-resistant IPX6-rated trunnion enclosure for added protection in busy kitchens.
Safety System
Includes safety tilt cut-off, pressure relief valve, high limit pressure switch, low water cut-off, and a 24-volt control system.
High-Output Gas Heating
The 20-quart model has a 31,000 BTU/hr firing rate with electronic spark ignition standard.
Standard Faucet Bracket
Faucet bracket is standard and mounted on the rear of the controls/trunnion enclosure.
Finish Details
Interior is polished to a 180 emery grit finish, and the exterior has a bright high-buff finish.
Gas And Electrical Requirements
Requires a 1/2" NPT gas line connection and 120 VAC, 1 amp, 60 Hz electrical supply.
Made In USA
Manufactured in the United States.
Certifications & Compliance
Warranty & Protection
1-year limited warranty on parts and related labor, or 15 months from shipment, whichever occurs first.
