Groen TDHC-20A Steam Kettles
$18,975.00
Unit price
/
Unavailable
Description

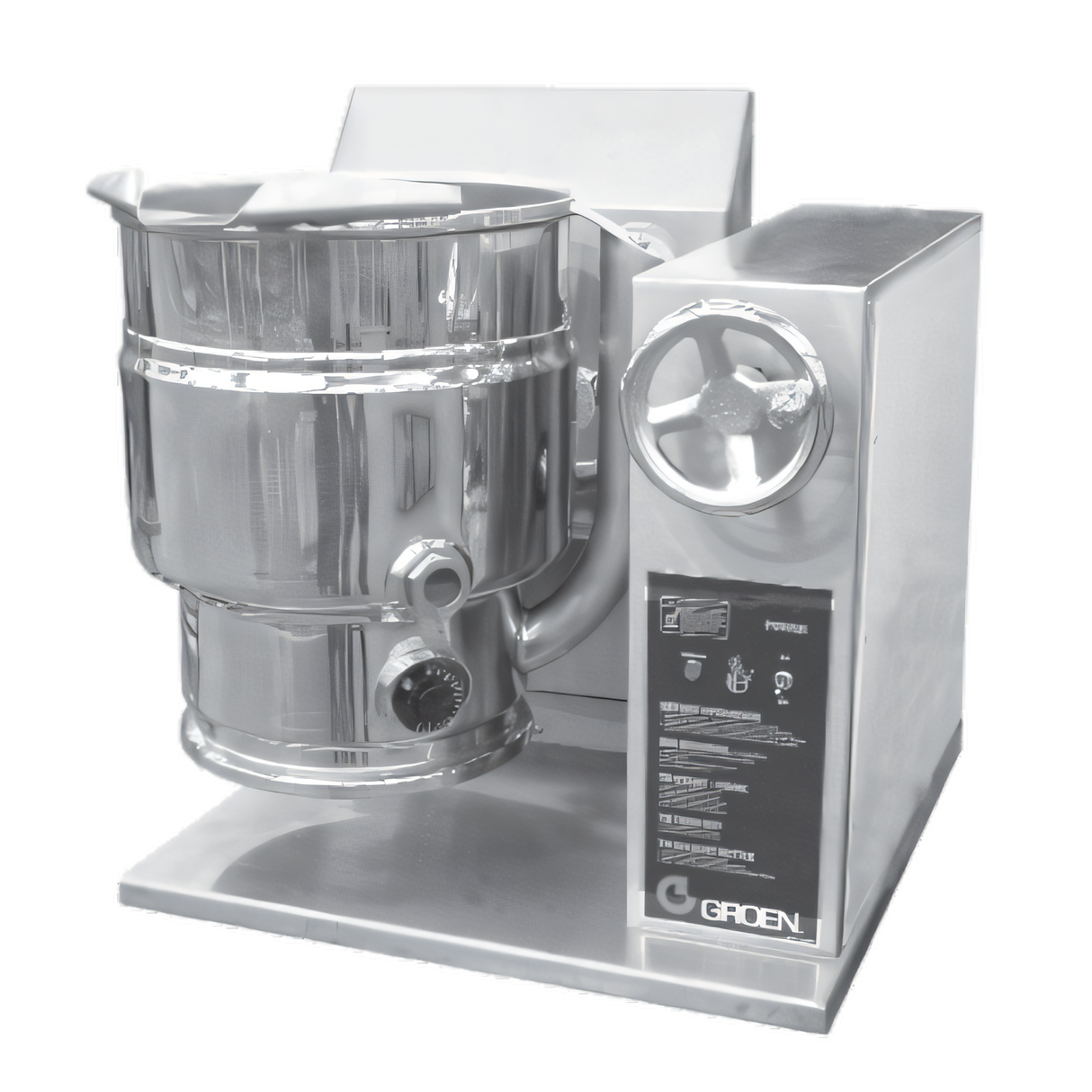

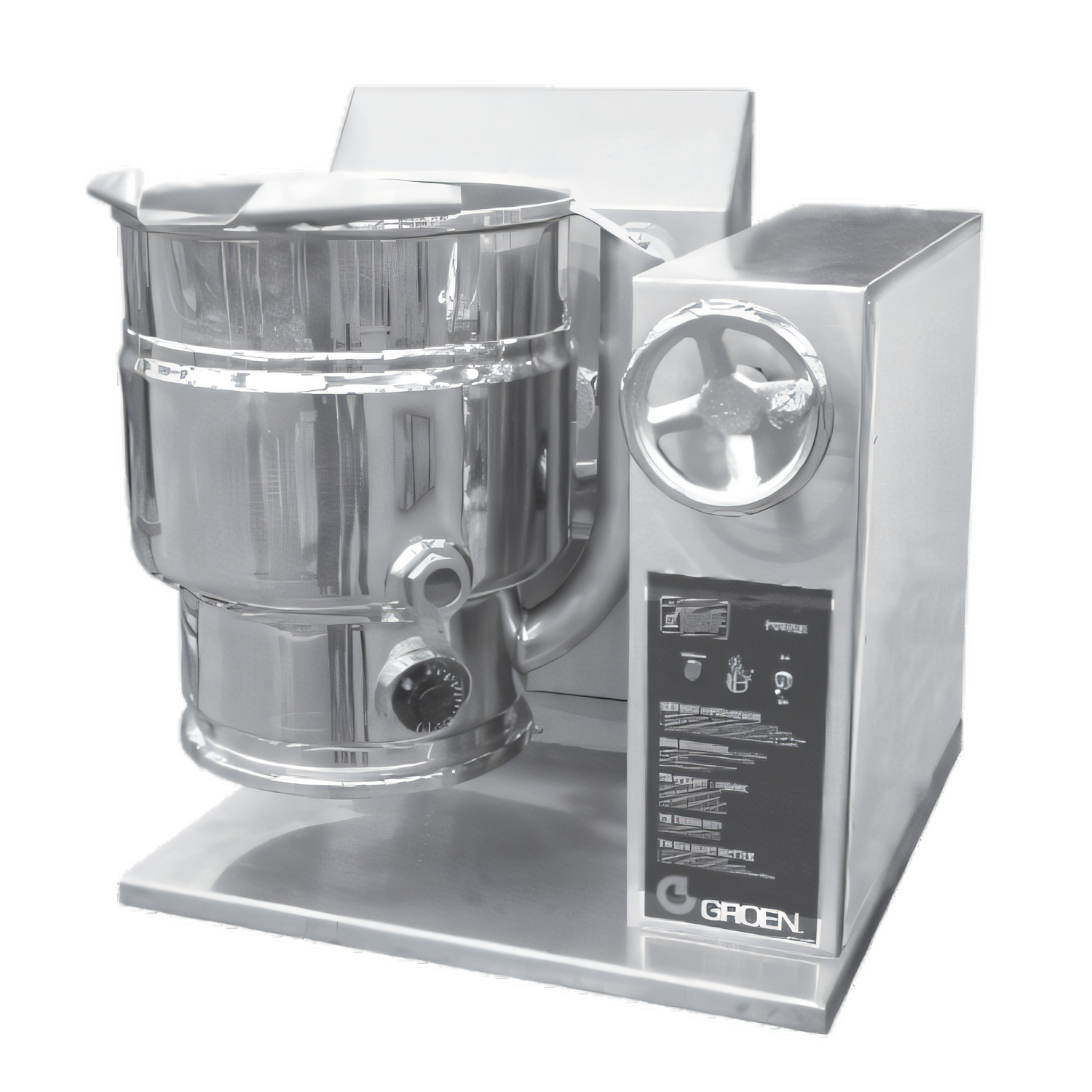

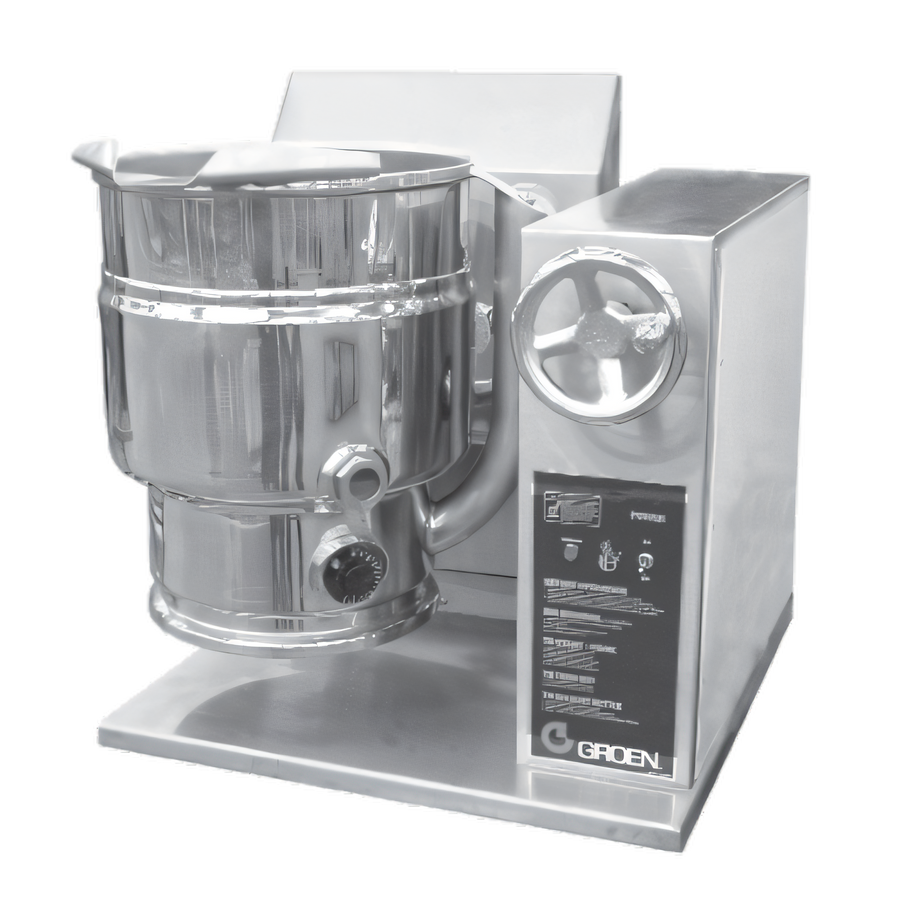

Groen TDHC-20A Gas Table-Top Tilting Kettle – 20 Quart
Advanced IPX6 Controls | 2/3 Steam Jacket | Made in USAHarness the speed and consistency of a self-contained steam jacket in a space-saving countertop design. With 31,000 BTU of even heat and a precise digital control panel, the TDHC-20A turns out flawless soups, sauces, reductions and more—batch after batch.
Why you’ll love it
- 20 qt (5 gal) capacity – ideal for small-to-mid volume production.
- 2/3 steam jacket surrounds the product zone for rapid, uniform heating.
- Advanced electronic controls • 1 min–10 hr timer • Low (2) & High (7) presets • Manual knob for levels 1-10
- Water-resistant IPX6 control enclosure stands up to high-pressure wash-downs.
- 304 stainless steel liner with polished 180-grit interior for easy clean-up.
- Heavy-duty crank tilt (right-side mounted) allows one-hand, splash-free pouring.
- Patented fin-tube burner delivers 31,000 BTU/h with electronic spark ignition.
- Self-contained steam system—no external boiler or steam connection required.
- Comprehensive safety suite: tilt shut-off, pressure relief valve, high-limit switch, low-water cut-off & 24 V controls.
- NSF, cCSAus & ASME code stamped to 50 PSI; manufactured in the USA.
At-a-glance specs
| Model | TDHC-20A |
|---|---|
| Capacity | 20 qt / 5 gal / 19 L (net) |
| Jacket Rating | 50 PSI, ASME stamped |
| Heat Source | Natural or propane gas, 31,000 BTU/h fin-tube burner |
| Controls | Advanced electronic, IPX6; digital display for time/heat; 1 – 10 levels |
| Timer Range | 1 minute – 10 hours |
| Construction | One-piece 304 SS kettle & support console; reinforced rim with butterfly pouring lip |
| Tilt Mechanism | Manual crank, right side mounted |
| Gas Connection | ½ in NPT (rear); 0–2,000 ft elevation rating |
| Electrical | 115 V, 60 Hz, 1 A single-phase (water-resistant conduit) |
| Water Fill | Factory charged & treated; no vent or drain connections required |
| Certifications | NSF, cCSAus, IPX6, ASME NB-registered |
| Origin | Made in the USA |
Perfect for
- Scratch soups and chowders
- Signature sauces, gravies & roux
- Custards, oatmeal & hot cereals
- Small-batch braising or poaching
Installation requirements: ½ in NPT gas line, 115 V electrical outlet and a sturdy, level work surface
(optional Groen TS/10-3 stainless support stand sold separately).
Covered by Groen’s 1-year parts & labor warranty with nationwide service network.
Features & Specs
Features & Specs
Manufacturer
Groen
Certifications
NSF, cCSAus, IPX6, Made in USA
Height
25.25in
Width
25.63in
Depth
30.25in
Shipping Weight
215.0lbs
Tilt type
crank
Kettle Jacket
partial jacket
Capacity
5 gal = 20 qt
Kettle Liner
stainless steel
Support location
right
Specifications
Kettle, gas, table top, 20 quart capacity, 2/3 jacket, IPX6 water rated electronic Advanced controls with digital display, 1 minute to 10 hour timer, low (2) and high (7) preset intensities with manual capability, 304 stainless steel liner, crank tilt, support console on right, stainless steel construction, 50 PSI, 0 - 2000' elevation, 31,000 BTU, cCSAus, NSF, Made in USA
