Groen TDH-40C Steam Kettles
Description

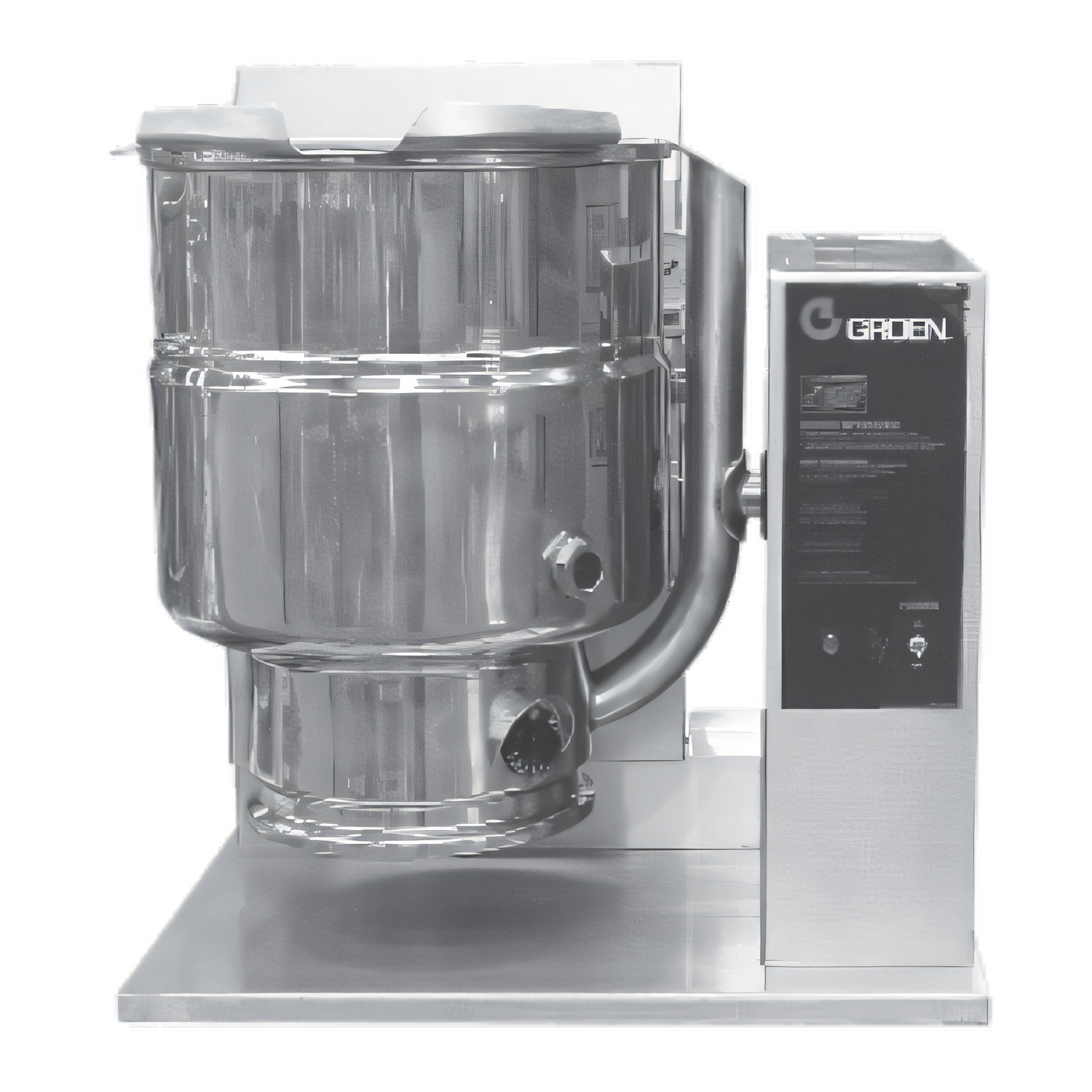

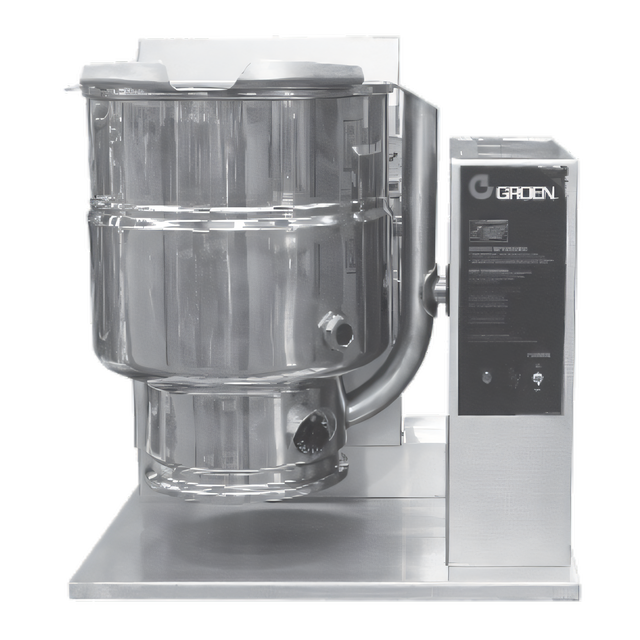

Groen TDH-40C Gas Table-Top Tilting Kettle – 40 Qt
Self-contained 2/3 Jacket • Classic IPX6 Controls • Made in the USAProduce soups, sauces, stocks and more up to 60 lb (27 kg) per batch with the speed and consistency only a steam-jacketed kettle can deliver. The Groen TDH-40C pairs a heavy-duty 52,000 BTU fin-tube burner with a rugged 304 stainless kettle body, giving you boiler-free performance, fast heat-up and easy, hand-tilt pouring—all in a compact table-top footprint.
Why It Belongs in Your Kitchen
- Fast, even heating – self-contained 2/3 jacket reaches 150 – 295 °F without hot spots.
- Classic electronic controls – IPX6-rated panel with 1–10 temperature dial, power & heat lights and low-water alert.
- Manual hand tilt – precise, field-reversible crank empties into standard 4″ hotel pans.
- Built-in safety – tilt shut-off, pressure relief valve, high-limit switch and low-water cut-off protect staff and product.
- 304 stainless construction – 180-grit polished liner and high-buff exterior clean up quickly and resist corrosion.
- Certified & compliant – ASME code stamped 50 PSI pressure jacket, cCSAus gas certification, NSF listed.
Technical Specifications
| Model | TDH-40C (Classic controls) |
|---|---|
| Capacity | 40 qt / 38 L |
| Jacket Coverage | 2/3 jacket, self-contained |
| Heat Source | Natural or propane gas, 52,000 BTU/hr |
| Operating Temp. | 150 – 295 °F (65 – 146 °C) |
| Operating Pressure | 50 PSI (344 kPa) maximum |
| Ignition / Power | Electronic spark; 115 V, 60 Hz, 1 ph, 1 A |
| Controls | IPX6 water-resistant enclosure, ON/OFF switch, 1–10 heat dial, HEAT & LOW-WATER indicators |
| Tilt Mechanism | Hand-crank, field-reversible handle (right-side console standard) |
| Altitude Rating | 0 – 2,000 ft (610 m) |
| Gas Connection | ½″ NPT |
| Construction | One-piece 304 stainless steel kettle & console |
| Certifications | ASME, cCSAus, NSF, IPX6 |
| Country of Origin | USA |
Recommended Accessories (sold separately)
- TS/10-3 stainless steel table stand
- Lift-off stainless cover or cover holder
- Single or double pantry faucet kit
- Wire basket insert & nylon liner
- Drain cart for high-volume batch changeovers
