Groen TDH-40A Steam Kettles
Description

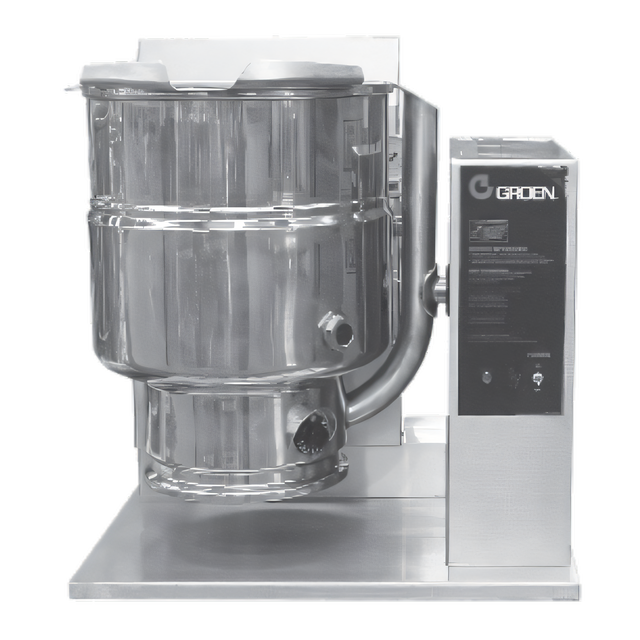

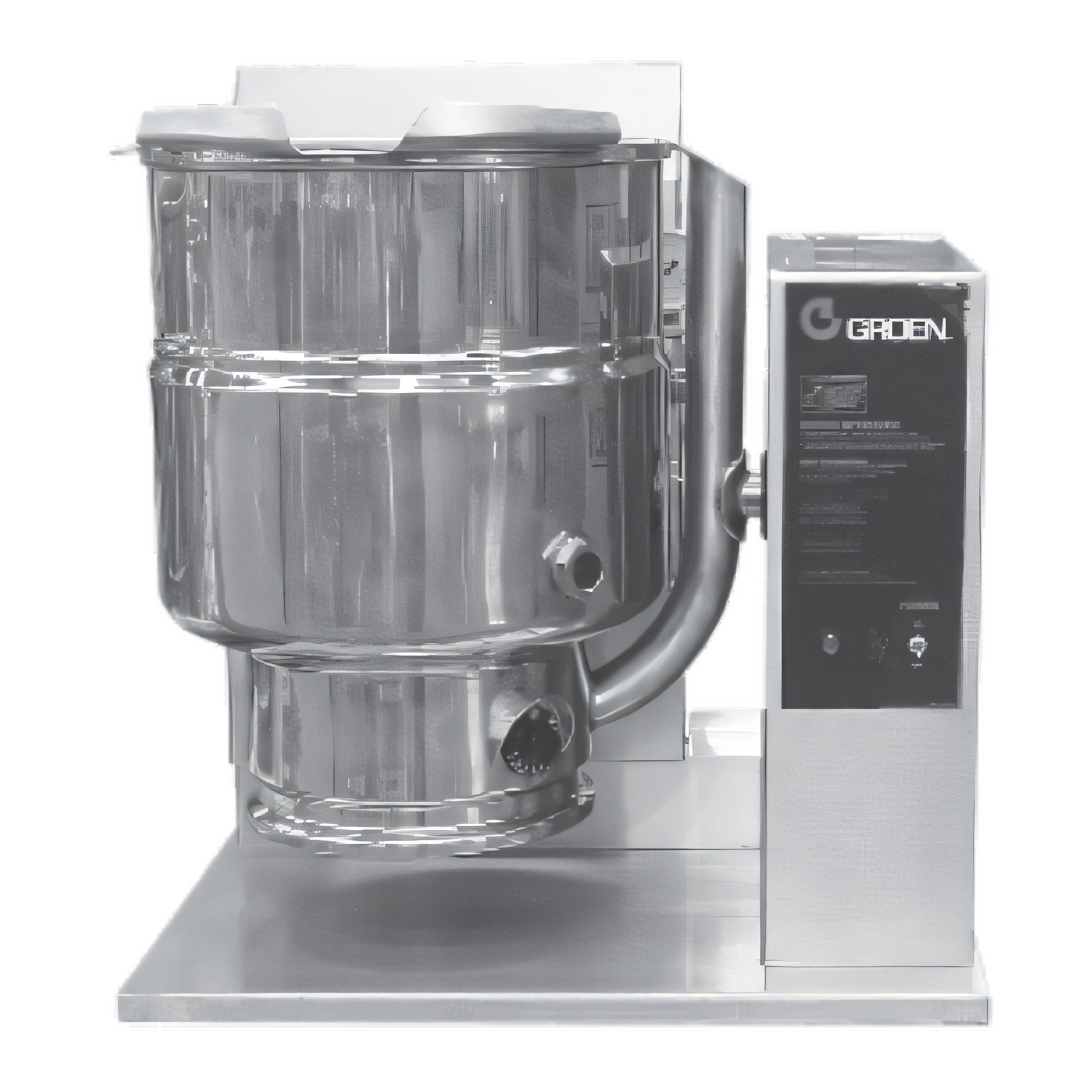

Groen TDH-40A | 40 Qt Gas Table-Top Tilting Kettle
Advanced IPX6 Electronic Controls • 52,000 BTU • Made in USAReplace labor-intensive stock pots with the speed, precision and safety of a Groen self-contained steam jacketed kettle. The TDH-40A delivers 40 quarts (10 gal) of uniform, scorch-free heat in a compact counter-top footprint—ideal for schools, restaurants, hospitals and batch processors that demand consistent results shift after shift.
Why You’ll Love It
- 52,000 BTU Fin-Tube Burner reaches cooking temps fast (150 – 295 °F) and maintains them automatically.
- Advanced IPX6-rated control panel with digital timer (1 min – 10 hr), LED heat-level display and one-touch Low (2) / High (7) presets—plus full manual mode.
- Rugged 2/3 steam jacket factory-charged to 50 PSI; no external boiler or water fill required.
- 304 stainless-steel liner & exterior with polished 180-grit interior for easy cleanup and long life.
- Hand tilt with butterfly pouring lip gives smooth, controlled pours into 4″-deep hotel pans; handle is field-reversible.
- Comprehensive safety system – tilt cut-off, pressure relief valve, high-limit pressure switch, low-water cutoff and 24 V controls.
- Certified & compliant – ASME, cCSAus, NSF listed.
Technical Specifications
| Model | TDH-40A (Advanced controls) |
|---|---|
| Capacity | 40 qt / 10 gal / 38 L |
| Heat Source | Natural or propane gas, 52,000 BTU/hr, electronic spark ignition |
| Jacket Rating | 50 PSI (self-contained, factory charged) |
| Construction | One-piece 304 SS welded kettle & console; polished exterior |
| Controls | IPX6 enclosure, rotary temp/time knob, digital display, Low/High presets, manual heat levels 1-10, 1 min-10 hr timer |
| Tilt Mechanism | Manual hand tilt, support console on right (reversible handle) |
| Operating Elevation | 0 – 2,000 ft without derating |
| Electrical | 115 V, 60 Hz, 1 ph, 1 A (for controls & ignition) |
| Gas Connection | ½″ NPT |
| Certifications | ASME-code stamped, NSF, cCSAus |
| Origin | Manufactured in the USA |
Built-In Protection
- Tilt cut-off disables burners when kettle is rotated more than 12°.
- Pressure relief valve and high-limit pressure switch safeguard the jacket.
- Low-water cutoff prevents dry-firing; gas shuts off automatically when tilted.
Warranty & Service
Every Groen kettle ships with a 1-year parts & labor warranty and lifetime technical support from Unified Brands (Groen) experts at 1-888-994-7636.
