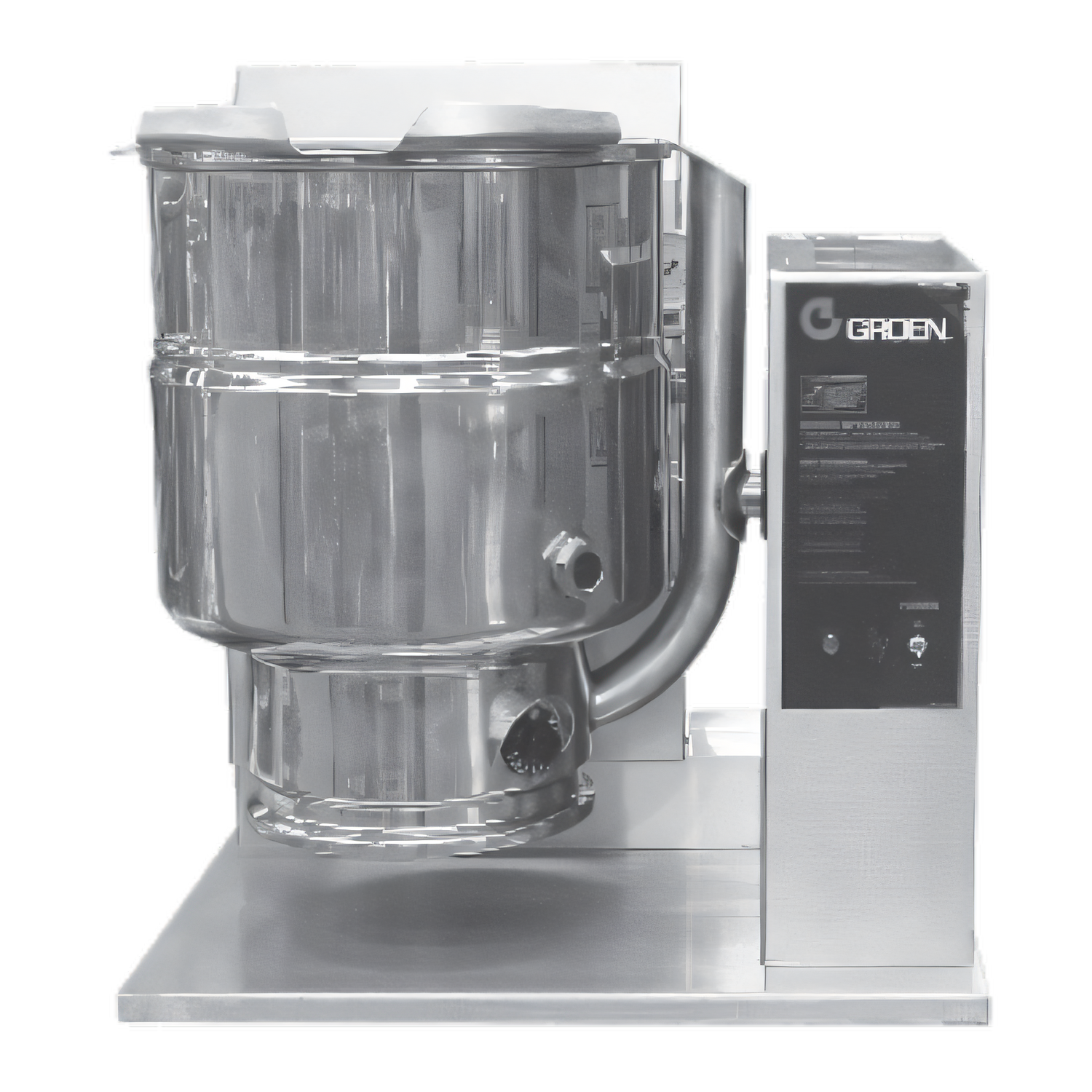

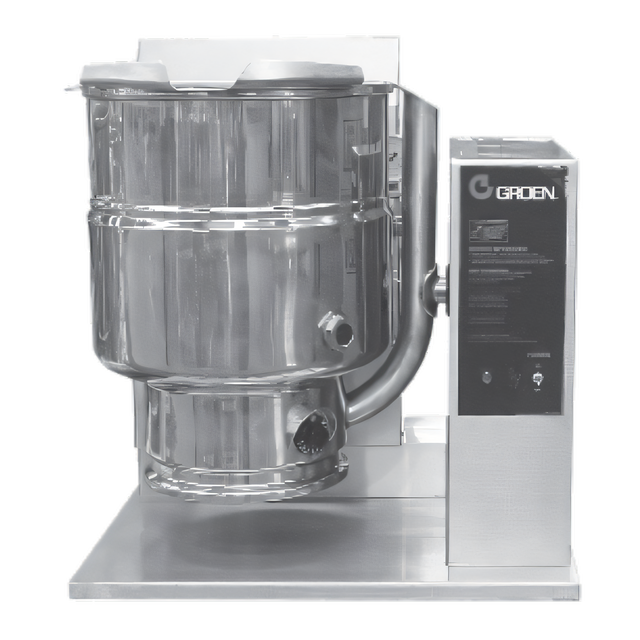

Groen TDH-24C Gas Table-Top Tilting Kettle – 24 Qt
Self-contained 2/3-jacket kettle with Classic IPX6 electronic controlsBring boiler-free steam power to your worktable. The Groen TDH-24C delivers 24 quarts (6 gal) of even, jacketed heat for soups, sauces, stocks and more—all from a compact, hand-tilt kettle that runs on an efficient 31,000 BTU gas burner.
At-a-Glance Benefits
- 24 qt / 22.7 L capacity—batch-cook up to 200 portions in one go.
- 2/3 steam jacket surrounds product for gentle, uniform heating with virtually no scorching.
- Fin-tube burner generates its own steam; no external boiler or water connections needed.
- IPX6 Classic control panel with power switch, 1-10 temp dial, HEAT & LOW-WATER indicators.
- Manual hand-tilt with reversible handle for smooth, single-operator pouring.
- 304 stainless-steel liner & full stainless exterior—durable, sanitary and easy to keep spotless.
- Built-in safety: tilt shut-off, hi-limit pressure switch, pressure-relief valve & low-water cut-off.
- Factory-sealed jacket pre-charged with treated water—zero boiler maintenance.
Technical Specifications
Model | TDH-24C (Classic Controls) |
---|---|
Capacity | 24 qt / 6 gal / 22.7 L |
Jacket | 2/3 steam jacket, factory sealed & pressurized |
Heat Input | 31,000 BTU/hr |
Temperature Range | 150 °F – 295 °F (65 °C – 146 °C) |
Working Pressure | 50 PSI (ASME stamped) |
Tilt Mechanism | Hand-tilt, right-side console (shuts heat off when tilted > 12°) |
Gas Connection | ½″ NPT, Natural or Propane, 0 – 2,000 ft elevation |
Electrical | 115 V / 60 Hz, single phase (controls & ignition) |
Water & Dust Rating | IPX6 splash-proof control enclosure |
Liner Material | 304 stainless steel, 180-grit interior polish |
Exterior Finish | High-buff stainless steel |
Dimensions (W×D×H) | Refer to spec sheet |
Net Weight | Approx. 141 lb (64 kg) |
Certifications & Compliance
- cCSAus gas & electrical certification
- ASME code stamped & NB registered (50 PSI)
- NSF listed for sanitation
- IPX6 water-resistant controls
- Made in the USA
Optional Accessories
- TS/10-3 stainless table-top support stand (with or without drain drawer)
- Lift-off or hinged cover
- Wire or nylon basket inserts
- Single or double pantry faucets
- Cover holder & cover strainer
Warranty
Includes Groen’s 1-year parts & labor warranty; extended coverage available at purchase. Nationwide service network for prompt support.
