Groen TDH-24A Steam Kettles
Description

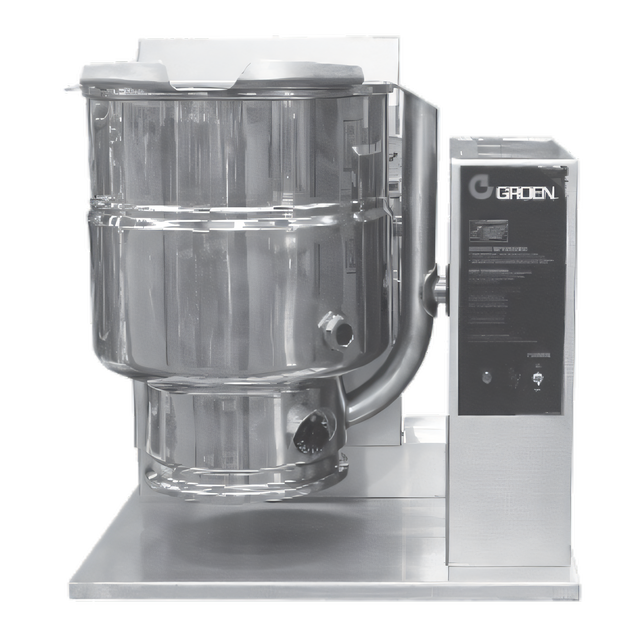

Groen TDH-24A Gas Table-Top Tilting Kettle – 24 Qt / 6 Gal
Advanced IPX6 Electronic Controls • 31,000 BTU • Self-Contained 50 PSI Steam JacketBuilt for busy commercial kitchens that demand accuracy, durability and speed, the Groen TDH-24A delivers 24 quarts of true kettle performance in a compact counter-top footprint. Its self-contained gas-fired steam jacket heats evenly from 150 °F up to a searing 295 °F, while the IPX6-rated Advanced control package gives you digital precision at the twist of a knob.
Why You’ll Love It
- 24 qt (6 gal) capacity with 2⁄3 steam jacket—ideal for soups, sauces, gravies & more
- 31,000 BTU patented fin-tube burner for fast, efficient heat-up
- Advanced electronic control: set heat level or time, view it on the bright LED display
- Low (Level 2) & High (Level 7) one-touch presets plus full manual mode
- Countdown timer adjustable from 1 minute to 10 hours
- 304 stainless steel liner & all-stainless exterior—NSF cleanability and long life
- Hand tilt with reinforced butterfly pouring lip; reversible handle for left or right operation
- Water-resistant (IPX6) right-side console keeps electronics protected during wash-down
- Factory-sealed, self-contained jacket—no boiler or external steam source required
- Made & ASME-stamped in the USA; cCSAus, NSF certified
Smart Advanced Controls
- Power On/Off & Heat indicator lights
- Multi-function knob to set temperature (Levels 1-10) or time
- LED display shows set heat level or remaining cook time
- Preset Reset buttons for quick return to Low (2) or High (7)
- Manual Mode button for instant, knob-set heat control
- Timer-Set button with indicator light
Built-In Safety
- Tilt cut-off—burner shuts off if kettle is tilted >12°
- High-limit pressure switch & 50 PSI relief valve
- Low-water cut-off protects the steam jacket
- 24 V control circuitry & electronic spark ignition
Key Specifications
| Model | TDH-24A |
|---|---|
| Capacity | 24 qt / 6 gal (≈22.7 L) |
| Jacket Coverage | 2⁄3 |
| Heat Source | Natural or Propane Gas, 31,000 BTU/hr |
| Operating Temp. | 150 °F – 295 °F (Steam jacket 50 PSI max) |
| Controls | Advanced IPX6 digital, timer 1 min – 10 hr |
| Tilt | Manual hand tilt, right-side console |
| Gas Connection | ½″ NPT |
| Electrical | 115 V, 60 Hz, 1 A (water-resistant conduit supplied) |
| Altitude Rating | 0 – 2,000 ft |
| Certifications | ASME, cCSAus, NSF |
| Country of Origin | Made in USA |
Optional Accessories
- TS/10 stainless support stand (with or without drain drawer)
- Lift-off cover, cover holder or cover strainer
- Wire or nylon basket inserts
- Single or double pantry faucets & pre-rinse sprays
- Correctional package, 316 stainless liner & more
Backed by Groen’s standard 1-year parts & labor warranty. Need help? Our tech service line is available at 888-994-7636.
