Groen TDH-20C Steam Kettles
Description

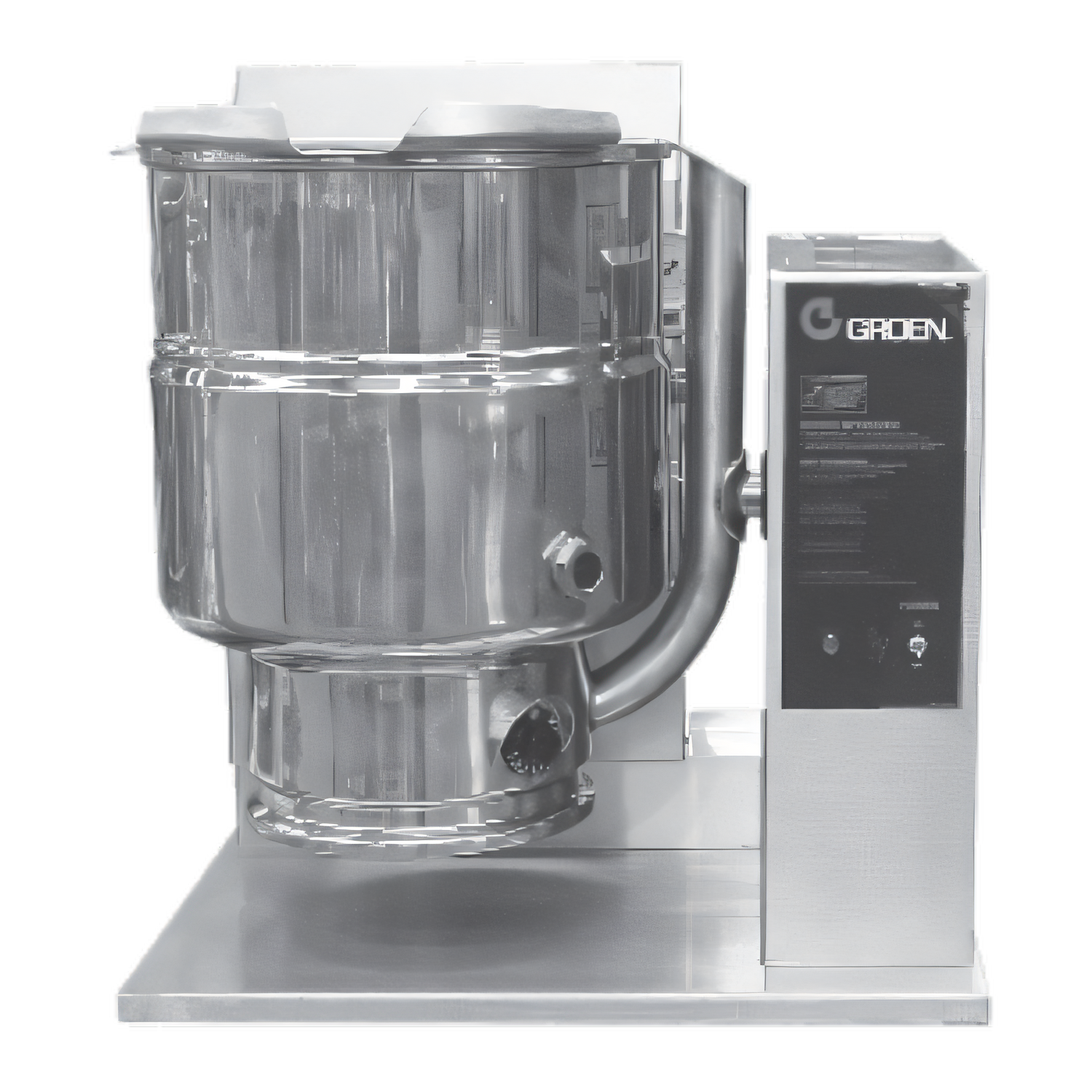

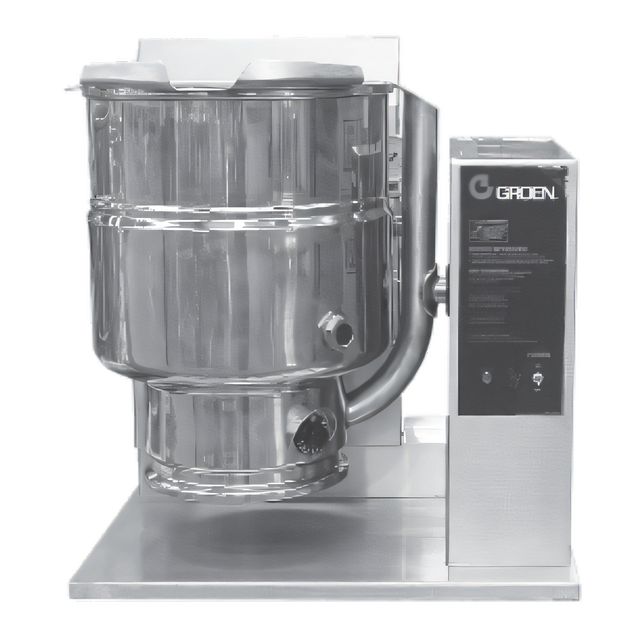

Groen TDH-20C Gas Table-Top Tilting Kettle – 20 Quart
Powerful, self-contained steam-jacketed cooking in a compact 20 qt footprintWhen space is tight but production can’t slow down, the Groen TDH-20C delivers 20 quarts of even, steam-jacketed heat on any work table. A 2/3-jacket design, 31,000 BTU fin-tube burner and water-resistant IPX6 Classic electronic controls give you the speed and precision your menu demands—without the need for an external boiler.
Key features & benefits- 20 qt (18.9 L) capacity – ideal for soups, sauces, reductions & small-batch production
- 2/3 steam jacket reaches 150–295 °F for fast, uniform cooking
- 31,000 BTU/h patented fin-tube burner for maximum combustion efficiency
- Classic IPX6-rated control panel (right-hand console)
- Power On/Off with indicator light
- 1–10 dial temperature control with HEAT indicator
- Low-water warning light & automatic shut-off
- Electronic spark ignition for reliable start-ups
- One-piece 304 stainless-steel kettle & console – polished 180-grit interior / high-buff exterior
- Heavy reinforced rim with butterfly pouring lip for clean, controlled transfers
- Manual hand-tilt with field-reversible handle; balanced for effortless pouring into 4" hotel pans
- Factory-sealed, self-contained jacket – no boiler or plumbing required
- Comprehensive safety system: tilt cut-off, 50 PSI ASME relief valve, high-limit pressure switch, low-water cut-off & 24 V control circuit
- cCSAus, NSF & ASME code-stamped; proudly Made in the USA
Whether you’re finishing a small batch of béchamel or holding chili at a precise simmer, the TDH-20C maintains set temperature automatically, cycling the burner only when product temperature drops—saving energy and extending jacket life. The compact tabletop design frees up valuable floor space while still clearing 4" hotel pans during pour-off.
Technical specifications| Model | TDH-20C |
|---|---|
| Capacity | 20 qt / 18.9 L |
| Jacket coverage | 2/3 – factory charged, self-contained |
| Heat source | Natural or propane gas, 31,000 BTU/h |
| Operating pressure | 0–50 PSI (345 kPa) steam jacket |
| Control type | Classic electronic dial, IPX6 enclosure |
| Electrical | 115 V, 60 Hz, 1 ph, 1 A (electronic ignition & controls) |
| Gas connection | ½" NPT rear |
| Pour height | Clears 4" (102 mm) pans on tabletop |
| Construction | 304 stainless steel kettle, console & trunnion |
| Safety features | Tilt cut-off (>12°), low-water, high-limit, pressure relief valve, 24 V controls |
| Certifications | ASME, cCSAus, NSF |
| Origin | Made in the USA |
- TS/10-3 stainless-steel tabletop stand with or without drain drawer
- Lift-off stainless cover or cover holder
- Single- or double-pantry rinse/fill faucets
- Wire basket & nylon basket liner
- Drain cart & plumbing kit for mobile service
Groen backs every TDH kettle with a 1-year parts & labor warranty and lifetime technical support through our toll-free service line (888-994-7636).
