Groen TDBC-48C Steam Kettles
Description

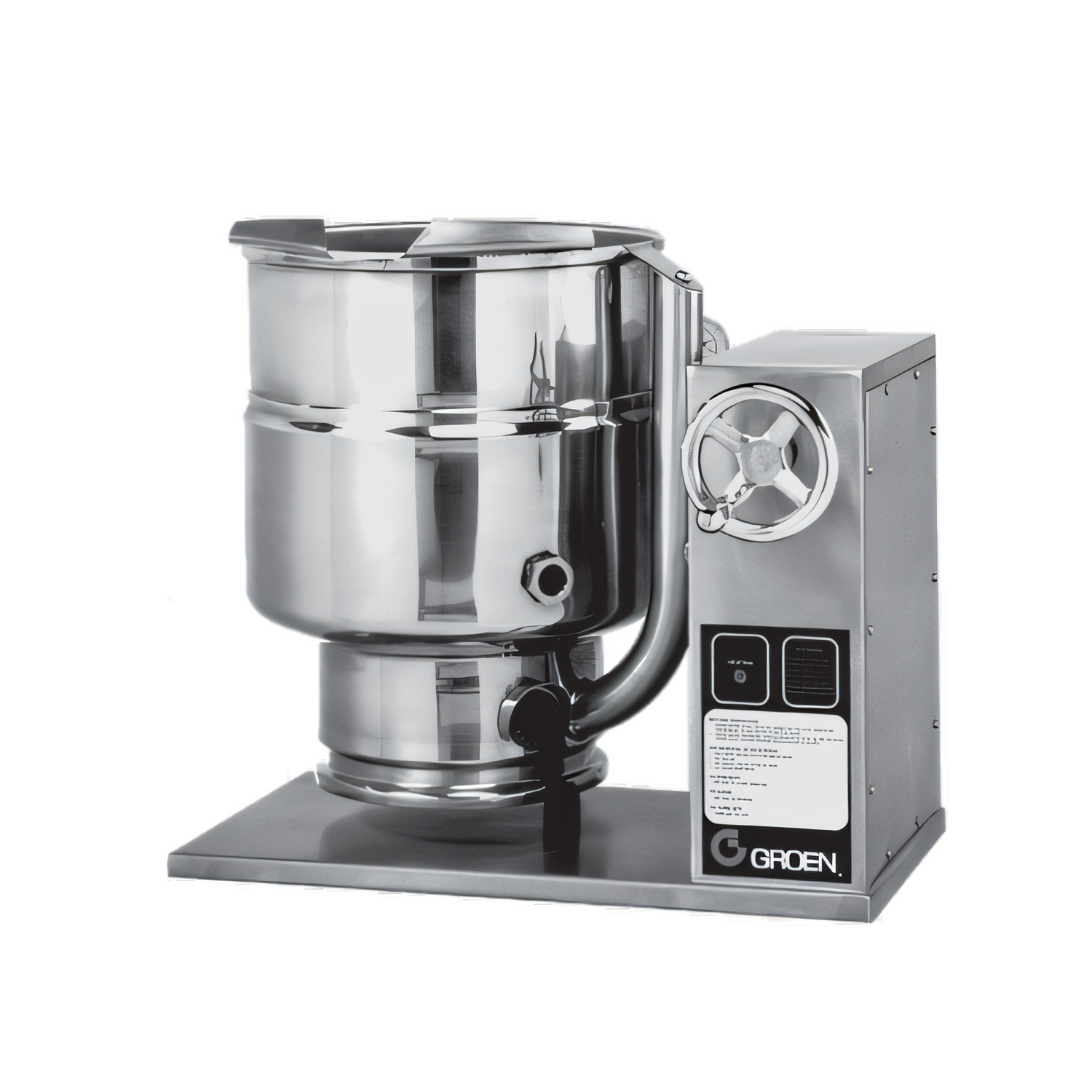

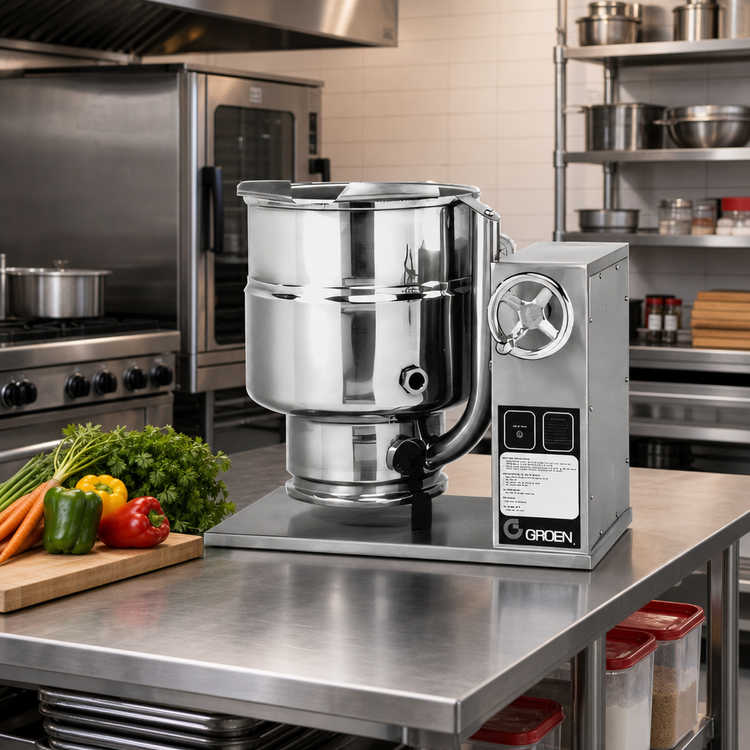

Groen TDBC-48C 48-Quart Electric Table-Top Tilting Kettle Classic Controls • 2/3 Steam Jacket • 304 SS Construction
Built for volume, speed and rock-solid reliability, the Groen TDBC-48C delivers 48 quarts (12 gal / 45.4 L) of perfectly even, steam-jacketed cooking power in a compact table-top footprint. Its water-resistant Classic control console and smooth crank-tilt mechanism make large-batch production safer, cleaner and easier than ever.
Why You’ll Love It
- Fast, even heat – self-contained electric steam jacket reaches 150-295 °F without an external boiler.

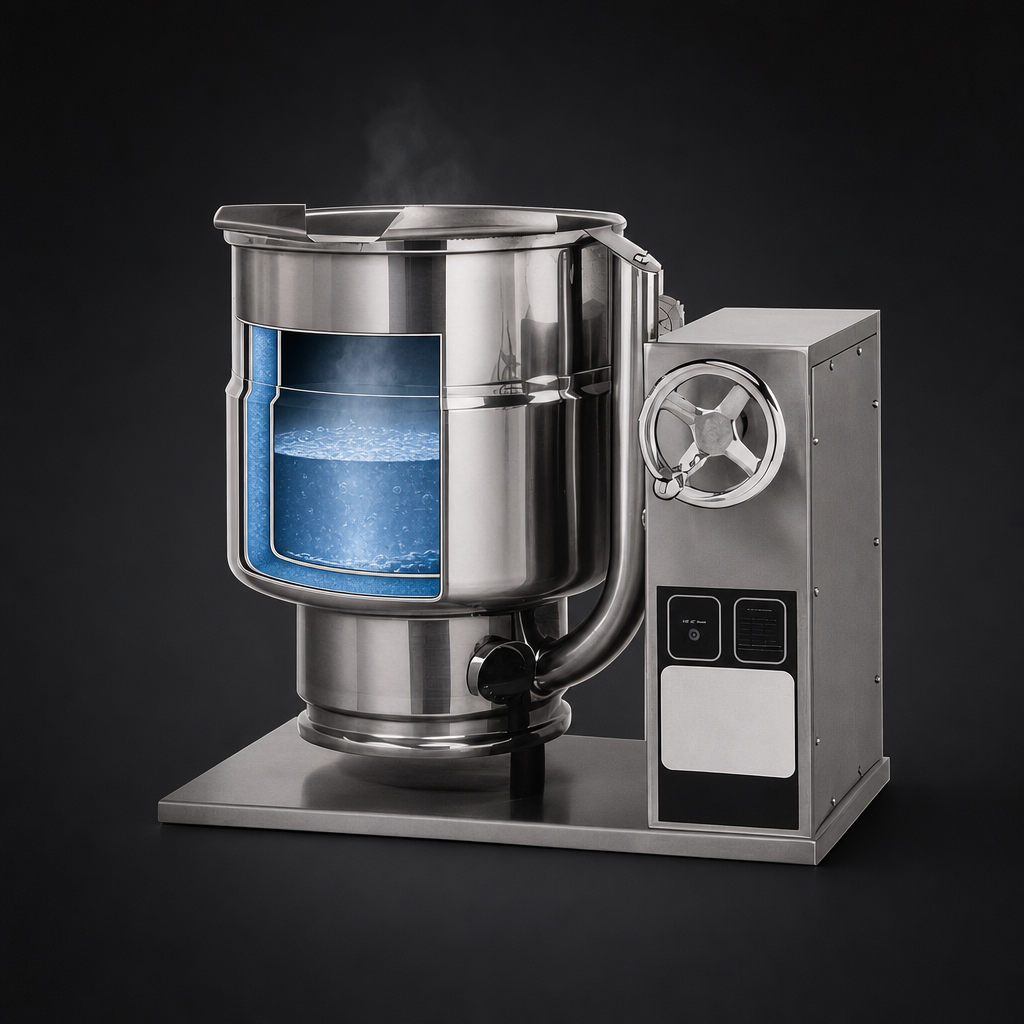

- 2/3 jacket design heats sidewalls as well as the base for consistent results and reduced scorching.

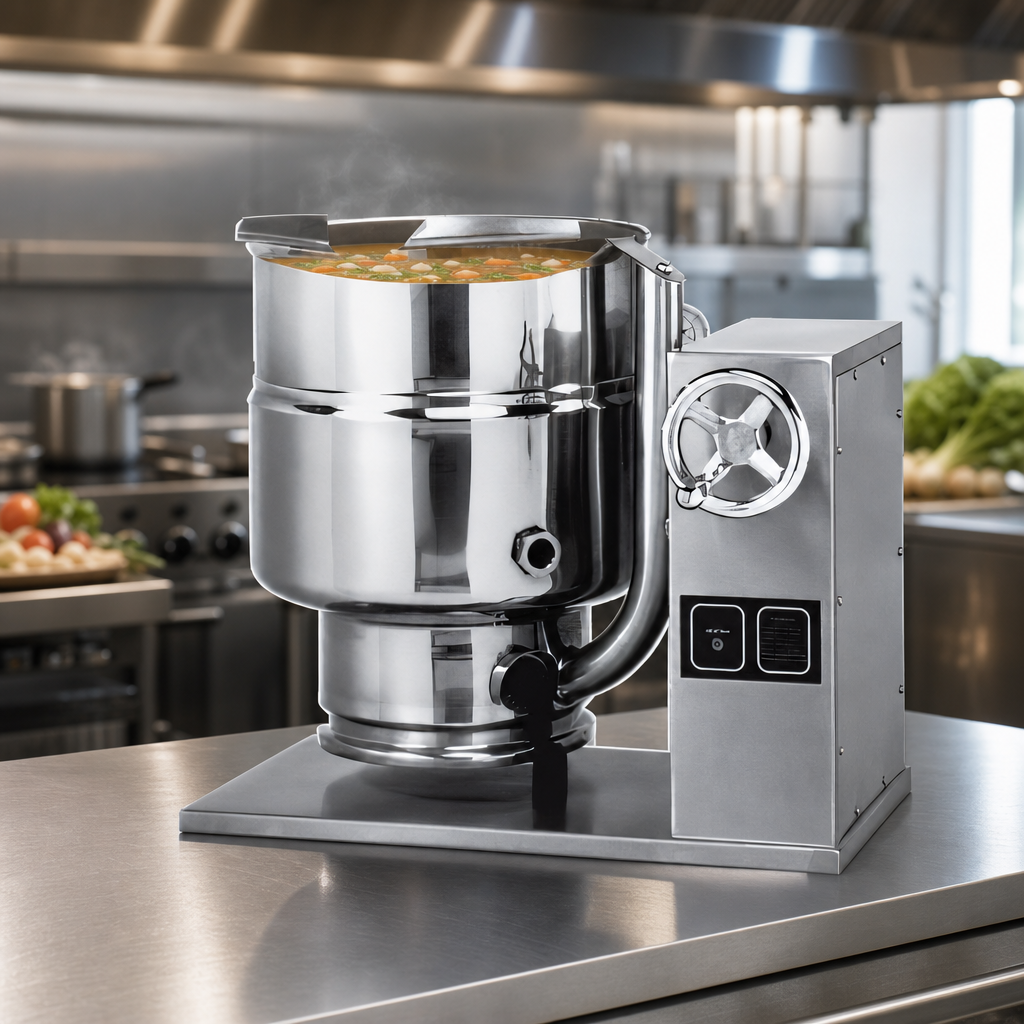

- 48 qt / 12 gal capacity handles soups, sauces, pasta, custards, chili and more for 220+ servings per batch.
- IPX6 water-rated Classic controls with ON/OFF switch, 1–10 temperature dial, heating light and low-water alert.
- One-hand crank tilt integrated into the right-side console gives precise, controlled pouring—even full.
- All-stainless build – 304 SS liner, polished 180-grit interior, high-buff exterior and reinforced rim with welded butterfly lip.
- Factory charged & sealed with treated water and rust inhibitor for long life and minimal maintenance.
- Built-in faucet bracket (rear of console) accepts optional pantry or pre-rinse faucets.
- Comprehensive safety – tilt cut-off (>12°), pressure relief valve, high-limit pressure switch, low-water cut-off and 24-V controls.
- cULus, NSF & ASME 50 psi certified and proudly Made in the USA.
Classic Control Console (IPX6)
- Water-resistant trunnion enclosure positioned on the right for ergonomic operator access.
- Power rocker with status light lets you know the kettle is energized at a glance.
- Large temperature knob (settings 1–10) offers simple, repeatable heat selection.
- Bright HEAT indicator shows when elements are actively firing.
- Low-Water warning light alerts staff before protection circuits shut down the elements.
Technical Specifications
| Capacity | 48 qt / 12 gal / 45.4 L (working) |
|---|---|
| Jacket Coverage | 2/3 (side & bottom) |
| Temperature Range | 150 °F – ≈295 °F |
| Heat Source | Self-contained electric steam; factory sealed & charged |
| Input Power | 12 kW (208 V/240 V) or 14 kW (480 V) |
| Voltage / Phase | 208, 240 or 480 V • 3-phase standard (field convertible to 1-phase) |
| Tilt Mechanism | Manual hand-crank, right-side mounted |
| Pour Height | Allows filling of 4 in -deep hotel pans on a standard work surface |
| Construction | 304 SS liner & exterior, 180-grit interior polish, high-buff outer finish |
| Enclosure Rating | IPX6 water-resistant control housing |
| Pressure Rating | ASME stamped 50 psi (max working) |
| Certifications | cULus listed • NSF listed • ASME |
| Country of Origin | United States of America |
Popular Accessories (Sold Separately)
- TS/10-2 stainless support stand (with or without drain drawer)
- Single or double pantry faucet kits
- Lift-off cover, cover holder & cover strainer
- Wire or nylon basket inserts
- Drain cart & plumbing kit
Images may depict optional accessories such as support stands or faucets. Electrical specifications and kW load vary by selected voltage; consult the factory or cutsheet for exact requirements.
