Groen TDBC-48A Steam Kettles
Description
Groen TDBC-48A 48-Quart Table-Top Tilting Kettle
Electric • 2/3 Steam Jacket • Advanced IPX6 ControlsBring the speed, consistency and yield of a full-size kettle to your counter. The Groen TDBC-48A delivers 48 quarts of high-volume production with a self-contained steam jacket, intuitive electronic controls and the rugged stainless-steel construction chefs have trusted for generations.
Why You’ll Love It
- 48 qt (45 L) capacity handles up to 110 lb of product per batch.
- 2/3-jacketed design with integral electric steam source heats evenly from ≈150 °F to 295 °F without an external boiler.
- IPX6 water-resistant Advanced control panel with bright digital display.
- 1 min–10 hr timer plus two programmable presets (Low = 2, High = 7) and full manual mode for total versatility.
- Right-side crank-tilt mechanism lets one person pour with precision.
- 304 stainless-steel liner, heavy reinforced rim and welded butterfly-lip spout for clean, controlled pouring.
- Factory-filled jacket with water & rust inhibitor for long life and minimal maintenance.
- Rear-mounted faucet bracket accepts optional single or double pantry faucets (sold separately).
- Meets or exceeds cULus, NSF & ASME code requirements; proudly made in the USA.

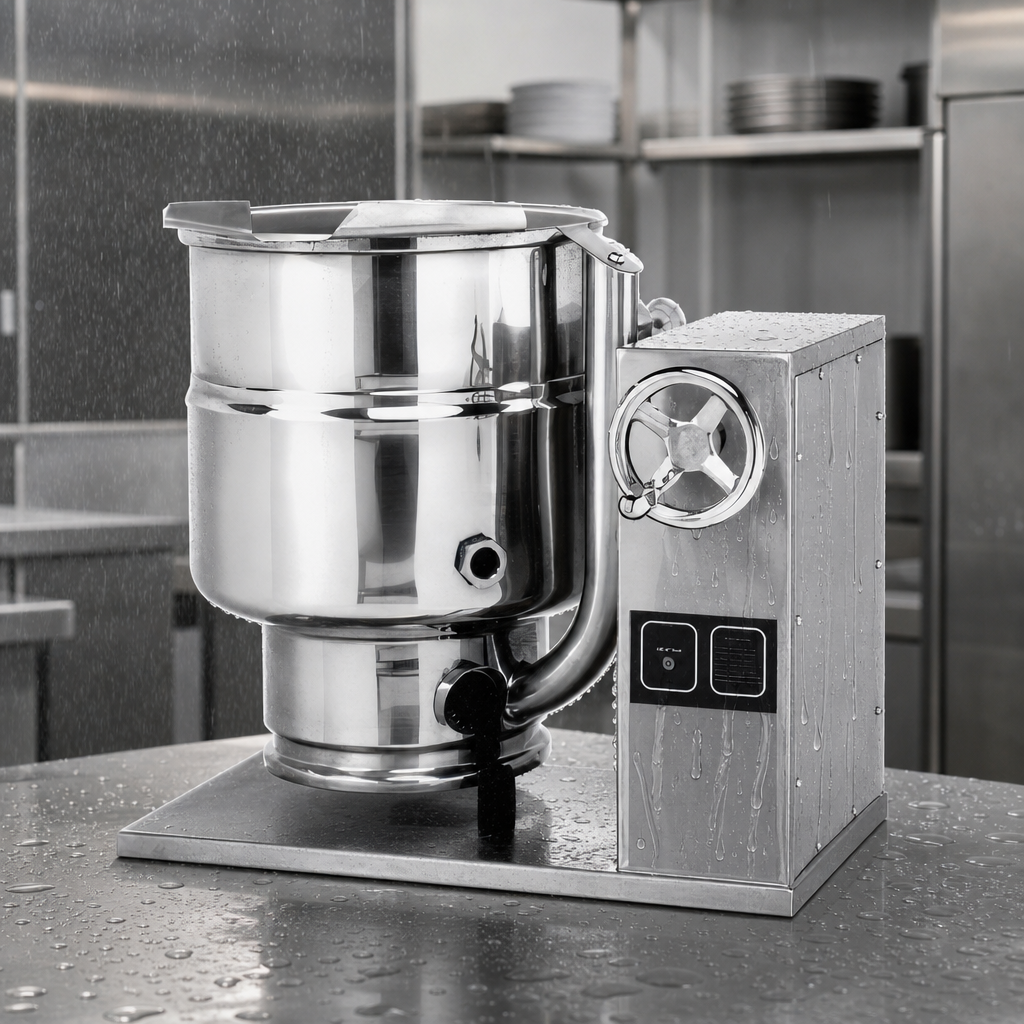

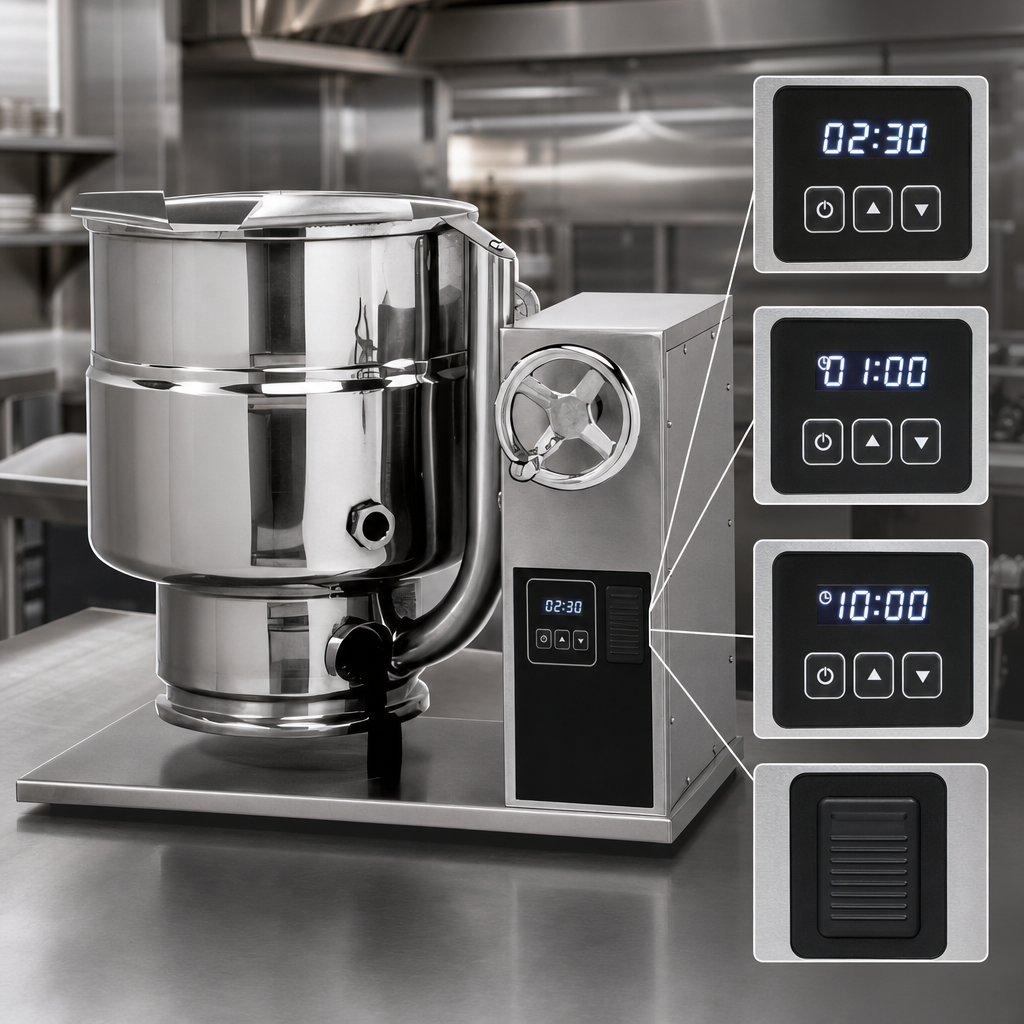

Advanced IPX6 Electronic Controls
- Push-button ON/OFF with indicator light.
- Rotary temperature/time set knob – view set-point on the LED screen.
- TIMER-SET key: 1 minute to 10 hours.
- Low-Temp (level 2) & High-Temp (level 7) quick-start keys.
- MANUAL key for knob-controlled heat from level 1–10.
- Low-Water warning light & automatic safety shut-off.
- 24-volt control circuitry for operator safety.
Technical Specifications
| Model | TDBC-48A |
|---|---|
| Capacity | 48 qt | 45 L (≈ 12 gal) |
| Jacket | Self-contained 2/3 steam jacket, 50 PSI max working pressure |
| Operating Temp. Range | 150 °F – 295 °F (66 °C – 146 °C) |
| Heat Input | 12 kW (208/240 V) or 14 kW (480 V) |
| Electrical | 208, 240 or 480 V | 1- or 3-phase connection |
| Tilt | Manual hand-crank, right-side mounted; disables heat when tilted > 12° |
| Construction | All-stainless exterior & 304 SS liner; bright high-buff finish |
| Controls | Advanced IPX6 enclosure, digital display, timer & presets |
| Certifications | cULus, NSF, ASME-code stamped, Made in USA |
Popular Accessories (Sold Separately)
- Single or double pantry faucet kits
- Lift-off cover & cover strainer
- TS/10-2 stainless support stand (with or without drain drawer)
- Wire or nylon basket inserts
- Liner retaining ring
- Drain cart & plumbing kit
Warranty
1-year parts & labor warranty (2,000 operating hours). Additional extended-coverage plans available at time of purchase.
