Groen TDBC-40C Steam Kettles
Description

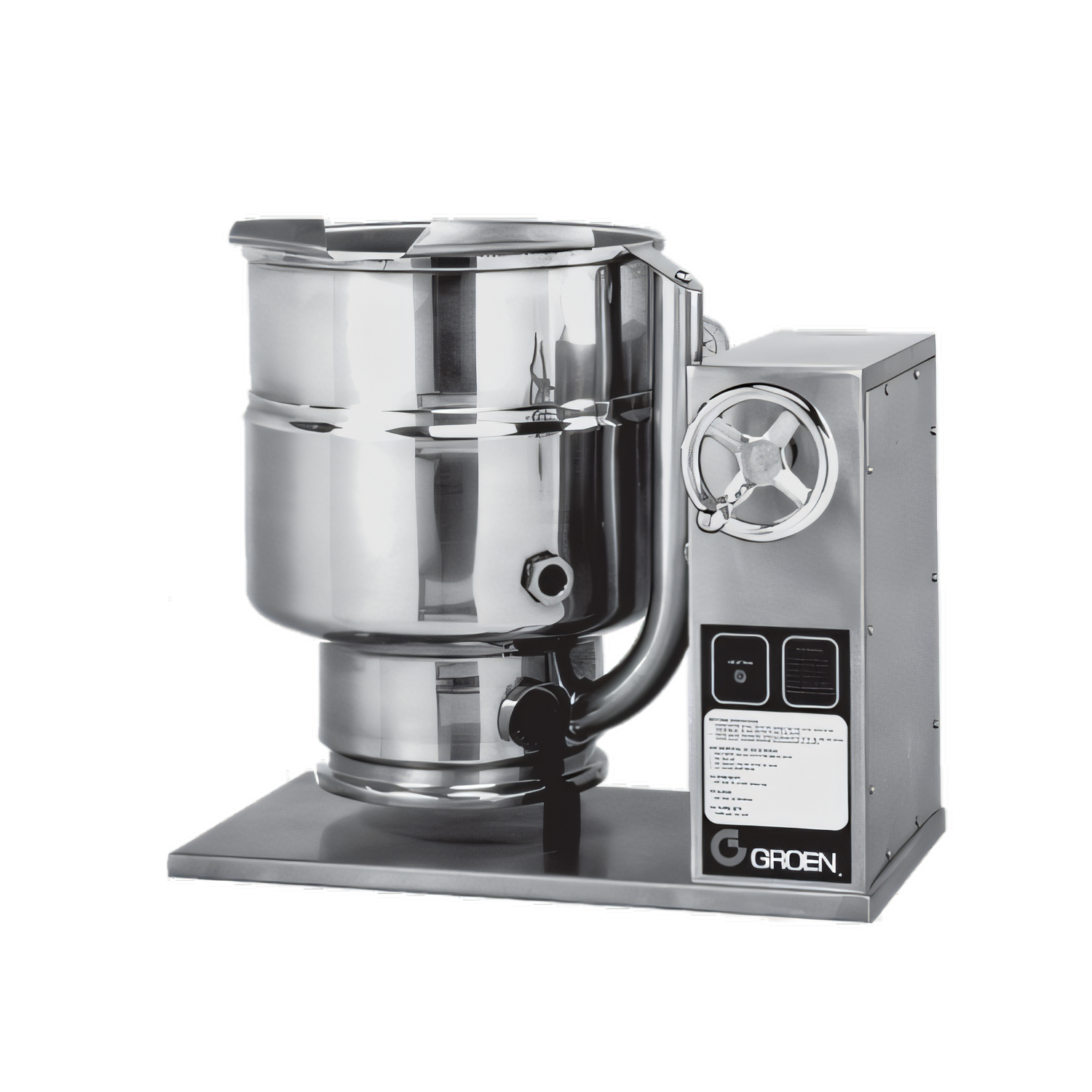

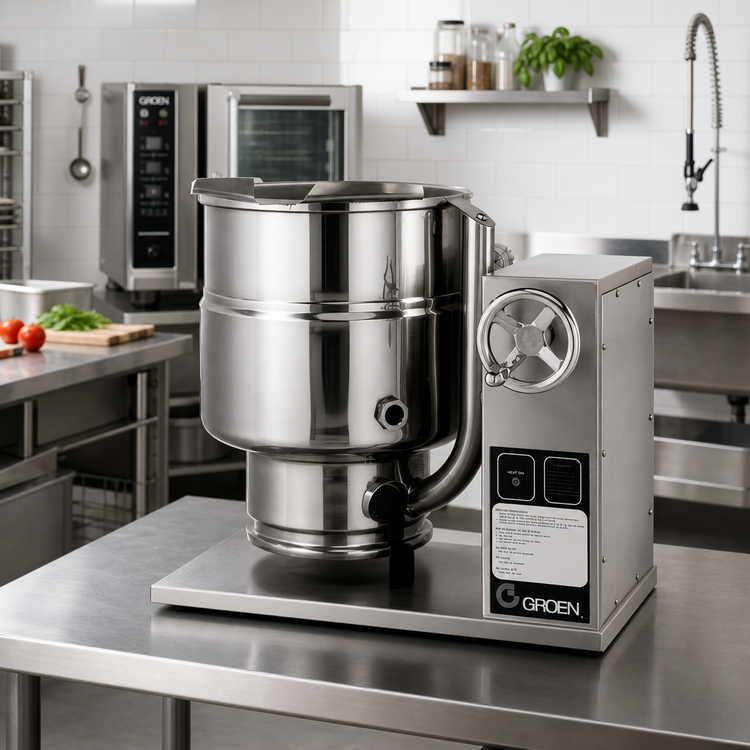

Groen TDBC-40C Electric Table-Top Tilting Kettle – 40 Quart
Self-Contained 2/3 Steam Jacket • Classic IPX6 Controls • Made in USAReplace range-top stock pots with the speed, safety and consistency of Groen’s countertop powerhouse. The 40 quart TDBC-40C cooks soups, sauces, custards and more up to 30 % faster than open-kettle methods, then pours effortlessly with a smooth crank tilt. All in a compact footprint that drops onto any 30" prep table.
Key Features & Benefits
- 40 qt / 10 gal (≈38 L) capacity — perfect for high-volume kitchens, schools & commissaries.

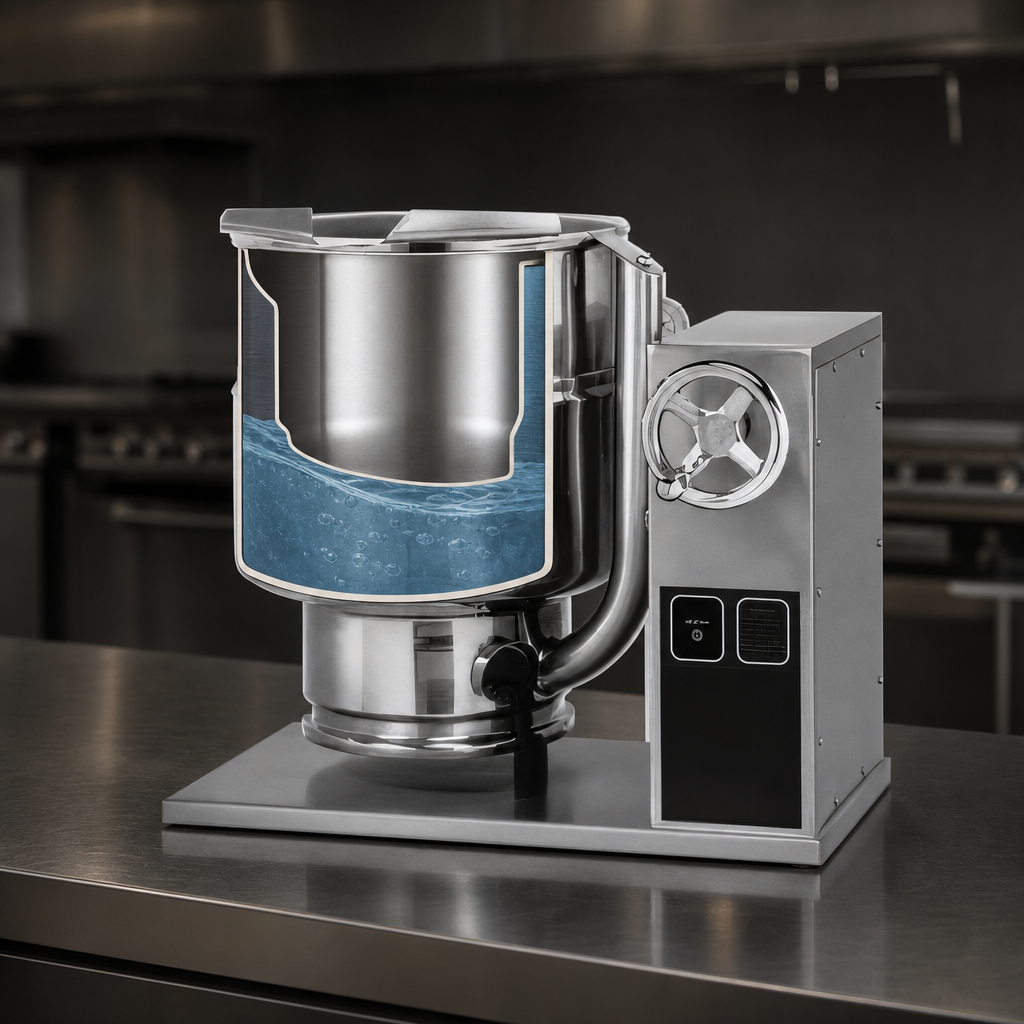

- 2/3 steam jacket delivers even heat up to 295 °F without hot spots.

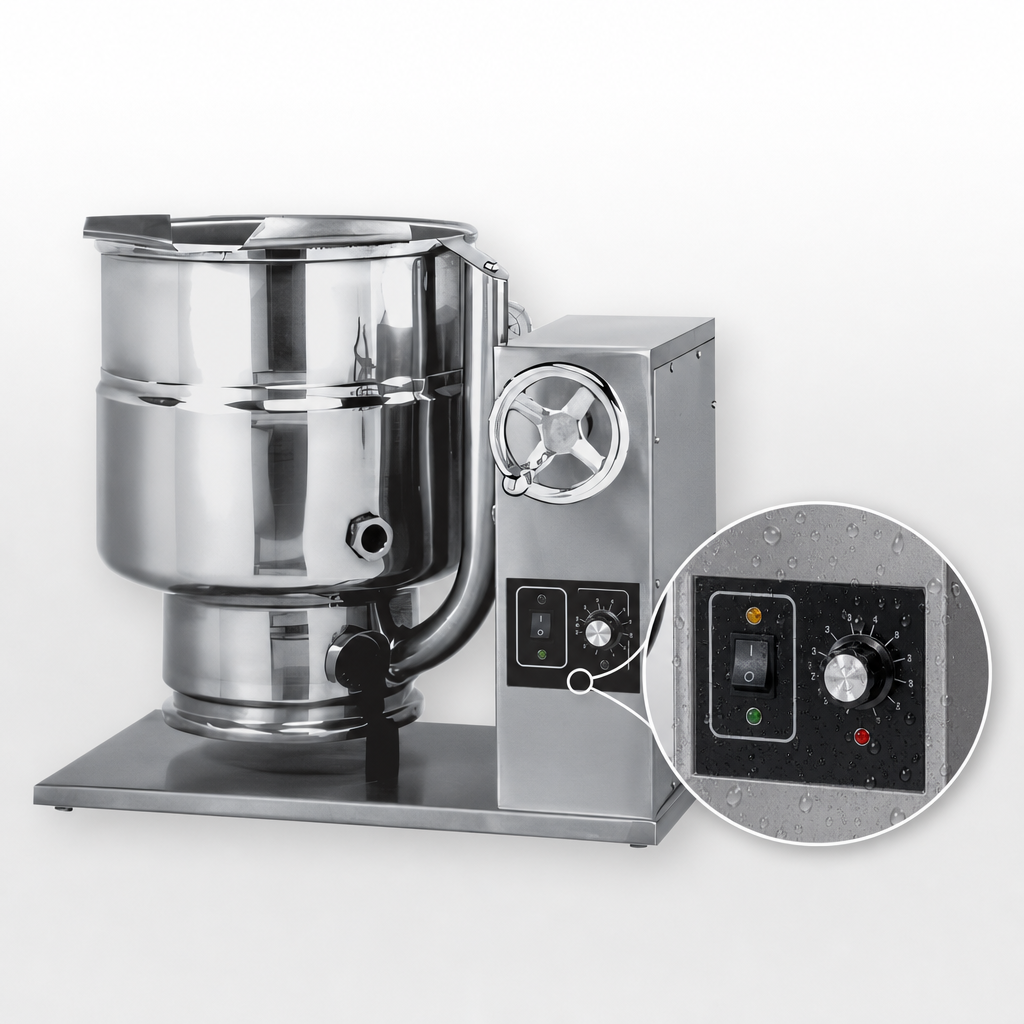

- Classic electronic controls (IPX6): On/Off, 10-step temperature dial, heating indicator and low-water warning light.
- Right-side hand-crank tilt with auto heat cut-off at 12° for one-person, drip-free pouring.
- 304 stainless steel one-piece kettle & exterior with 180-grit polished interior and high-buff finish for fast cleanup.
- Reinforced rim + butterfly pouring lip for precise portioning.
- Integrated rear faucet bracket accepts single or double pantry faucets (sold separately).
- Self-contained electric steam source — no external boiler or water connection required.
- Factory pre-charged with treated water & rust inhibitor to maximize jacket life.
- Full safety suite: pressure relief valve, high-limit switch, low-water cut-off, 24 V control circuit.
- cULus, NSF & ASME certified; proudly built in the USA.
Technical Specifications
| Model | TDBC-40C |
|---|---|
| Capacity | 40 qt / 10 gal / ≈38 L |
| Jacket Coverage | 2/3 jacket, 50 PSI maximum working pressure |
| Temperature Range | 150 °F – 295 °F (65 °C – 145 °C) |
| Heat Input | 12 kW @ 208/240 V • 14 kW @ 480 V (field convertible 1- or 3-phase) |
| Controls | Classic electronic, IPX6 water-resistant enclosure |
| Tilt Mechanism | Manual hand-crank (right side) with 12° safety shut-off |
| Construction | 304 SS liner & shell; polished interior / high-buff exterior |
| Certifications | cULus Listed, NSF Certified, ASME-stamped, Made in USA |
| Warranty | 1-year parts & labor (extended coverage available) |
What’s Included
- Integrated faucet mounting bracket
- Pre-charged steam jacket with rust inhibitor
- Operator’s manual & warranty registration
Popular Accessories (sold separately)
- TS/10-2 stainless steel support stand
- Single or double pantry faucet kits
- Lift-off cover & cover strainer
- Wire or nylon basket inserts
- Drain cart & plumbing kit
Need another size or control package? 20, 24 & 48 qt models and Advanced / Cook2Temp controls are also available. Refer to the spec sheet for full dimensional drawings and utility requirements.
