Groen TDBC-40A Steam Kettles
Description

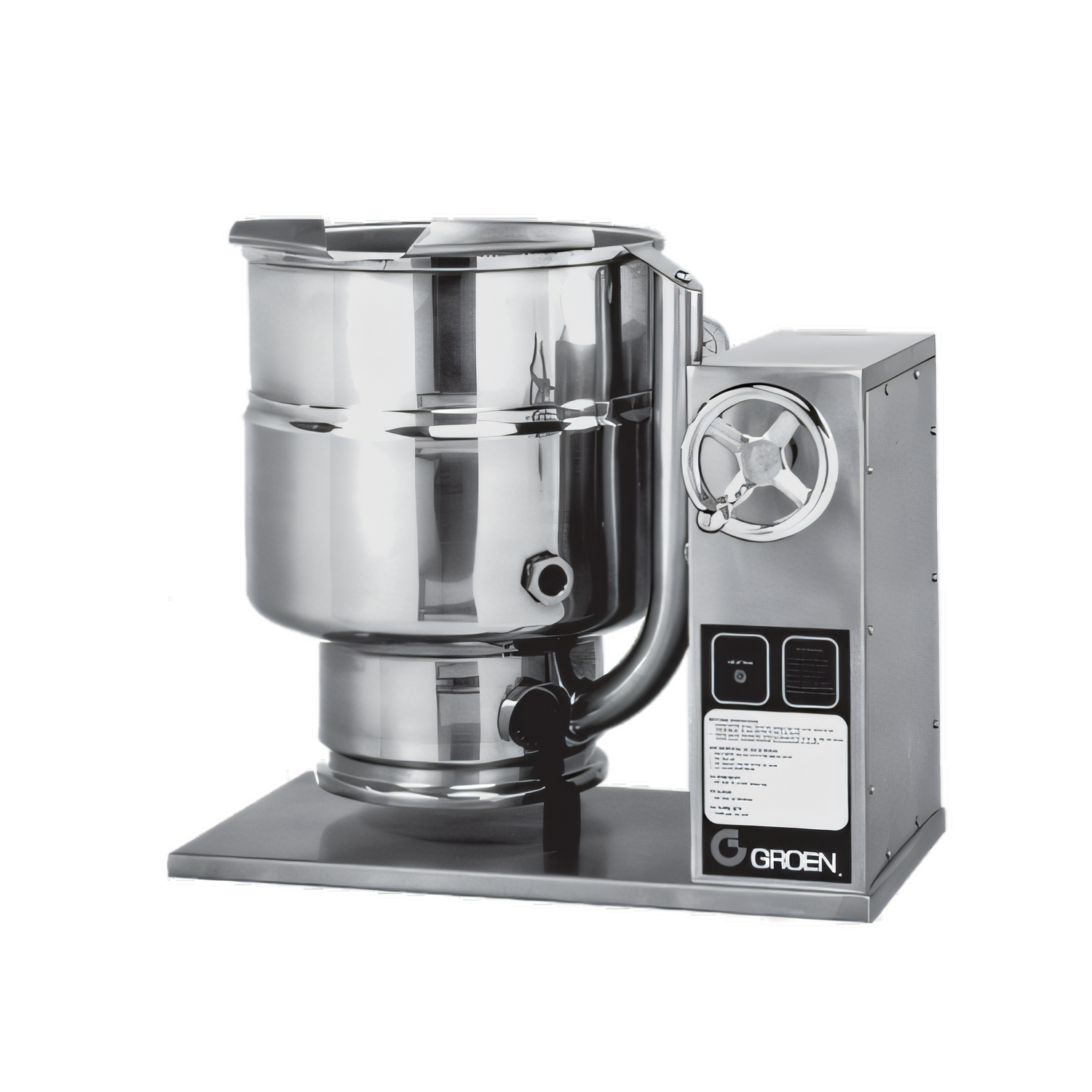

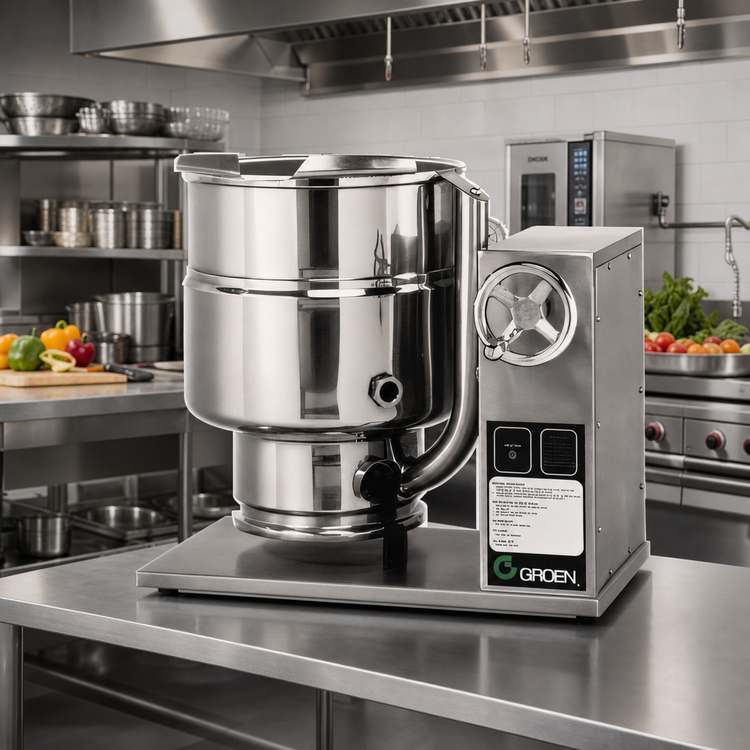

Groen TDBC-40A 40-Qt Electric Table-Top Tilting Kettle
Advanced Electronic Controls • Self-Contained Steam Jacket • Made in USATurn any work table into a high-volume production station. The Groen TDBC-40A packs 40 quarts of 2/3-jacketed, electrically-heated power, precise digital controls, and rock-solid stainless-steel construction into a compact table-top footprint. Perfect for soups, sauces, stews, braises, oatmeal and more— with tilt-to-pour convenience that lets one operator handle the heaviest batches safely and accurately.
Key Features

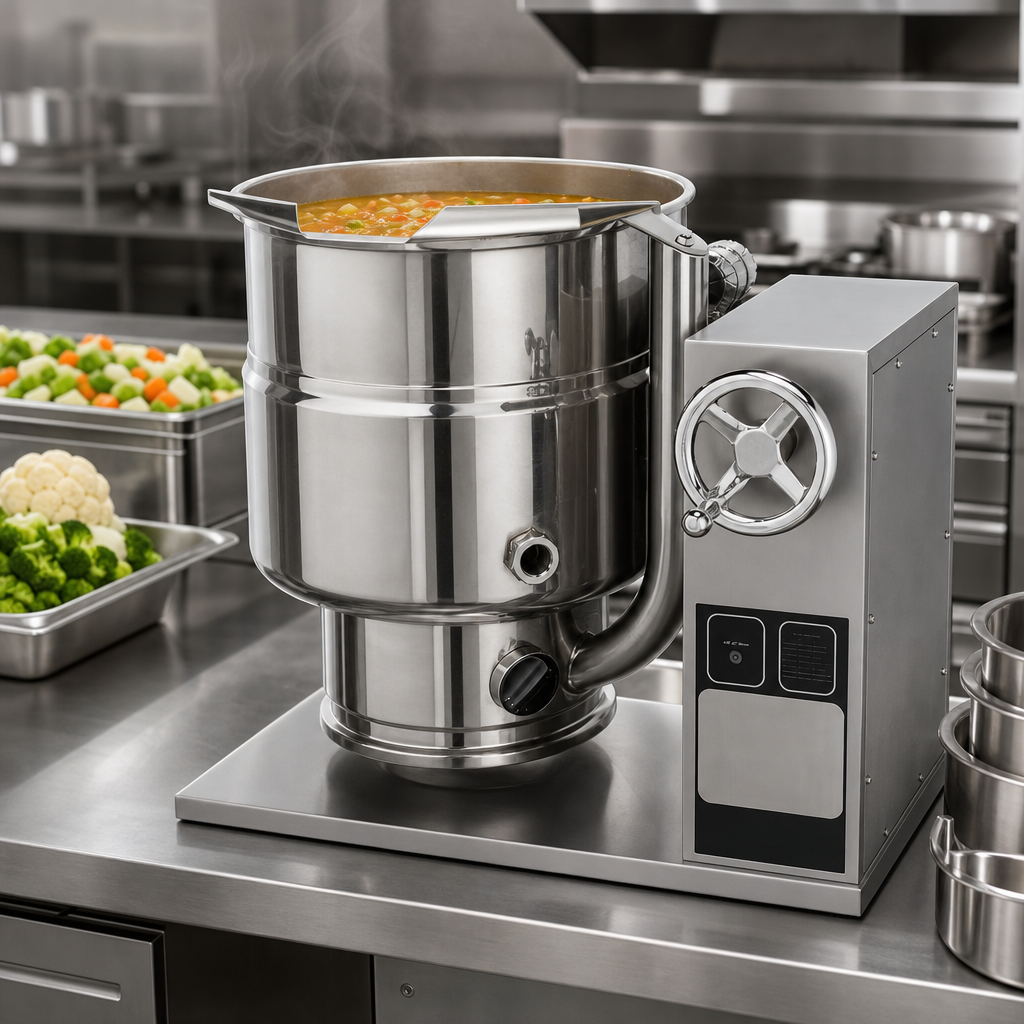

- 40 qt (38 L) capacity — yields up to 160 × 8 oz portions per batch.
- Self-contained electric steam jacket delivers 150 – 295 °F (65 – 146 °C) cooking temperatures with no external boiler.
- 304 stainless-steel kettle liner with polished 180-grit interior for easy clean-up.
- 2/3 jacket coverage surrounds product for even, gentle heat—no hot spots.
- Right-hand crank tilt provides controlled pouring through a butterfly-shaped lip.
- IPX6 water-resistant control console built for real-world kitchen wash-downs.
- Factory-sealed jacket pre-charged with treated water & rust inhibitors for long service life.
- Rear-mounted faucet bracket standard for quick water connection.
- Compact design pairs perfectly with optional TS/10-2 stainless support stand (sold separately).

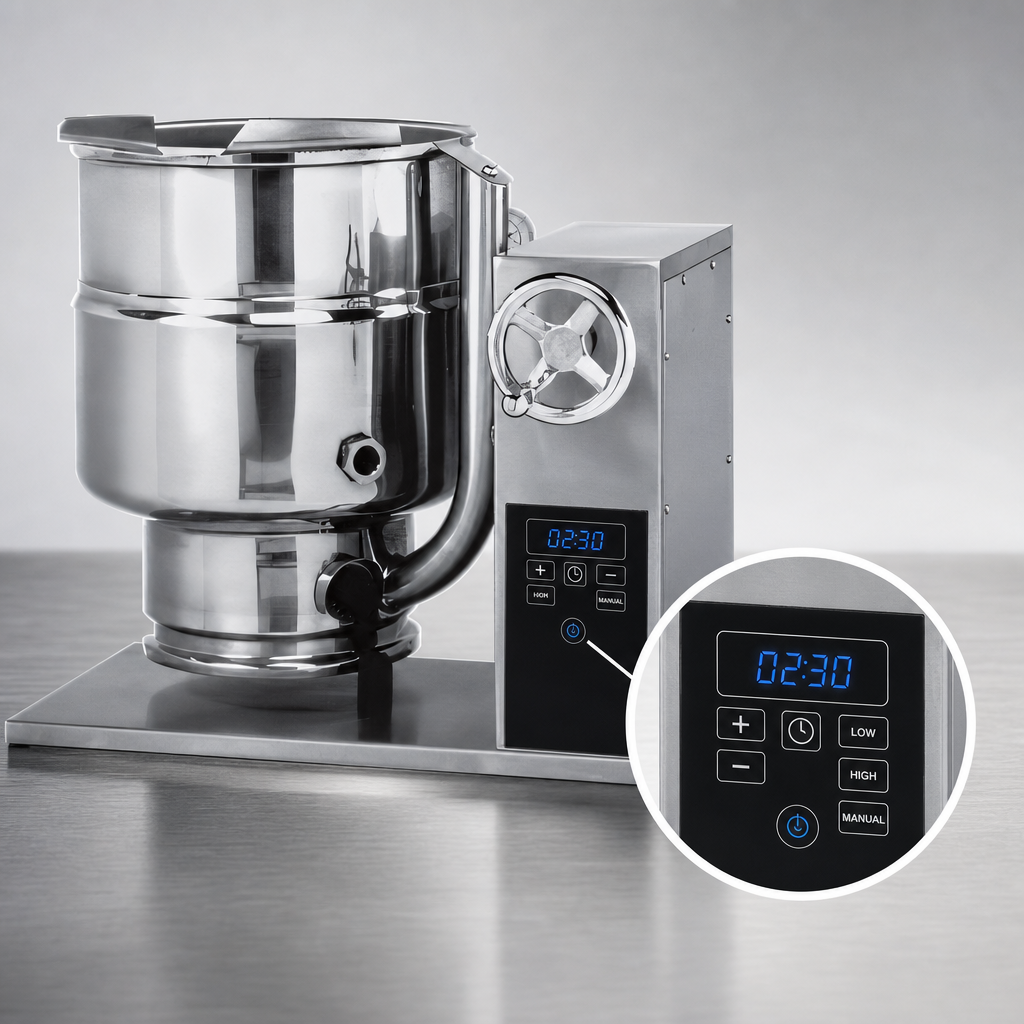

Intelligent Advanced Controls
- Electronic knob with ten heat levels and dedicated LOW (2) & HIGH (7) presets.
- Digital LED display shows set heat level or remaining cook time at a glance.
- Integrated timer adjustable from 1 minute to 10 hours; automatically alerts and de-energizes when complete.
- MANUAL mode for infinite simmer, sauté or holding tasks.
- 24 V control circuitry for operator safety.
Built-in Safety & Performance
- Tilt cut-off disengages heat when kettle is tilted more than 12°.
- Pressure relief valve & high-limit pressure switch protect jacket up to its 50 PSI rating (ASME stamped).
- Low-water cut-off prevents element failure.
- Thermostatic control automatically cycles heat to maintain set temperature.
Technical Specifications
| Model | TDBC-40A (Advanced Controls) |
|---|---|
| Capacity | 40 qt / 38 L |
| Heat Source | Electric, self-contained steam jacket |
| Jacket Coverage | 2/3 (side & bottom) |
| Power Input | 12 kW @ 208/240 V or 14 kW @ 480 V (field-convertible 3-phase ➜ 1-phase on 208/240 V) |
| Temperature Range | Approx. 150 °F – 295 °F (65 °C – 146 °C) |
| Timer | 1 minute – 10 hours (digital) |
| Tilt Mechanism | Manual hand-crank (right side) |
| Construction | 304 stainless-steel liner & shell; high-buff exterior finish |
| Water Resistance | IPX6 (control enclosure) |
| Controls Voltage | 24 V |
| Operating Pressure | Max 50 PSI (ASME) |
| Overall Dimensions | See specification drawing for detailed footprint |
| Origin | Manufactured in the USA |
Certifications & Warranty
- cULus listed for electrical safety.
- NSF listed for sanitation.
- ASME stamped & National Board registered pressure vessel.
- Standard 1-year parts & labor warranty; extended coverage available.
Ask your Unified Brands representative about start-up and extended-warranty programs.
Ideal For
- High-volume restaurants & commissaries
- Catering and banquet production
- School, hospital & correctional foodservice
- Ghost & central kitchens seeking boiler-free operation
Upgrade to the Groen TDBC-40A and experience dependable, repeatable results batch after batch—all from a table-top footprint that fits the busiest lines.
