Groen TDBC-20A Steam Kettles
Description

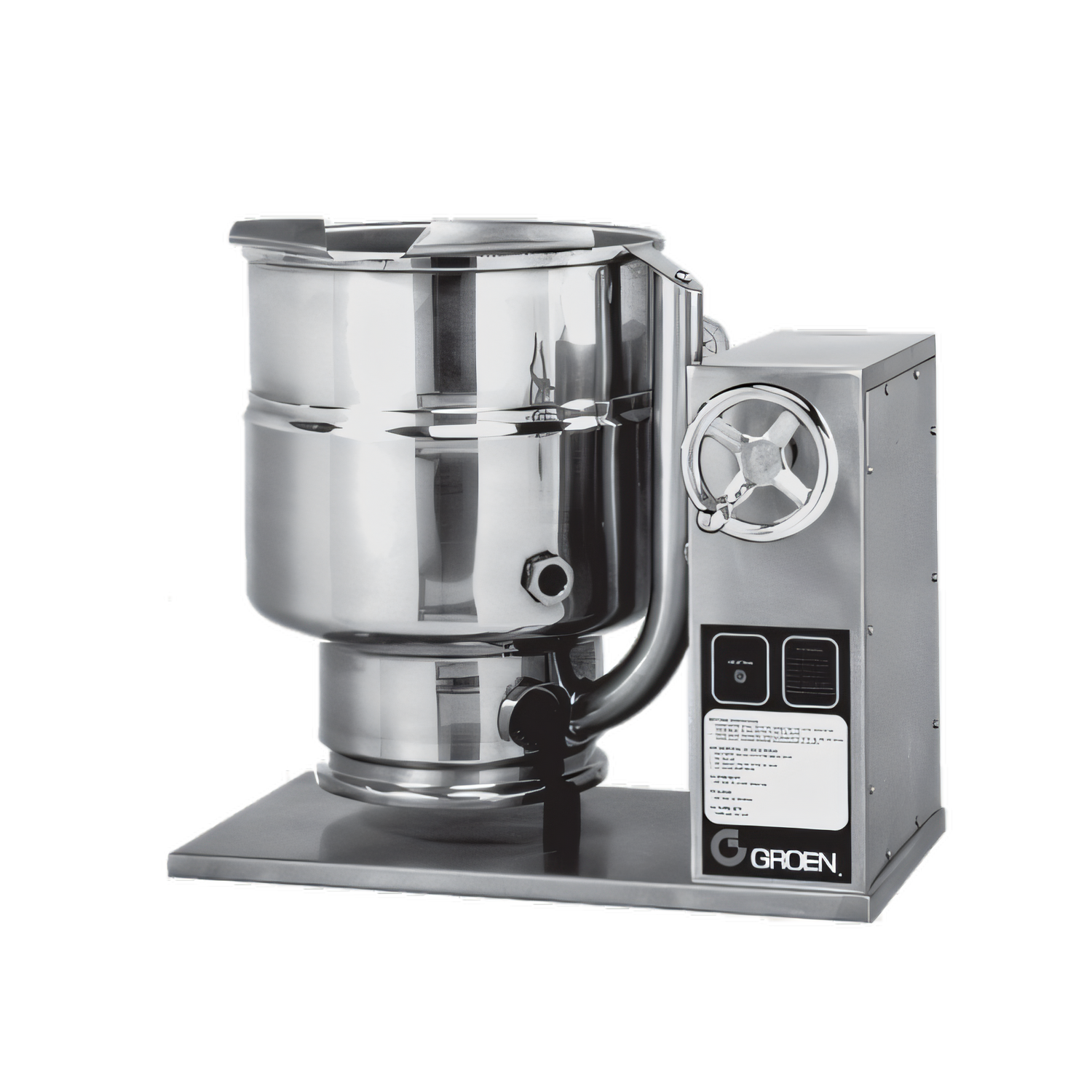

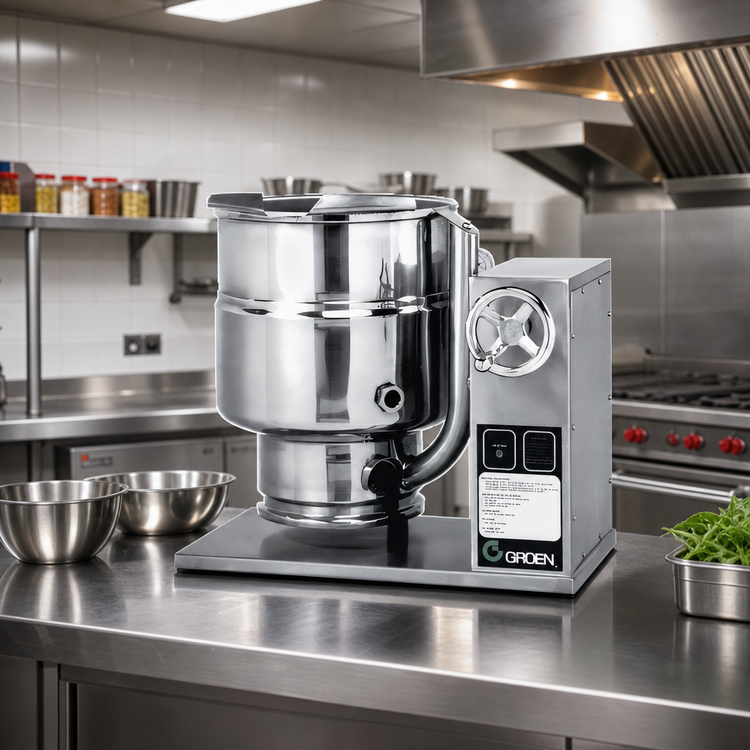

Groen TDBC-20A 20-Qt Electric Table-Top Tilting Kettle
IPX6 Advanced Controls • Self-Contained Steam Jacket • Made in USABuilt for high-volume kitchens that refuse to compromise, the Groen TDBC-20A combines a compact 20-quart footprint with the speed and consistency of a self-contained 2/3 steam jacket. Digital Advanced controls, a rugged stainless build and crank-tilt precision give your team the power to turn out flawless batches, shift after shift.
Key features
- 20 qt (≈ 19 L) capacity—perfect for soups, sauces, gravies and custards
- 2/3 steam jacket reaches 150 °F – ≈ 295 °F without an external boiler

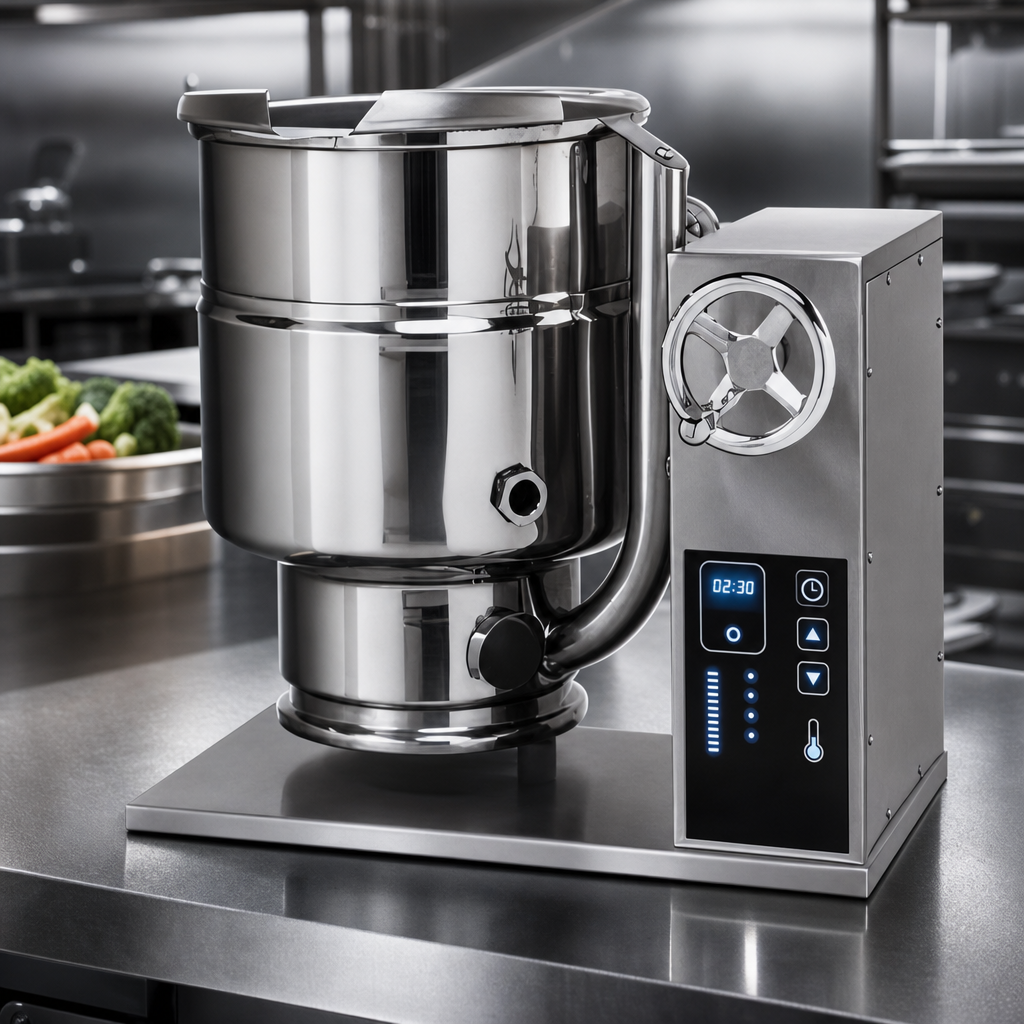

- Advanced electronic control package (IPX6):
- LED display of set heat level or cook time
- 1-minute to 10-hour countdown timer with buzzer
- Low (level 2) & High (level 7) presets plus full manual knob (levels 1-10)
- 304 stainless steel liner & exterior; 180-grit interior polish for fast cleanup
- Right-side hand-crank tilt with worm-gear control and butterfly pouring lip
- Factory-charged electric steam generator—simple single-point electrical hook-up
- Rear-mounted faucet bracket ready for single or double pantry faucets
- Comprehensive safety system: tilt cut-off, pressure relief valve, high-limit switch, low-water cut-off & 24 V control circuit
- ASME 50 PSI stamped, cULus listed & NSF certified
Why chefs choose Groen
- Labor-saving automation—set it, walk away, get a reliable signal when product is ready
- Even, gentle heat—steam jacket virtually eliminates scorching and product loss
- Compact table-top form—frees floor space or pairs with optional TS/10-2 stand
- One-person operation—gear-driven tilt lets staff pour heavy batches safely and accurately
- Lower utility bills—efficient electric elements maximize energy transfer
Technical specifications
| Model | TDBC-20A |
|---|---|
| Capacity | 20 quarts / 19 litres |
| Steam jacket | 2/3 jacket, 50 PSI ASME stamped |
| Temperature range | 150 °F to ≈ 295 °F |
| Kettle construction | One-piece 304 SS, welded |
| Tilt mechanism | Manual crank, right-side mounted |
| Controls | Power ON/OFF, heat level knob, digital display, timer, low/high presets |

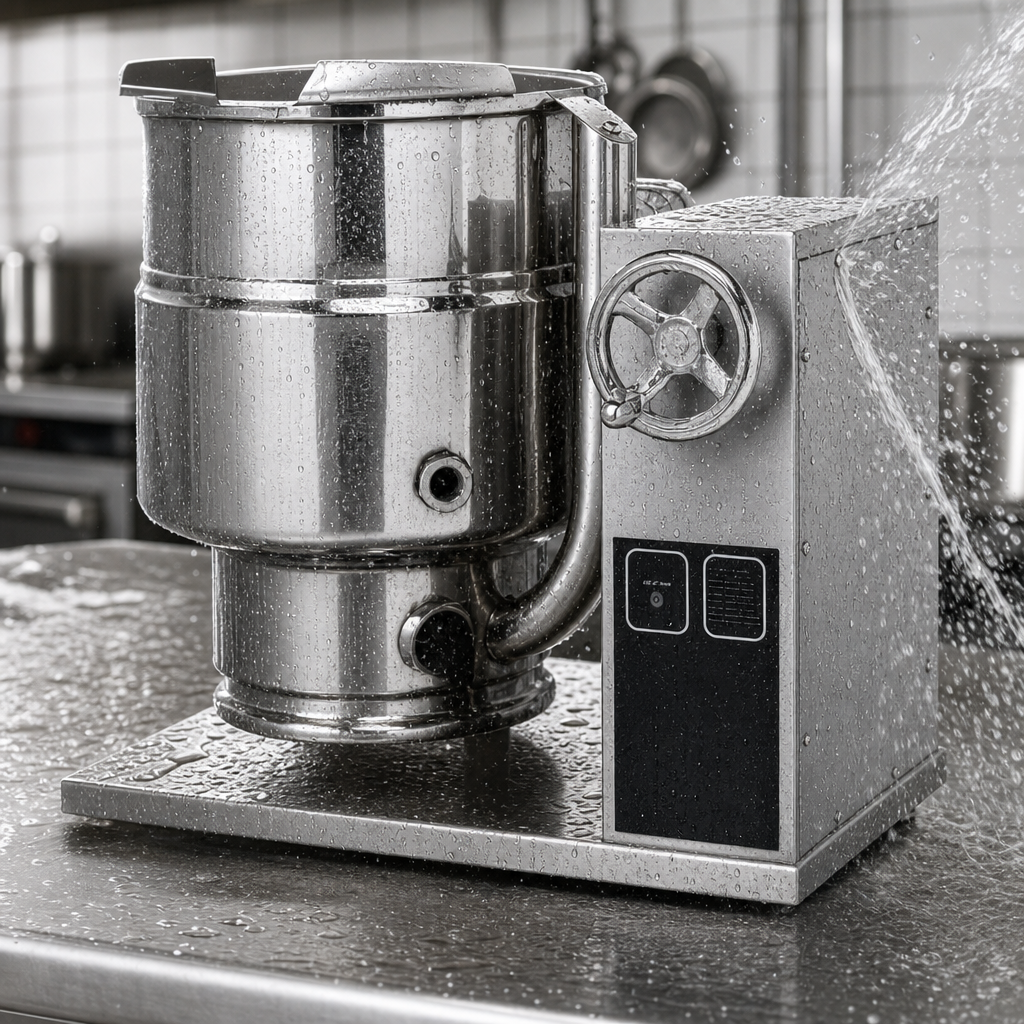

| Water ingress rating | IPX6 (control enclosure) |
| Electrical | 208/240 V or 480 V, 1 or 3 ph – single connection |
| Certifications | cULus, NSF, ASME |
| Warranty | 1-year parts & labor |
| Country of origin | USA |
Popular accessories (sold separately)
- TS/10-2 stainless steel table stand (with or without drain drawer)
- Single or double pantry faucet assemblies
- Lift-off or hinged cover with holder
- Wire or nylon basket inserts & liners
- Cover strainers, drain carts and plumbing kits
Looking for larger capacities or probe-controlled cooking? Ask us about 24-, 40- and 48-qt TDBC models and Cook2Temp™ options.
