Groen TDB/6-10 Steam Kettles
Description

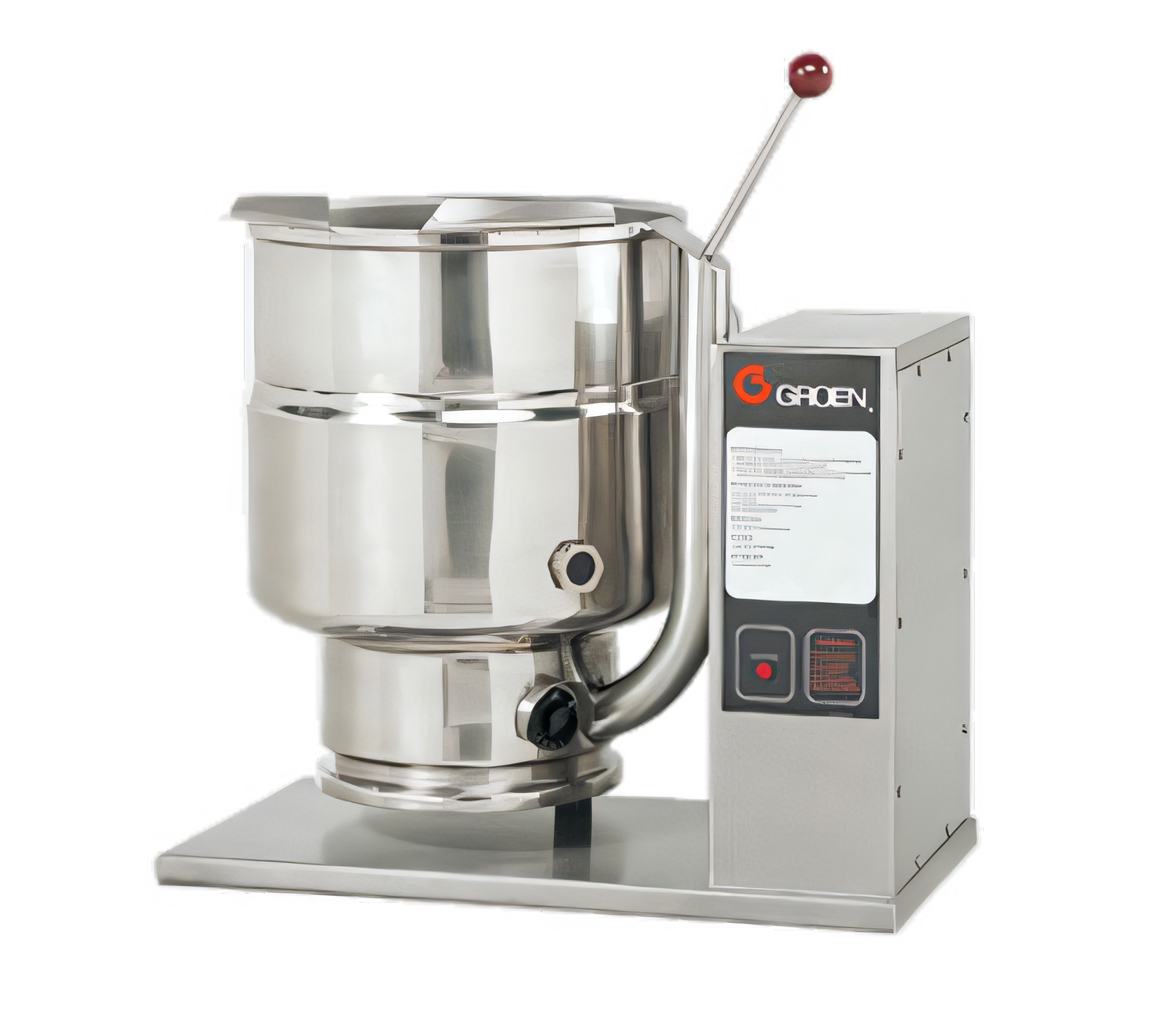

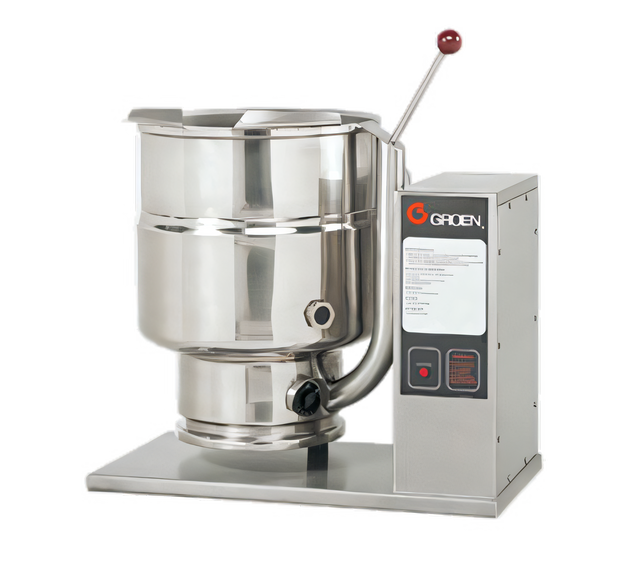

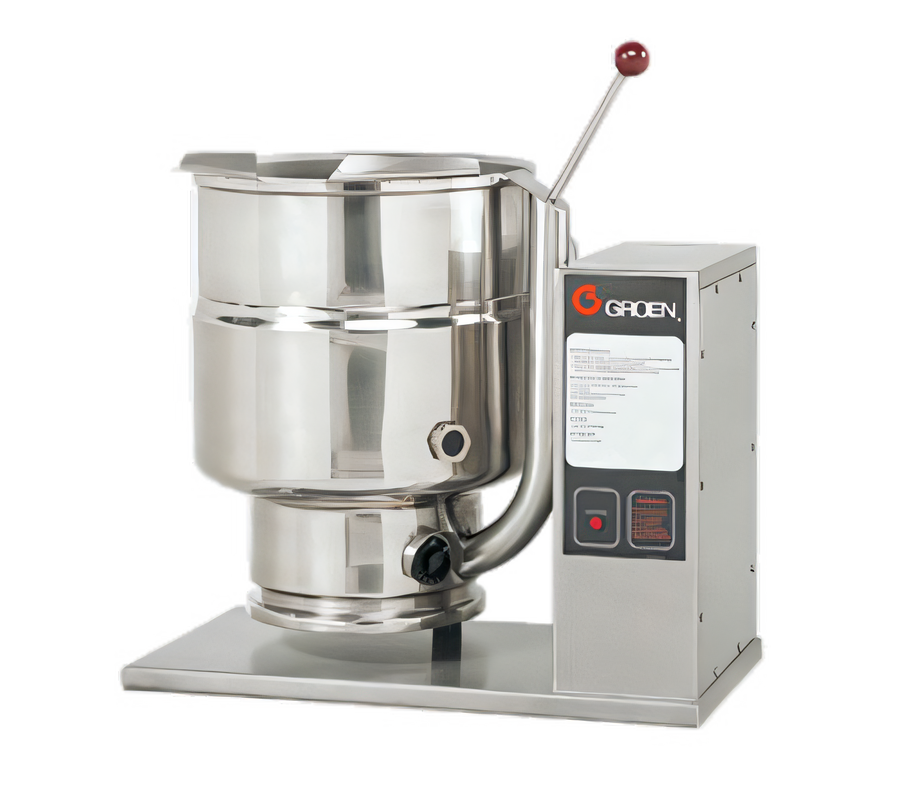

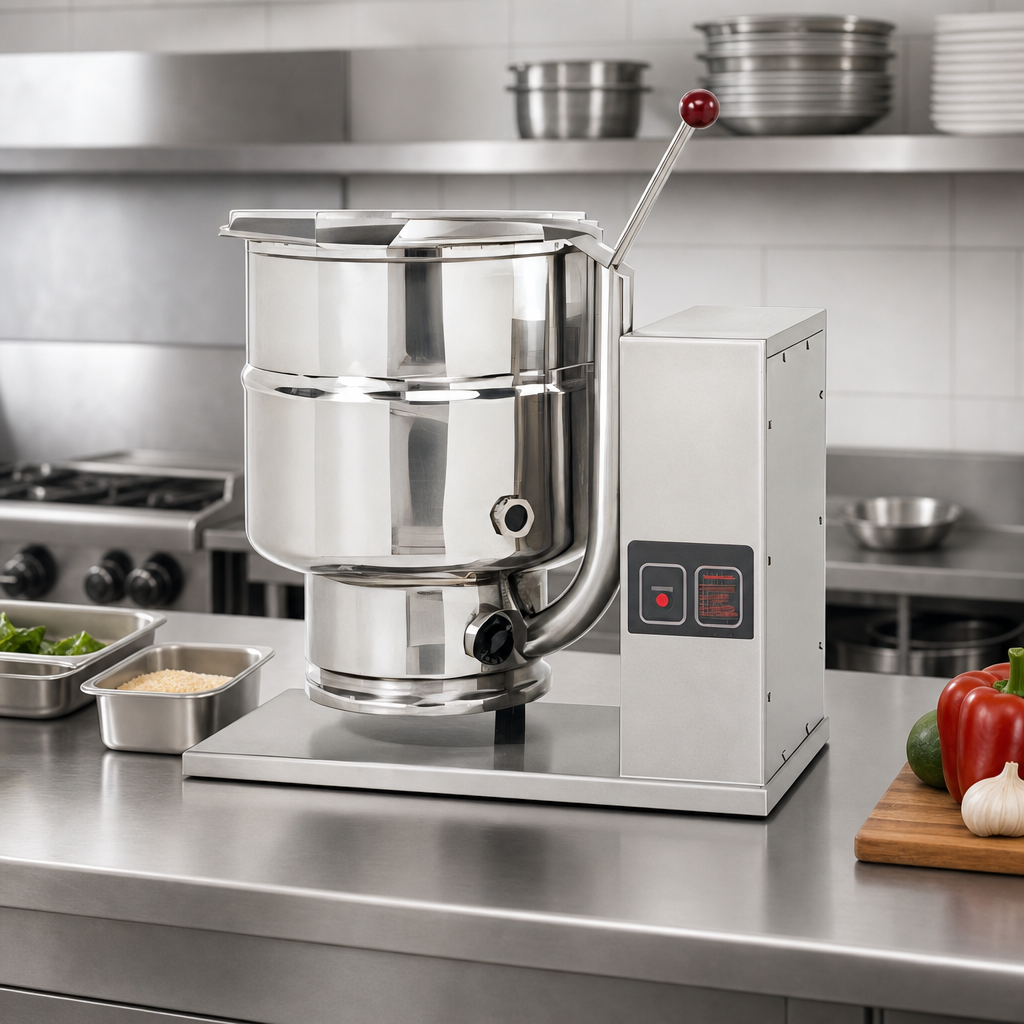

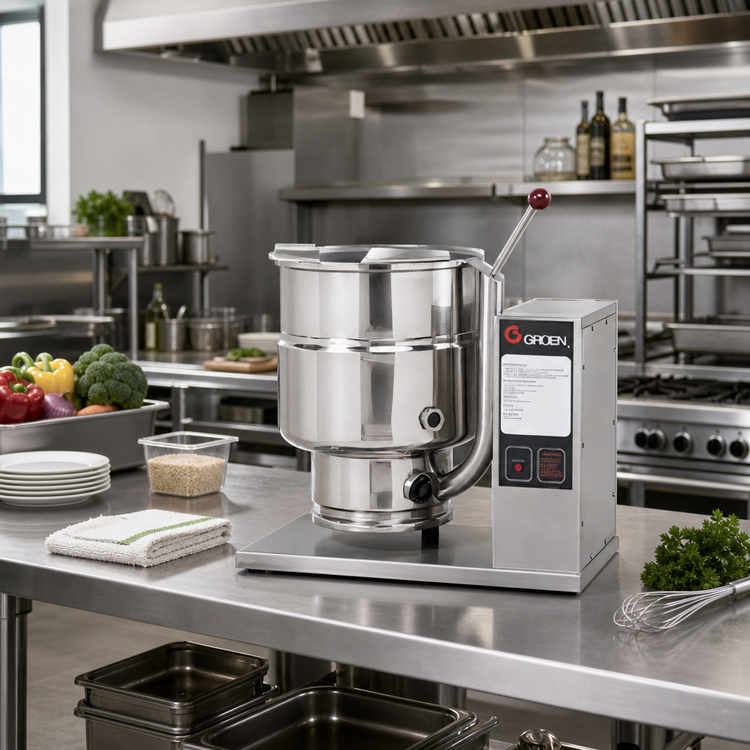

Groen TDB/6-10 10-Qt Electric Table-Top Tilting Kettle
Self-contained 2/3-jacketed kettle • Hand-tilt • 304 stainless steel • 50 PSIEngineered for chefs who need high-performance steam cooking in a compact footprint, the Groen TDB/6-10 delivers rapid, even heating, precise temperature control, and effortless pouring—all in a rugged, 100 % stainless steel package that drops right onto an existing countertop or optional stand.
Why You’ll Love It

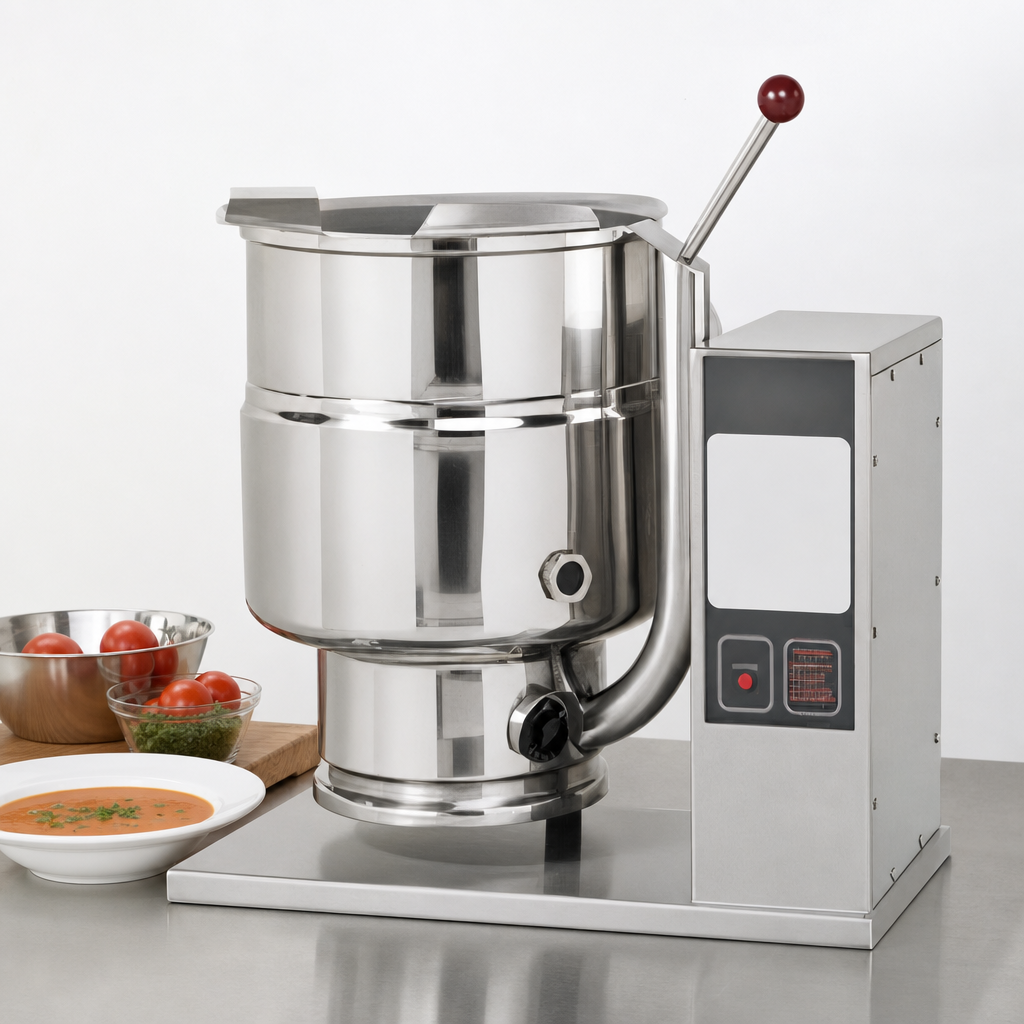

- 10 quart (9.5 L) capacity—ideal for soups, sauces, custards & small-batch production.
- Self-contained 4 kW electric steam generator reaches 150 °F – 295 °F without an external boiler.
- 2/3 steam jacket provides full-wall heat for faster, more uniform results.
- One-piece 304 stainless steel liner and exterior, polished to a hygienic 180-grit interior & high-buff exterior.
- Hand-tilt mechanism with right-side console and reinforced butterfly pouring lip for smooth, controlled pours.
- Factory-installed faucet bracket accepts single or double pantry faucets (sold separately).
- Comprehensive safety suite—pressure relief valve, safety tilt cut-off, high-limit & low-water cut-offs, 24 V control circuit.
- ASME shop-inspected & National Board registered for 50 PSI; NSF & UL listed for the U.S. and Canada.
- Made in the USA and backed by Groen’s industry-leading service network.
Technical Specifications
| Capacity | 10 qt / 9.5 L |
|---|---|
| Jacket | 2/3 jacket, self-contained (factory-charged with treated water) |
| Construction | 304 stainless steel liner & exterior, welded one-piece body |
| Heating Element | 4 kW electric, thermostatically controlled |
| Temperature Range | 150 °F – 295 °F (66 – 146 °C) |
| Working Pressure | 50 PSI (345 kPa) max |
| Electrical | 208 V / 15 A / 1 ph / 60 Hz | 240 V / 17 A / 1 ph / 60 Hz |
| Overall Width | 19 in (483 mm) |
| Overall Depth | 23 3⁄4 in (603 mm) – handle to gauge |
| Overall Height | 18 5⁄8 in (422 mm) to kettle rim |
| Clearance Below Pour Lip | 6 in (152 mm) – fills standard 6″ hotel pans on countertop |
| Mounting | Countertop/table—requires 4 × 3⁄8″ mounting bolts (holes provided in base) |
Installation Requirements
- Single point electrical connection; no plumbing or drain line needed for operation.
- Countertop must support ≈ 90 lb (unit plus product); optional TS/10-1 stainless stand available.
- Provide 2″ rear & side clearance for ventilation and service access.
Popular Options & Accessories
- Single or double pantry faucet assemblies
- Etch marks (US gallons or liters)
- Basket insert & nylon liner
- Lift-off cover, cover strainer & cover holder
- TS/10-1 stainless open-leg stand (10 qt)
- Drain cart & cart plumbing kit
- 316 stainless steel liner upgrade
- Correctional package
Warranty
Groen provides a 1-year parts & labor warranty (2,000 operating hours or 12 months from installation, whichever comes first) with access to a nationwide network of factory-authorized service agents. Extended coverage available at time of purchase.
