Groen TDB-48C Steam Kettles
Description

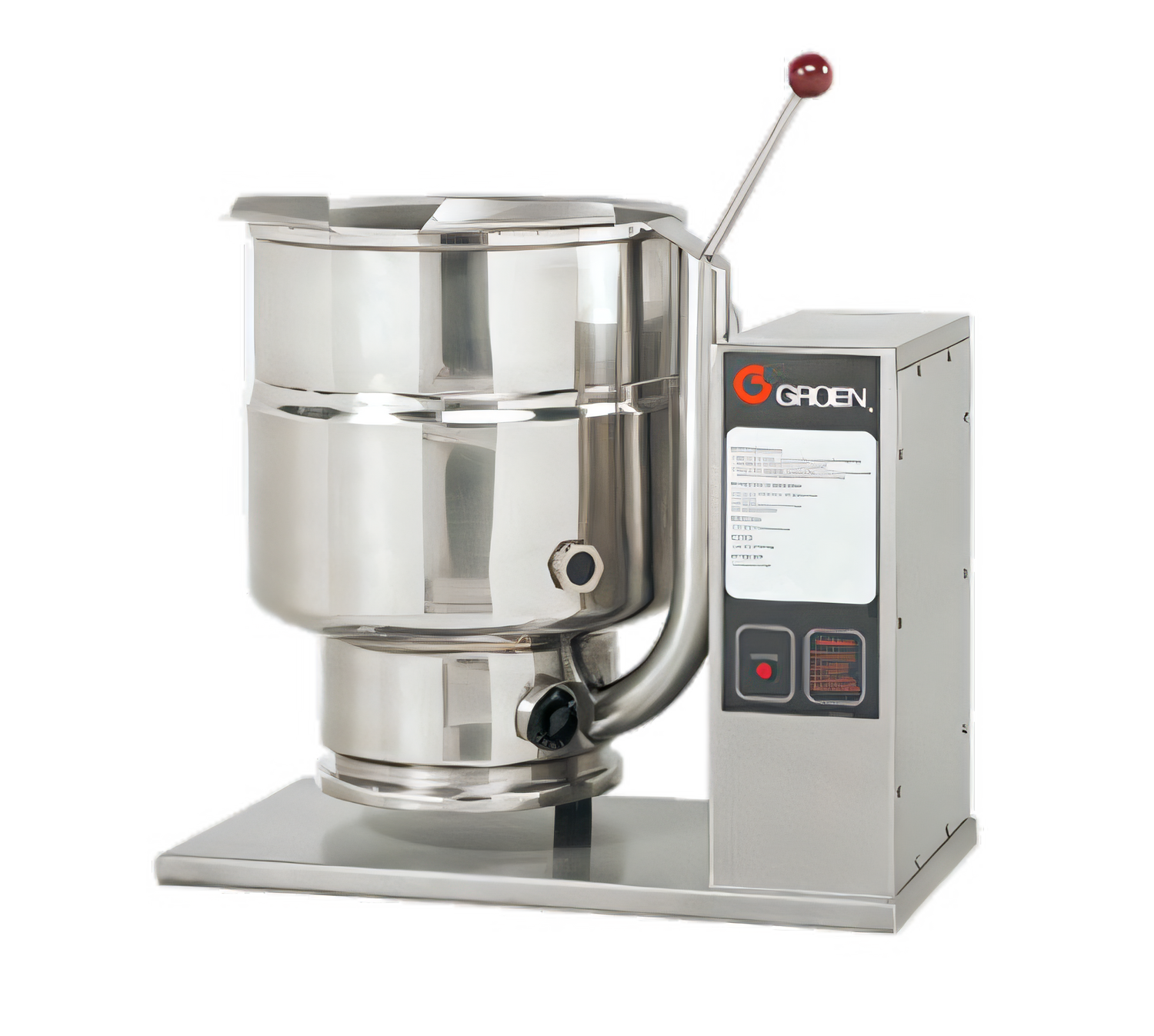

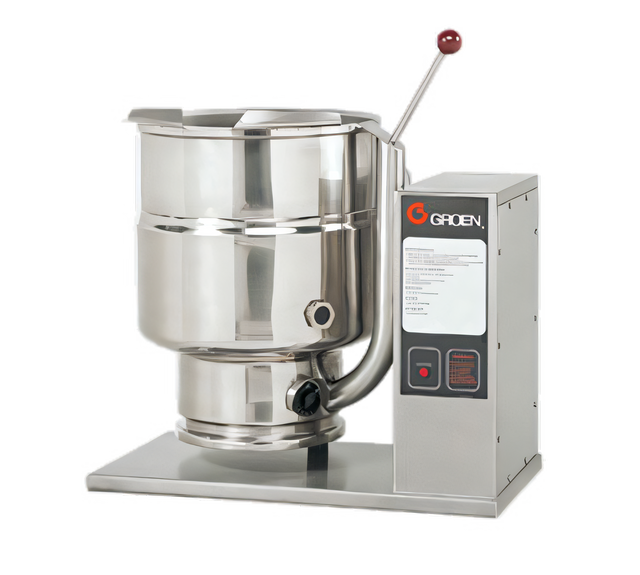

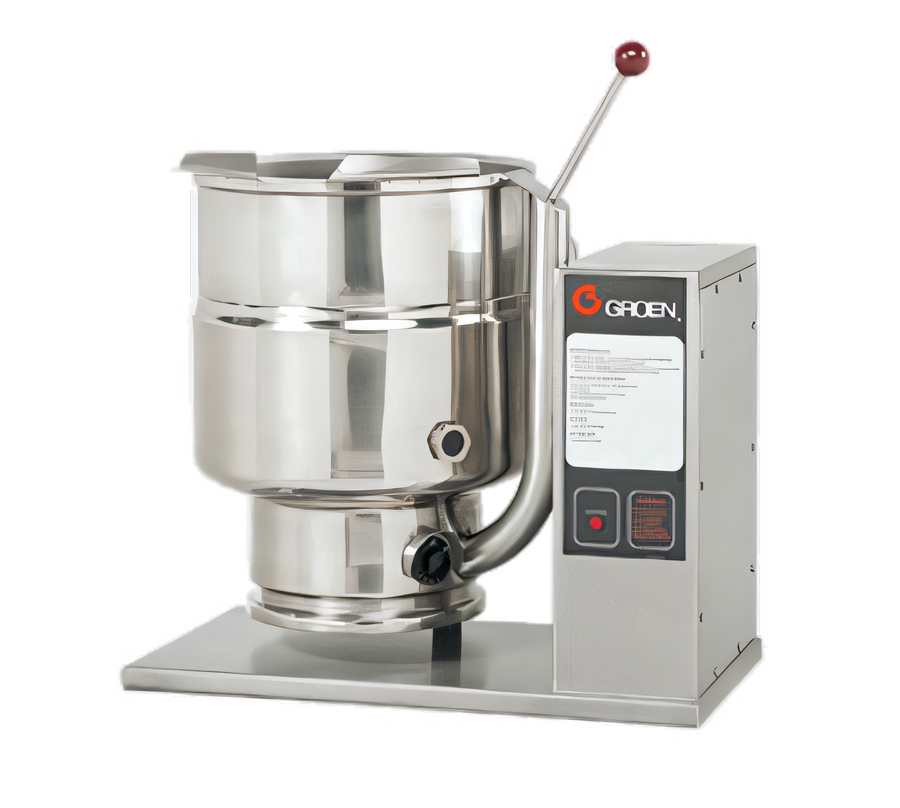

Groen TDB-48C 48-Quart Electric Table-Top Tilting Kettle
2/3 Steam Jacket • IPX6 Classic Controls • Hand Tilt • 304 SS ConstructionProduce large batches of soups, sauces and other high-volume menu favorites faster and more consistently. The Groen TDB-48C combines a self-contained electric steam generator with a durable 2/3 jacketed kettle, giving you boiler-free operation, precise temperature control and effortless tilting—all in a compact table-top footprint.
Why you’ll love it

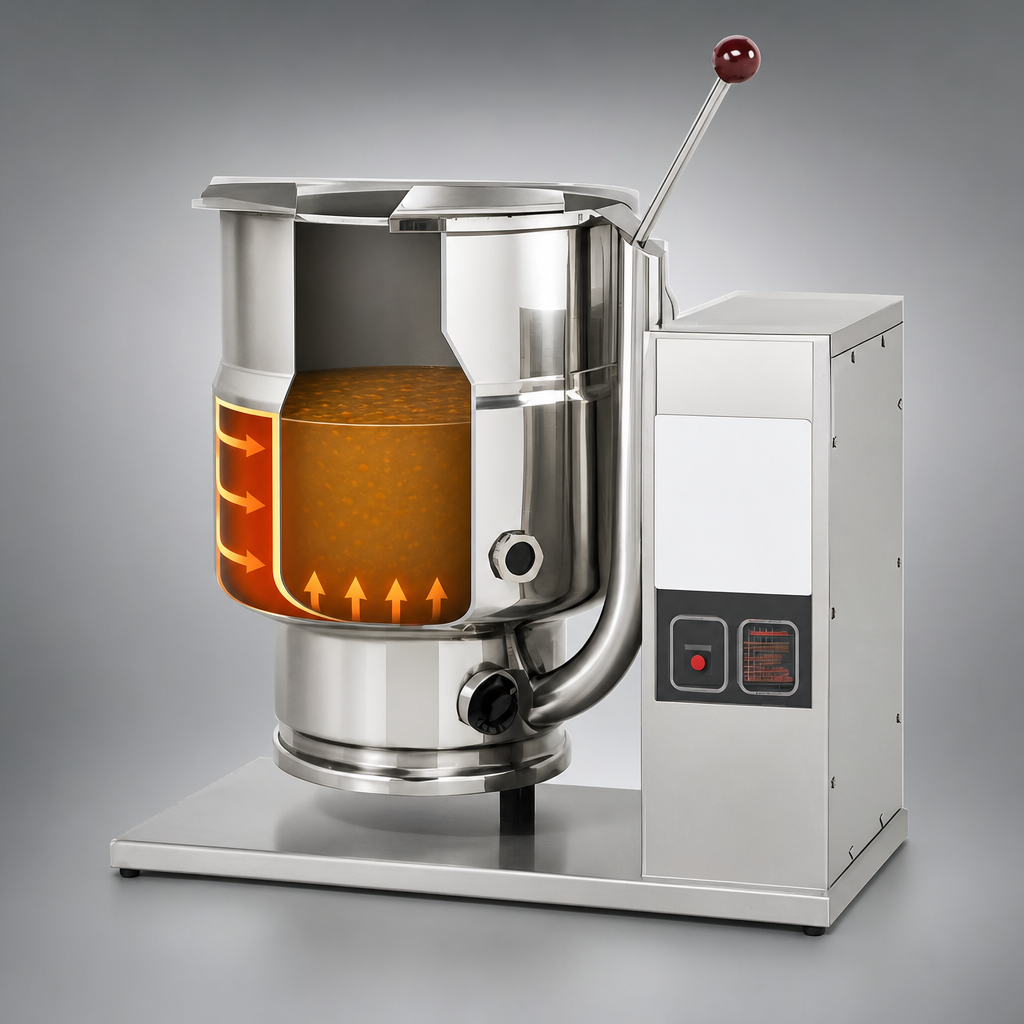

- Even, efficient heat—2/3 steam jacket surrounds product for uniform cooking from 150 °F up to ≈295 °F.
- Right-side IPX6 water-resistant console with Classic electronic controls: power switch, 1-10 temperature dial, HEAT light and LOW-WATER warning.
- Smooth, precise hand-tilt mechanism with field-reversible handle for right- or left-hand operation.
- Heavy-duty 304 stainless steel kettle, jacket and exterior with sanitary butterfly pouring lip.
- Built-in electric steam generator (12 kW @ 208/240 V or 14 kW @ 480 V) arrives factory-charged with treated water and inhibitors—no external boiler needed.
- Standard rear-mounted faucet bracket simplifies the addition of single or double pantry faucets (optional).
- Comprehensive safety suite: tilt cut-off (>12°), pressure relief valve, high-limit pressure switch, low-water cut-off and 24-V control circuitry.
- cULus, NSF & ASME code stamped—and proudly made in the USA.
Ideal for
- Soups, chowders & stews
- Custards, puddings, cheese sauces & gravies
- Bulk pasta, rice, chili & beans
- Re-therming delicate foods without scorching
Technical specifications
| Model | Groen TDB-48C |
|---|---|

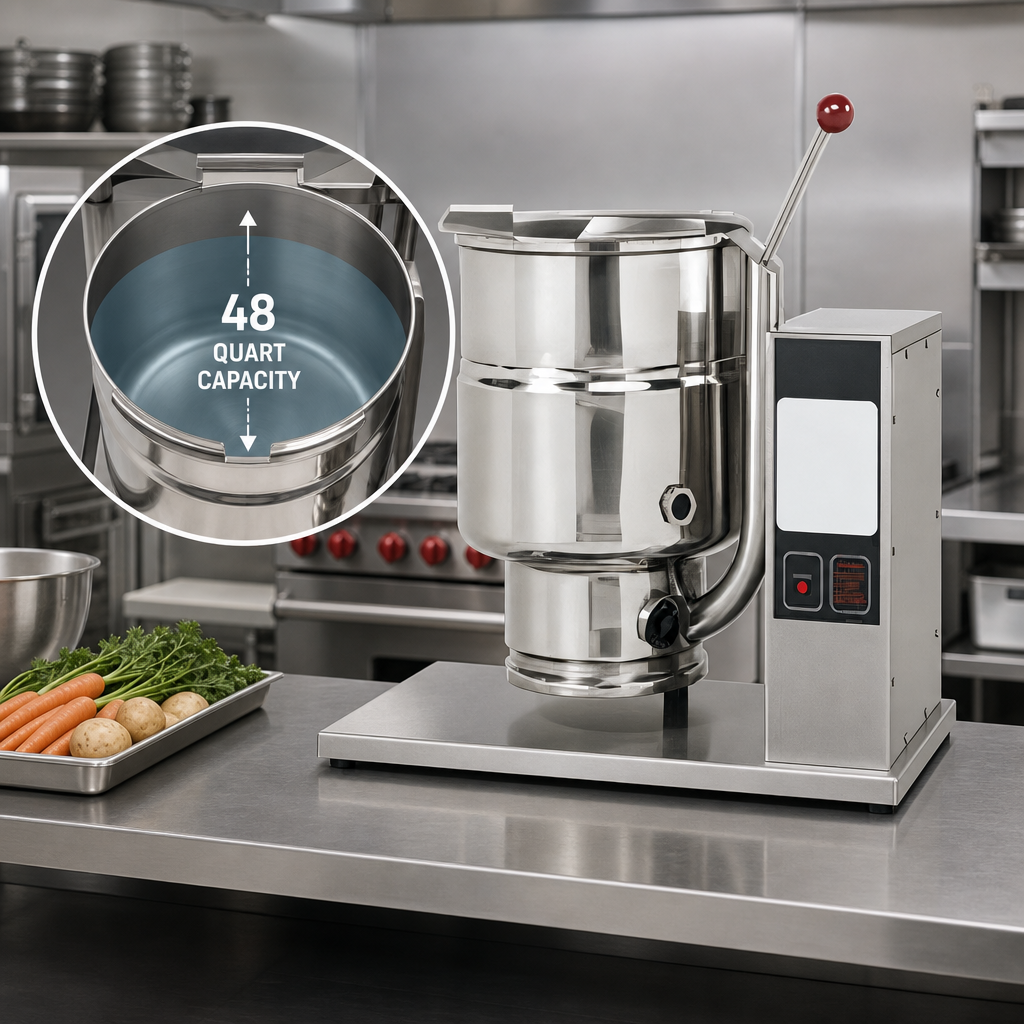

| Capacity | 48 qt / 12 gal / 45 L |
| Jacket Coverage | 2/3 |
| Heat Source | Self-contained electric steam generator, 12 kW (208/240 V) or 14 kW (480 V) |
| Temperature Range | Approx. 150 °F – 295 °F (65 °C – 146 °C) |
| Maximum Working Pressure | 50 PSI (ASME stamped) |
| Controls | Classic electronic: ON/OFF switch, 1-10 temperature dial, HEAT & LOW-WATER indicators |
| Ingress Protection | IPX6 (water-resistant) |
| Tilting | Manual hand-tilt, field-reversible handle |
| Construction | 304 stainless steel kettle & jacket, 180-grit polished interior, high-buff exterior |
| Standard Features | Rear faucet bracket, safety systems, factory-charged jacket |
| Electrical | 208, 240 or 480 V; 3-phase (field convertible to 1-phase). Shipped 208 V/3-ph. |
| Certifications | cULus, NSF, ASME, Made in USA |
Need a dedicated base? Pair this kettle with the Groen TS/10-2 or TS/10S-2 stainless steel table-top stand (optional) for ergonomic height and an available drain drawer.
Peace-of-mind warranty
Includes Groen’s standard 1-year parts & labor warranty (2,000 operating hours). Extended coverage is available at the time of purchase. For service or start-up questions, call the Groen technical hotline at 888-994-7636.
