Groen TDB-48A Steam Kettles
Groen TDB-48A Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Groen TDB-48A Steam Kettles
Description

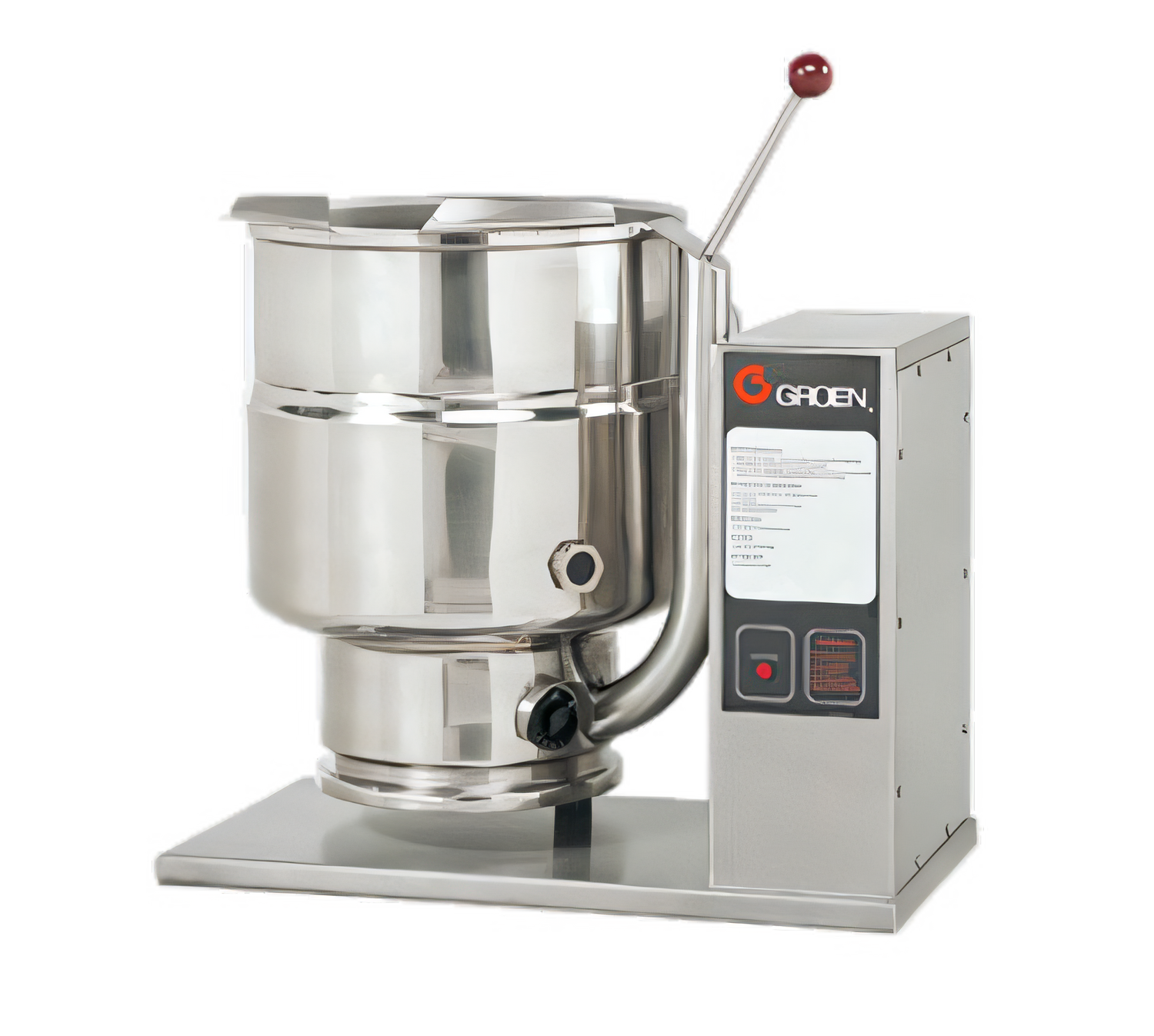

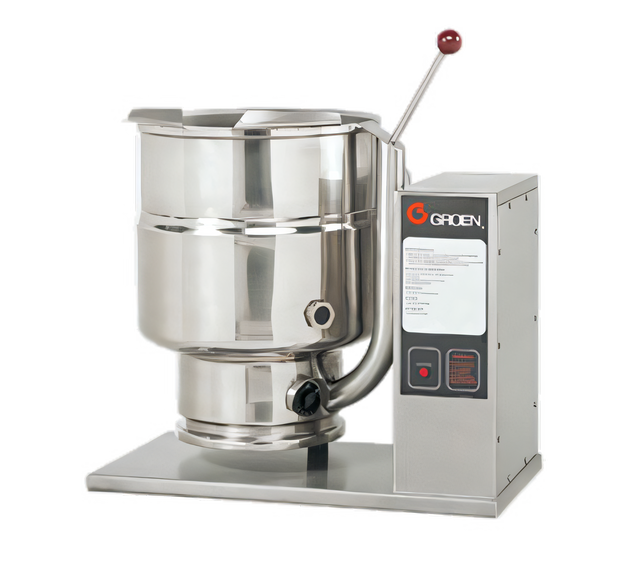

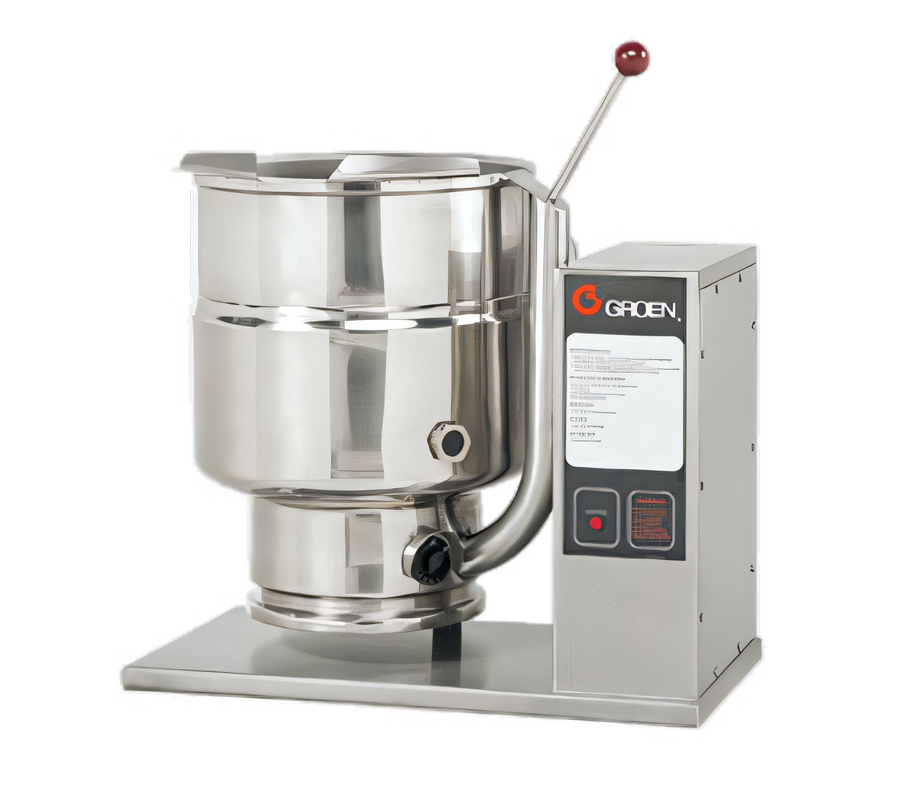

Groen TDB-48A 48-Quart Electric Table-Top Tilting Kettle
IPX6 Advanced Controls · Self-Contained Steam Jacket · Made in USAEngineered for production kitchens that demand consistency, speed and safety, the Groen TDB-48A packs 48 quarts (12 gallons) of even, steam-jacketed heat into a compact table-top design. Its IPX6-rated electronic control package lets chefs dial-in temperature, intensity and cook time with pinpoint accuracy—so every batch pours out perfect.
Key Features
- 48 qt / 12 gal / 45.4 L capacity with 2⁄3 steam jacket for rapid, uniform heat transfer.

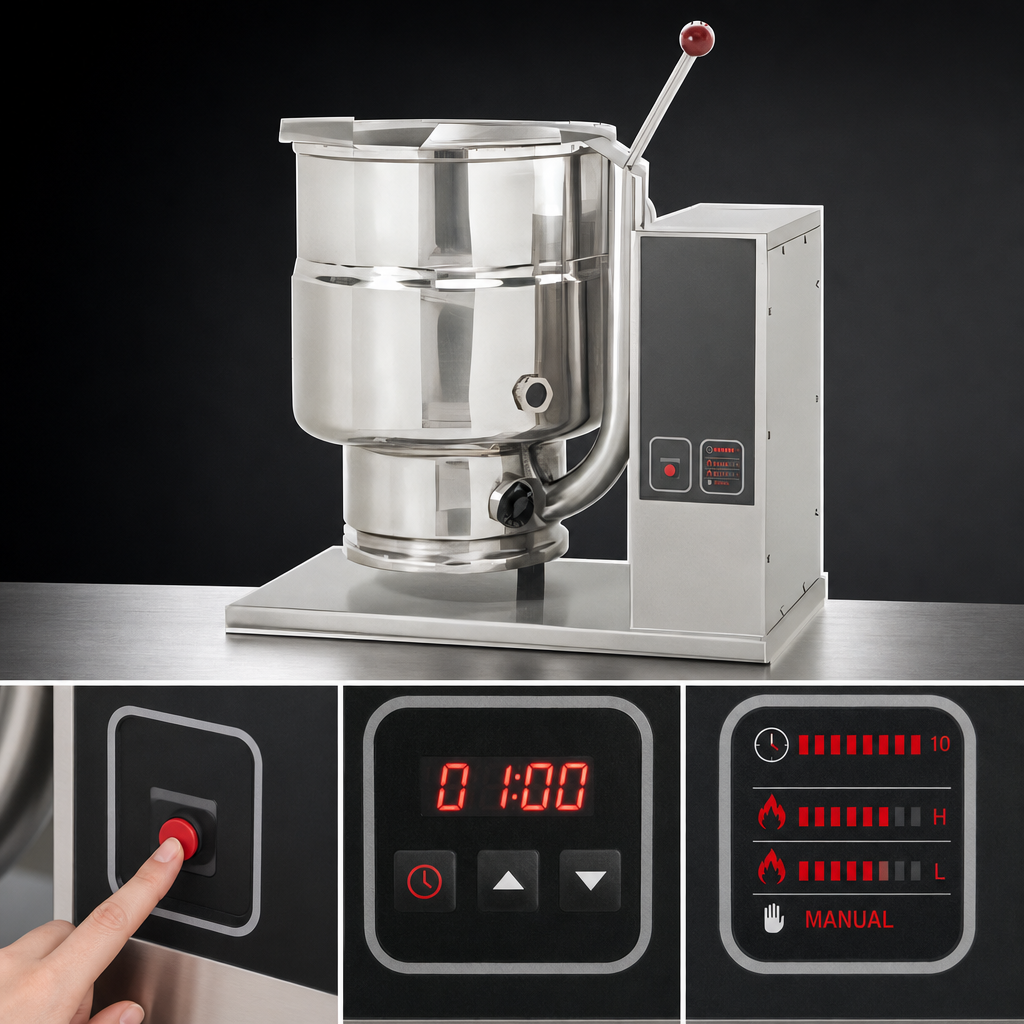

- Advanced electronic controls:
- Bright LED shows set heat level or remaining cook time.
- Timer adjusts from 1 minute to 10 hours.
- Low (2) & High (7) one-touch intensity presets plus full manual knob control.
- Self-contained electric steam generator—no external boiler or water hook-up needed.
- 150 °F – 295 °F operating range tackles delicate custards to rolling boils.

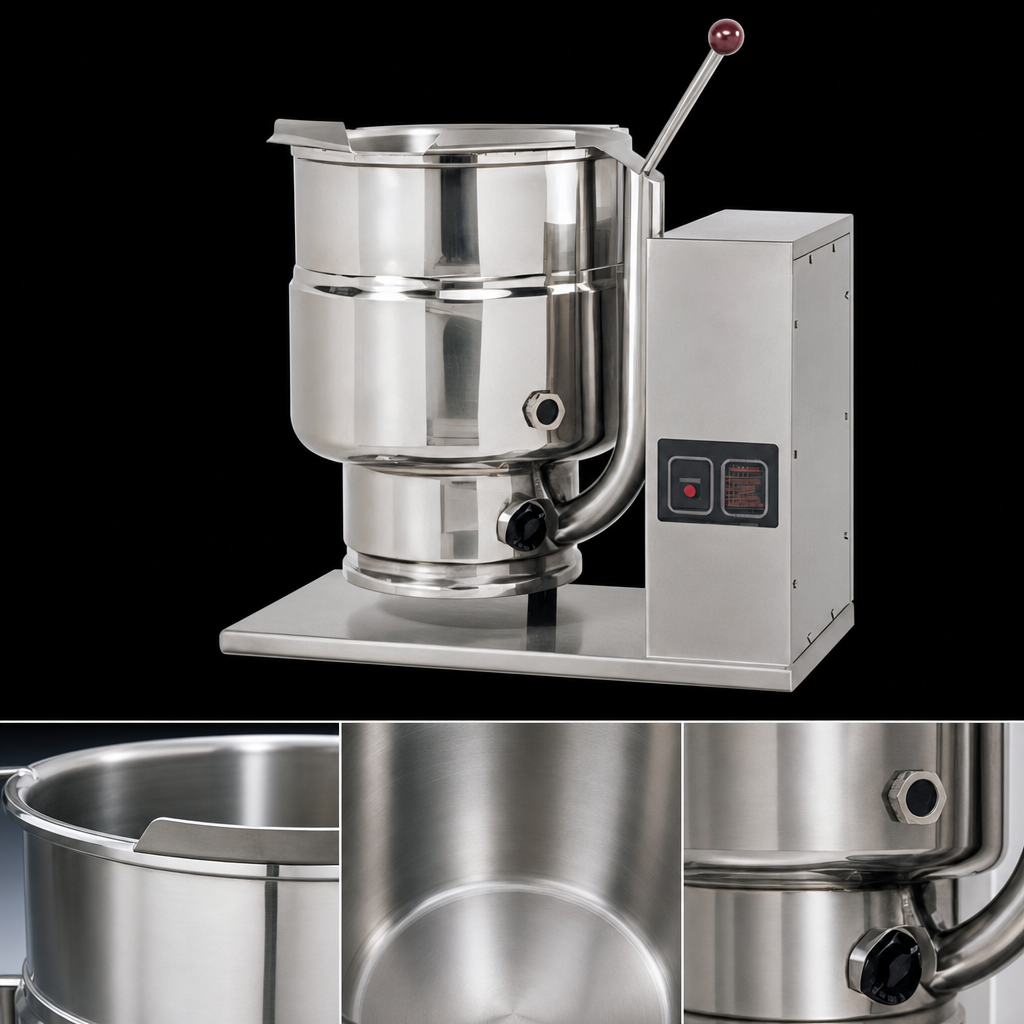

- One-piece 304-stainless liner polished to a 180-grit finish; optional 316-SS upgrade available.
- Balanced hand tilt with butterfly pouring lip; handle is field-reversible for left or right operation.
- Rear-mounted faucet bracket (faucet optional) keeps rinse water handy without clutter.
- IPX6 water-resistant control console for worry-free wash-downs.
- Comprehensive safety systems: tilt cut-off (>12°), pressure relief valve, high-limit, low-water cut-off & 24-V control circuit.
- Ships pre-charged with treated water & rust inhibitor for fast, trouble-free start-up.
- cULus listed, NSF certified, ASME code-stamped & proudly built in the USA.
Specifications
| Model | TDB-48A |
|---|---|
| Capacity | 48 qt / 12 gal / 45.4 L |
| Steam Jacket Coverage | Two-thirds of kettle body |
| Control Package | Advanced electronic, IPX6 rated |
| Timer Range | 1 minute – 10 hours |
| Preset Intensities | Low (2) & High (7) + manual knob setting |
| Temperature Range | 150 °F – 295 °F (65 °C – 146 °C) |
| Electrical Input | 12 kW @ 208/240 V or 14 kW @ 480 V, 1 or 3 phase (ships 208 V / 3 ph, field-convertible) |
| Maximum Working Pressure | 50 PSI |
| Tilt Mechanism | Manual hand tilt with 12° safety cut-off |
| Kettle Liner | 304 stainless steel (180-grit polish) |
| Water Resistance | IPX6 (control enclosure) |
| Certifications | cULus, NSF, ASME |
| Country of Origin | United States |
Ideal Applications
- Soups & chowders
- Chili, stews & braises
- Pasta, rice & grains
- Sauces, gravies & reductions
- Hot holding or re-therm in bulk
For stable, ergonomic mounting add the optional Groen TS/10-2 or TS/10S-2 table-top support stand with or without drain drawer.
