Groen TDB-40C Steam Kettles
Description

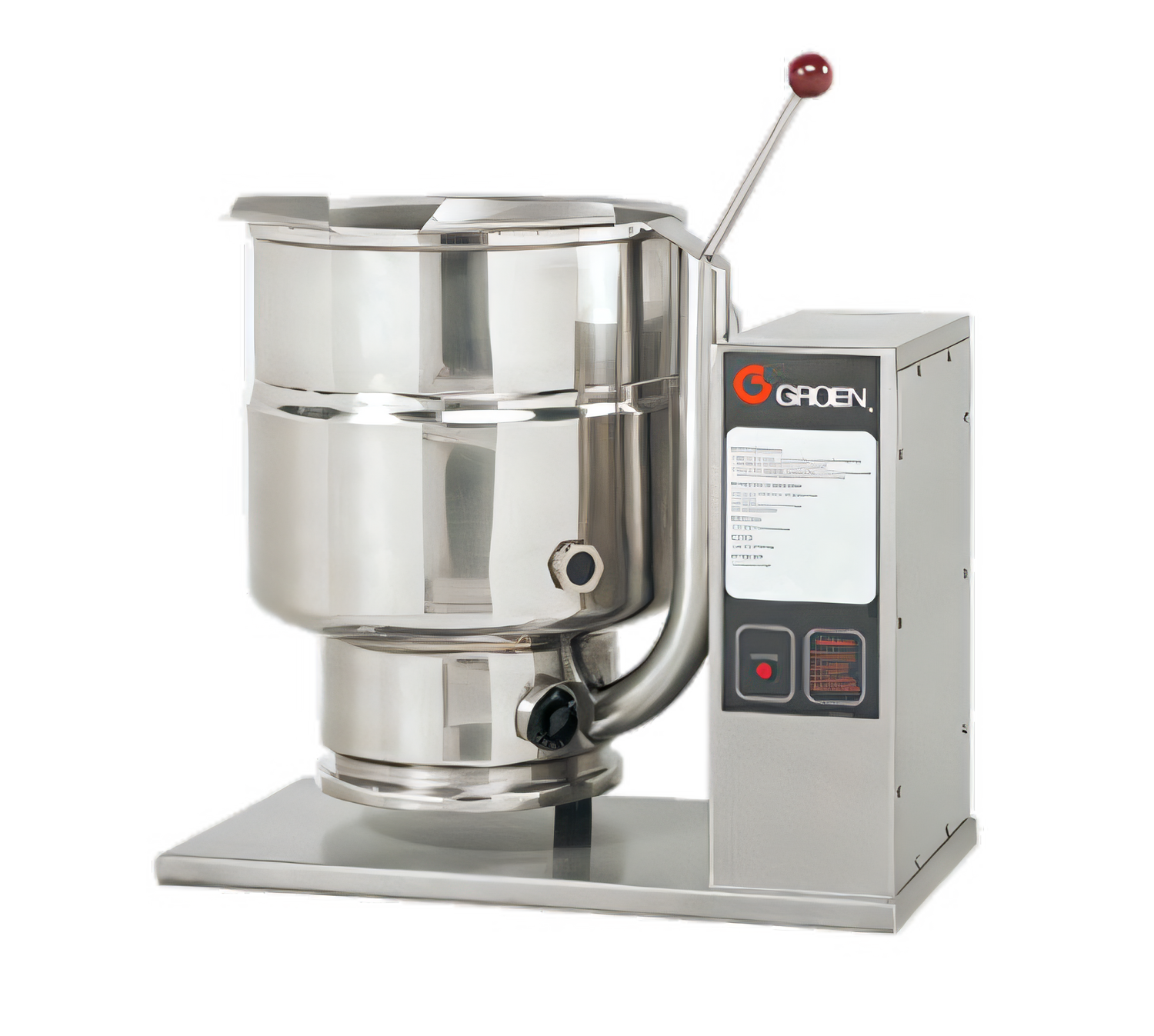

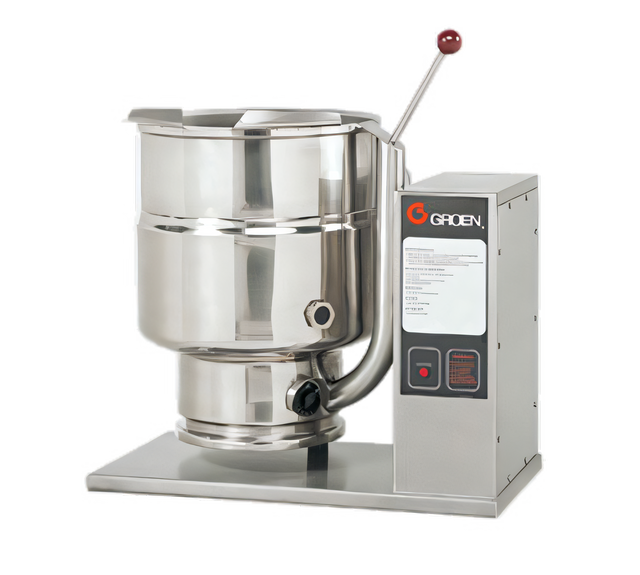

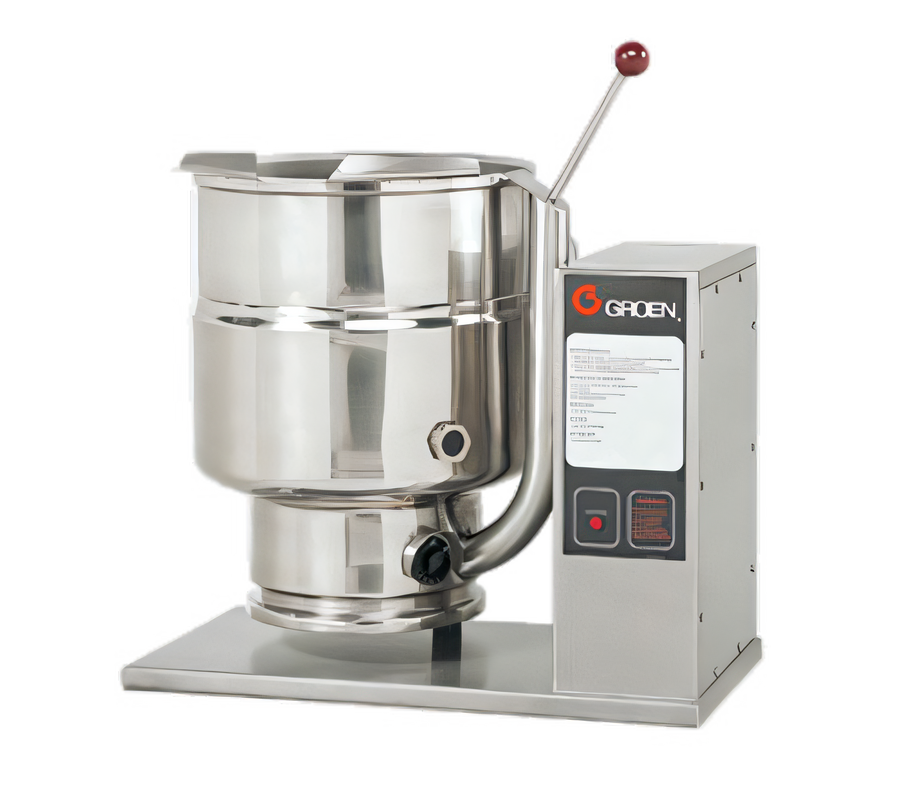

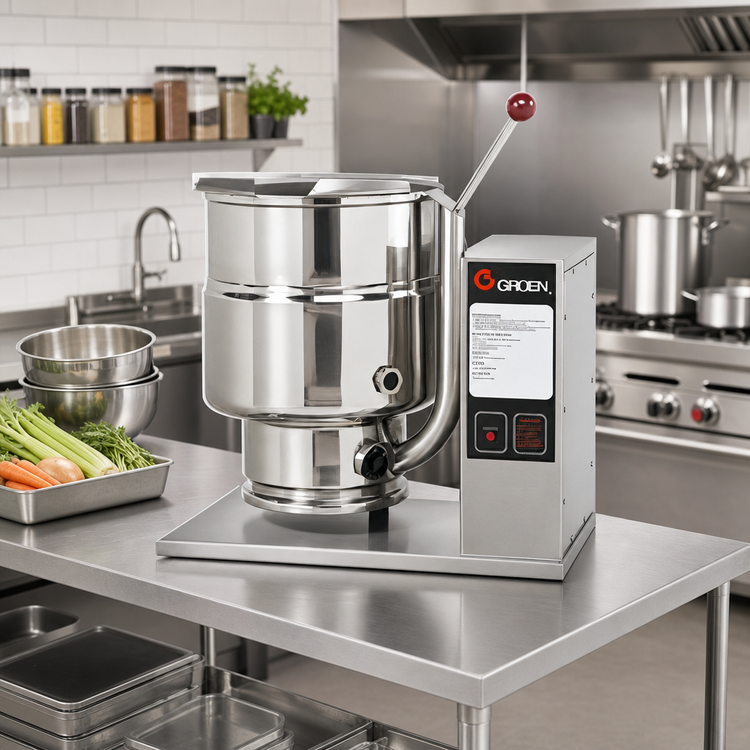

Groen TDB-40C 40 Qt Electric Table-Top Tilting Kettle
IPX6 Classic Controls | 2/3 Jacket | Made in USAGive your kitchen the power, precision and durability of Groen’s legendary self-contained steam jacketed kettles. The 40-quart (10 gal) TDB-40C delivers fast, even heating up to 295 °F without an external boiler, while the smooth manual tilt lets one operator pour product safely and effortlessly.
Why You’ll Love It
- High-capacity 40 Qt (37.9 L) bowl handles soups, sauces & reductions for up to 400 portions.
- Self-contained electric steam system reaches 150 – 295 °F without a remote boiler.

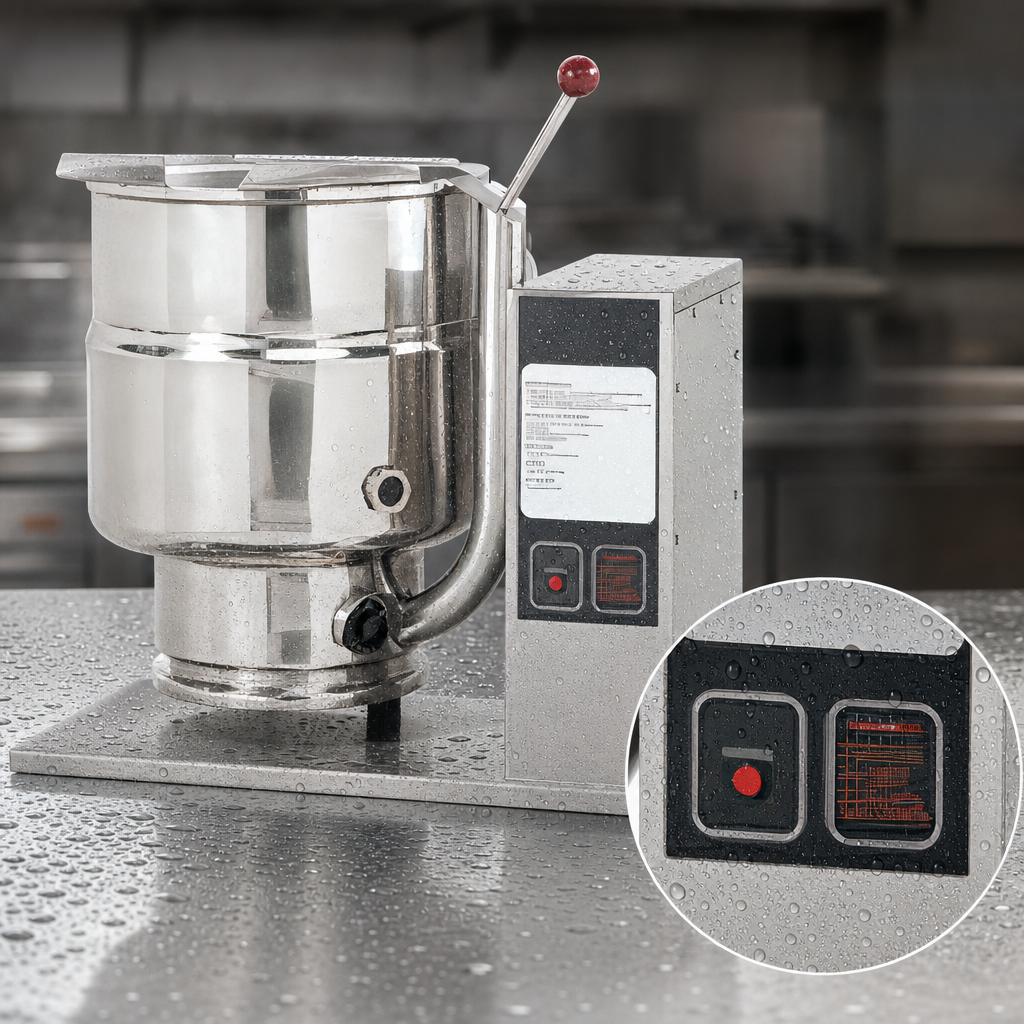

- Classic IPX6 electronic controls with 1-to-10 heat dial, heating indicator & low-water alert.

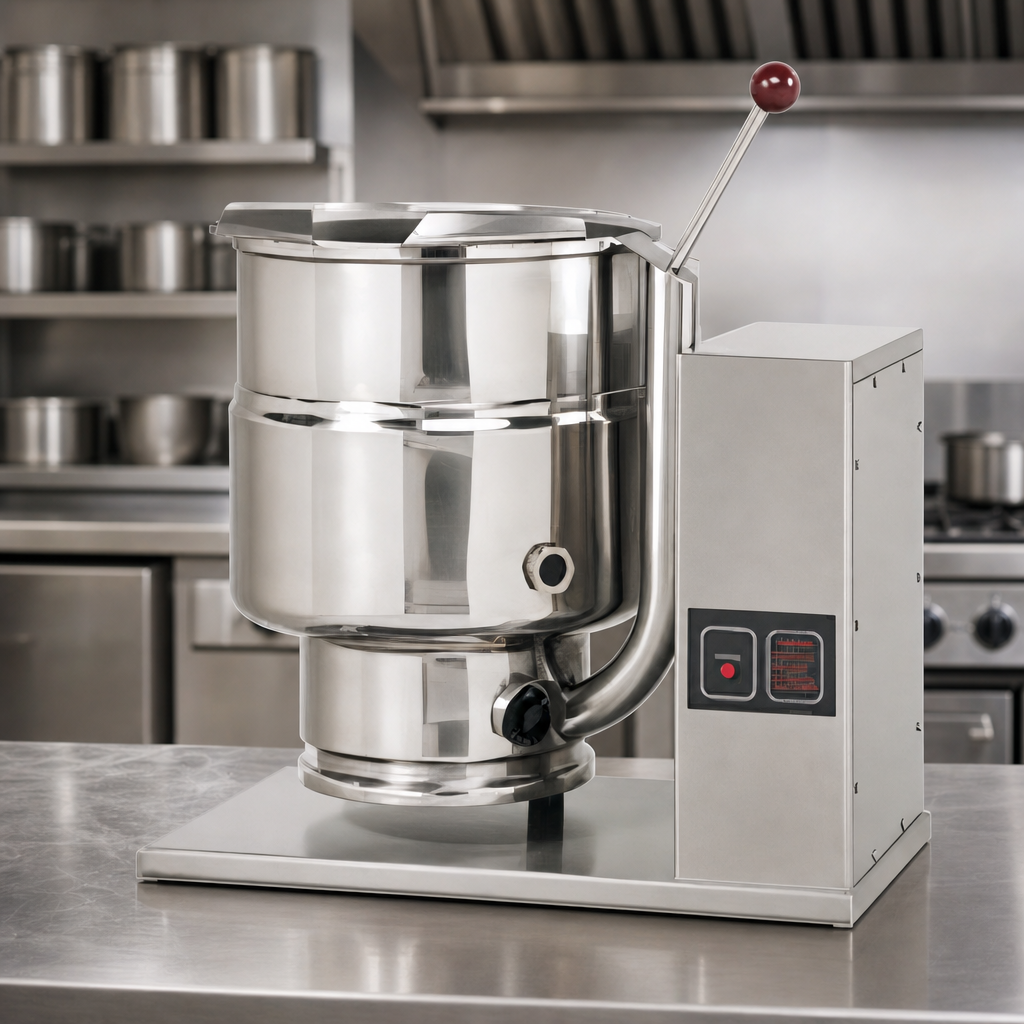

- 304 stainless steel liner & all-welded shell resist pitting and are easy to sanitize.
- Hand tilt mechanism with safety cut-off (heat stops when tilted > 12°) and field-reversible handle.
- Butterfly-shaped pouring lip gives a perfect, drip-free stream into hotel pans or marinades buckets.
- Water-resistant console (right-side) protects electronics from spray-down cleaning.
- NSF & cULus listed, ASME stamped to 50 PSI and proudly Made in the USA.
Technical Specifications
| Model | TDB-40C |
|---|---|
| Capacity | 40 Qt / 10 Gal / 37.9 L |
| Jacket Coverage | 2/3 (bottom & side wall) |
| Temperature Range | 150 °F – 295 °F (66 °C – 146 °C) |
| Working Pressure | Max 50 PSI (345 kPa) – ASME stamped |
| Heating Input | 12 kW or 14 kW (per selected voltage) |
| Voltage Options* | 208 V or 240 V / 3 Ph (field convertible to 1 Ph) 480 V / 3 Ph |
| Controls | Classic electronic, IPX6 enclosure, 24-V control circuit |
| Tilt | Manual hand crank, right or left mounting |
| Construction | One-piece 304 SS kettle; 180-grit interior; high-buff exterior |
| Certifications | NSF, cULus, ASME, IPX6 |
| Origin | Manufactured in Jackson, Mississippi USA |
*Factory-shipped 208 V / 3 Ph. Single electrical connection required.
Built-In Safety
- Low-water cutoff with warning light.
- High-limit pressure switch & pressure relief valve.
- Tilt cut-off disables heaters beyond 12° to protect elements.
- 24-volt control circuitry isolates operators from line voltage.
Optional Accessories (Add-Ons)
- Stainless steel support stand with or without drain drawer (TS/10-2).
- Lift-off stainless cover or cover holder.
- Single or double pantry faucets & pre-rinse sprays.
- Wire or nylon basket inserts, liner retaining ring, cover strainer.
- Drain cart & plumbing kit for mobile batch transfer.
Warranty
1-year parts & labor limited warranty included, backed by Groen’s nationwide network of factory-authorized service partners. Extended coverage available at time of purchase.
