Groen TDB-40A Steam Kettles
Description

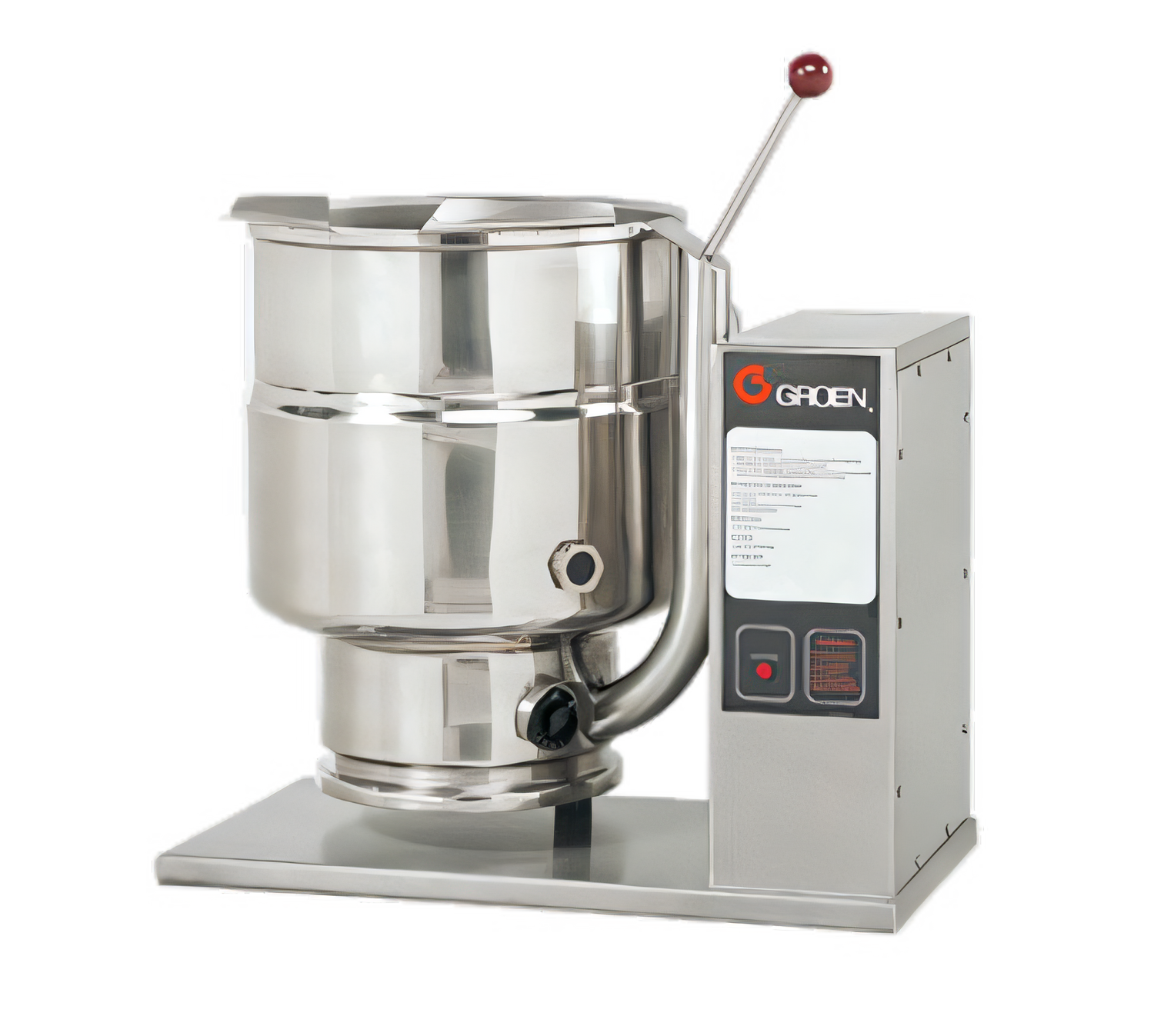

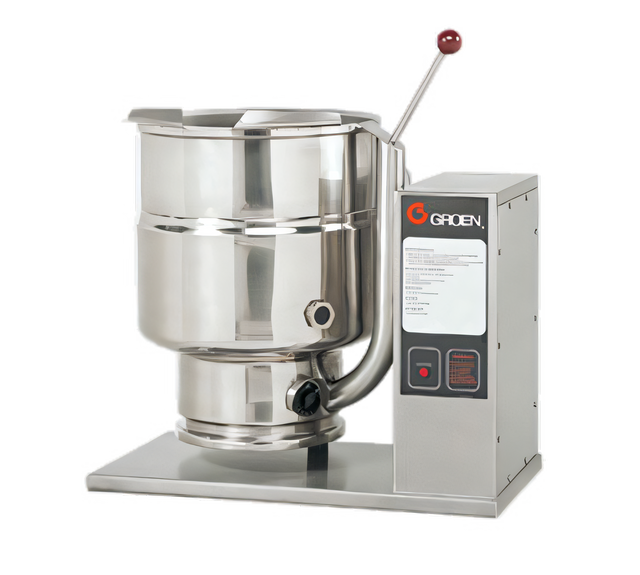

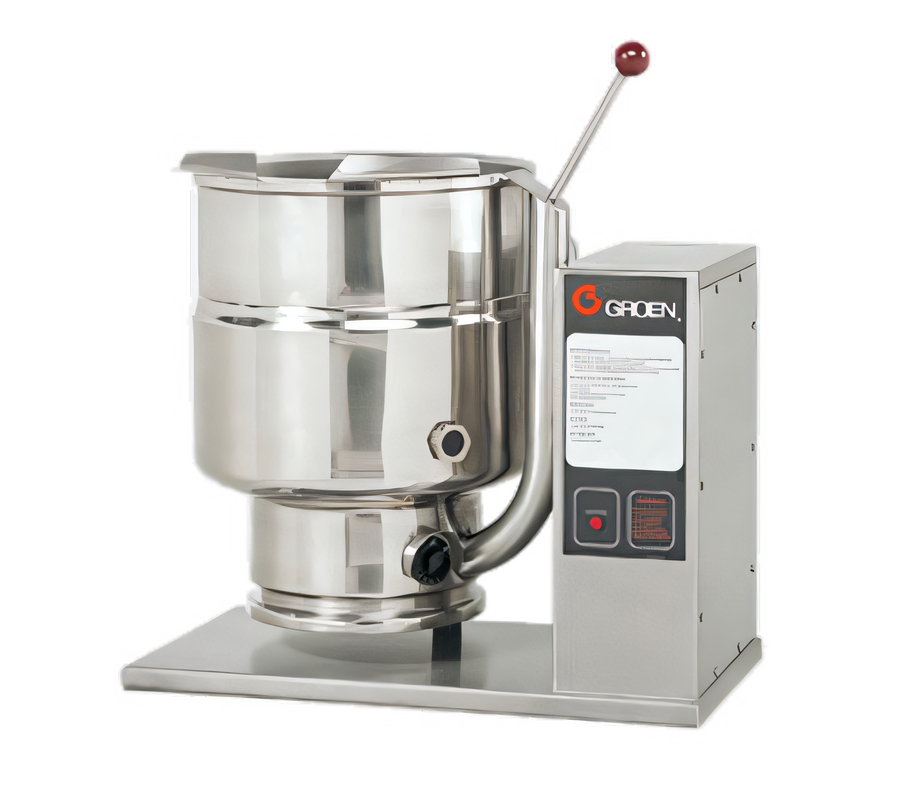

TDB-40A 40-Quart Electric Table-Top Tilting Kettle
with IPX6 Advanced Electronic Controls — by GroenBuilt for high-volume production and precision results, the Groen TDB-40A brings 40 quarts of 2/3-jacketed cooking power to any counter. Its self-contained steam system, all-stainless construction and intuitive digital control package deliver faster batch times, effortless clean-up and rock-solid consistency shift after shift.
Why You’ll Love It

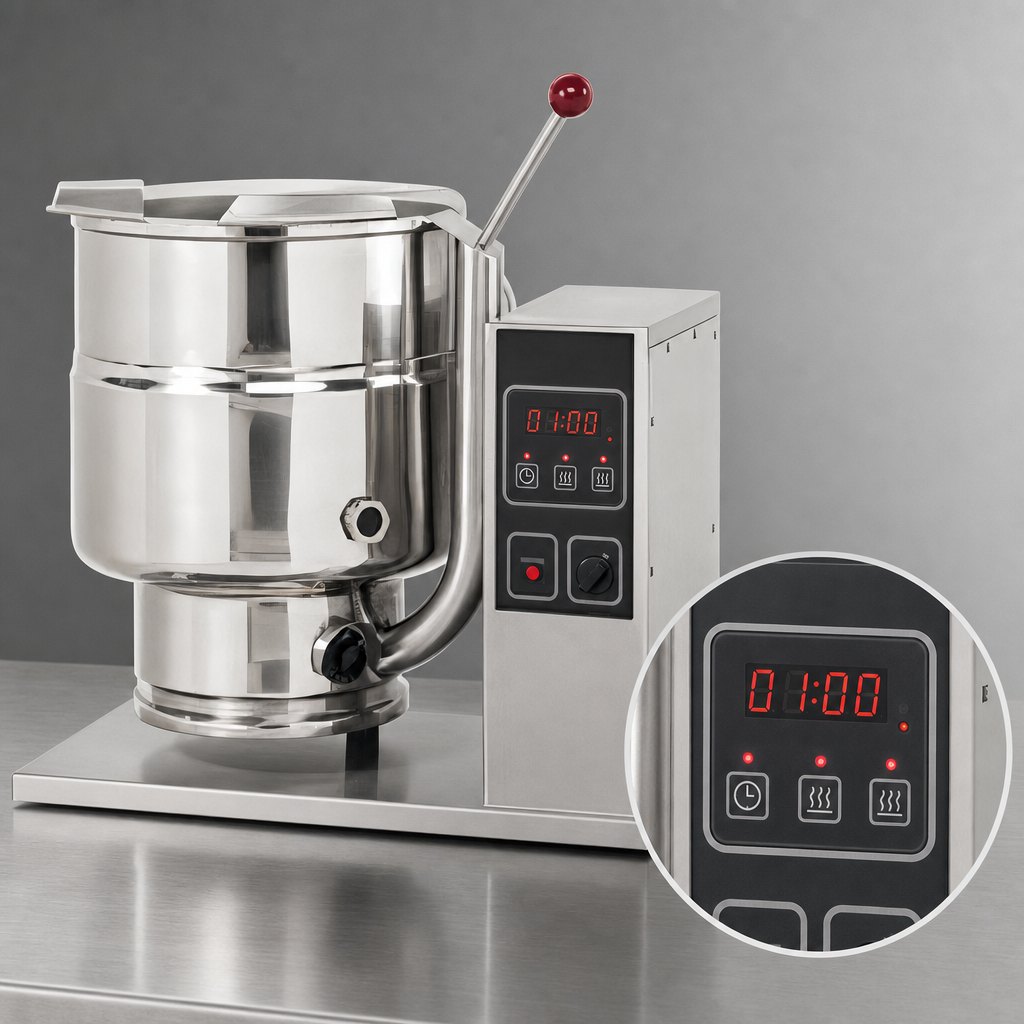

- Advanced IPX6 Controls – water-resistant panel with LED display, 1 min–10 hr timer, Low (2) & High (7) one-touch presets plus full MANUAL mode.
- High-Performance 2/3 Jacket delivers uniform heat from 150 °F up to 295 °F without hot spots.
- 40-Qt Capacity (≈ 38 L) ideal for soups, sauces, pastas, fillings and retherm in bulk.
- 304 Stainless Steel Liner & Shell – polished 180-grit interior, high-buff exterior, welded one-piece for lifetime durability.
- Precision Hand Tilt – smooth, balanced pour through a reinforced butterfly lip; handle field-reversible left/right.
- Self-Contained Electric Steam – 12 kW/14 kW element (voltage dependent) requires only a single electric hook-up.
- Safety Suite Built-In – low-water cut-off, high-limit pressure switch, 50 PSI relief valve & automatic heat shut-off when tilted > 12°.
- Certified & Compliant – cULus listed, NSF approved and ASME stamped; proudly Made in USA.
Technical Specifications
| Model | TDB-40A |
|---|---|
| Capacity | 40 qt (10 gal / 38 L), 2/3 jacket |
| Controls | Advanced electronic, IPX6 rated |
| Heat Source | Self-contained electric steam — 12 kW (208/240 V) or 14 kW (480 V) |
| Temperature Range | 150 °F – 295 °F (65 °C – 146 °C) |
| Timer | Adjustable 1 minute – 10 hours |
| Construction | 304 SS liner & jacket, reinforced rim, butterfly pouring lip |
| Tilt Mechanism | Manual hand crank, field-reversible |
| Working Pressure | Max 50 PSI (ASME stamped) |
| Ingress Rating | IPX6 (water resistant) |
| Certifications | cULus, NSF, ASME, Made in USA |
| Recommended Stand | Groen TS/10-2 stainless support stand (optional) |
| Warranty | 1-year parts & labor, factory authorized service network |
Popular Options (Sold Separately)
- Single or double pantry faucet assemblies
- Lift-off cover, cover strainer or cover holder
- Wire or nylon basket inserts & liner retaining ring
- Correctional package with tamper-resistant hardware
- TS/10-series support stand with or without drain drawer
Need a different size or control package? Check out Classic (TDB-40C) or Cook2Temp™ (TDB-40C2T) models in our full kettle lineup.
