Groen TDB-24A Steam Kettles
$10,935.00
Unit price
/
Unavailable
Description

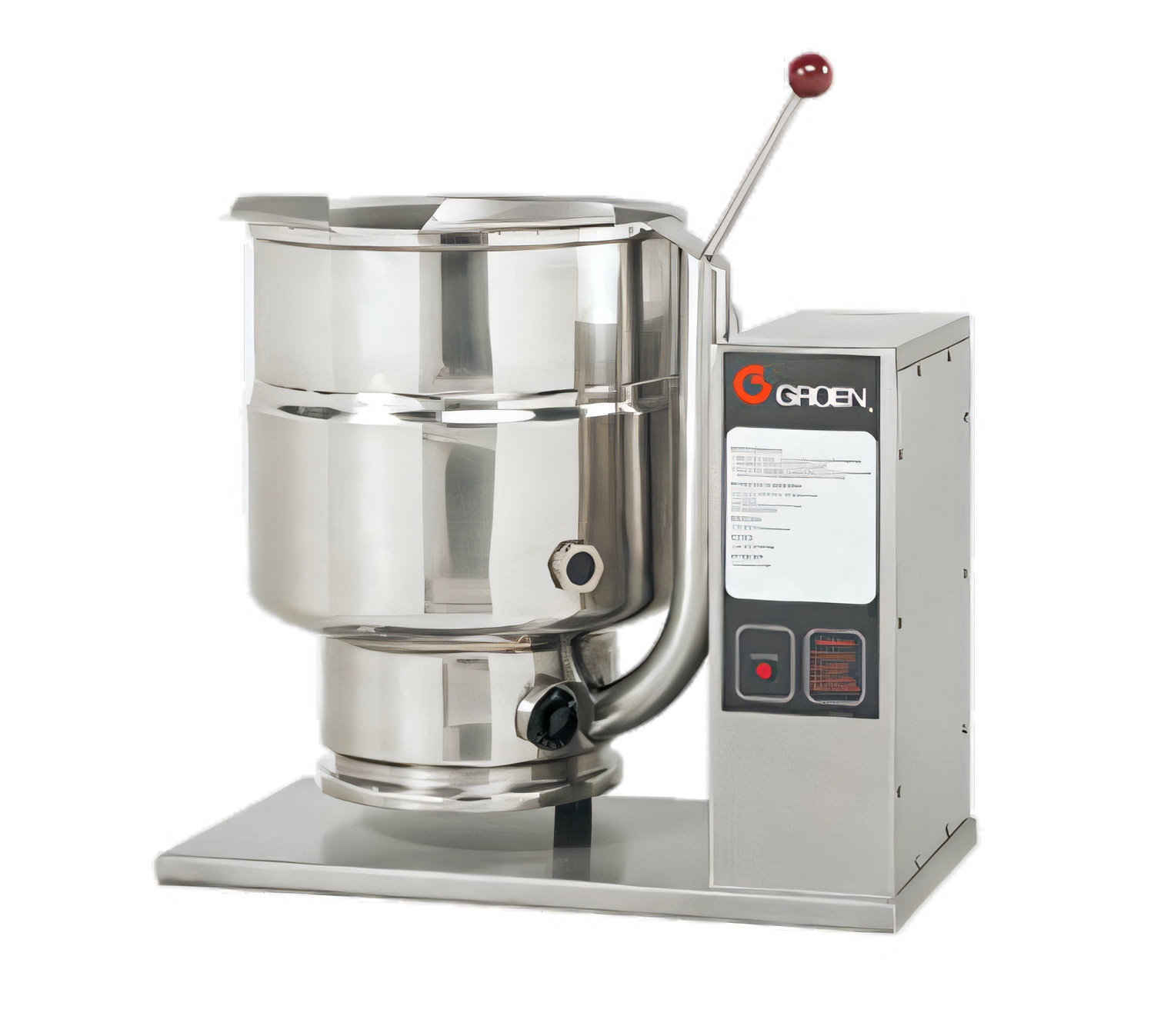

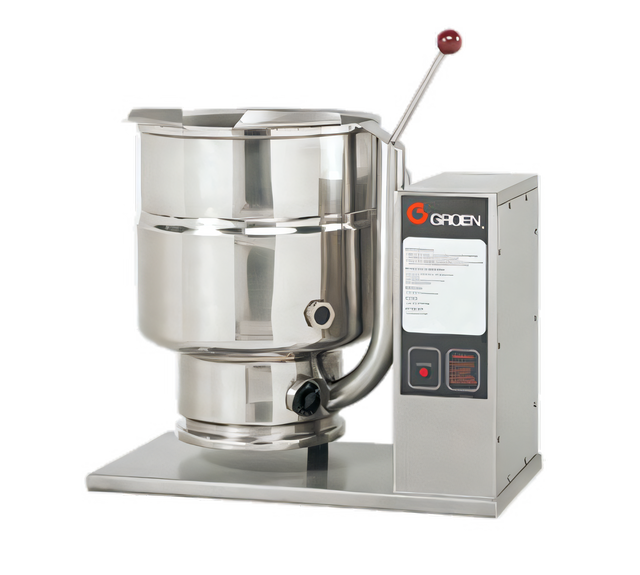

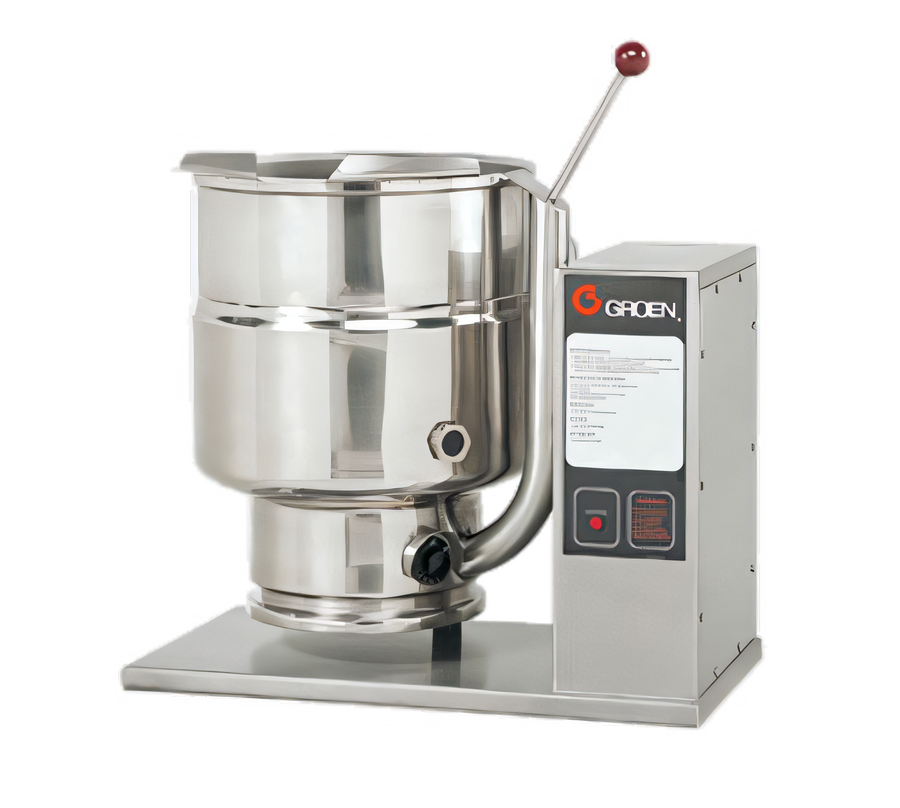

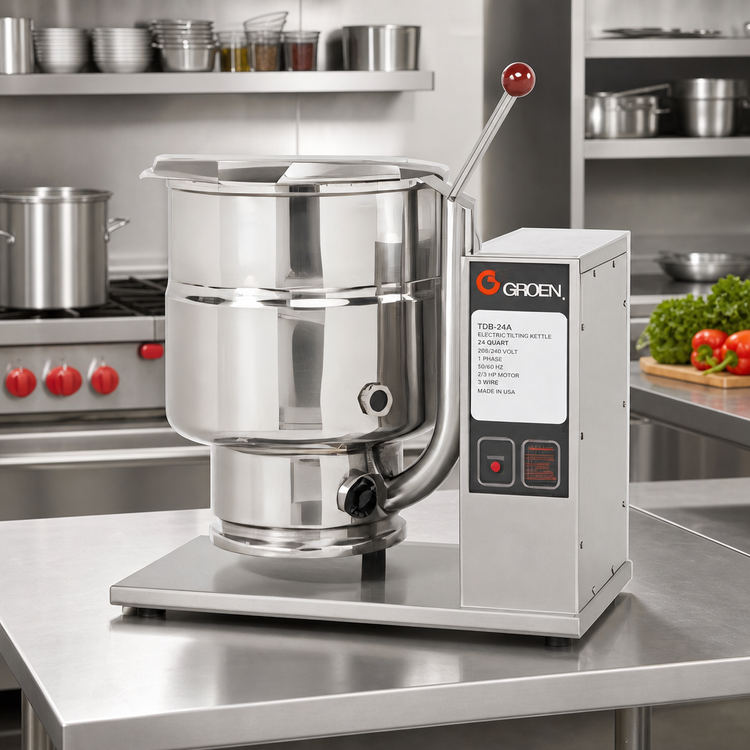

Groen TDB-24A 24 Qt Electric Table-Top Tilting Kettle
Advanced IPX6 Electronic Controls • 2⁄3 Steam Jacket • Made in USABuilt for demanding commercial kitchens, the Groen TDB-24A delivers fast, even heat and fingertip control in a compact 24-quart (23 L) footprint. Its self-contained electric steam jacket, digital interface and stainless-steel construction make it the professional’s choice for high-volume soups, sauces, gravies and more—right on the countertop.
Why You’ll Love It
- 24 quart / 6 gal capacity—ideal for batch production without sacrificing counter space.

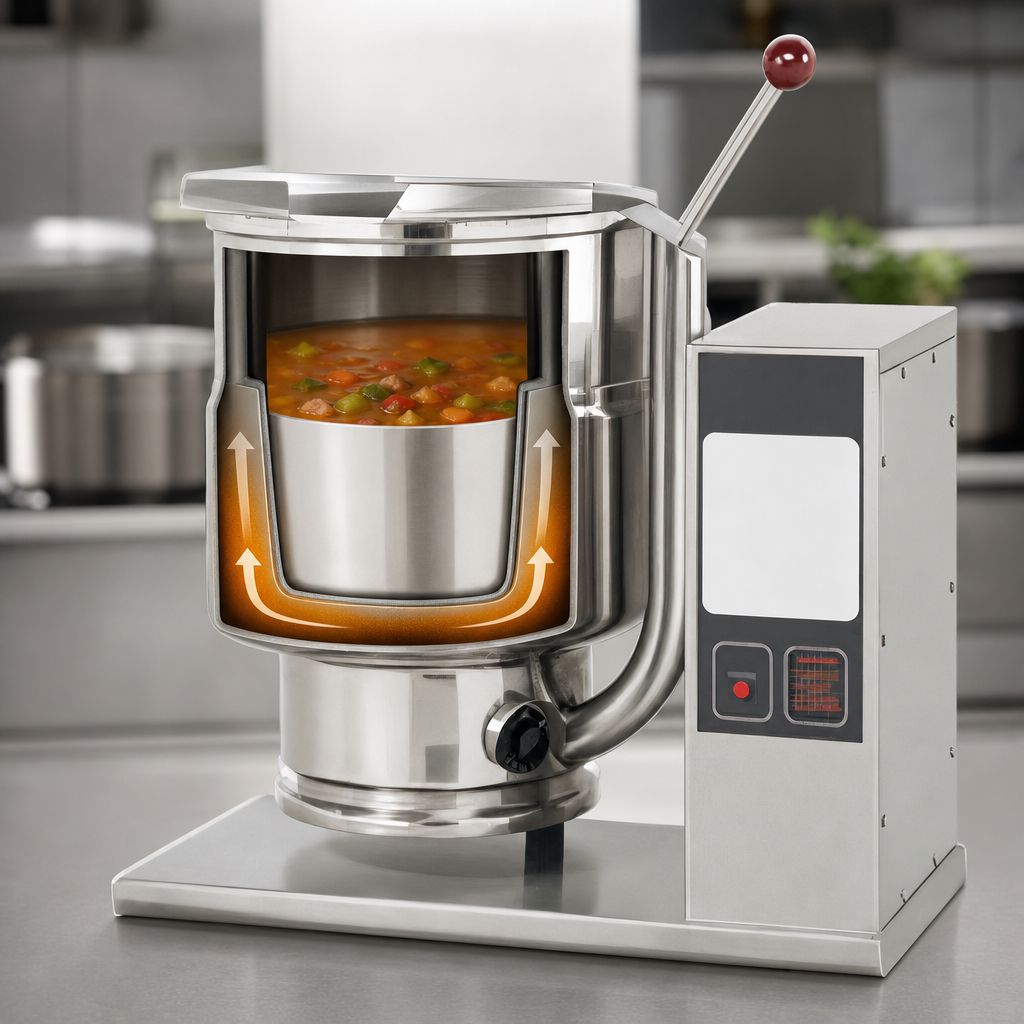

- 2⁄3 steam jacket reaches 150 – 295 °F for rapid, uniform cooking with zero hot spots.

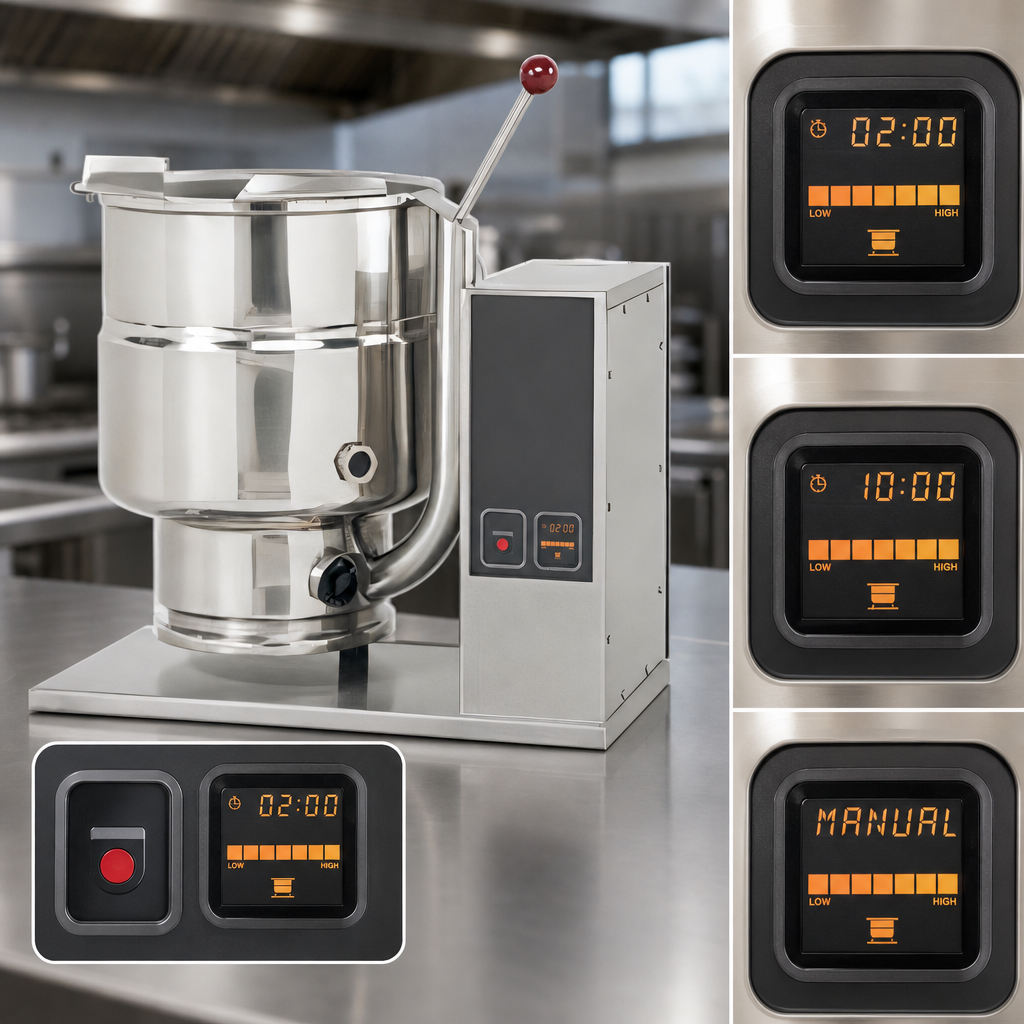

- Advanced electronic controls (IPX6 water-resistant) with:
- Bright digital display
- 1 minute – 10 hour timer
- Low (2) & High (7) one-touch heat presets
- Manual mode for infinite adjustment
- 304 stainless-steel liner, body and reinforced rim with sanitary butterfly pouring lip.
- Smooth hand-tilt mechanism—field-reversible handle lets one person pour with precision.
- Factory-sealed, self-contained electric steam source—no external boiler required.
- Integrated faucet bracket (rear of console) simplifies rinse-down or filling (faucet optional).
- Comprehensive safety suite: tilt cut-off, pressure relief valve, high-limit & low-water sensors, 24 V controls.
- cULus, NSF & ASME certified; proudly manufactured in the United States.
Technical Specifications
| Model | Groen TDB-24A |
|---|---|
| Capacity | 24 qt | 6 gal | ≈23 L |
| Jacket Coverage | 2⁄3 (sealed, self-contained) |
| Heat Input | 6 kW (208/240 V) or 8 kW (480 V) |
| Power Requirements | 208, 240 or 480 V / 1- or 3-phase (shipped 208 V/3-ph, field-convertible to single-phase) |
| Temperature Range | 150 °F – 295 °F (65 °C – 146 °C) |
| Control Enclosure | Right-side, IPX6 water-rated |
| Construction | Welded 304 stainless steel kettle & outer shell; polished 180-grit interior / high-buff exterior |
| Pour Height | Clears 4 in (102 mm) hotel pans on table top |
| Safety Cut-Off | Heat disables when unit is tilted > 12° |
| Ingress Protection | IPX6 (powerful water jet) |
| Certifications | cULus, NSF, ASME |
| Warranty | 1-Year parts & labor (U.S./Canada/Puerto Rico) Extended coverage available—ask your sales rep. |
Ideal Applications
- Scratch-made soups, chowders & chilis
- Volume sauces & gravies
- Custards & dessert fillings
- Pasta, rice & grains
- Reductions & stocks
Popular Accessories (sold separately)
- TS/10-2 stainless steel table-top stand with or without drain drawer
- Single or double pantry faucets
- Lift-off stainless steel cover & cover holder
- Food-grade wire or nylon basket inserts
Important: Always verify incoming voltage, water quality and clearance
requirements before installation. Refer to the official Groen specification sheet for full
electrical, dimensional and plumbing details.
Features & Specs
Features & Specs
Manufacturer
Groen
Certifications
NSF, cULus, IPX6, Made in USA
Height
24.63in
Width
25.63in
Depth
20.75in
Shipping Weight
120.0lbs
Capacity
6 gal = 24 qt
Kettle Jacket
partial jacket
Kettle Liner
stainless steel
Tilt type
arm
Support location
right
Specifications
Kettle, electric, table top, 24 quart capacity, 2/3 jacket, IPX6 water rated electronic Advanced controls with digital display, 1 minute to 10 hour timer, low (2) and high (7) preset intensities with manual capability, 304 stainless steel liner, hand tilt, faucet bracket, support console on right, stainless steel construction, cULus, NSF, Made in USA
