Groen | SKU:
TDA/1-40
Groen TDA/1-40 Steam Kettles
$9,320.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Groen TDA/1-40 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

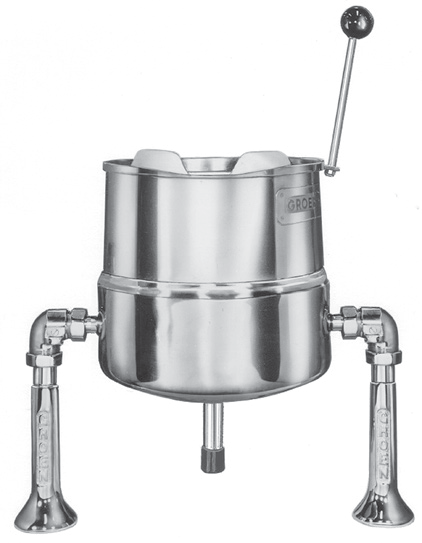

Groen TDA/1-40 Table-Top Tilting Kettle — 40 Qt
Direct Steam • 2/3 Jacket • Manual TiltEngineered for demanding commercial kitchens, the Groen TDA/1-40 delivers 40 quarts of fast, even heating in a compact table-top footprint. A gleaming mirror finish, heavy-duty support arms and a smooth hand-tilt mechanism combine to give chefs uncompromising performance and presentation-ready style.
Key Benefits
- 2/3 steam jacket provides rapid, uniform heat across the kettle’s hemispherical bottom.
- Handles working steam pressures from 5–55 psi; ASME code stamped & registered.
- Balanced hand-tilt lets one person safely pour a full kettle into an 8"-high hotel pan.
- Reinforced rim with welded butterfly lip ensures clean, drip-free pouring and adds strength.
- 304 stainless-steel liner polished to 180-grit for easy cleaning and superior sanitation.
- Mirror-bright exterior retains its showroom shine and wipes clean in seconds.
- Chrome-plated support arms conceal steam piping—no hot, exposed lines on the work surface.
- NSF listed and built to the latest food-safety standards.
- Proudly designed and manufactured in the USA.
Ideal For
- Soups, chowders & sauces
- Pasta, rice & grains
- Braising, poaching & reductions
- Custards, puddings & preserves
Specifications
| Model | Groen TDA/1-40 |
|---|---|
| Capacity | 40 qt / 10 gal / 37.9 L |
| Heating Source | Direct external steam (remote boiler required) |
| Operating Pressure | 5–55 psi (0.34–3.79 bar) |
| Jacket Coverage | 2/3 hemispherical bottom |
| Liner Material | 304 stainless steel |
| Exterior Finish | High-buff mirror stainless steel |
| Tilting Method | Manual hand tilt, right-side handle |
| Supports | Chrome-plated steel arms with concealed piping |
| Max Working Pressure | 55 psi (ASME code stamped) |
| Certifications | NSF Listed, ASME, Made in USA |
| Steam Connections | 3/8" NPT steam inlet & condensate outlet |
Popular Accessories (sold separately)
- Gallons or litre etch marks
- 316 stainless-steel liner
- Basket insert & nylon liner
- Lift-off cover or cover strainer
- Steam trap assembly & pressure regulator
- Table-top stand or cabinet base
Important: A remote steam source, safety valve and steam trap are required for operation and are not included unless specifically ordered.
Covered by Groen’s standard 1-year parts & labor warranty with nationwide authorized service.
Features & Specs
Features & Specs
Manufacturer
Groen
Certifications
NSF, Made in USA
Height
22.38in
Width
26.75in
Depth
19.75in
Shipping Weight
110.0lbs
Kettle Jacket
partial jacket
Capacity
10 gal = 40 qt
Kettle Liner
stainless steel
Tilt type
single arm
Specifications
Kettle, direct steam, table top, 40 quart capacity, 2/3 jacket, 304 stainless steel liner, hand tilt, stainless steel construction, mirrored exterior, reinforced rim and faucet bracket, 55 psi, NSF, Made in USA
