Groen PT-80 Steam Kettles
Description

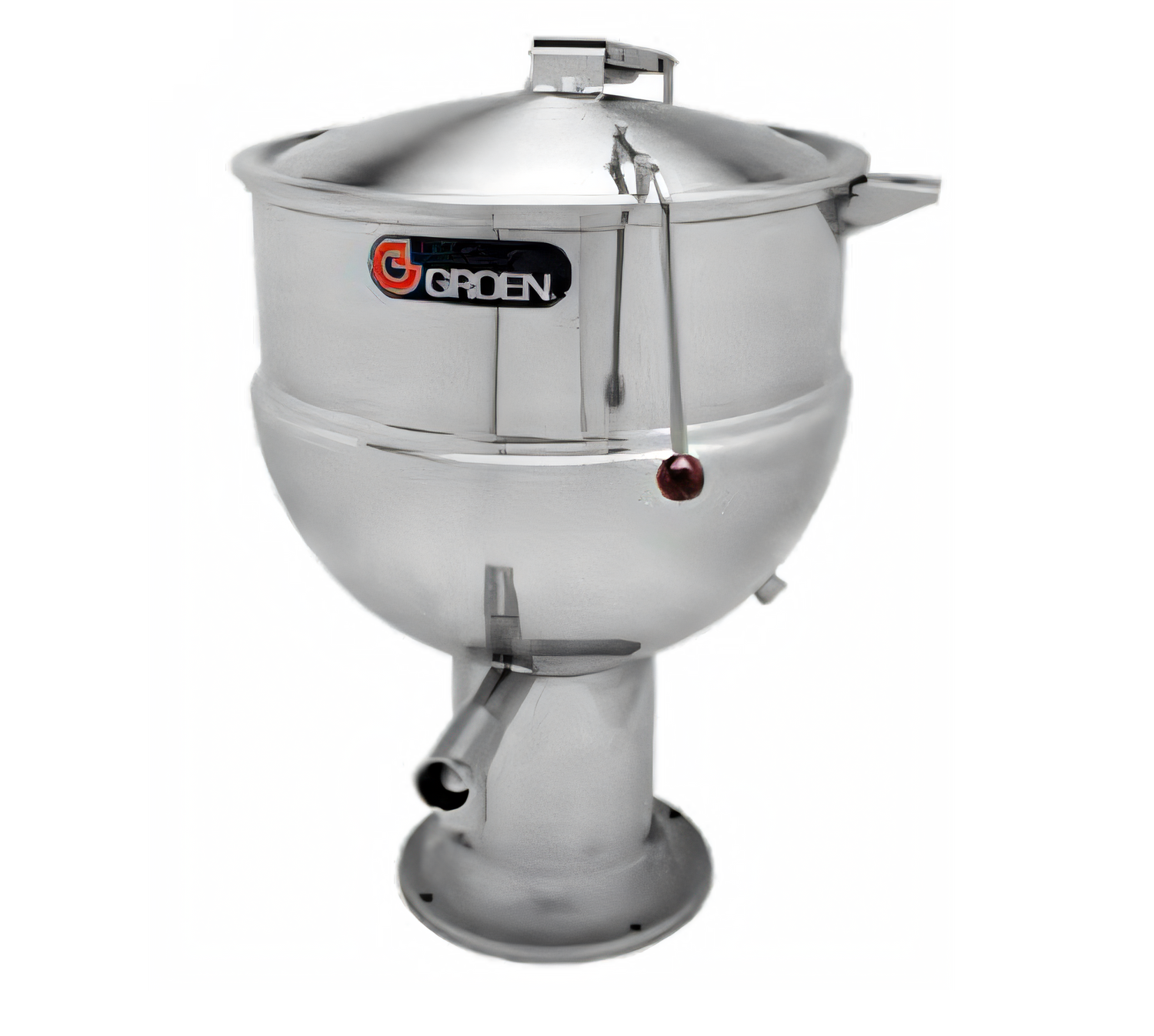

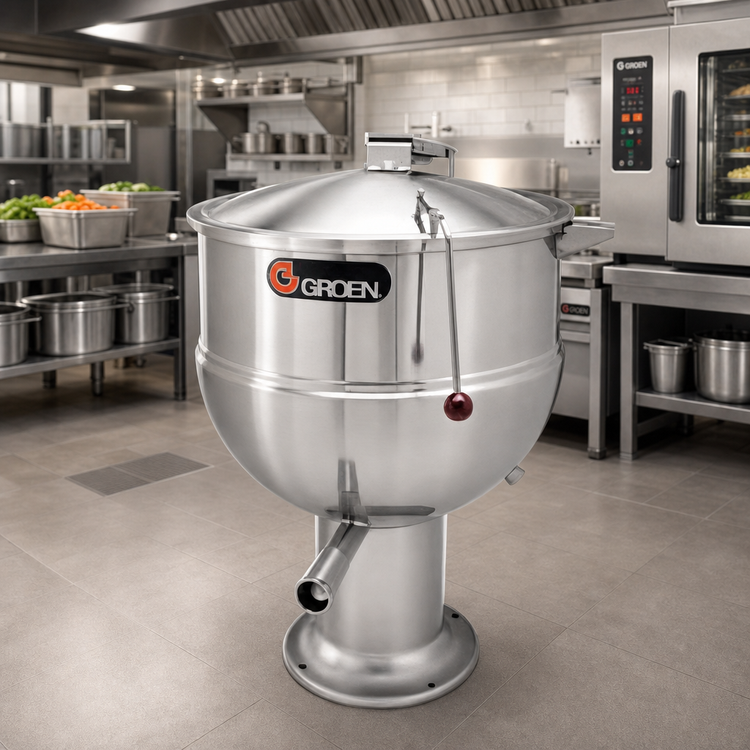

Groen PT-80 Direct Steam Kettle – 80 Gallon
Pedestal-mounted • 2⁄3 jacket • 316 SS liner • 25 PSITackle high-volume production with the Groen PT-80, an 80-gallon (302 L) direct-steam kettle engineered for consistency, sanitation and decades of heavy-duty use. Its 316 stainless steel construction shrugs off acidic foods, while the 2⁄3 steam jacket delivers fast, even heating that won’t scorch your signature recipes.
Why chefs choose the PT-80

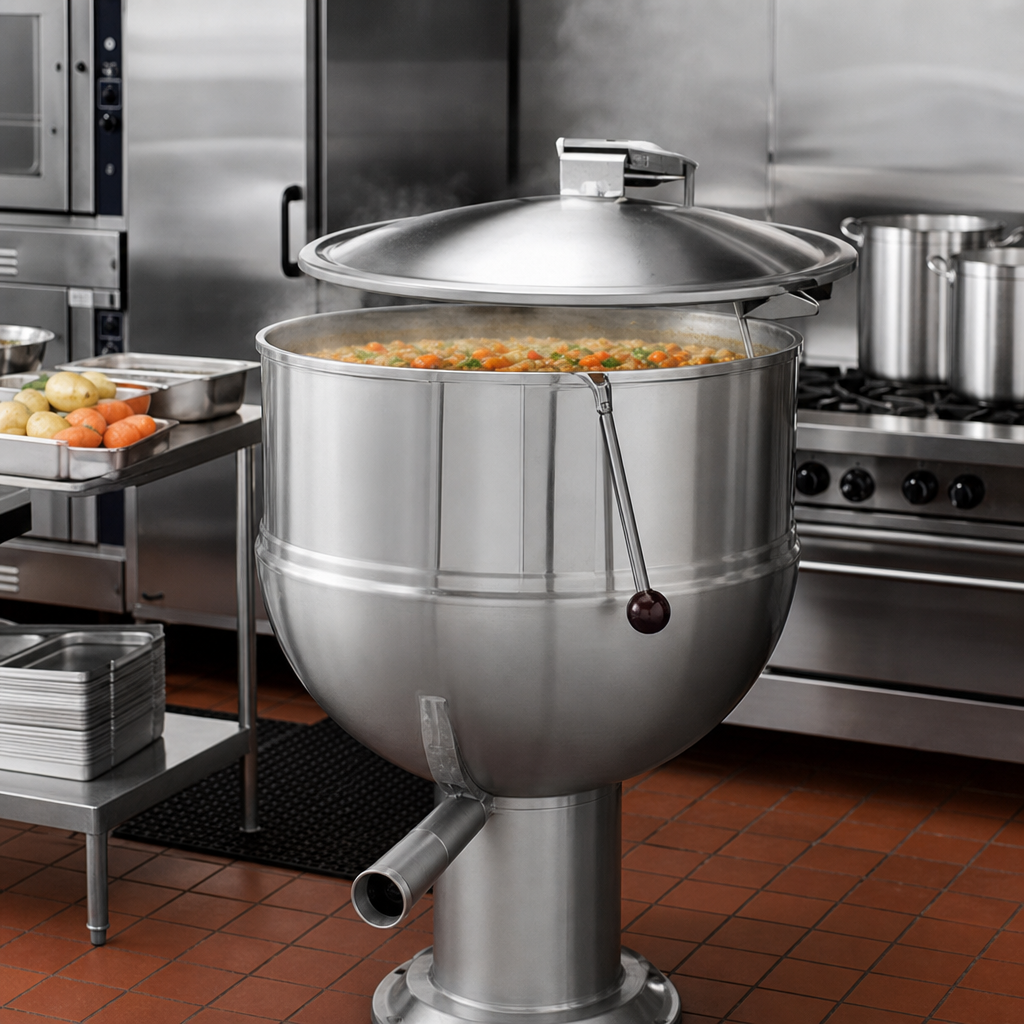

- 80 gal (302 L) batch capacity handles soups, sauces, chili, pasta, stocks and more.

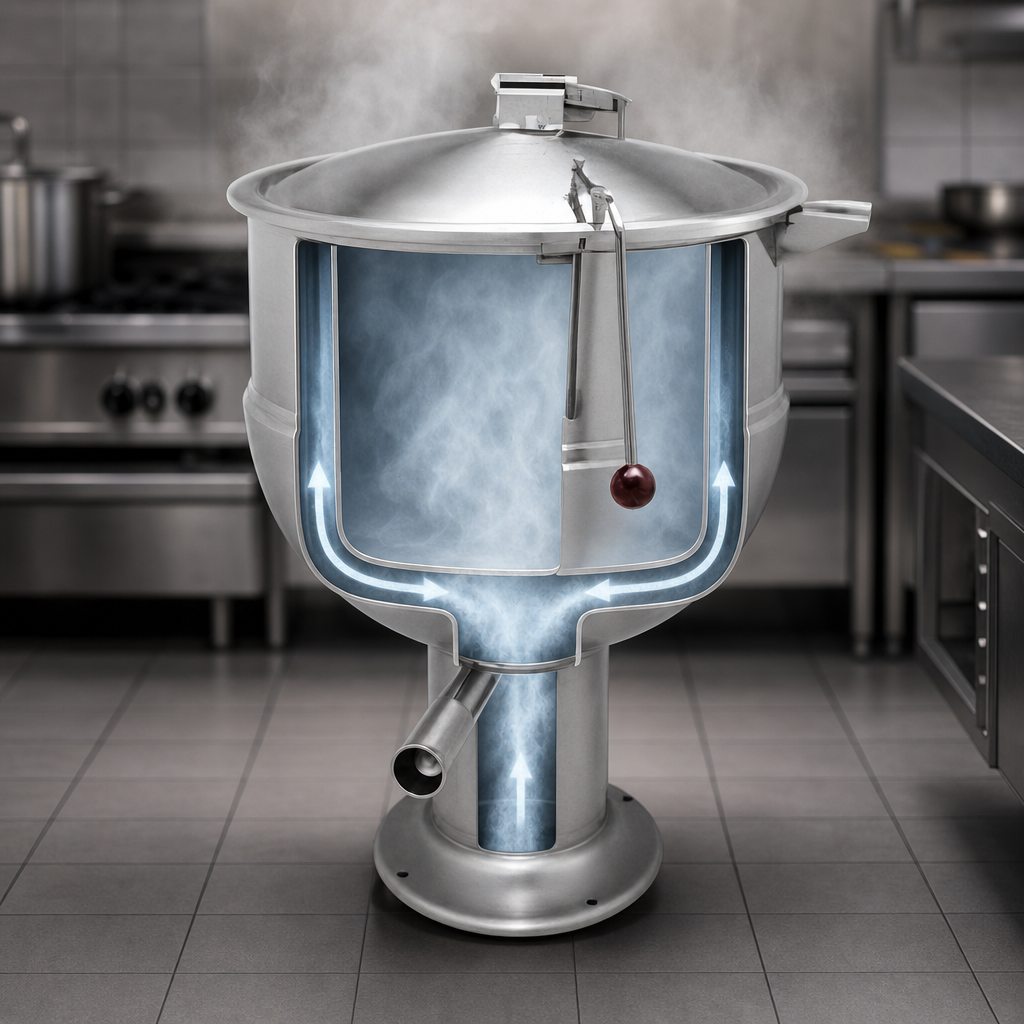

- 2⁄3-jacketed kettle wall surrounds product with gentle, uniform heat – no hot spots.
- Rugged 316 stainless steel liner resists pitting and corrosion from salt or tomato-based foods.
- ASME-stamped for up to 25 PSI; operates dependably from 5 – 25 PSI.
- Power-Aid™ counterbalanced cover (Model 51) lets one operator open or close the lid effortlessly and park it at any angle.
- 2 in. sanitary tangent drawoff valve with removable 1⁄4 in. perforated strainer speeds product transfer and clean-out.
- One-piece welded pedestal base anchors solidly to the floor for maximum stability and safety.
- Interior 180-grit polish and high-buff exterior slash cleanup time and maintain a showroom shine.
- NSF-listed, Made-in-USA quality backed by Groen’s nationwide service network and warranty.
Perfect for
- Central & commissary kitchens
- K-12 and college dining
- Correctional facilities
- Hotel, casino & resort production
- Soup and sauce processors
Technical specifications
| Model | PT-80 (Direct Steam) |
|---|---|
| Nominal capacity | 80 gal | 302 L |
| Jacket coverage | 2⁄3 of kettle body |
| Construction | 316 SS kettle & pedestal, one-piece welded |
| Working pressure | 25 PSI max (ASME stamped & NB registered) |
| Steam pressure range | 5 – 25 PSI |
| Cover | Stainless Power-Aid™ counterbalanced lid |
| Drawoff valve | 2 in. sanitary compression disc with 1⁄4 in. perforated strainer |
| Steam inlet | 1 in. NPT |
| Condensate outlet | 3⁄4 in. NPT |
| Overall height (lid closed) | ≈ 67 in. | 1702 mm |
| Outside diameter | 32 in. | 813 mm |
| Pedestal floor radius | 18 in. | 457 mm |
| Origin | Jackson, Mississippi, USA |
Dimensions are nominal and subject to change. Verify clearances with local code authorities before installation.
Factory-approved accessories (sold separately)
- Basket insert set (TRI-BC)
- Single or double pantry water faucet
- 3 in. tangent drawoff valve
- 1⁄8 in. perforated or solid disc strainer
- Cold-water jacket cooling kit
- Steam regulators & trap assemblies
- Contour measuring strip & gallon etch marks
- Kettle brush cleaning kit
Upgrade your production line with the Groen PT-80 — the industry benchmark for high-output, low-maintenance kettle cooking.
