Groen PT-40 Steam Kettles
Description

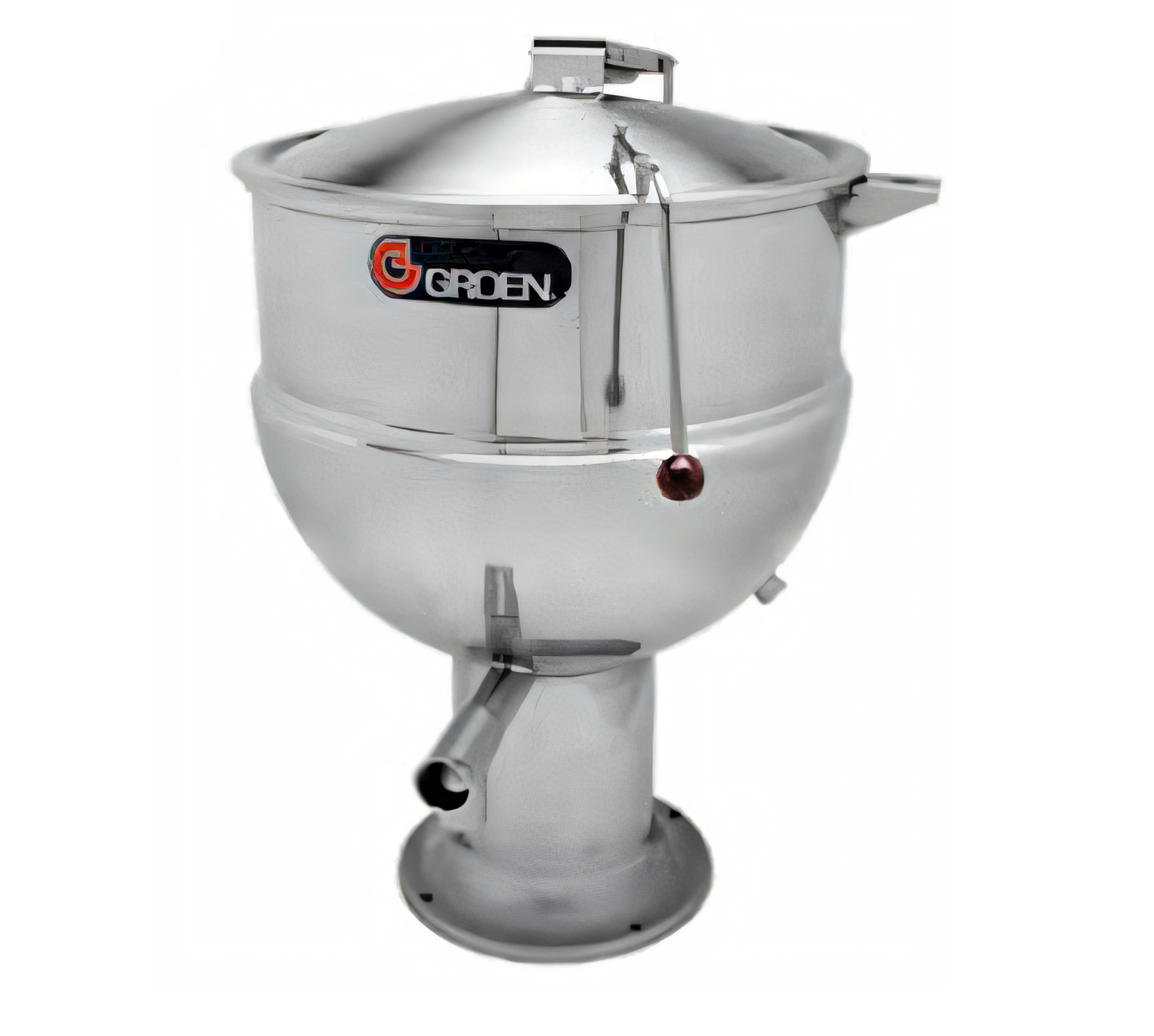

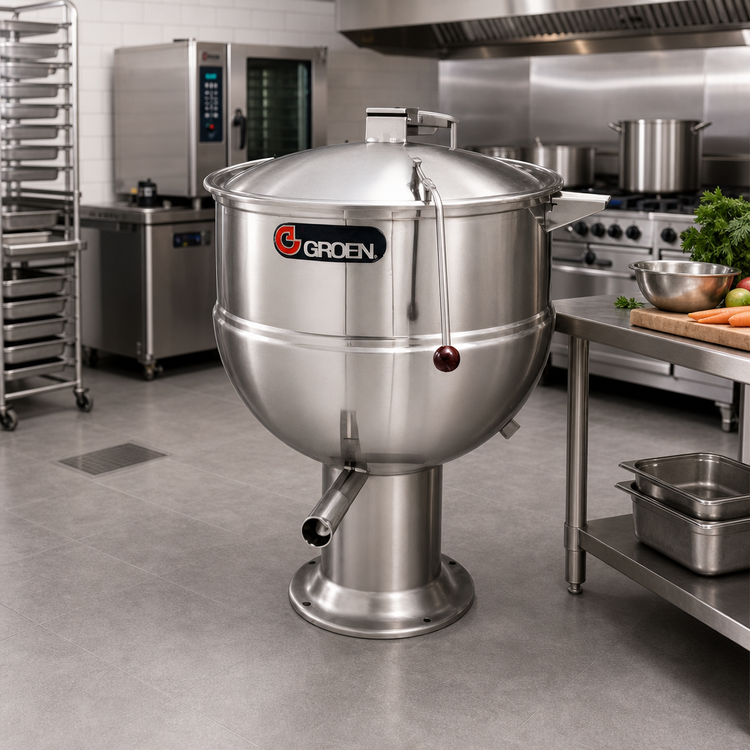

Groen PT-40 Direct Steam Kettle – 40 Gallon
2/3 Jacket | 316 Stainless | Pedestal Mount | 25 PSIEngineered for demanding commercial kitchens, the Groen PT-40 delivers rapid, even heating, effortless batch handling and legendary durability. This 40-gallon, 2/3-jacketed kettle is built entirely from 316 stainless steel, ASME-stamped to 25 PSI and NSF-listed for the ultimate in food-safety and corrosion resistance.
Why chefs choose the PT-40

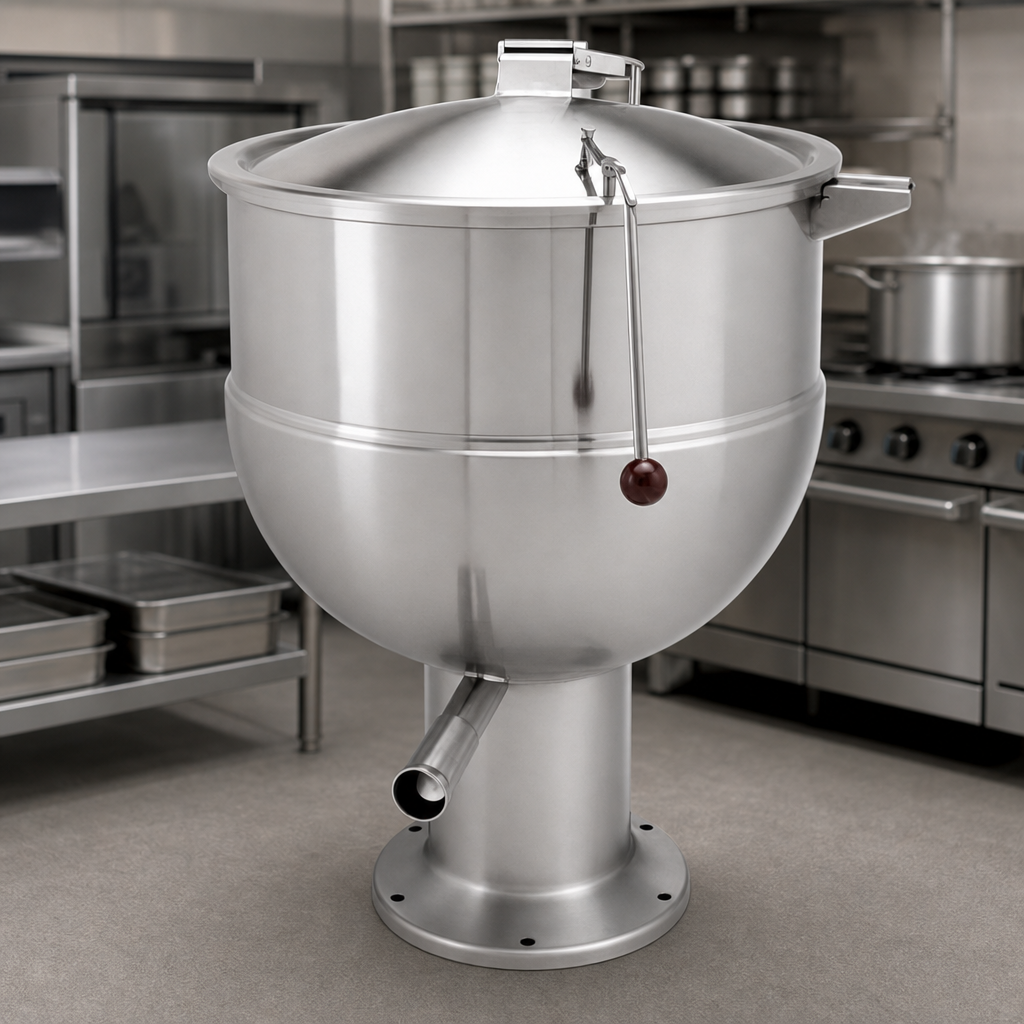

- 40 gal (151 L) capacity with fast recovery for stocks, sauces, soups and more.
- Type 316 stainless liner shrugs off acidic ingredients such as tomato or citrus.

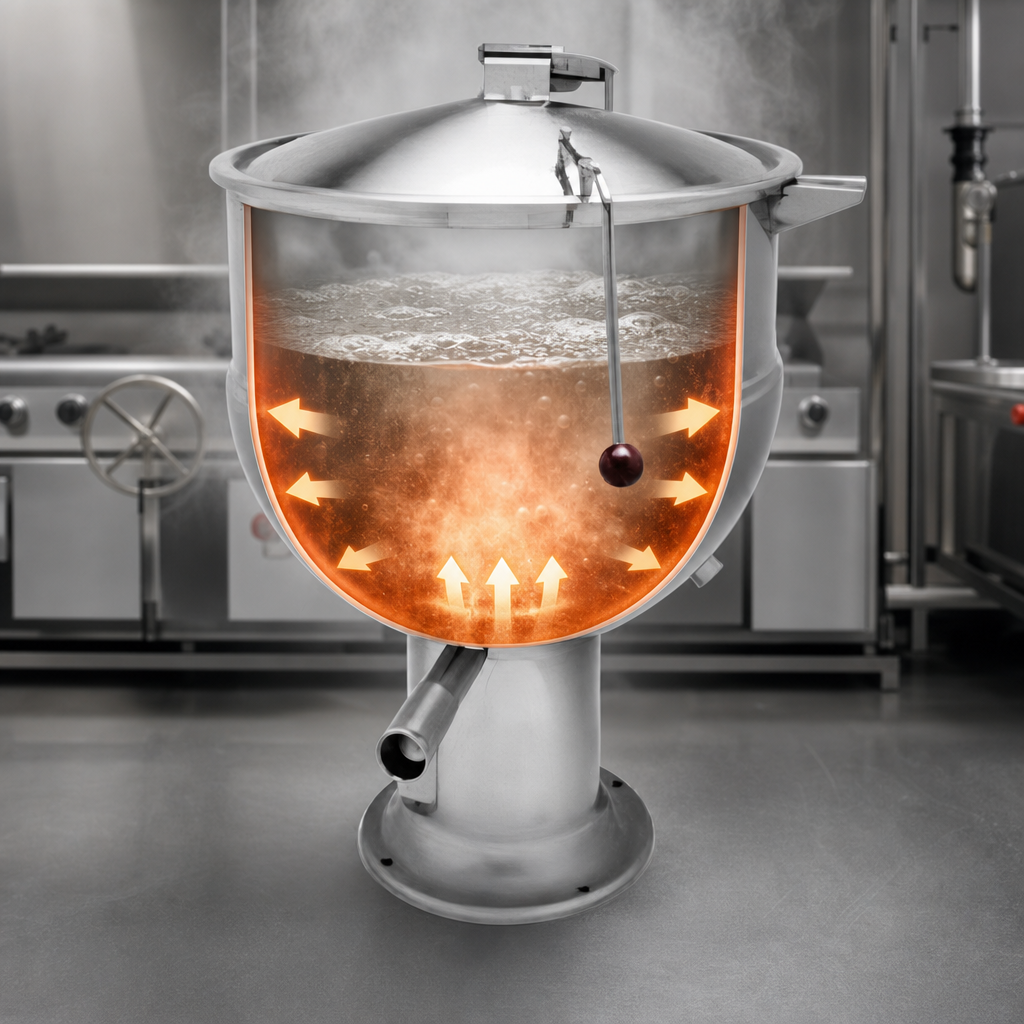

- 2/3 steam jacket surrounds sidewalls & bottom for uniform heat distribution.
- ASME shop-inspected, National Board-registered – safe from 5 to 25 PSI.
- Hinged, one-piece dome cover stays put in open or closed position.
- 2″ sanitary tangent drawoff valve with removable ¼″ perforated strainer speeds draining and cleanup.
- Rock-solid, all-stainless pedestal base bolts directly to the floor for a permanent, sanitary install.
- Mirror-polished exterior and 180-grit interior finish wipe clean in seconds.
- Factory-installed faucet bracket accommodates single or double pantry faucets (optional).
- Designed, manufactured and supported in the USA.
Technical specifications
| Manufacturer / Model | Groen PT-40 |
|---|---|
| Capacity | 40 gal (151 L) |
| Jacket Coverage | 2/3 (sidewalls & bottom) |
| Working Pressure | 5 – 25 PSI (ASME-stamped 25 PSI) |
| Liner Material | 316 Stainless Steel |
| Exterior Finish | High-buff stainless steel |
| Mounting | Stationary pedestal, floor-anchored |
| Steam Inlet | ¾″ NPT (remote steam source required) |
| Condensate Outlet | ½″ NPT |
| Draw-off Valve | 2″ sanitary compression disc, tangent |
| Strainer | ¼″ perforated stainless disc (removable) |
| Cover | Hinged, one-piece dome |
| Overall Height | ≈65″ (1651 mm) to safety valve |
| Width (rim) | ≈31 ¾″ (806 mm) |
| Depth (front-to-back) | ≈28″ (711 mm) |
| Certifications | NSF, ASME, National Board |
Installation requirements
- Remote steam supply delivering 5 – 25 PSI.
- Steam trap assembly (not included).
- Secure floor anchoring with four 9⁄16″ bolts (holes provided in pedestal flange).
- Floor sink or suitable drain 4-5″ below 2″ drawoff outlet.
Popular options & accessories
- Basket inserts (TRI-BC)
- Single or double pantry water faucets
- 3″ tangent drawoff valve
- Solid, ⅛″ or additional ¼″ perforated disc strainers
- Cold-water jacket cooling kit
- Steam regulators & steam trap assemblies
- Contour measuring strip & gallon etch marks
- Kettle brush cleaning kit
- Higher working-pressure ratings
Warranty
One-year limited parts & labor warranty (2,000 operating hours) included. Extended coverage available at time of purchase.
