Description

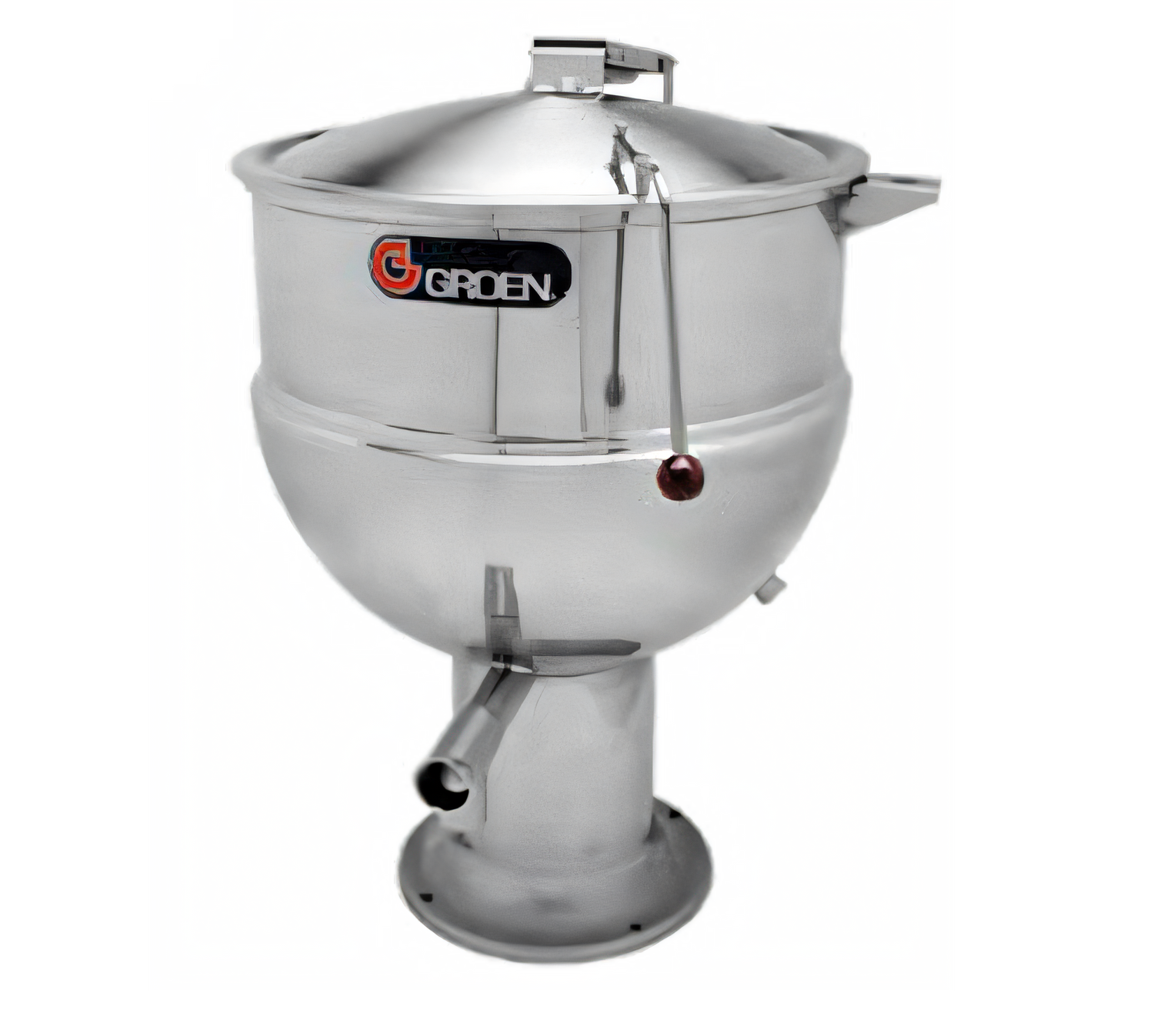

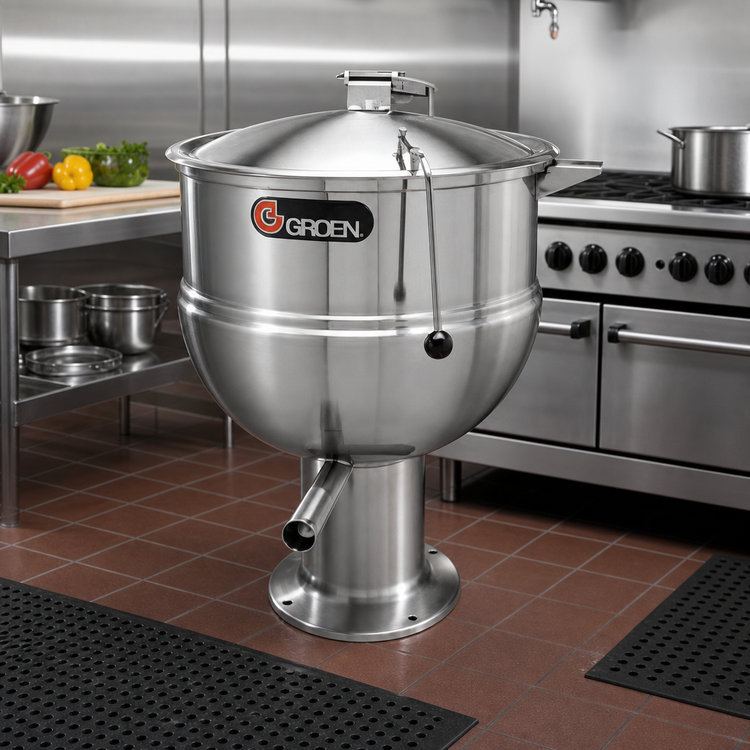

Groen PT-20 Direct-Steam Jacketed Kettle – 20 gal

316 stainless steel • pedestal mounted • 25 PSI

Built for speed, safety and sanitation, the PT-20 brings Groen’s legendary reliability to small-batch production. Its 2⁄3 steam jacket heats evenly from 5–25 PSI, giving you rapid heat-up and gentle, consistent cooking for soups, sauces, custards and more.

Key Features
  • 20-gallon (76 L) capacity — yields up to 320 eight-ounce servings per batch.

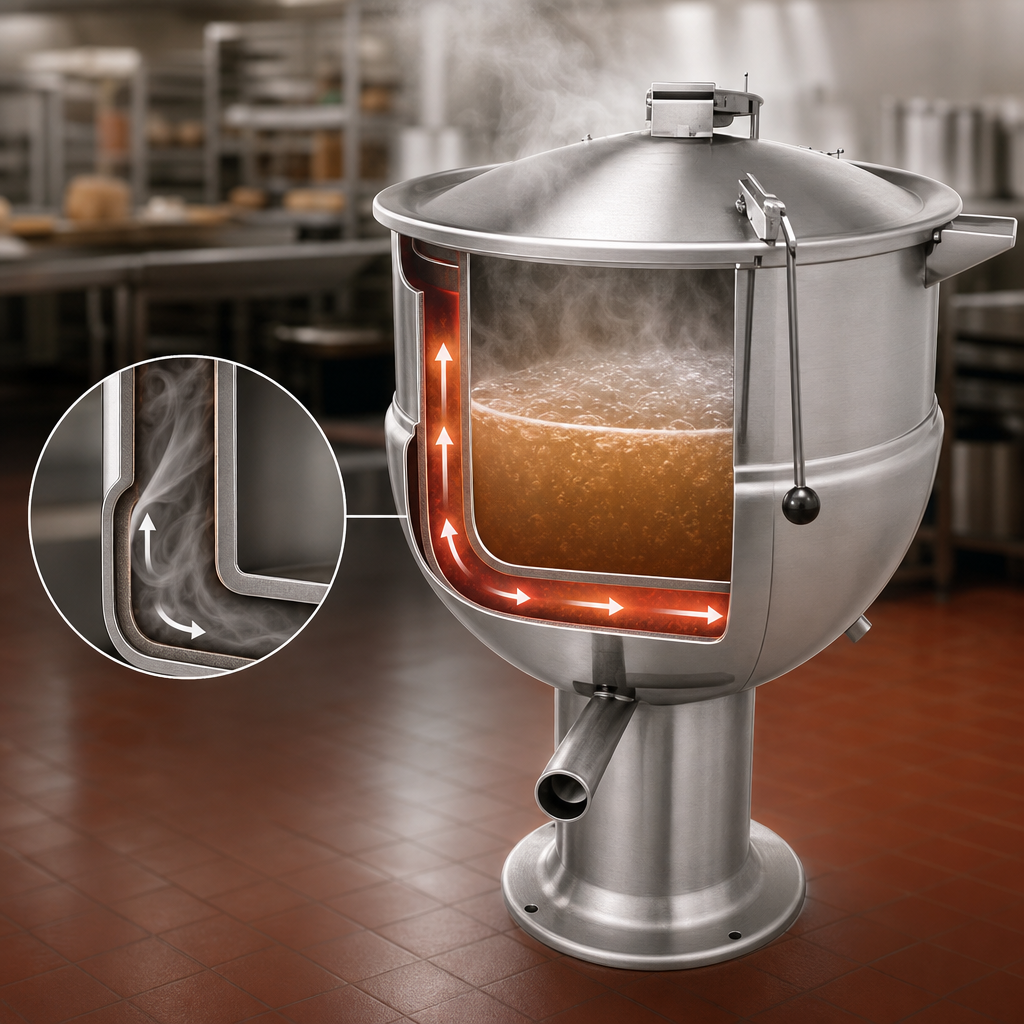

  • Direct steam operation handles 5–25 PSI for lightning-fast recovery.
  • Type 316 stainless steel liner resists acids & chlorides better than 304.

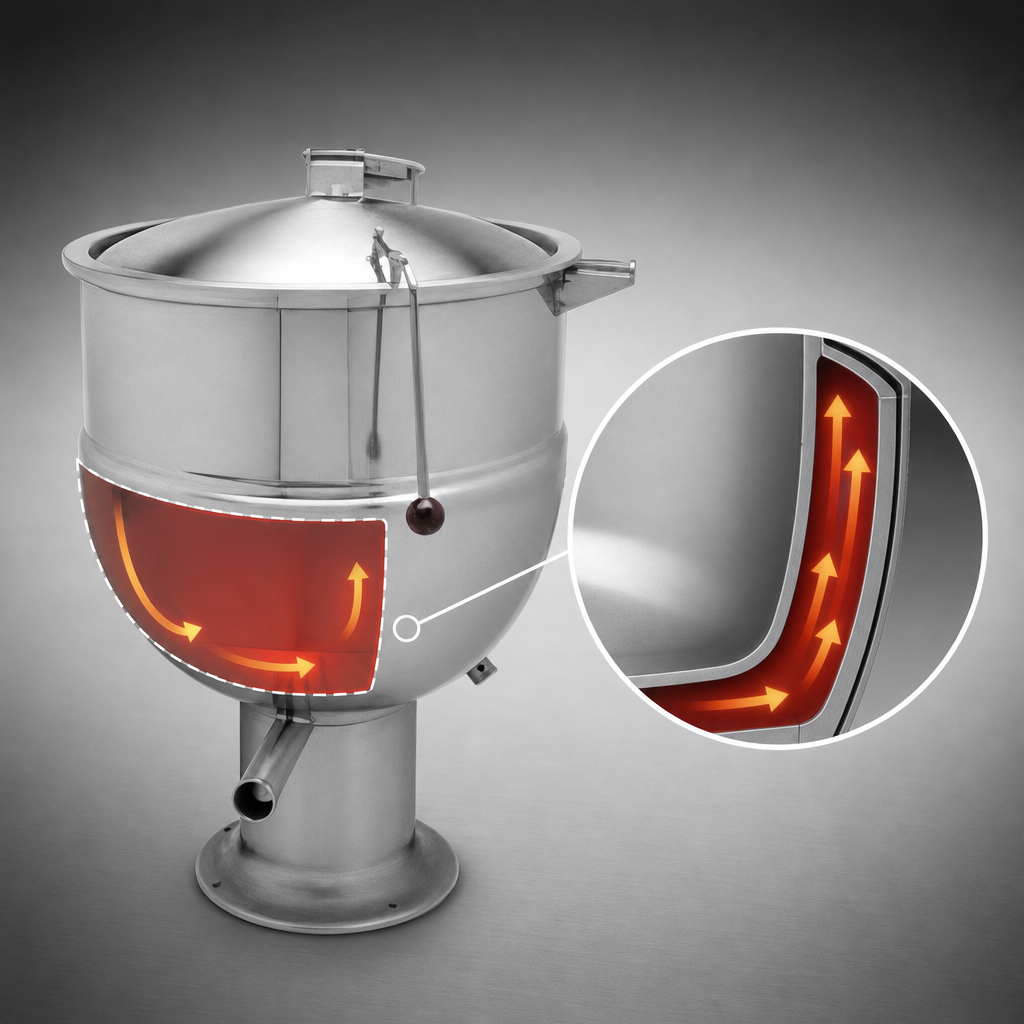

  • 2⁄3 jacket coverage eliminates hot spots for uniform cooking.
  • Heavy-duty pedestal base with one-piece welded construction anchors securely to the floor.
  • 2" sanitary tangent drawoff valve with removable ¼" perforated stainless strainer.
  • One-piece hinged dome cover—easy one-hand operation on 20-gal models.
  • Smooth 180-grit interior polish & high-buff exterior for effortless cleanup.
  • Integrated faucet bracket—ready for optional rinse/fill faucet.
  • ASME code stamped, National Board registered & NSF listed.
  • Proudly designed and manufactured in the USA.
What’s Included
  • PT-20 kettle with stainless pedestal base
  • Hinged stainless steel cover
  • 2" compression-disc drawoff valve
  • Removable ¼" perforated strainer plate
Specifications
Capacity 20 gal / 76 L
Steam Source External boiler (customer supplied)
Operating Pressure 5–25 PSI (172 kPa)
Jacket Coverage Two-thirds of kettle body
Construction 316 SS liner, 304 SS exterior & pedestal
Drawoff Valve 2" tangent, 316 SS, with ¼" perforated strainer
Cover One-piece hinged stainless steel dome
Interior Finish 180-grit polish
Exterior Finish Bright high-buff polish
Overall Height 59" (1 499 mm)
Diameter 20" (508 mm)
Steam Inlet ½" NPT
Condensate Outlet ½" NPT
Approvals ASME, NSF
Origin Jackson, MS USA
Popular Options & Accessories (sold separately)
  • Single or double pantry water faucet
  • Basket inserts (TRI-BC)
  • 3" tangent drawoff valve
  • Cold-water jacket cooling kit
  • Steam trap assembly & steam regulator
  • Gallon etch marks & contour measuring strip
  • Kettle brush cleaning kit
Installation note: A live steam supply and steam trap assembly are required (not included). Kettle must be securely floor-anchored and positioned 4–5" over a floor sink for proper drainage.

Backed by Groen’s 1-year parts & labor limited warranty. Extended coverage available at time of purchase.

Features & Specs

Manufacturer

Groen

Height

36.0in

Width

22.0in

Depth

26.25in

Shipping Weight

170.0lbs

Kettle Jacket

partial jacket

Base

pedestal base

Capacity

18 - 26 gallon

Kettle Liner

316 stainless steel

Specifications

Kettle, direct steam, 20-gallon capacity, 2/3 jacket, 316 stainless steel liner, 2" TDO, 1/4" perforated strainer, pedestal base, stainless steel construction, hinged cover, 25 PSI
